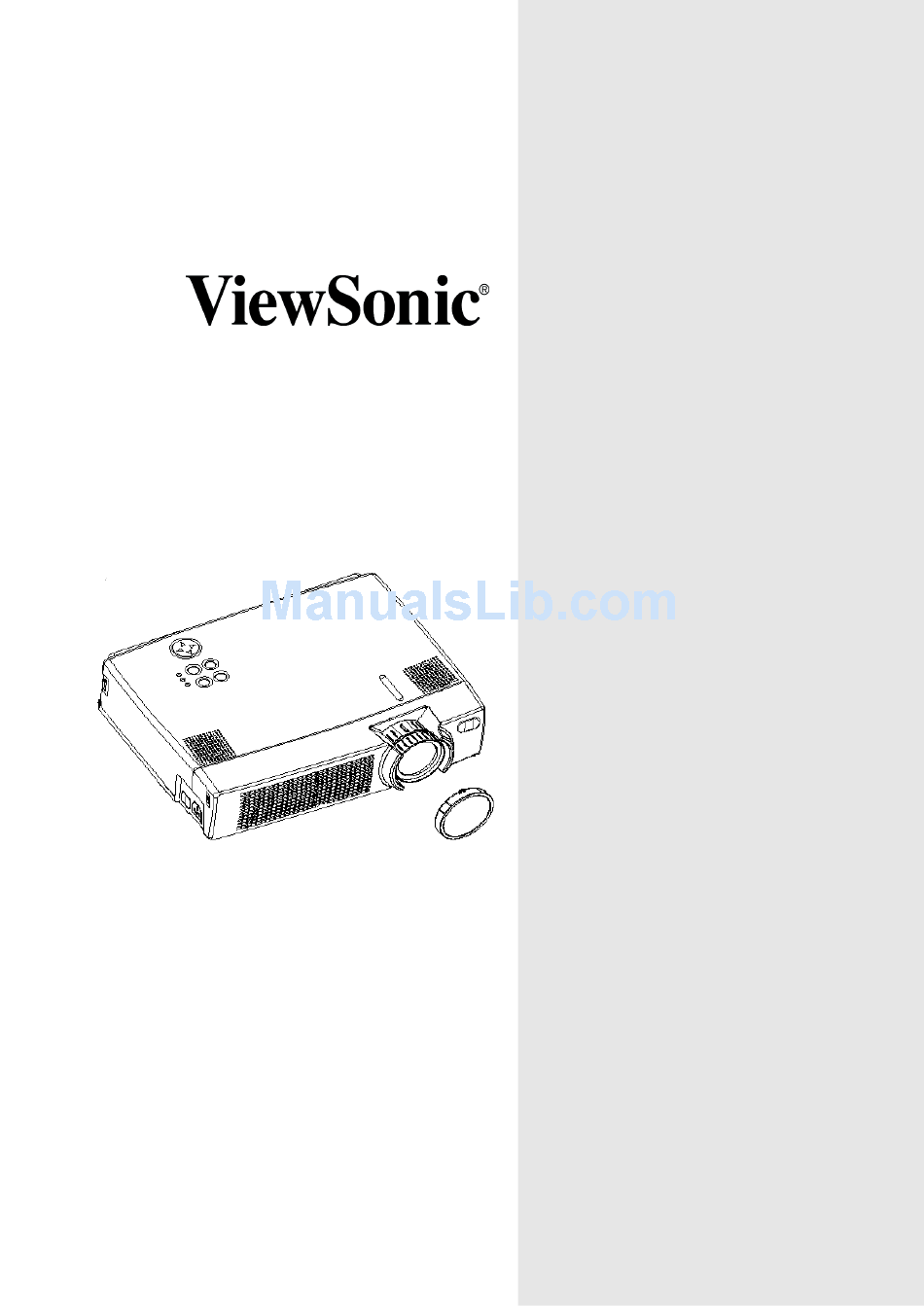

PJ750 User Guide Guide de l’utilisateur Bedlenungsanleltung Guía del usuario Guida Dell’utente Användarhandbok Käyttöopas 使用者指南 使用者指南 使用者指南 使用者指南 使用者指南 使用者指南 使用者指南 使用者指南 Image Size 31” – 300” LCD Projector... -
Page 2: Table Of Contents
OSD Message ... 20 Indicator Message ... 21 Symptom... 22 Specifications... 23 Customer Support... 24 LIMITED WARRANTY VIEWSONIC Projector ... 25 Appendix Power Cord Safety Guidelines... 26 FCC Information ... 27 Compliance Information for Canada ... 27 Compliance Information for European Countries... 27 User Information for All Countries... -
Page 3: For Your Records
Image Optimization files are also available free of charge at our web site. Go to www.viewsonic.com and select “Support.” If you do not have access to the internet or if you require further assistance, contact "Customer Support" on page 24. -
Page 4: Features
Make sure all of the following items are included in the package. If anything is missing, please con- tact your dealer. Keep the original packing material for future shipment. NOTE: Projector Quick Start Guide Carrying Case ViewSonic PJ750 Power Cord Power Cord (UK) (US) RGB Cable Component... -
Page 5: Part Names
Part Names ViewSonic PJ750... - Page 6 • Be sure to protect the remote control device against humidity and do not put it on wet objects. • Do not leave the remote control device close to the cooling fan outlet of the projector. • Do not attempt to disassemble the remote control device. ViewSonic PJ750 BLANK Button LASER Button...
-
Page 7: Inserting The Batteries
Make sure the handle is attached before carrying the projector by the handle. If the projector is dropped from the handle, this may result in an injury and any continued use may result in fire or electric shock. ViewSonic PJ750... -
Page 8: Installation
CAUTION • Do not release the foot adjuster button unless you hold the projector, or else the projector may overturn or the fingers may get caught. ViewSonic PJ750 a [inches (m)] Max. 82 (2.1) 123 (3.1) -
Page 9: Cabling
Optional RS-232C mouse cable Optional USB cable Optional S-video cable with mini DIN 4-pin jack Optional video/audio cable Accessory component video cable Optional video/audio cable or optional audio cable with RCA jack Optional audio cable with stereo mini-jack Cable ViewSonic PJ750... -
Page 10: Power Connection
• This projector is recognized as a Plug & Play monitor. Use the standard display drivers. • Plug & Play may not function properly with the computer to be connected. Use the RGB IN 2 terminal if Plug & Play does not function correctly. ViewSonic PJ750 Power outlet... -
Page 11: Operations
Providing a RS-232C cable is connected, turn on the computer before switching on the projector. • If the projector continues projecting the same image, the image may remain as an after-image. Do not project the same image for a long time. STANDBY/ON Button ZOOM Knob FOCUS Ring Lens cap STANDBY/ ON Button ViewSonic PJ750... -
Page 12: Basic Operation
• Use the remote control device at a distance of approximately 5 m from the sensor on the NOTE: front of the projector, and within a range of 30 °left-right. Strong light and obstacles will interfere with the operation of the remote control device. ViewSonic PJ750 Table 3: Basic Operation Description COMPONENT VIDEO (... - Page 13 • The MENU SELECT button may operate as the mouse control button. Refer to SELECT page 4. Normal menu KEYSTONE Set / Clear KEYSTONE Mode: Press the KEYSTONE Adjust KEYSTONE: Press the Table 3: Basic Operation (continued) Description (MENU SELECT) button. button. buttons as with Single menu button. ViewSonic PJ750...
-
Page 14: Setup Menu
Center • 4:3 small cannot be selected with the input of 720P or 1080i component. • 4:3 small may not be displayed correctly with some input signals. ViewSonic PJ750 VIDEO/S-VIDEO Table 4: Setup Menu Description Light Strong Right... -
Page 15: Input Menu
•If the selected HDTV mode is incompatible with the input signal, the image may be incorrect (e.g. the display position or color is incorrect). buttons, and start or stop operation Table 5: Input Menu Description button. button. button. buttons. ViewSonic PJ750... -
Page 16: Image Menu
Select Gamma Mode: Select the gamma mode with the GAMMA NORMAL Select Color Temperature: COLOR TEMP Select the color temperature mode with the NORMAL ViewSonic PJ750 buttons, and start or buttons. Table 6: Image Menu Description CINEMA DYNAMIC button. -
Page 17: Options Menu
Table 7: Options Menu Description Increase buttons. buttons. buttons. The system button. When STOP is button. button. button. When WHISPER is ViewSonic PJ750... -
Page 18: No Signal Menu
Set / Clear WHISPER Mode: Press the WHISPER selected, the WHISPER mode is active. In the WHISPER mode, acoustic noise level from the unit is reduced, and brightness level on the screen is a little lower. ViewSonic PJ750 Table 8: No Signal Menu Description Increase button. -
Page 19: Maintenance
• The LAMP indicator is also red when the lamp unit reaches high temperature. Before NOTE: replacing the lamp, switch power OFF, wait approximately 20 minutes, and switch power ON again. If the LAMP indicator is still red, replace the lamp. HIGH VOLTAGE HIGH TEMPERATURE HIGH PRESSURE Lamp Reflector Front glass ViewSonic PJ750... -
Page 20: Replacing The Lamp
• Do not reset the lamp timer without replacing the lamp. Reset the lamp timer always when NOTE: replacing the lamp. The message functions will not operate properly if the lamp timer is not reset correctly. ViewSonic PJ750 0 ■ CANCEL’ message will... -
Page 21: Air Filters
Air Filters Cleaning Air Filters The air filter should be cleaned as described below at an interval of approximately 300 hours. Switch the projector power supply OFF, and remove the power cord from the power outlet. Clean the air filter with a vacuum cleaner. -
Page 22: Troubleshooting
2000 hr. However the life of lamp might be much different among lamps, so that it might happen that a lamp is cut off before the function is active. ViewSonic PJ750 Table 9: OSD Message The usage time of lamp will be reaching 2000 hr shortly (*2). -
Page 23: Indicator Message
ON again. Contact your dealer if the same problem occurs again. The interior of the equipment is too cool. Check whether the ambient temperature is below 0°C. Contact you dealer if the same problem occurs when the ambient temperature is 0~35 °C. Contents ViewSonic PJ750... -
Page 24: Symptom
WHISPER mode is set. Focus or H PHASE is out Video is blurred. of adjustment. ViewSonic PJ750 Table 11: Symptom Possible cause Turn on the main power switch. Plug the power cord into an AC power outlet. -
Page 25: Specifications
H/V. sync.: TTL level (positive/negative) Composite sync.: TTL level D-sub 15-pin jack 200m Vrms, output impedance 1 k (max. 3.0Vp-p) Stereo mini jack D-sub 15-pin shrink plug USB jack (B type) Lamp: PRJ-RLC-001 Specification terminator (positive) terminator terminator output impedance (positive) ViewSonic PJ750... -
Page 26: Customer Support
United Kingdom Europe, Middle East, Baltic countries, and North Africa Australia and New Zealand Singapore/India and Southeast Asia Other Asia/Pacific countries South Africa ViewSonic PJ750 Web site T = Telephone F = FAX viewsonic.com/support T: (800) 688-6688 F: (909) 468-1202 viewsonic.com/support... -
Page 27: Limited Warranty
How long the warranty is effective: ViewSonic projectors are warranted for two (2) years for all parts excluding the lamp, two (2) years for all labor, and ninety (90) days for the lamp from the date of the first consumer purchase. -
Page 28: Appendix
HAR-Certified, and a special mark that will appear on the outer sheath, or on the insulation of one of the inner conductors. If you have any questions concerning which proper power cord to use, please consult with the dealer from whom you have purchased the product. ViewSonic PJ750 Switzerland ...SEV Britain...BASE/BS Japan ...Electric Appliance Control Act... -
Page 29: Fcc Information
