Installing the Switch Chassis

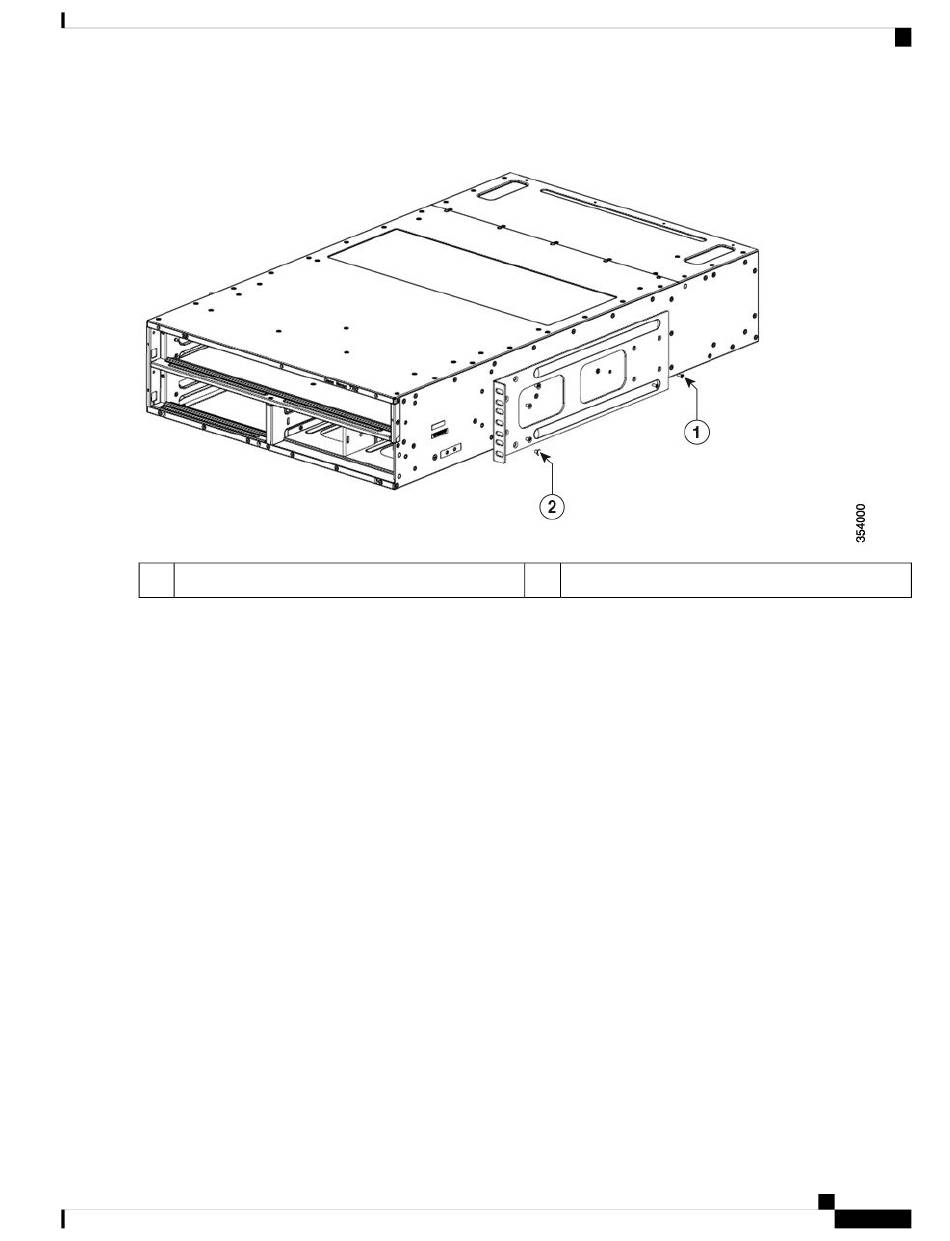

Figure 1: Moving a Chassis onto a Rack or Cabinet
1 Total of four M3 screws (for brackets on both sides).
Step 4 Push the chassis all the way onto the rack so that the vertical mounting brackets on the chassis come in contact with the
vertical mounting rails on the rack.
Step 5 Use 2 center mount-brackets with eight M4 screws and two M3 screws to attach each of the two vertical mounting brackets
on the chassis to the two vertical mounting rails on the rack. It is recommended to use a minimum of 8 screws (user
preference from the accessory kit) on the front of the chassis to secure the chassis to the 2-post rack.
Installing the Chassis in a Two-Post Rack
2 Total of eight M4 screws (for brackets on both sides).
Installing the Switch Chassis
