315-508

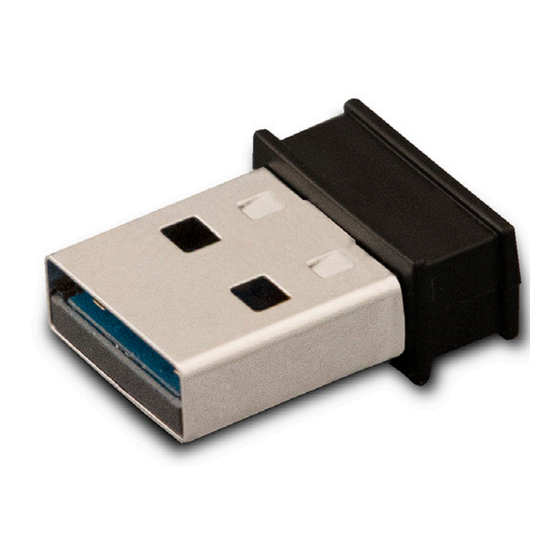

Honeywell Bluetooth USB Dongle is an elegant Bluetooth
Low Energy (BLE) product that is used for seamlessly
interfacing with the Morley STX and SMX fire panel models.
The Honeywell Bluetooth Dongle (HONBLEKIT2)
is a plug and play module that enables wireless
communication between the panel and the Honeywell
SmartConfig™ mobile application for simple, smart and
secure commissioning and maintenance operations.
The HONBLEKIT2 is compatible with
SmartConfig version 2.0.0.0 onwards.
Honeywell Bluetooth Dongle Specification:
CONTAINS BLUETOOTH 4.0 QUALIFIED SINGLE-MODE MODULE
VBUS
Operating Temperature Range
TX current consumption (radio only, 0dBm) 12.1 mA
RX current consumption (Radio only)
TX output power
Approvals/ Certifications
F E AT U R E S :
Following are the features of Honeywell wireless commissioning:
• Provides seamless wireless low power Bluetooth Connectivity to Morley STX and SMX fire panel models
• Eases the panel commissioning and maintenance operations through Honeywell SmartConfig™ Mobile app
• Enables productivity through a simple interface
• Eliminates the need to carry laptops, cables and so on to the site for configuration
Fire Panel Commissioning
Bluetooth Dongle
-0.3 to 6.5 V
-40 to +85°C
33 mA
44 mA
WPC, FCC
Honeywell Bluetooth Dongle (HONBLEKIT2)
FCC Statement:
Contains FCC ID: QOQBLED112
This HONBLEKIT2 complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
• This device may not cause harmful interference
• This device must accept any interference received
CAUTION: Changes or modifications not expressly
approved by the manufacturer could void the
authority of the user to operate the equipment.
