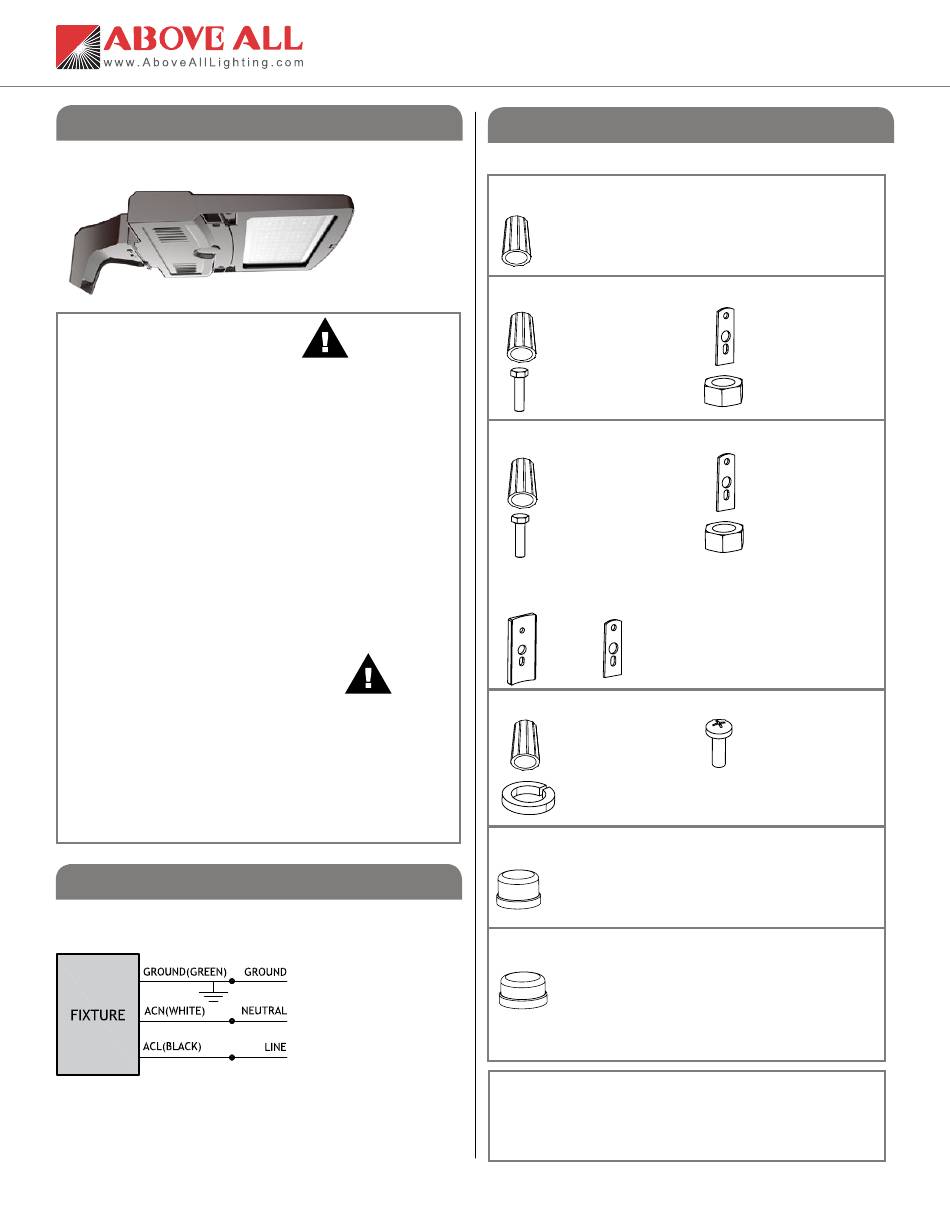

Above All SMT Series Instruction Manual

SUITABLE FOR MODEL
SAFETY INSTRUCTION
READ CAREFULLY BEFORE INSTALLING FIXTURE.
PLEASE KEEP THIS MANUAL FOR FUTURE USE.
Fixtures must be wired in accordance with the National
Electrical Code and all applicable local codes. Proper
grounding is required for safety.
THIS PRODUCT MUST BE INSTALLED IN
ACCORDANCE WITH THE APPLICATION CODE BY
A PERSON FAMILIAR WITH THE CONSTRUCTION
AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
MAKE CERTAIN POWER IS OFF BEFORE
INSTALLING OR MAINTAINING FIXTURE.
CHECK THAT VOLTAGE IS COMPATIBLE WITH
FIXTURE DRIVER. USE APPROVED CONNECTORS
FOR ALL ELECTRICAL CONNECTIONS.
MAINTENANCE CAUTION
1. Review the wire connection before beginning, and
make sure fixture is grounded properly.
2. For lighting controls, follow control instructions
carefully.
3. Turn power off and wait for fixture to cool before
performing maintenance.
4. Maintenance must be done by professionals.
WIRE CONNECTION
Universal Voltage 40W, 60W, 80W permits operation at
120VAC thru 277VAC or 347VAC or 480VAC, 50 or 60 Hz.
Make the following Electrical Connection:
a). Connect the voltage supply line to ACL in Black.
b). Connect the voltage supply Neutral to ACN in White.
c). Connect Green ground lead to the supply ground lead.
Add: 1501 Industrial Way N, Toms River, NJ 08755 Phone: 866-222-8866 E-mail: info@abovealllighting.com
Web: www.AboveAllLighting.com ©2016 ABOVE ALL Lighting, Inc. All rights reserved
SMT LED AREA LIGHT
Instructions Manual
INSTALLATION
ACCESSORY PACK
ACCESSORY PACK FOR SF AND TR
WIRE NUT X 3
ACCESSORY PACK FOR SAR
WIRE NUT X 3
SCREW M8*30 X 2
ACCESSORY PACK FOR RAR
WIRE NUT X 3
SCREW M8*30 X 2
ACCESSORY PACK SHIPPED SEPARATE WITH
SKU#90204
+
ACCESSORY PACK FOR WM
WIRE NUT X 3
SPRING WASHER M6 X 4
ACCESSORY PACK FOR PHOTOCELL
PHOTOCELL X 1
ACCESSORY PACK FOR 7 PIN
SHORTING CAP X 1
Note: If fxture is furnished with photocell receptacle,
please make sure install the photocell or shorting cap
WARNING
Risk of injury or damage. Make certain
power is OFF before installing or maintaining
fixture.
GASKET X 1
NUT M8 X 2
GASKET X 2
NUT M8 X 2
ROUND POLE
ADAPTER X 1
SCREW M6*18 X 4
1 1
