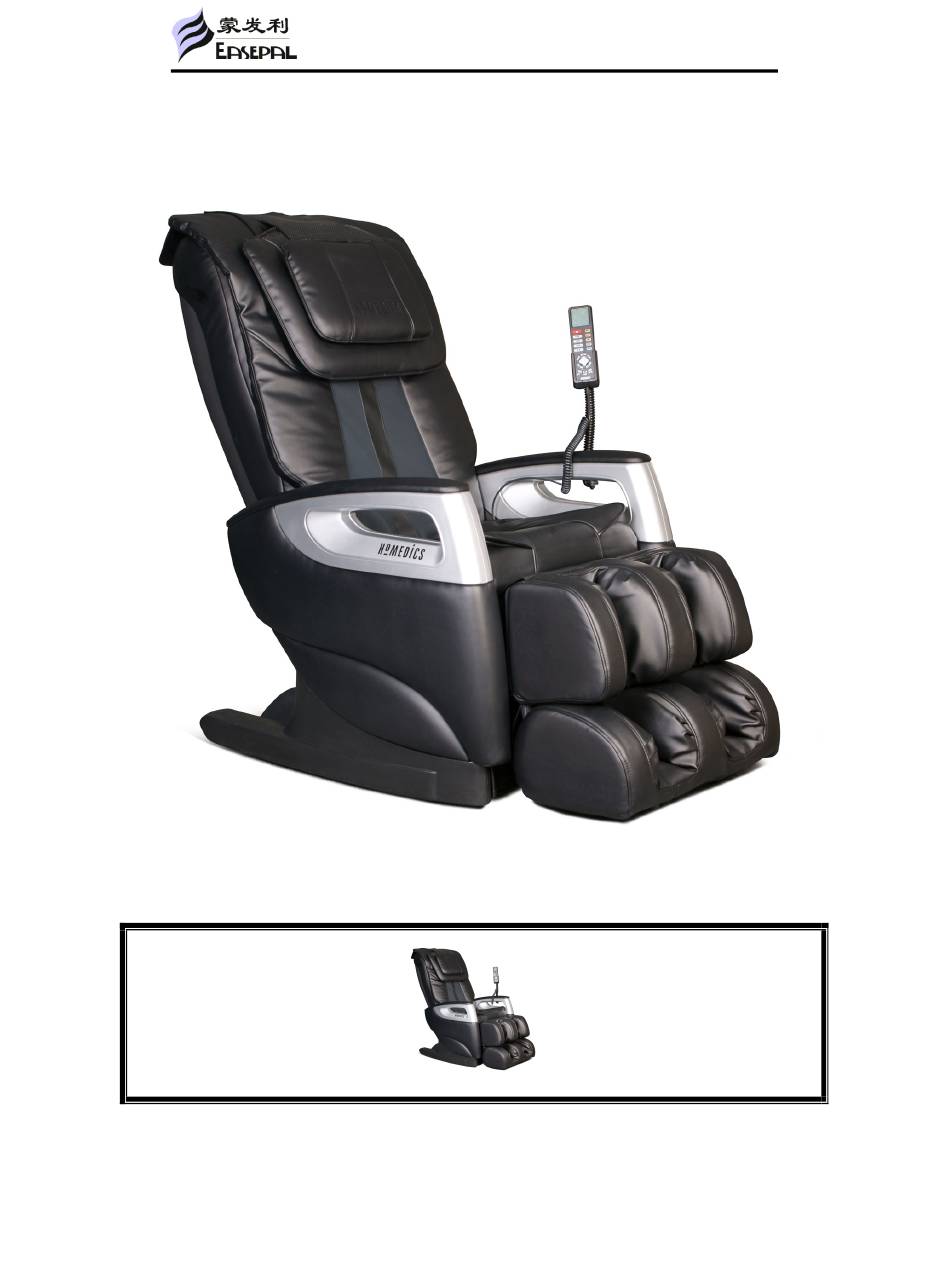

中国·厦门蒙发利科技集团有限公司 Xiamen Comfort Science &Technology GROUP Co., Ltd Maintenance Service Manual MODEL: EC-362R By Customer Service Department...
Page 2
中国·厦门蒙发利科技集团有限公司 Xiamen Comfort Science &Technology GROUP Co., Ltd C:Cut the cable ties and peel the tube, then find the socket of jacks of the kneading motor. The socket of jacks D:Take the socket of jacks and disconnect the wire of kneading motor. E:Take off the screws and then we can take the kneading motor away F:Get a new kneading motor and fix it to the frame.
Page 3
中国·厦门蒙发利科技集团有限公司 Xiamen Comfort Science &Technology GROUP Co., Ltd B:Turn on the chair, and let the massage mechanism move to the middle of the backrest. C:Take off the kneading belt. D:Cut the cable ties and peel the tube, E:Cut the cable ties then disconnect the connecter on the width inspection board. F:Take off the four screws which fix the massage mechanism.
