Calispace Ocean 80 – assembly instructions
Preparation:
Lay out a sufficiently large area with cardboard (the telescopic rails are greased).

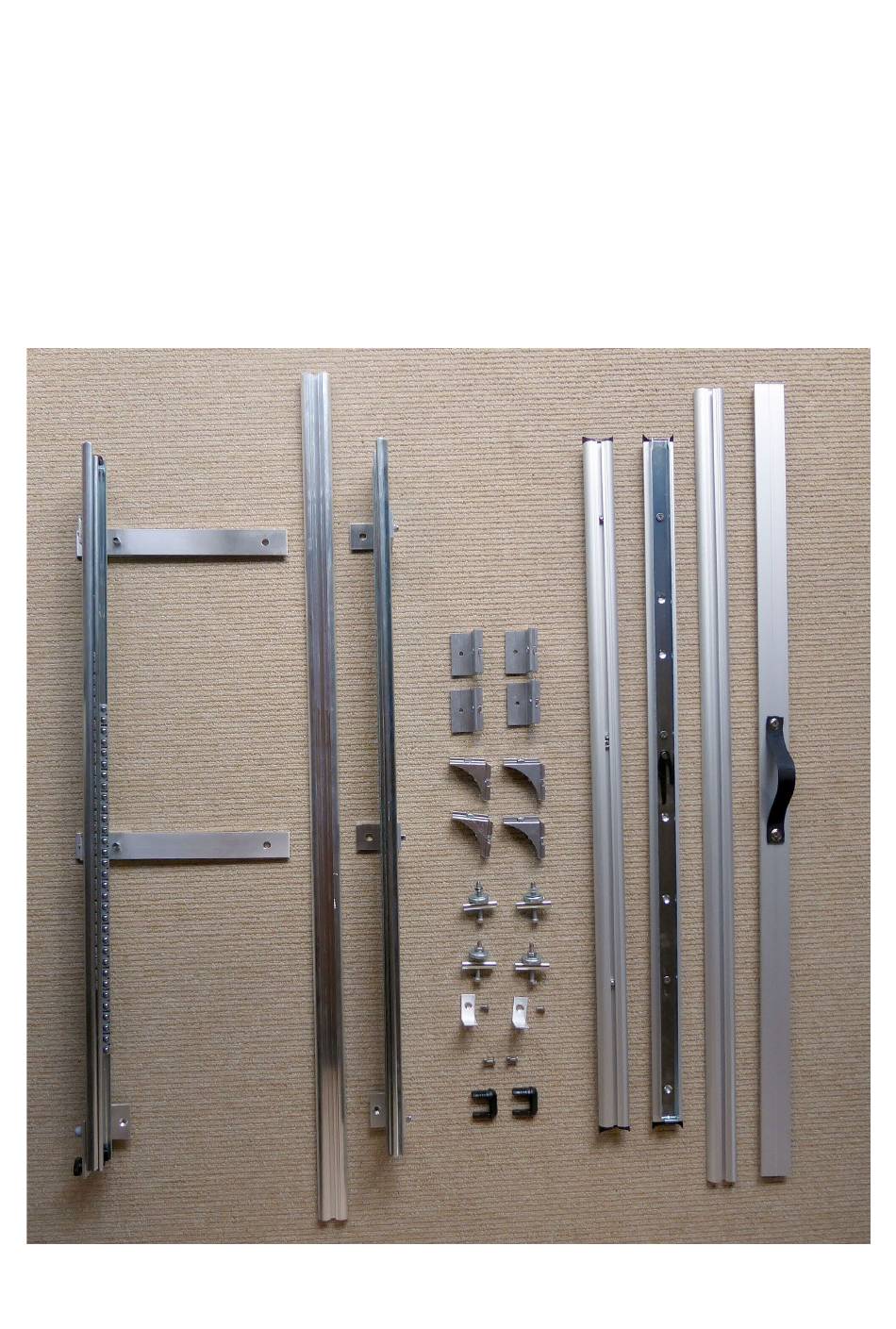

Place the components as shown in the picture.
Tools:
Angle screwdriver, hexagon, 4 mm (Allen wrench, IKEA key)
•
Slot and Phillips screwdrivers
•
Wrench (10 pieces)
•
folding rule
•
2
2
1
1
1
2
9
10
11
3
6
7
8
4
5
Advertisement
Summary of Contents for Calitop Calispace Ocean 80
- Page 1 Calispace Ocean 80 – assembly instructions Preparation: Lay out a sufficiently large area with cardboard (the telescopic rails are greased). Place the components as shown in the picture. Tools: Angle screwdriver, hexagon, 4 mm (Allen wrench, IKEA key) • Slot and Phillips screwdrivers •...
- Page 2 Components basic version Frame: schmales Systemprofil (Querverbindung hinten) Teleskopschienen mit vormontierten Winkeln (1x mit Federbolzen) Befestigungsschrauben für Bodenschiene Drawer: schmale Systemprofile mit montierter Schubladenschiene schmale, lange Systemprofile (1 x mit Griffschlaufe) kleine Winkel Senkkopfschrauben M5 x 10 Senkkopfschrauben M5 x 12 mit Vierkantmuttern Endkappen schwarz Verbindungswinkel für Schublade Befestigungsflansche für Schublade...
- Page 3 Drawer: The drawer consists of two short system profiles with mounted drawer slide rails and two long system profiles (one with handle loop). Note: Do not tilt profiles and connection angles No violence, it is only with feeling! Slightly loosen the screws of the connection bracket The upper edge of the picture is seen in the direction of travel in front Mounting steps: Arrange components...
- Page 4 Installation of the rear extension There are two ways to attach the telescopic rails to the floor rails: Installation variant A: Attach telescopic rails to the rear system profile (2) with countersunk screw (8) M5x12 • and square nut. The angles are flush with the profile. Insert the drawer into the telescopic rails.
- Page 5 General installation instructions: The drawer is unlocked on the The rear seat must be about Inserting the fixing screws sides (left and right opposite) 3-4 cm are advanced. Film and can therefore be pulled out completely. The nut bolt must be screwed hand-tight and the knurled nut screwed approx. 1 cm. The screw is then countersunk in the rail and placed in the left-hand position and pulled upwards.
