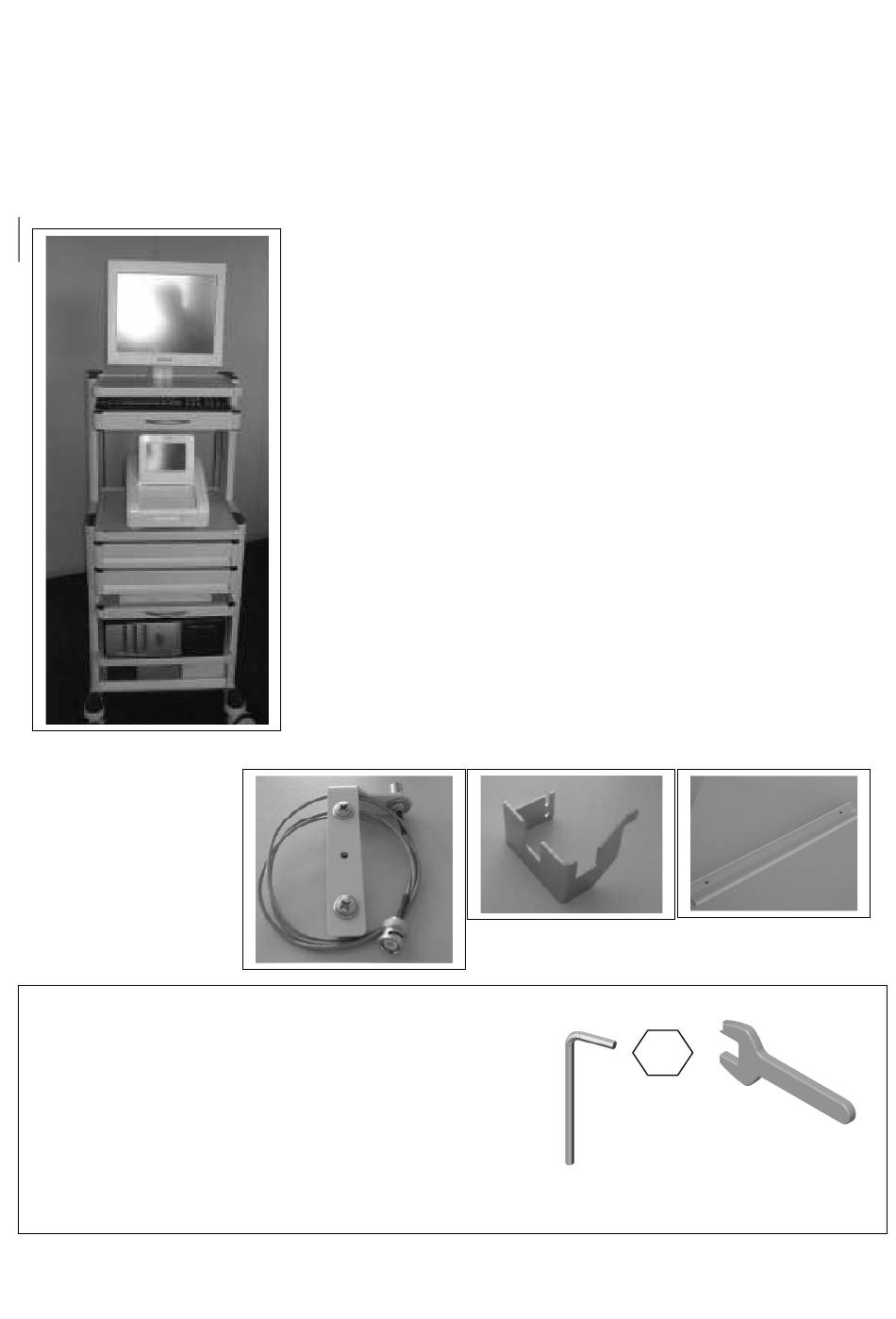

Installation Notes for
Philips M2740A #C05, FM20/30-System-Cart
Contents
Antenna Holder Kit
angle mounted
Screws :
M3,5x10 (4x) for Avalon CTS
M4x20 (4x) incl. washers for display
M4x16 (4x)
M12x30 (2x) incl. lock washer for monitor column
M4x10 (4x) bolts for FM20/30-monitor
M6x12 (4x) bolts for runner for Foot-Location
Caps for D6,5 mm (2x)
11.10.2007
Pull relief sheet
1/11
Pair of runners for Foot-Location
Attached tools
Size:
3
4
5
10
001 2007/409
MA0285.0
Advertisement
Summary of Contents for Philips M2740A C05
- Page 1 Installation Notes for Philips M2740A #C05, FM20/30-System-Cart Contents Antenna Holder Kit Pull relief sheet Pair of runners for Foot-Location angle mounted Screws : Attached tools M3,5x10 (4x) for Avalon CTS M4x20 (4x) incl. washers for display M4x16 (4x) Size: M12x30 (2x) incl. lock washer for monitor column...
- Page 2 Unlocking rear panel Key 1 placed at shelf Key 2 placed in drawer (in plastic bag) Remove flat bin pushing before removing panel 11.10.2007 2/11 MA0285.0...
- Page 3 Mounting of monitor column A A A A Use lock washer (1x) A A A A Attach column with screws: M12x30 (2x) Demounting of front lower shelf 11.10.2007 3/11 MA0285.0...
- Page 4 Placing of transformator and power supply Mount bar after placing equipment Placing of PC-housing 11.10.2007 4/11 MA0285.0...
- Page 5 Placing of Avalon CTS B B B B C C C C Remove Avalon drawer B B B B optional Using the pull relief sheet Remove screw with Place IEC 320 in Place sheet an IEC Fix screw with TORX T10 sheet 320 in Avalon CTS TORX T10...
- Page 6 C C C C Screw Avalon CTS with M3,5 x 10 (4x) Cable “3” optional Mounting of display Fix display with 2. hand while screwing screws: M4x20 (4x) M4x16 (4x) depending on flat screen Optional: M4 washers 11.10.2007 6/11 MA0285.0...
- Page 7 Placing of the keyboard Placing of FM20/30-monitor CLICK!!! 11.10.2007 7/11 MA0285.0...
- Page 8 Preparing cart for FM40/50-monitor Attach runners with Cap drillings with caps screws: M6x12 (4x) 6,5mm (2x) 11.10.2007 8/11 MA0285.0...
- Page 9 Locking rear panel Fix flat bin pushing before placing panel Lock rear panel and keep key in a secure place 11.10.2007 9/11 MA0285.0...
- Page 10 Option: Mounting of antenna holder Cut off cable winder Fix antenna cable with cable winder 11.10.2007 10/11 MA0285.0...
- Page 11 Use cable winder in power column to fix antenna cable 11.10.2007 11/11 MA0285.0...
