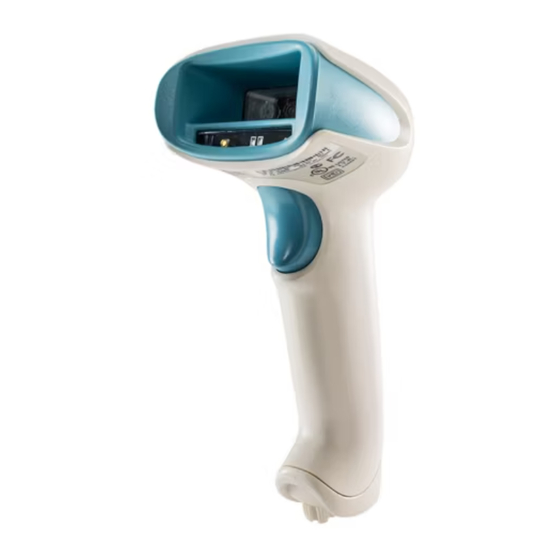

Cordless area-imaging scanner for healthcare
Hide thumbs Also See for Enhanced Xenon 1902H:
Table of Contents

Advertisement

Quick Links

Download this manual
Enhanced Xenon™ 1902H
Cordless Area-Imaging Scanner for Healthcare
Quick Start Guide
Aller à
www.honeywellaidc.com
Vai a
www.honeywellaidc.com
Gehe zu
www.honeywellaidc.com
Ir a
www.honeywellaidc.com
Para Português, acesse www.honeywellaidc.com.br.
日本語 :
www.honeywellaidc.com
한글
www.honeywellaidc.com
pour le français.
per l'italiano.
für Deutsch.
para español.
をご覧ください。
로 이동합니다 .
Rev D
8/16

Advertisement

Table of Contents
loading

Related Manuals for Honeywell Enhanced Xenon 1902H

Summary of Contents for Honeywell Enhanced Xenon 1902H

  • Page 1 Enhanced Xenon™ 1902H Cordless Area-Imaging Scanner for Healthcare Quick Start Guide Aller à www.honeywellaidc.com pour le français. Vai a www.honeywellaidc.com per l'italiano. Gehe zu www.honeywellaidc.com für Deutsch. Ir a www.honeywellaidc.com para español. Para Português, acesse www.honeywellaidc.com.br. 日本語 : をご覧ください。 www.honeywellaidc.com 한글...

  • Page 2: Get Started

    Note: Refer to your User’s Guide for information about cleaning your device. For localized language versions of this document, go to www.honeywellaidc.com. Get Started Turn off the computer’s power before connecting the base, then power up the computer once the base is fully connected. Once the base is connected and powered up, follow the Link the Scanner instructions (below) to link the scanner to the base.
  • Page 3 Connect the Scanner USB:...

  • Page 4: Keyboard Wedge

    Keyboard Wedge: RS232 Serial Port:...

  • Page 5: Unlink The Scanner

    Link the Scanner Use the following procedure to configure all scanners so they auto- matically connect to the base. 1. Scan the bar code on the base. 2. Place the scanner into the base. 3. Power cycle the base to complete the link and establish communication between the base and scanner.

  • Page 6: Standard Product Defaults

    Scan the following code to program the scanner to emulate a regular RS232-based COM Port. If you are using a Microsoft® Windows® PC, you will need to download a driver from the Honeywell website (www.honeywellaidc.com). The driver will use the next available COM Port number.
  • Page 7 USB PC Keyboard Scan the following code to program the scanner for a USB PC Key- board. USB PC Keyboard Epic Scan the following bar code to configure your device to communi- cate with an Epic software application. EMR Application After scanning this code, you must put the scanner into the base or scan the linking bar code on the base or Access Point to relink your scanner.
  • Page 8 Meditech® Scan the following bar code to configure your device to communi- cate with a Meditech software application. Meditech Application After scanning this code, you must put the scanner into the base or scan the linking bar code on the base or Access Point to relink your scanner.
  • Page 9 Silent Mode with Flashing LED Scan the following bar code to completely silence the base and scanner. When a bar code is scanned, the LED and aimer flash 5 times. Green indicates a good scan, red indicates a bad scan. Silent Mode with Flashing LED Silent Mode with Long LED Scan the following bar code to completely silence the base and...
  • Page 10 Very Low Beeper (Nighttime Mode) The following bar code silences the base, and sets the scanner for a very low beep when reading bar codes. After scanning this code, the base beep, base and scanner power up beep, and scanner linking sounds are all silenced. When a bar code is scanned, the scanner emits a very soft beep.

  • Page 11: Page Button

    Page Button The page button on the base is used to page your scanner or to put it into Temporary Streaming Presentation mode. When the scanner is out of the base, press the page button once to make the scanner beep so you can locate it.

  • Page 12: Add Code Id Prefix To All Symbologies

    Suffix If you want a carriage return after the bar code, scan the Add CR Suffix bar code. To add a tab after the bar code, scan the Add Tab Suffix bar code. Otherwise, scan the Remove Suffix bar code to remove the suffixes.

  • Page 13: Keyboard Country

    Keyboard Country Scan the appropriate country code below to program the keyboard layout for your country or language. By default, national character replacements are used for the following characters: #$@[\]^‘{|}~ Refer to the ISO 646 Character Replacements chart in your User’s Guide to view the character replacements for each country.

  • Page 14: Technical Assistance

    Italy Norway Spain Switzerland Note: For a complete list of country codes, see the User’s Guide for your product at our website, www.honeywellaidc.com. EZConfig-Scanning To access additional features for the scanner use EZConfig-Scan- ning, an online configuration software tool, available from our web- site at www.honeywellaidc.com.

  • Page 15: User Documentation

    For localized versions of this document, and to download the User’s Guide, go to www.honeywellaidc.com. Disclaimer Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made.
