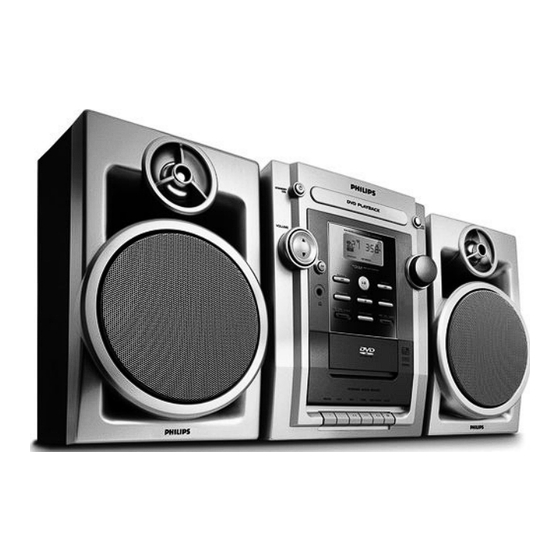

- Page 1 DVD Mini-HiFi System FWD132...
- Page 2 CAUTION Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.
- Page 3 Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Windows Media and the Win- dows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other coun- tries. English ------------------------------------------------ 4 -------------------------------------------------------- 29 This product incorporates copyright protection tech- nology that is protected by method claims of certain...
-
Page 4: Table Of Contents
Contents General Information/ Maintenance Features ... 5 Discs for playback ... 5 Region codes ... 5 Supplied accessories ... 5 Environmental information ... 5 Care and safety information ... 6 Connections Step 1: Placing speakers ... 7 Step 2: Connecting speakers ... 7 Step 3: Connecting TV set ... -
Page 5: General Information/Maintenance
Features Your DVD Mini Hi-Fi System with 2-channel full analog amplifier creates the same dynamic sound qualities that you find in full-fledged cinemas and incorporates some of the best features in home theater technology. Other features include: Bullt-In Dolby Digital decoder,supporting stereo. -
Page 6: Care And Safety Information
● After prolonged use, dir t or dust may accumulate at the disc lens. To ensure good playback quality, clean the disc lens with Philips CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner. Finding a suitable location ●... -
Page 7: Connections
Step 1: Placing speakers Place the front left and right speakers at equal distances from the TV set and at an angle of approximately 45 degrees from the listening position. Notes: – To avoid magnetic interference, do not position the front speakers too close to your TV set. –... -
Page 8: Step 3: Connecting Tv Set
Connections Step 3: Connecting TV set IMPORTANT! – Connect the system directly to the TV set. Using Video In jack (CVBS) ● Use the composite video cable (yellow) to connect the system’s VIDEO jack to the video input jack (or labeled as A/V In, Video In, Composite or Baseband) on the TV set. -
Page 9: Functional Overview
Controls on the system 1 STANDBY ON – to switch the system on or to standby mode. 2 DISC TRAY 3 iR – point the remote control towards this sensor. 4 VOLUME (4/3) – to increase or decrease the volume. 5 DBB –... -
Page 10: Remote Control
Functional Overview Remote control Notes: – First, select the source you wish to control by pushing the source switch to one of the source on the panel (DISC or TUNER, for example). – Then select the desired function (I 1 or ¡ I for example). -
Page 11: Preparations
Push the source switch on the front panel to DISC. Turn on the TV set and set to the correct Video- In channel. You should see the blue Philips DVD background screen on the TV set. ➜ You may go to channel 1 on your TV set, then press the channel down button repeatedly until you see the Video In channel. -
Page 12: Step 3: Setting Language Preference
Preparations – Select this if the connected TV set is PAL system. It will change the video signal of an NTSC disc and output to PAL format. NTSC – Select this if the connected TV set is NTSC system. It will change the video signal of a PAL video disc and output to NTSC system. -
Page 13: Basic Functions
Switching on/off Switching the system ON In Standby ● Press STANDBY ON ➜ The system will go back to its previous status. Switching the system to STANDBY mode In any other source mode ● Press STANDBY ON (or 2 on the remote control). -
Page 14: Disc Operations
Power on the TV system and set to the correct Video In channel . ➜ You should see the blue Philips DVD background screen on the TV set. Press OPEN/CLOSE to open the disc tray and load a disc. -
Page 15: Skipping To Another Title (Track)/Chapter
Skipping to another title (track)/ chapter For DVD/VCD ● During playback, press I1 to playback the beginning of the current title (track)/chapter, press I1 twice in 2 seconds to skip to previous title (track)/chapter, and press ¡I to skip to next title (track)/chapter. For MP3/WMA/JPEG ●... -
Page 16: Repeating A Section Within A Chapter/Track
Disc Operations Repeating a section within a chapter/ track You can play a specific section in a chapter/track repeatedly. Press REPEAT A-B at your chosen start point. Press REPEAT A-B again at your chosen end point. ➜ The passage will now repeat continuously. To resume normal play, press REPEAT A-B again. -
Page 17: Changing Sound Track Language
For JPEG: ● Press ZOOM to change the picture zooming scale: ZOOM X100% pZOOM X125% pZOOM X150% pZOOM X200% pZOOM X75% pZOOM X50%p (ZOOM OFF)... ● To pan through the enlarged image,press 1 / 2 / 5 / 4 buttons to move the zoomed picture left, right, up or down. -
Page 18: Moving To Another Title/Chapter
Disc Operations Moving to another title/chapter Some discs may contain more than one title or chapter. If the disc has a title or chapter menu recorded on it, you can start playback from the selected item. Press DISPLAY/OSD on the remote control to display the message of title and chapter. -
Page 19: Mp3/ Picture Disc Operations
Playing MP3/Picture disc (Kodak, JPEG) IMPORTANT! – You have to turn on your TV set and set to the correct Video In channel. MP3/JPEG Picture disc Load an MP3/Picture (JPEG) disc. ➜ The disc reading time may exceed 30 seconds due to complexity of the directory/file configuration. -
Page 20: Dvd Menu Operations
DVD Menu Operations Using the setup menu (user preference settings) This DVD setup is carried out via your TV set, enabling you to customize the DVD Mini Hi-Fi System to suit your particular requirements. In disc mode, press SYSTEM MENU. ➜... -
Page 21: Setting The Screen Saver
Use the numeric keys (0-9) to enter your six- digit code. ➜ The password supplied by default is 000000. ● Go to “Password” and enter your new code. Then, enter the same code again to confirm. PHILIPS Press SYSTEM MENU again to remove the menu. PHILIPS PHILIPS... -
Page 22: Restricting Playback By Setting Parental Level
– Menu language To set the screen display language. The default setting is English. PHILIPS – Default If RESET is selected, all the items in the setup menu will be reset to default setting, except Parental Setting and Password. -
Page 23: Tuner Operations
Tuning to radio stations Push the source switch to TUNER. Turn the TUNING knob on the system until the frequency indication starts to change. ➜ The current radio frequency will appear on the display. To tune to a weak station, turn the TUNING knob to search until a radio station with sufficient signal strength is found. -
Page 24: General Information On Recording
Tape Operation/Recording General information on recording ● For recording, only use tape of IEC type I(normal tape). ● The recording level is set automatically, regardless of the position of the Volume, Vocal, Key control and so forth. ● The type is secured at both ends with leader tape. -
Page 25: Specifications
AMPLIFIER Output power ... 1200 W PMPO 2.0 CH mode ... 2 X 30W RMS Frequency Response . 100 Hz - 10 kHz / ± 3 dB Signal-to-Noise Ratio > 62dB (A-WEIGHED) Output Sensitivity Line Out ... 2+ 0.2 V TUNER Tuning Range ... -
Page 26: Troubleshooting
Do not open the system as there is a risk of electric shock. If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help. Problem No power. - Page 27 Problem The language for the sound or subtitle cannot be changed when playing a DVD. No image is output when a function is selected. Sound cannot be heard or is of poor quality Poor radio reception. Recording or playback cannot be made The tape deck door cannot open Left and right sound outputs are reversed.
-
Page 28: Glossary
Glossary Analog: Sound that has not been turned into numbers. Analog sound varies, while digital sound has specific numerical values. These jacks send audio through two channels, the left and right. Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs. -
Page 29: Laser Product
Meet Philips at the Internet http://www.philips.com FWD132 CLASS 1 LASER PRODUCT Printed in China PDCC-JS-JW-0717...
