Epson OT-WH30 Installation Manual

Wall Hanging Bracket Set
OT-WH30 Installation Manual
The OT-WH30 is an optional hanging bracket for attaching the TM-m30 printer to a wall.
This manual describes the procedures and precautions for installing and using the OT-WH30.
Precautions
The OT-WH30 can be used only with the TM-m30 printer. Using on other product may result in improper installation and
operation.

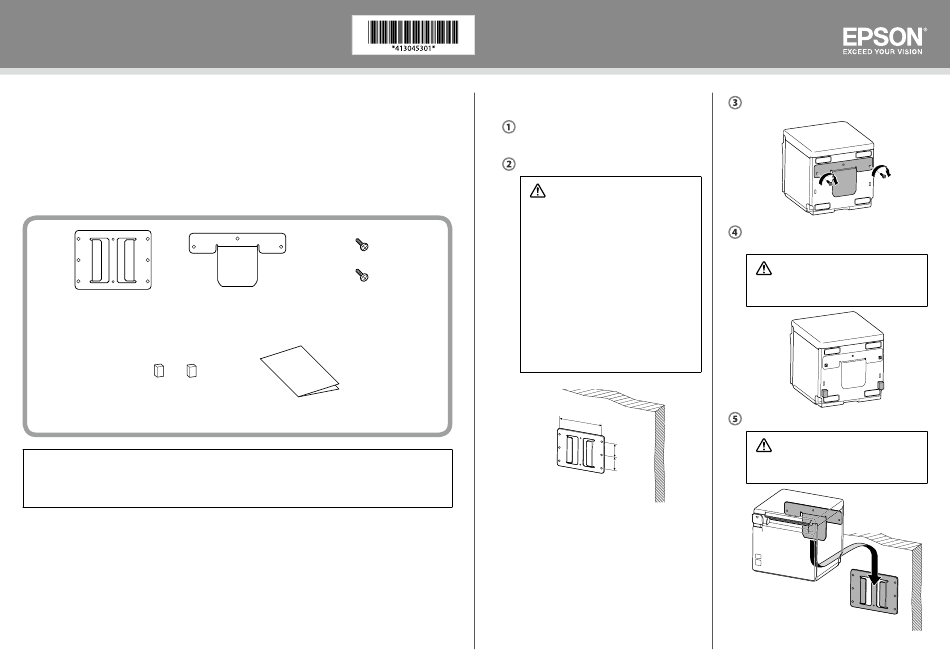

Unpacking
Make sure that you have all the items shown, and that none has been damaged. If you find anything missing or damaged, contact
your dealer.
□ Wall-mount
□ Spacers (2 pieces)
Note:
❏ Screws for wall-mount are not included. Please use screws appropriate to the type of wall being used.
❏ Depending on the conditions during storage and shipping, some rust may form around the edges of the wall-mount or
bracket. This may be removed with sandpaper.
□ Bracket □ Screws for bracket
(3 × 8) (2 pieces)
□ Installation Manual
Installation
Turn off the printer and detach all cables from the
printer.
Attach the wall-mount to the wall.
CAUTION:
❏ To fix the printer securely, install the wall-
mount on a wall made of wood, concrete, or
metal. The thickness of the wall should be 10
mm or more.
❏ In order to insure that the wall-mount can
properly support the weight of the printer,
please secure it with screws appropriate to
the type of wall the wall-mount is installed
on. A screw with 4 mm diameter and length
of 12 mm or more is recommended.
❏ Be sure to fasten the wall-mount securely to
the wall with a screw in each of the 6 holes.
❏ Before attaching the wall-mount, make sure
enough space remains around the printer.
❏ Make sure that there is enough space for
opening the roll paper cover.
84 mm
(3.31 inches)
26 mm
(1.02 inches)
26 mm
(1.02 inches)
Attach the bracket to the holes on the bottom
cover using the screws (3 × 8).
Peel off the stickers from the spacers, and attach
them to the printer in the positions shown below.
CAUTION:
Make sure that the surface of the printer is clean
and dry.
Slide the bracket into the slots of the wall-mount.
CAUTION:
When mounting the printer, make sure that the
wall-mount is securely fastened to the wall.
