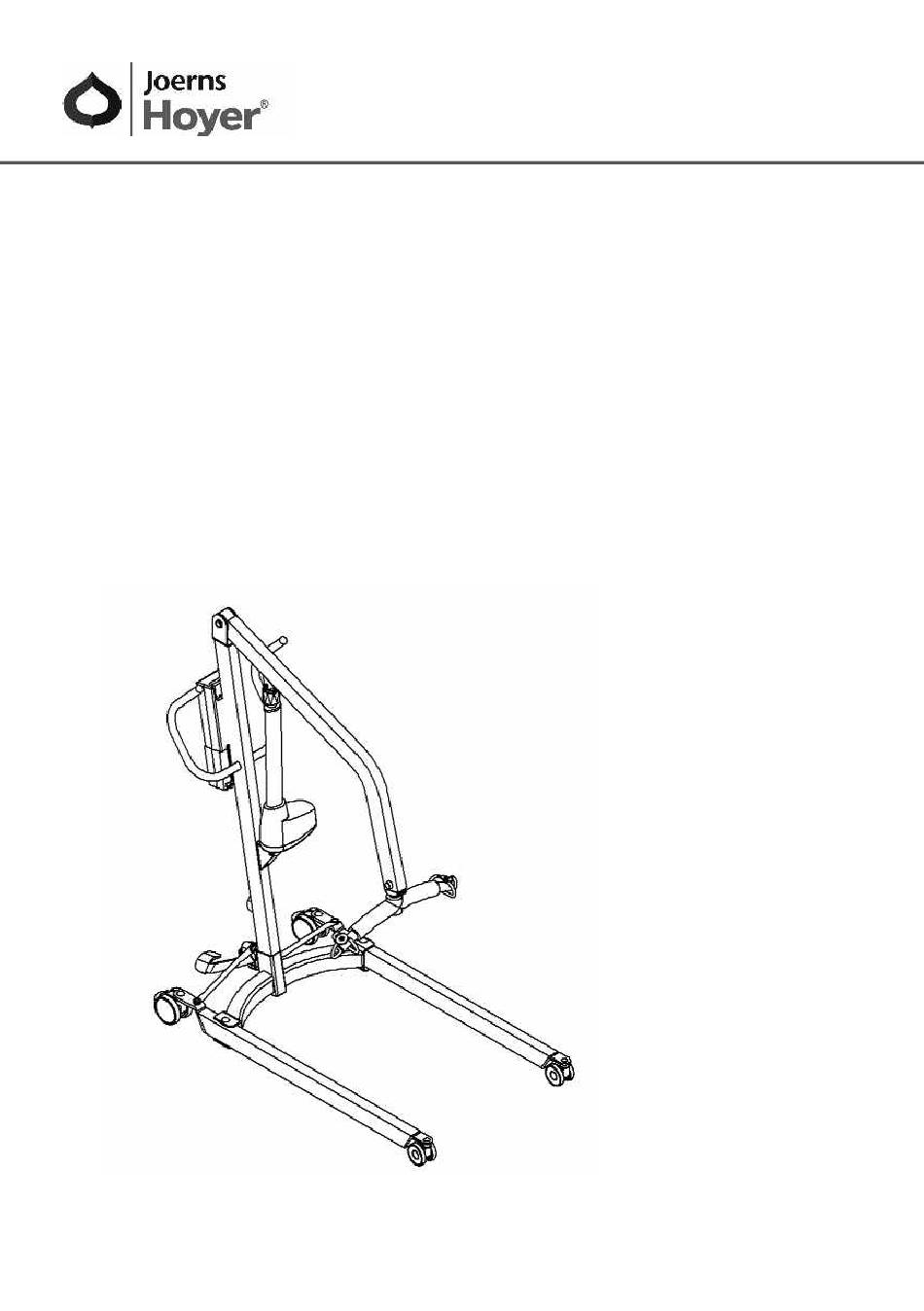

- Page 1 User Instruction Manual ® Hoyer HPL500 To avoid injury, read user manual prior to use.
-
Page 2: Table Of Contents
® Hoyer English HPL500 Contents Introduction: About Your Lift ....................3 Assembly & Commissioning Instructions ................4 Safety Precautions ......................7 Smart™ Monitor & Handset ....................9 Operating Instructions ..................... 13 Charging Instructions ...................... 16 Maintenance Schedule & Daily Check List ..............17 Technical Specifications .................... -
Page 3: Introduction: About Your Lift
The Hoyer HPL500 is suitable for patients in the SITTING, SITTING/RECUMBENT and RECUMBENT positions. The Hoyer HPL500 is an electrically operated patient lift, designed to support and promote safe patient handling and transfer for both the patient and carer. The Hoyer HPL500 lift incorporates a 6-point cradle, loop style spreader bar, as standard and is designed to be used in conjunction with the Hoyer range of slings. -
Page 4: Assembly & Commissioning Instructions
® Hoyer English HPL500 2. Assembly and Commissioning Instructions Place the carton in a clear working area and open carefully. The carton contains: • Main wheeled chassis • Documents • Mast and boom assembly • Battery charger • Two battery packs •... - Page 5 ® Hoyer English HPL500 Electric Leg Operation: There is some minor assembly required in order to connect the leg actuator to the leg adjustment mechanism. Gently swing the actuator into place over the leg pivot bracket ensuring the corresponding holes are in alignment. Insert the clevis pin, ensuring the plastic wear washers remain in place.
- Page 6 ® Hoyer English HPL500 Clip the battery onto the control box and ensure the red emergency stop button, located on the controller is in the out (ON) position by turning clockwise (Fig. 4). Emergency Stop Button Redundant Control (Emergency Lower) Electric Leg Electric Leg Redundant Control...
-
Page 7: Safety Precautions
Following these few basic safety precautions will make lifting operations easy and trouble free. READ AND UNDERSTAND THE USER INSTRUCTION MANUAL BEFORE USING THE HOYER HPL500 LIFT WARNING: Important safety information for hazards that might cause serious injury. CAUTION: Information for preventing damage to the product. - Page 8 ® Hoyer English HPL500 WARNING • NEVER force an operating/safety control. All controls are easy to use and do not require excessive force. • DO NOT park a loaded lift on ANY sloping surface. • DO NOT use electric lifts in a shower. •...
-
Page 9: Smart Monitor & Handset
® Hoyer English HPL500 4. Smart Monitor & Handset Detachable Battery Pack Emergency Stop Button Smart Monitor Raise & Lower Buttons Emergency Raise & Lower Redundant Controls Legs Open / Close Legs Open / Redundant Controls Close Buttons Handset Actuator Actuator Information Connection... - Page 10 ® Hoyer English HPL500 Intended Use: The Hoyer Smart Monitor is a control system for Hoyer Mobile Lifts. The Smart Monitor stores useful servicing information about the lift that can be recalled when required. This servicing information includes: • Number of patient lift cycles •...
- Page 11 If the LCD display screen on your Smart Monitor has recorded Fig. 9 an overload, Joerns Healthcare recommend that ALL routine daily checks are carried out on the lift prior to further use (for a list of daily checks, please refer to your lift user manual). Joerns Healthcare also recommend that you contact your authorized Hoyer service provider for additional guidance.
- Page 12 ® Hoyer English HPL500 On-Board Redundant Controls: On-board redundant controls enable the lift to be raised or lowered in the event of an emergency (Fig. 10). Fig. 10 If your lift incorporates powered leg positioning, there are redundant controls to both open and close the legs. (Fig 11). Fig.
-
Page 13: Operating Instructions
HPL500 5. Operating Instructions Leg adjustment: The legs on the Hoyer HPL500 can be opened to enable access around armchairs, wheelchairs and other furniture. For transferring and negotiating narrow door- ways and passages, the lift legs should be in the closed position. - Page 14 10. Slings: The selected sling is attached to the spreader bar hooks. Each sling is supplied with instructions which should be followed carefully. The Hoyer HPL500 is suitable for patients in the SITTING, SITTING/RECUMBENT and RECUMBENT positions. The core slings suitable for these lifts are listed as follows: •...
- Page 15 Hoyer English HPL500 WARNING Joerns Healthcare recommends that slings be checked regularly and particularly before each use for signs of fraying or damage. DO NOT use slings that are worn or damaged. WARNING HOYER RECOMMENDS THE USE OF GENUINE HOYER PARTS. Hoyer sling and lift products are designed to be compatible with one another.
-
Page 16: Charging Instructions
® Hoyer English HPL500 6. Charging Instructions When the power pack needs charging it is removed from the lift and fitted to an off board charging unit. 1. Remove the power pack from the lift. The pack is retained by a simple latch at the top of the power pack. -
Page 17: Maintenance Schedule & Daily Checklist
- EXAMINE slings for fraying or other damage. DO NOT use any sling if damaged or if the sling shows signs of wear. MAINTENANCE Joerns Healthcare recommends regular inspection and maintenance. Please refer to the chart on the next page. - Page 18 ® Hoyer English HPL500 *THESE CHECKS SHOULD INCLUDE: ü = Recommended 1. SPREADER BAR: Check the spreader bar for freedom of rotation and ü ü ü swing. Check for wear on the central pivot. Check for firm attachment to the boom.
-
Page 19: Technical Specifications
® Hoyer English HPL500 8. Technical Specifications Safe Working Load ..................500 lbs Maximum Overall Length ................54.4 inches Minimum Overall Length ................50.1 inches Maximum Overall Height ................83.7 inches Minimum Overall Height ................56.4 inches Spreader Bar Maximum Height ..............76.0 inches Spreader Bar Minimum Height .............. - Page 20 ® Hoyer English HPL500 Electrical Specifications: Batteries ..........2 x 12 Volt rechargeable sealed lead acid type Battery Capacity ........2.9 Ampere hours Charger Rated Input ......100-240V AC/24 VDC 50/60 Hz. Max 400MA Charger Rated Output......29.5 VDC. Max 19W Electric Shock Protection: Charger ..........
- Page 21 ® Hoyer English HPL500 KEY SYMBOLS: The following symbols are used on the charger, control unit and battery: Type B equipment, as per EN 60601-1 Class 2 equipment The disposal of the charging and control unit should not be mixed with general household waste.
-
Page 22: Warranty
Joerns Healthcare’s obligation under this warranty is limited to supplying replacement parts, servicing or replacing, at its option, any product which is found by Joerns Healthcare to be defective. Warranty replacement parts are covered by the terms of this warranty until the product’s original warranty period expires. - Page 23 User Manual Charger with Stand & Lead Test Certificate Base Assembly Mast & Boom Assembly User Handset Packaging Inserts Battery Pack (2) ________________________ Checked for you by: ________________________________ Joerns Healthcare Inc. © 2015, Joerns Healthcare • 6110244 Rev A • DCO15-0020...
