- Page 1 ® INSTRUCTIONS 20th Anniversary D/A Convertor...
- Page 2 Attention: Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products. A. Information on Disposal for Users (private household). 1.
-
Page 3: Important Safety Instruction
Chapter 1 Important Safety Instruction CAUTION The exclamation point within an equilateral triangle is intended to alert the user to presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to presence of uninsulated “Dangerous voltage”... -
Page 4: Front Panel

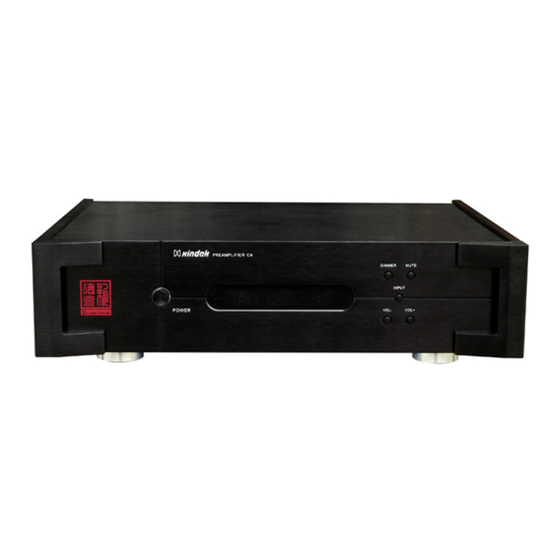

Introduction 2.1 Front panel Power Button: This button connects and disconnects the DAC from the AC mains power. Input Selection Button: Press down this button, you can select loop input signal: coaxial-optical-BNC-balance-PC USB The display screen will display the corresponding input way.At this point the unit have power off memory function... -
Page 5: Rear Panel
Chapter 2 Introduction 2.2 Rear Panel RCA Audio Output Terminal Output the analog stereo audio signal amplified by tube to the input port on the amplifier. This output port can choose output audio signal of tube amplifying or output audio signal of operate amplifying. Balanced Audio Output Terminal Output the balanced audio signal (analog stereo)amplified by transistor to the input port on the amplifier. -
Page 6: Install Batteries
Chapter 2 Precaution 2.3 For Using the Remote Controller Install Batteries Before using the remote controller for the first time, you need install the new battery in the remote controller. Process 1. Use the tool to remove the rear cover of the remote control unit. AAA Batteries 2. -
Page 7: Remote Controller
Chapter 2 Precaution 2.4 Remote Controller 1. MUTE Button: Press this button, for turn on or turn down the output volume. When the product is in mute state, the display screen will display "VOL:---”corresponding function. MUTE 2. DISPLAY Button: DISPLAY Press this button can display the current output state and tube switch state. -
Page 8: Specification
