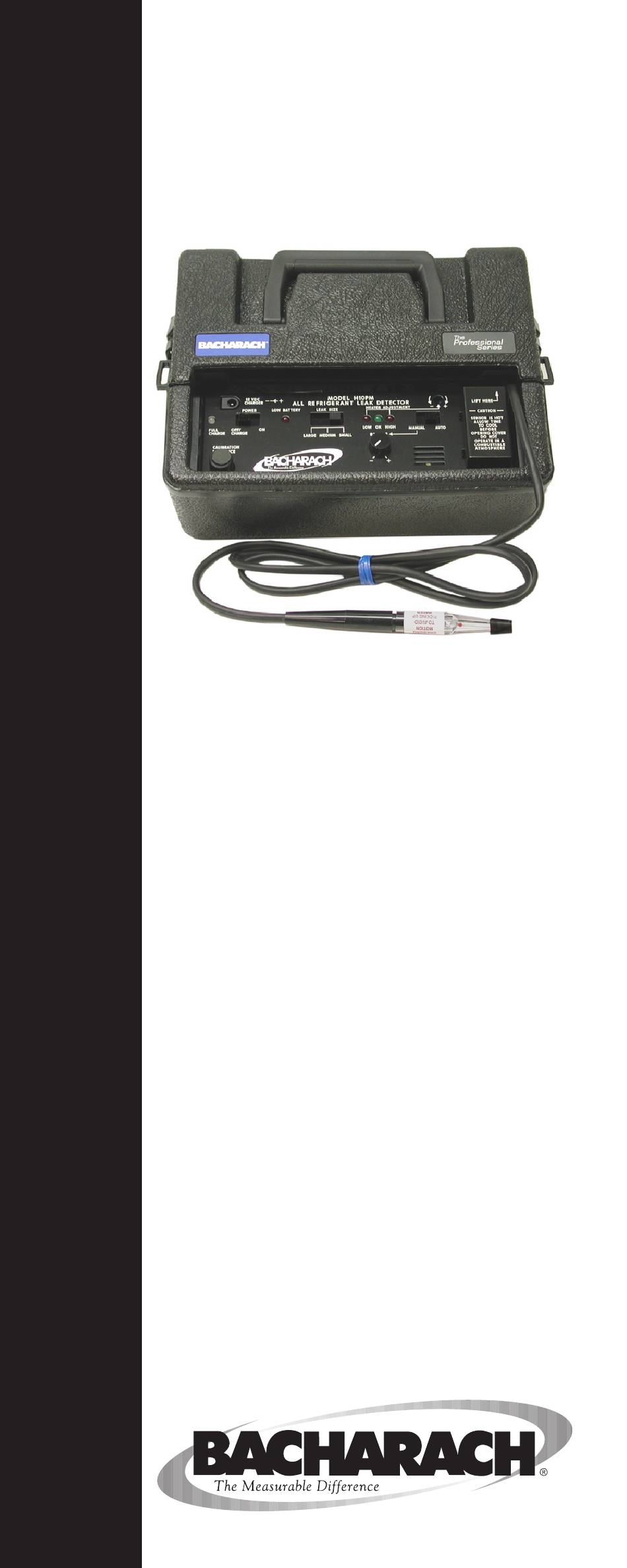

H-10PM
Congratulations! You have just
purchased the most versatile,
high performance service leak
detector available in the industry
today. It will detect refrigerants
with a sensitivity to effectively
pinpoint both small and large
leaks quickly and efficiently.
We encourage your review of
this manual to assure satisfac-
tory performance and a long
service life.
For technical support call:
1-800-850-0044
Refrigerant
Leak Detector

Advertisement

Table of Contents
loading

Related Manuals for Bacharach H-10PM

Summary of Contents for Bacharach H-10PM

  • Page 1 H-10PM Refrigerant Leak Detector Congratulations! You have just purchased the most versatile, high performance service leak detector available in the industry today. It will detect refrigerants with a sensitivity to effectively pinpoint both small and large leaks quickly and efficiently.
  • Page 2 How the H-10PM Works The sensor in the H-10PM uses posi- tive ion emission technology, commonly known as a heated diode. It is very sensitive to only halon substances (refrigerants) making this product highly resistive to false alarming, while retain- ing superior sensitivity for pinpointing the most difficult to find refrigerant leaks.

  • Page 3: Adjusting The Sensitivity

    2. With the Power switch in the OFF position, charge the internal battery using the furnished wall adapter. Charge time is 8–10 hours or, until the red Full Charge LED turns green. Note: Unit will not operate from AC power using the furnished battery charger wall adapter.
  • Page 4 approach the vehicle or equipment, the gas concentration will increase, causing an alarm condition. Each time an alarm occurs, readjust the Manual Balance control. Continue this process until the leak is located. Blowing out the test site with shop air may enable you to locate the leak more quickly.

  • Page 5: Auto Mode

    WARNING: Personal Injury Hazard Do not use the H-10PM in an explosive or combustible atmosphere. The ambient atmosphere is drawn through the probe and through the sensor, which operates at approximately 1472°F (800°C). The resulting hot mixture of air and combustible gas could explode.

  • Page 6: Manual Mode

    The manual mode is also an effec- tive means to determine if a large leak of any refrigerant exists prior to searching for leaks (see “Adjusting the Sensitivity”). Manual Mode In the Manual Mode the auto-zero circuit is disabled. The unit will not zero out the leak if the probe is held over the leak site.
  • Page 7 red LOW LED will go out and the green OK LED will briefly glow. This indicates the sensor’s heat/sensitivity is adjusted for optimum performance. If the red LOW LED remains on when you briefly touch the bottle, the sensor heat is set too low and the Heater Adjustment must be turned slightly clockwise.

  • Page 8: Application Notes

    Application Notes 1. Start leak checking anywhere and continue in a logical progression through the entire system to locate all leaks. If surfaces are particularly dirty, or wet, wipe them off with a clean, dry cloth to reduce filter clogging and extend sensor life.

  • Page 9: Maintenance

    Maintenance (replacing the filter and airflow indicator) To protect the air pump from damage due to foreign particles and moisture, replace the filter as it becomes dirty. With moderate use (15 to 30 min- utes a day), it is recommended that the filter be replaced once a month.

  • Page 10: Troubleshooting

    Replacing the Sensor: The sensor is a plug-in unit that can be thrown away when expended. It needs replaced when the H-10PM no longer responds to the Calibration Reference Bottle, even with the Heater Adjustment turned fully clockwise (make sure the ref- erence bottle contains some refrigerant).
  • Page 11 **Solution number corresponds to Cause number** Problem No response to Calibration Reference bottle Cause Heat Adjustment set too low or bottle is empty No air flow (indicator ball in probe doesn’t float) Sensor exposed to exces- sive amounts of halogen gas Water in probe Solution Readjust heater (see...
  • Page 12 Problem Probe tip lamp does not flash Cause Burned out or damaged probe lamp Solution Return for repair **Solution number corresponds to Cause number** Problem Erratic response in all leak positions Cause Filter is clogged Dirt in sensor Short circuit in sensor Atmosphere contaminated with excessive refrigerant gas.

  • Page 13: Ordering Information

    Ordering Information 3015-0627 H-10PM Refrigerant Leak Detector w/ Battery & Charger 3015-0326 14 inch Flexible Probe Extension 3015-0119 Replacement Battery Charger (does not provide power to run unit from 120VAC outlet.) 3015-4162 100VAC Power Supply Adapter (will charge or run unit)

  • Page 14: Repair Information

    Repair Information Should it become necessary to repair your H-10PM, please contact an Authorized Service Center. Units should be carefully packed to prevent shipping damage and shipped prepaid. Warranty Send units under warranty and a copy of the purchase receipt to an Authorized Service Center for repairs.
  • Page 15 United States Bacharach Sales/Service Center 621 Hunt Valley Circle New Kensington, PA 15068 Phone: 724-334-5051 Fax: 724-334-5723 E-mail: help@bacharach-inc.com Canada Bacharach of Canada, Inc. 250 Shields Court Unit #3 Markham, Ontario L3R 9W7 Canada Phone: 905-470-8985 Fax: 905-470-8963 E-mail: bachcan@idirect.com México Bacharach de México...
