Grizzly H5664 Instruction Sheet

Grizzly is proud to offer the H5664 Formed Steel
Extension Wings for your G0444/Z Table Saw.
Please read through this instruction sheet to
become familiar with your new extension wings.
These extension wings fit into the H5744 79" rails
to support large workpieces and increase the
overall working surface.
To install the H5664 Formed Steel Extension
Wings:
1. Loosely install the T-bolts, the washers, and
the hex nuts into the predrilled holes on the
short sides of the extension wings.
2. Insert the T-bolt heads into the T-slots on the
inside of the rail as shown in Figure 1.
Slide all 3 tables into place as shown in
3.
Figure 2. Note—The tables easily slide into
place if you lift up while sliding them.
Place a straightedge across the top of the
4.
extension wings to check the alignment.
5. Secure the wings in place by tightening the
nuts behind the inside edge of the wings.
If you need additional help with this procedure,
call our service department at: (570) 546-9663.
Refer to the machine owners manual for addi-
tional information and safety guidelines.
WARNING: NO PORTION OF THIS INSTRUCTION SHEET MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
COPYRIGHT © DECEMBER 2003 BY GRIZZLY INDUSTRIAL, INC.
PRINTED IN TAIWAN
INSTRUCTION SHEET
Model H5664
Formed Steel Extension Wings

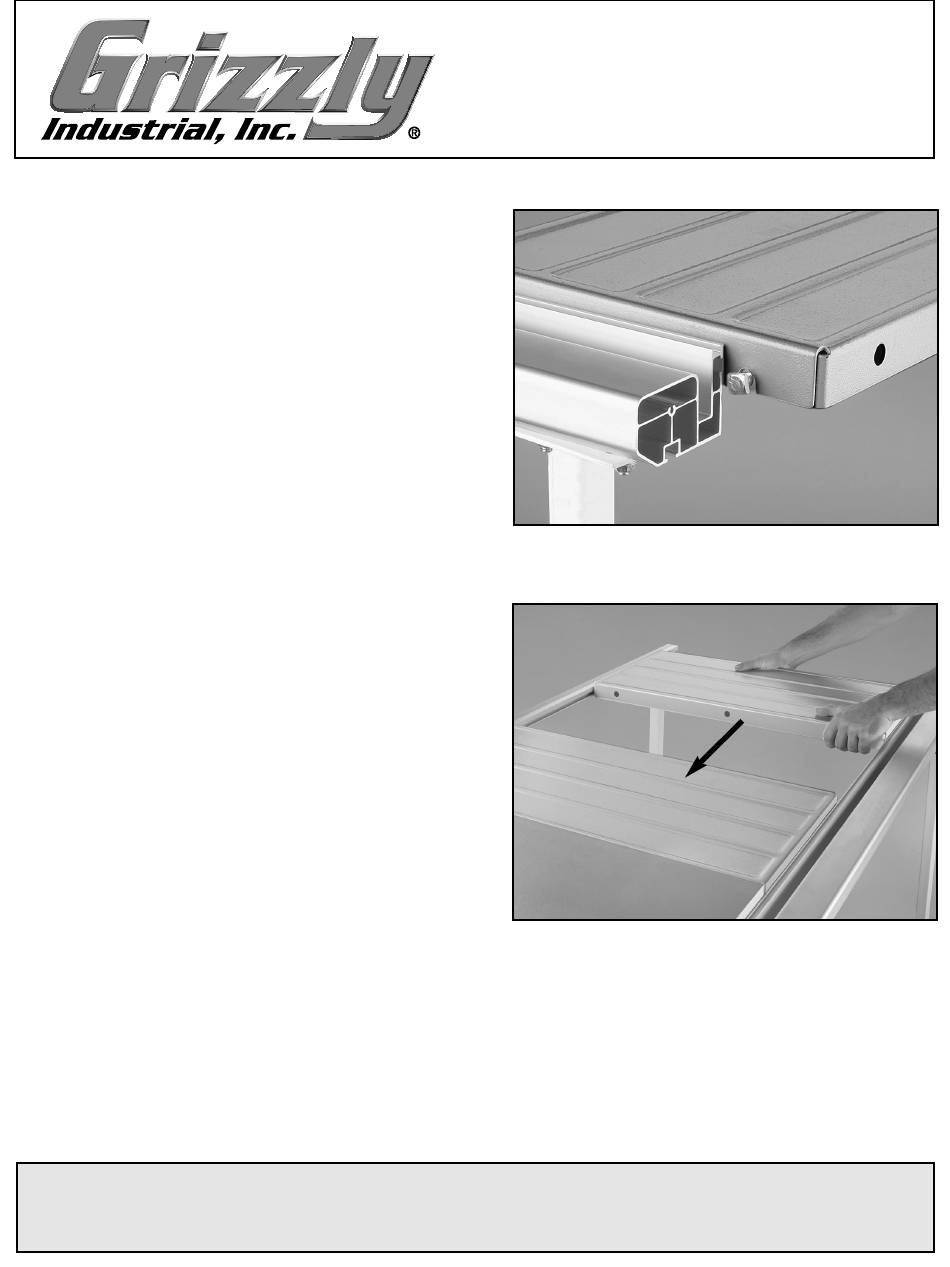

Figure 1. Inserting T-bolt heads.
Figure 2. Installing extension wings.
