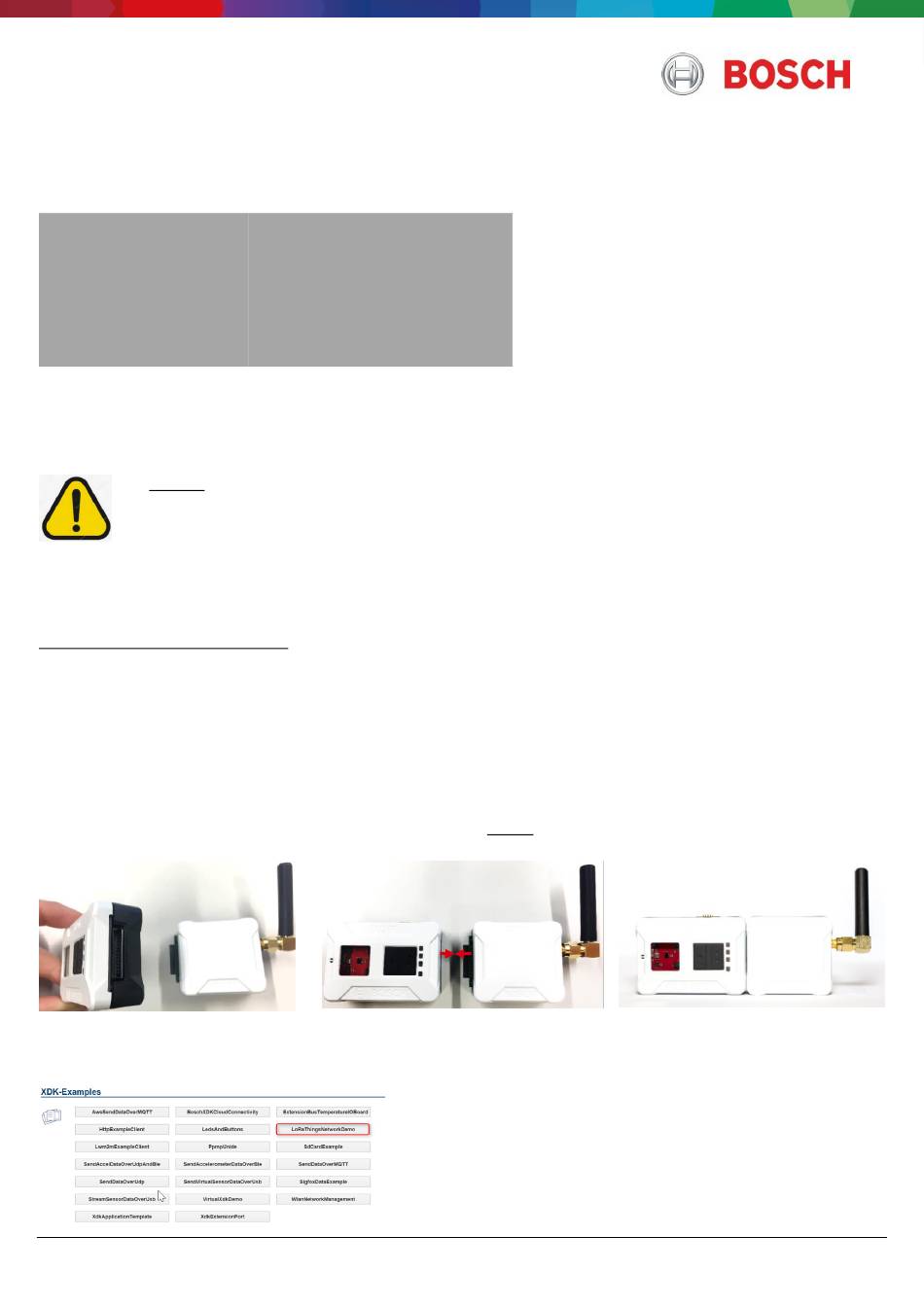

Bosch XDK LoRa-Extension Quick Start Manual

XDK LoRa-Extension | Quick Start Guide
XDK LoRa-Extension
Quick Start Guide
Document revision
Document release date
XDK LoRa-Extension Version
Notes
Before you start
The XDK LoRa-Extension is a wireless and secure communication solution that can exchange data up to a range of 40 km. Public or
private LPWANs can be joined or created. For more information, see our XDK LoRa-Extension 2-pager.
Warning: Risk of Interference and unlawful use:
Before activation of the XDK LoRa-Extension, check the country variant of your XDK-LoRa-Extension. E.g. the Version
with country code „EU" is certified for operation in the EU.
Outside the certified country, the use of the XDK LoRa-Extension might be in conflict with legal requirements and
frequency band allocations. That may cause harmful interference and risk of legal prosecution. The user must inform
himself and ensure that legal requirements are fulfilled before activating the XDK LoRa-Extension.
In advance, install the workbench, version 3.5.0 or higher on a PC (see xdk.io/learning – workbench installation).
Structure of the quick start guide:
A. Connecting the XDK LoRa-Extension to the XDK
B. Flashing of the LoRaThingsNetworkDemo Firmware
C. The things network (TTN)
D. Integration into Cayenne
E. Links
F. Specifications
G. Regulatory Notices
H. Document History and Modification
A. Connecting the XDK LoRa-Extension to the XDK
First check for bent pins! Plug and unplug the XDK LoRa-Extension straight to the XDK. It is possible to screw a monitoring plate
underneath both devices for a better fixation. The downloading file for the 3D-printer is available on XDK.io/extensions
B. Flashing of the LoRaThingsNetworkDemo Firmware
Use the workbench, version 3.5.0 or higher, to flash the LoRaThingsNetworkDemo firmware (see highlighted below) on the XDK
Data subject change without notice | Nov 07, 2018
1.4
01. Apr. 2019
1.0
Data in this document is subject to change
without notice. Product photos and pictures
are for illustration purpose only and may
differ from the real product´s appearance.
1 | 5
BCDS/SAM
