Contents 1 Important Safety Notice 2 Your car audio system Introduction What’s in the box Overview of the main unit Overview of the remote control 3 Get started Install the car audio Install remote control battery Turn on Set clock 4 Listen to radio Tune to a radio station Store radio stations in memory...
1 Important Safety Read and understand all instructions before you use your apparatus. If damage is caused by failure to follow instructions, the warranty does not apply. This apparatus is designed for negative ground (earth) 12 V DC operation only. To ensure safe driving, adjust the volume to a safe and comfortable level.
2 Your car audio system Congratulations on your purchase, and support that Philips offers, register your product at www.philips.com/welcome. Introduction With the in-car audio system, you can enjoy your drive while you listen to: FM or AM (MW) radio Audio from CD or MP3 disc...

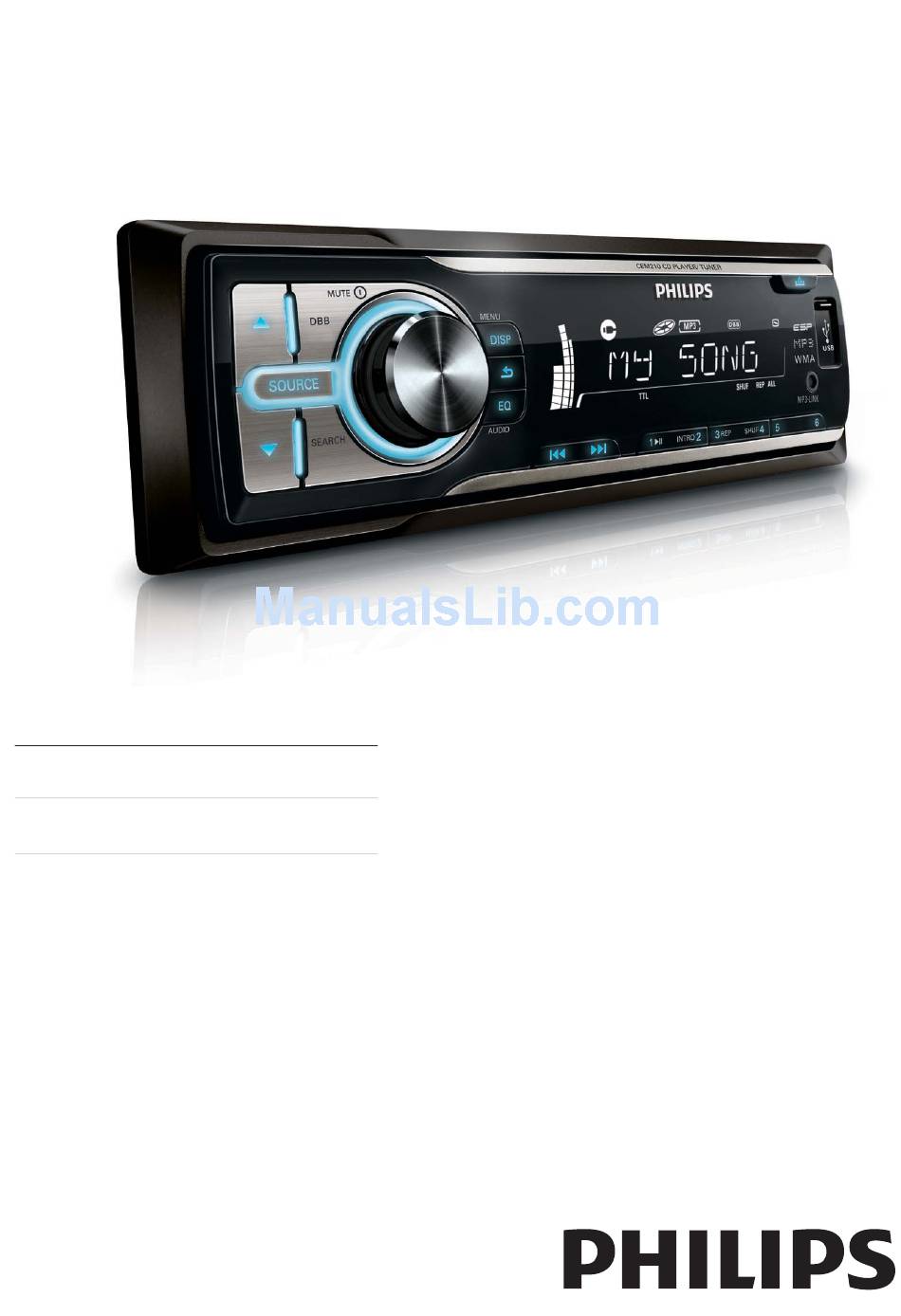

Overview of the main unit Select tuner band. Select MP3/WMA folder. Scroll up or down menu. b DBB Turn on or off Dynamic Bass Boost (DBB) sound. c SOURCE Select audio source. /MUTE Turn the unit on or off. Adjust volume. Enter characters for search.
j External device socket Select preset station no. 6 Select preset station no. 5 m SHUF, 4 Select preset station no. 4 n 3, REP Set repeat play mode. Select preset station no. 3 o INTRO, 2 Turn intro play on or off. Select preset station no.
Always follow the instructions in this chapter in sequence. If you contact Philips, you will be asked for the model and serial number of your apparatus. The model number and serial number are on the bottom of your apparatus. Write the numbers here: Model No.
Note on the power supply lead (yellow) When you connect other devices to this apparatus, ensure that the rating of the car circuit is higher than the total fuse value of all the connected devices. Notes on speaker connection Never connect speaker wires to the metal body or chassis of the car.
Page 10
Connector Connect to ANTENNA Antenna REAR LINE OUT R Rear right speaker REAR LINE OUT L Rear left speaker Connection: for cars without ISO connectors Caution Be sure to connect the black ground (earth) illustrated, if applicable. Connector Connect to ANTENNA Antenna REAR LINE OUT R Rear right speaker...
The pin arrangement for the ISO connectors depends on the type of vehicle you drive. Make sure to make the proper connections to prevent damage to the unit. Mount in the dashboard If the car does not have an on-board drive or navigation computer, disconnect the negative terminal of the car battery.
Place the supplied rubber cushion over the end of the mounting bolt. Slide the unit into the dashboard until you hear a click sound. Reconnect the negative terminal of the car battery. Attach the front panel Attach the trim plate. Insert the right side of the panel in the chassis until it is correctly engaged.
Turn on Press to turn on the unit. To turn off the unit, press seconds. Set clock Press MENU/DISP for 3 seconds. Press repeatedly until the currently time is displayed. Turn clockwise to set hour. Press Turn anti-clockwise to set minute. Press View clock Press MENU/DISP repeatedly until the...
Store radio stations in memory You can store up to 6 stations in each band. Store staions automatically Press SEARCH » The six strongest stations of the selected band are saved in preset channel automatically: FM1,FM2,FM3 1-6, AM1, AM2. Store staions manually Tune to a station that you want to store.
Play from USB Note Ensure that the USB device contains playable music. Insert the USB device Open the cover marked panel. Insert the USB device into the USB socket. » The unit starts playing from the USB device automatically. Remove the USB device Press to turn off the unit.
Intro play During play, press INTRO, 2 to select: [INT ON] seconds of each track have been played, play stops. [INT OFF] : Cancel intro play and start normal play. You can play the tracks in random order. During play, press SHUF, 4 to select: [SHUF ON] tracks.
Other sound settings You can also edit user preset EQ. Press EQ/Audio for 3 seconds. Press repeatedly to select the item to be adjusted: [BAS] (bass) range: -7 to +7. [TRE] (treble) range: -7 to +7. [BAL] (balance) range: 12L to 12R. (L = left speaker, R = right speaker) [FAD] (fader) range: 12R to 12F.
Turn to select a setting: [V - LAST] : Each time you turn on the unit, the volume remains from its previous use. [V - ADJ] : Each time you turn on the unit, the volume is at the preset level. Store preset volume You can turn on the unit at a preset volume.
Buy a fuse that matches the voltage of the damaged fuse. Replace the fuse. Note If the new fuse gets damaged again, there may be an internal malfunction. Consult your Philips dealer. Remove the unit You can remove the unit from the dashboard. Detach the front panel.
9 Product information Note Product information is subject to change without prior notice. Power supply 12 V DC (11 V - 16 V), negative ground Fuse 15 A Suitable speaker impedance 4 - 8 Maximum power output 45 W x 4 channels Continuous power 22 W x 4 RMS output...
If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www. philips.com/support). When you contact Philips, ensure that your apparatus is nearby and the model number and serial number are available.
11 Glossary system. MP3 is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer 3. With the MP3 format, one CD-R or CD-RW can contain about 10 times more data than a regular CD. WMA (Windows Media Audio) An audio format owned by Microsoft, is a part of Microsoft Windows Media technology.
