Philips AZ1117/10 User Manual
Cd radio cassette recorder
Hide thumbs
Also See for AZ1117/10:
- Instructions for use manual (17 pages) ,
- User manual (12 pages) ,
- Specifications (2 pages)
Related Manuals for Philips AZ1117/10
Summary of Contents for Philips AZ1117/10

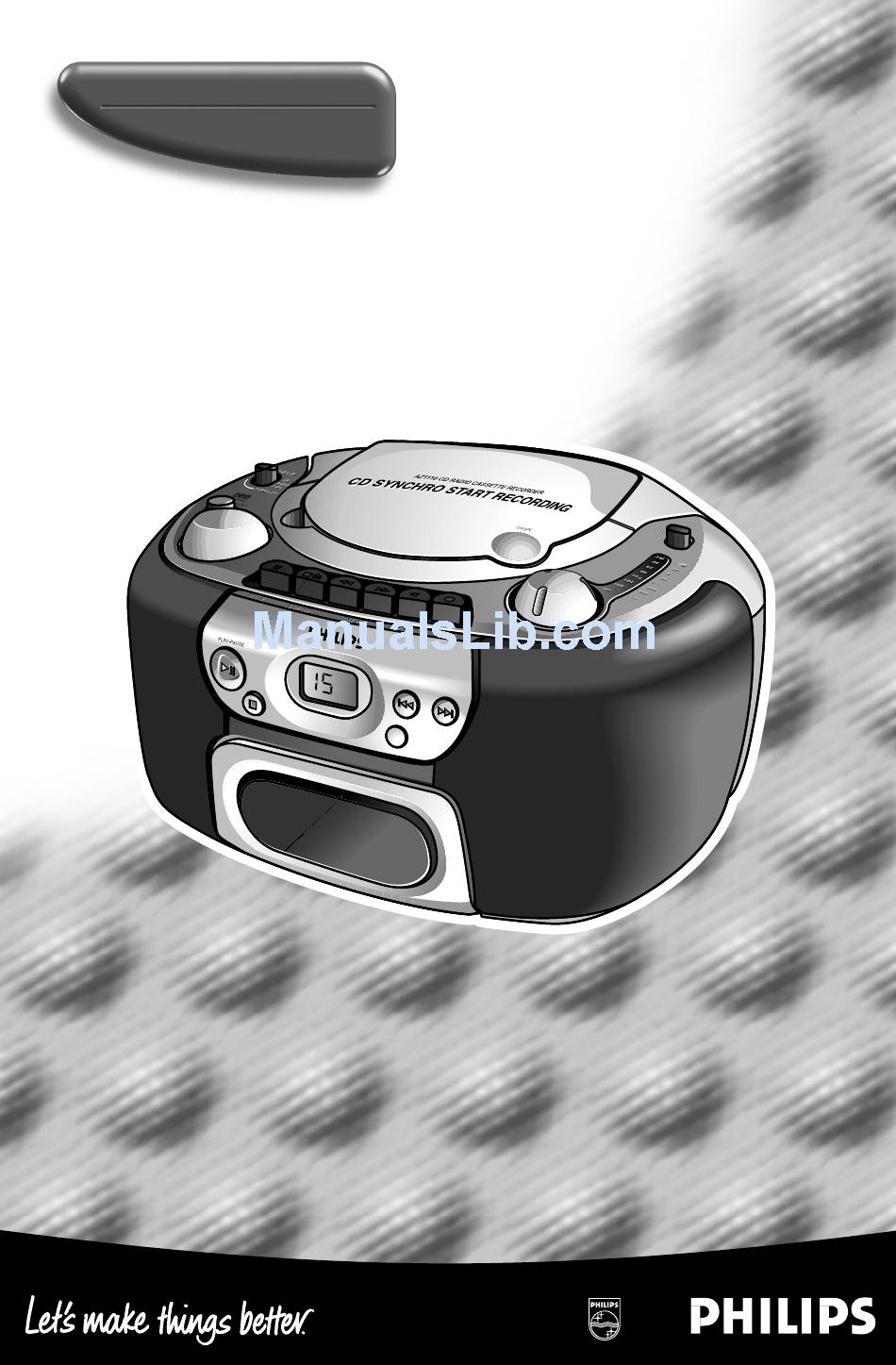

- Page 1 CD Radio Cassette Recorder S T O P S T O P S H U F F LE S E A R S E A R M O D E M O D E AZ 1110...
- Page 2 S T O P S H U FF S E A R M O D E...
-
Page 3: Top And Front Panel
CONTROLS TOP and FRONT PANEL 1 DBB (Dynamic Bass Boost) – to increase the bass level 2 VOLUME – to adjust the volume level 3 Cassette keys ; – to interrupt playback PAUSE STOP•OPEN 9 / – to stop playback and open the cassette compartment SEARCH 5 –... -
Page 4: Power Supply
BATTERIES Whenever convenient, use the mains supply if you want to conserve battery life. Make sure you remove the mains plug from the set and wall socket before inserting batteries. Batteries (optional) 1. Open the battery compartment and insert as shown six batteries, type R20, or D-cells. -
Page 5: General Operation
OPERATION GENERAL OPERATION 1. To switch on the set, use the source selector 2. Adjust the sound using the VOLUME control and DBB switch. 3. To switch off the set, set the source selector to TAPE/POWER/OFF position, with the cassette keys released. RADIO 1. - Page 6 CD DISPLAY INDICATION – Total track number: in stop position. – Current track number: during CD play. – Current track number flashes: in PAUSE mode. – SHUFFLE/REPEAT mode: the respective mode is activated. – PROGRAM: program function is active. P also appears briefly when you store a track.
-
Page 7: Programming Track Numbers
CD PLAYER Searching for a passage within a track You can search for a passage within a track. The CD is played at low volume and at high speed, however, the sound is still recognizable. 1. Keep the ∞ SEARCH or SEARCH § button pressed during playback, and release the button as soon as you recognize the required pas- sage: –... -
Page 8: Cassette Recorder
CD PLAYER PROGRAMMING TRACK NUMBERS Erasing a program You can erase a program by: – opening the CD door. – setting the source selector to the TAPE or RADIO position. – pressing STOP twice during playback/in the stop position. CASSETTE PLAYBACK 1. -
Page 9: Recording From The Radio
CASSETTE RECORDER RECORDING FROM THE RADIO 1. Set the source selector to RADIO. 2. Tune to the desired radio station using the TUNING knob. 3. Press STOP•OPEN 9 / to open the cassette holder. 4. Insert a blank cassette. 5. Press RECORD 0 to start recording. 6. -
Page 10: Precautions & General Maintenance
PRECAUTIONS & GENERAL MAINTENANCE – Place the set on a hard, flat surface so that it does not tilt. – Do not expose the set, CDs, batteries or cassettes to humidity, rain, sand, direct sunlight or other places where high temperatures can occur, such as in the vicinity of heating apparatus or in motor cars parked in the sun. -
Page 11: Troubleshooting
TROUBLESHOOTING If a fault occurs, first check the points listed below before taking the set for repair. If you are unable to remedy a problem by following these hints, consult your dealer or service centre. WARNING: Under no circumstances should you try to repair the set yourself, as this would invalidate the guarantee.
