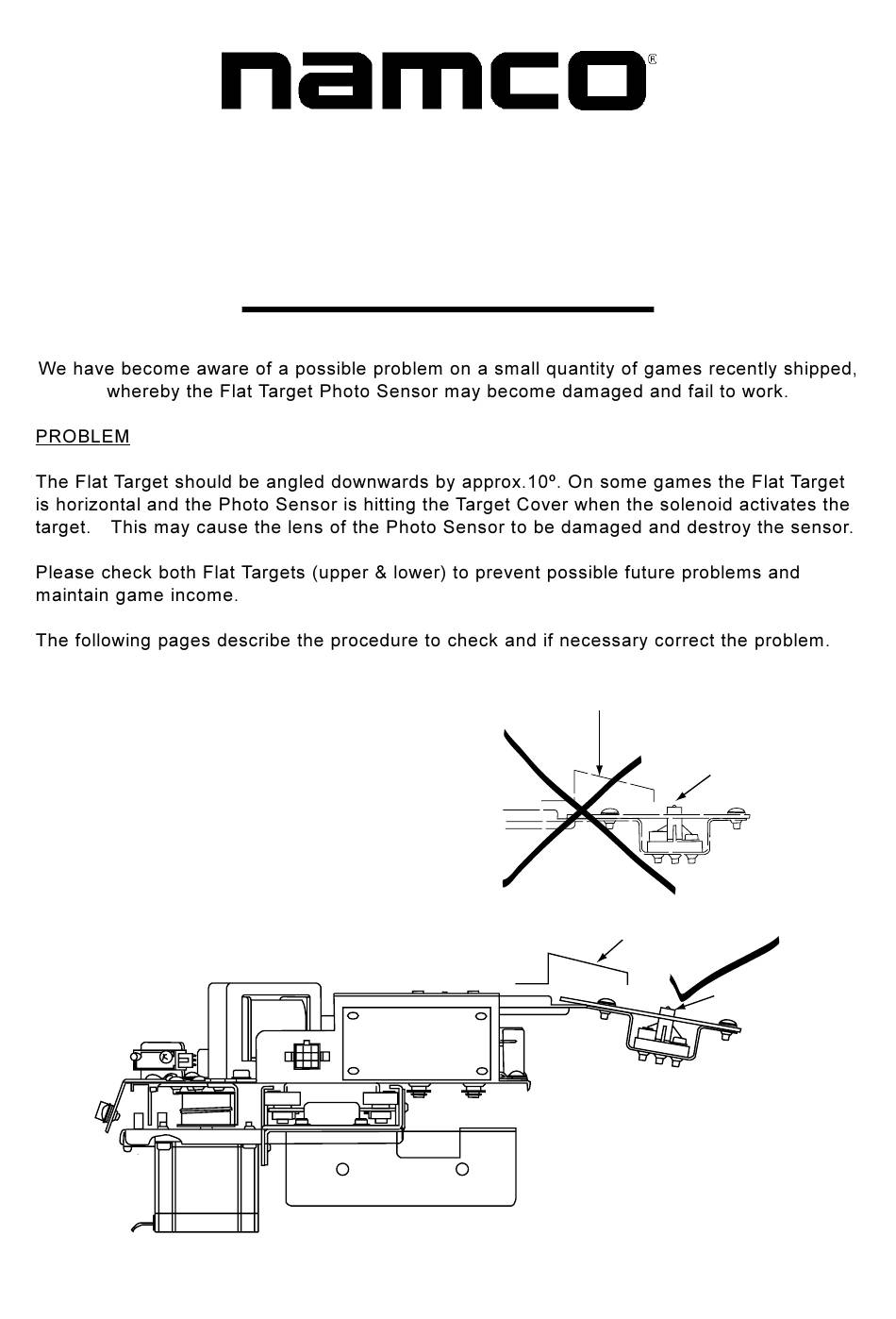

- Page 1 2nd November 1999 TECHNICAL BULLETIN QUICK & CRASH Target Cover Sensor Target Cover Sensor Page 1 of 3...
- Page 2 The Upper and Lower Target Assemblies are different. Ensure that they are replaced in the correct positions Connector (CN22) Harness Connector (CN21) Connectors (CN20) Harness Connector (CN29) Pozi flange screws (M4x6) Note: When removing the Flat Target Assy from the cabinet, slide the motor side of the Flat Target Assy in the direction of the arrow, as shown in the diagram below, being careful that it does not come in contact with any other parts of the Target Cabinet.
- Page 3 Note: Take care when bending the target not to twist it. Page 3 of 3...
