Summary of Contents for Philips MCM275/05B
Page 1

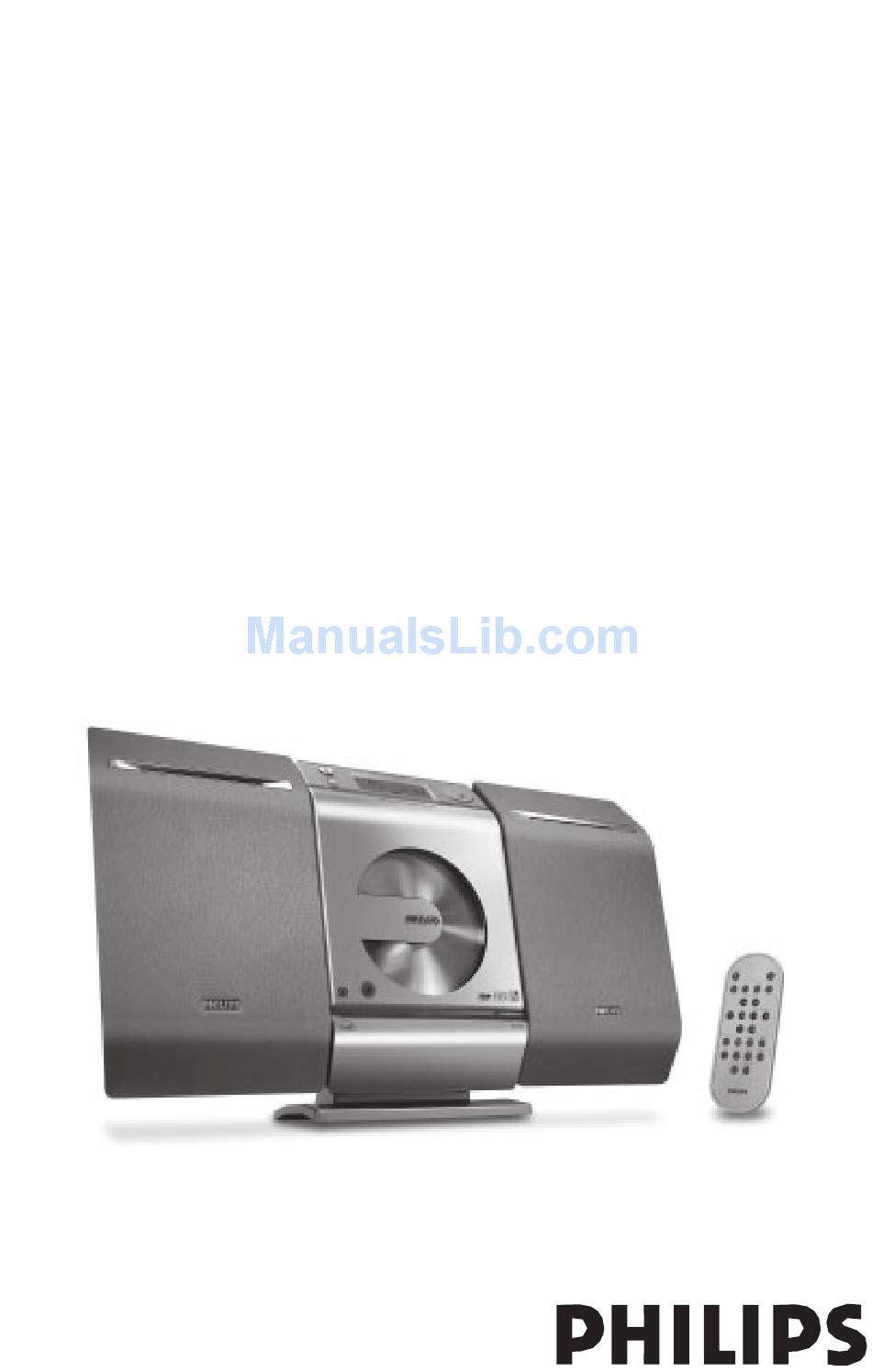

MCM275 Micro Hi-Fi System User manual Manuel d'utilisation Manual del usuario Benutzerhandbuch Gebruikershandleiding Manuale per l'utente Användarhandböckerna Brugermanual...
See Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972. Italia DICHIARAZIONE DI CONFORMITA’ Si dichiara che l’apparecchio MCM275 Philips risponde alle prescrizioni dell’art. 2 comma 1 del D.M. 28 Agosto 1995 n. 548. Fatto a Eindhoven...
Page 4
Advarsel: Usynlig laserstråling ved åbning når sikkerhedsafbrydere er ude af funktion. Undgå utsættelse for stråling. Bemærk: Netafbryderen er sekundært indkoblet og ofbryder ikke strømmen fra nettet. Den indbyggede netdel er derfor tilsluttet til lysnettet så længe netstikket sidder i stikkontakten. Klass 1 laseraparat Varning! Om apparaten används på...
Page 5
Index English ------------------------------------------------ 6 Français -------------------------------------------- 31 Español --------------------------------------------- 56 Deutsch --------------------------------------------- 81 Nederlands -------------------------------------- 107 Italiano -------------------------------------------- 132 Svenska ------------------------------------------- 157 Dansk --------------------------------------------- 181...
Contents General Information Supplied accessories ... 7 Environmental information ... 7 Safety information ... 7 Controls Controls on the set ... 8 Remote control ... 9-10 Installation Placing MCM275 ... 10 Mounting stand onto the set Mounting MCM275 onto walls Rear connections ...
Supplied accessories – 2 speaker boxes including 2 speaker cables – remote control (with 1 x CR2025 battery) – MW loop antenna – FM wire antenna – stand – mounting kit Environmental Information All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags,...
Controls Controls on the set (illustrations on page 3) STANDBY-ON/ ECO POWER – press briefly to switch the set on or off (standby/ ECO POWER); – In standby or Eco Power mode: press and hold to toggle between Standby and ECO POWER mode (power-saving mode) –...
Remote control Notes for remote control: – First select the source you wish to control by pressing one of the source select keys on the remote control (for example CD, TUNER). – Then select the desired function (for example ÉÅ , 4 , ¢ ). –...
Controls 4 / ¢ – CD/USB: skips or searches CD tracks backwards/forwards – Tuner: tunes to radio stations ALBUM/ PRESET 3 / 4 – CD/USB: selects the next/previous album (for MP3/WMA only) – TUNER: selects a preset radio station ÉÅ –...
FM wire antenna Speaker (right) Rear connections Warning: – Never make or change connections with the mains supply switched on. – Install your set near the AC outlet and where the AC power plug can be reached easily. Speaker connections Use the supplied speakers only.
Installation Insert the loop antenna into the slot on the set Fit the plug of the loop antenna to AM (MW) ANTENNA as shown below Adjust the position of the antenna for optimal reception (as far away as possible from the TV, VCR or other radiation sources) ANTENNA FM antenna...
Connecting a non-USB device It is possible to use an additional appliance, e.g. TV, VCR or CD recorder with the set. On MCM275, you can playback music from an external source. Follow the Step 1 under Connecting a USB device or memory card Insert one plug of the audio cable (not supplied) to the socket AUX IN on the set ‘s foldable control panel...
Preparation Using the remote control IMPORTANT! – Remove the protective plastic tab before using the remote control. – Always point the remote control directly towards IR area. Notes for remote control: – First select the source you wish to control by pressing one of the source select keys on the remote control (for example CD, TUNER).
Switching on/off the set and selecting functions To switch on, press STANDBY-ON/ ECO POWER or SOURCE on the set (or y on the remote control) ➜ The set switches to the last source selected On the remote control, press the source button (e.g.
Basic Functions Volume control Volume adjustment ● Adjust the volume by using the VOLUME rotary on the set or by pressing VOLUME +/- on the remote control ➜ VOL and the actual value (between 1 and 31) are displayed ➜ VOL MIN is the minimum volume level ➜...
Discs for playback With this system, you can play – all pre-recorded audio CDs (CDDA) – all finalized audio CD-Rs and CD-RWs – MP3/WMA-CDs (CD-Rs/CD-RWs with MP3/WMA files) IMPORTANT! – This system is designed for regular discs. Therefore, do not use any accessories such as disc stabilizer rings or disc treatment sheets, etc.
Helpful hints: – If you have not organized MP3/WMA files into any albums on your disc, an album “00” will be automatically assigned for all those files. Press ÉÅ to start playback ➜ Display shows current track number and elapsed playing time To pause playback, pressÉ...
Programming tracks You may store up to 40 tracks in the desired sequence. If you like, store any track more than once. In the stop position, press PROGRAM to start programming ➜ flashes ➜ Audio CD: Display shows PROG and current track number MP3/WMA: Display shows current album/ track number...
Different play modes: REPEAT, SHUFFLE REPEAT TRACK– plays the current track continuously REPEAT ALL– plays the entire disc/program continuously SHUFFLE – plays all the tracks in random order During playback, press once or more REPEAT or SHUFFLE to select play modes To return to normal playback, press REPEAT or SHUFFLE repeatedly until the various modes are no longer displayed...
Tuning to radio stations Press SOURCE once or more to select TUNER (or TUNER on the remote control) Press TUNER on the remote control repeatedly to select your desired waveband, FM or MW ➜ Display shows: , radio station frequency, waveband and if programmed, a preset number Press and hold 4 / ¢...
Tuner The feature RDS (Radio Data System) is a service that allows FM stations to send additional information along with the regular FM radio signal. When you are receiving an RDS station, and the station name are displayed. Switching through RDS information Tune to the desired RDS radio station on the FM waveband (see Tuning to radio stations) Press RDS/NEWS on the remote control...
RDS News and Traffic Announcement (TA) While listening to CD, USB or AUX source, you can activate NEWS. The set will tune to the news/traffic announcement if the related signals are received from a RDS station. Activating the NEWS function ●...
Using a USB mass storage device By connecting a USB mass storage device to the Hi-Fi system, you can enjoy the device’s stored music through the powerful speakers of Hi-Fi system. Playing a USB mass storage device Compatible USB mass storage devices With the Hi-Fi system, you can use –...
Check the USB device has been properly connected. (See Installation: Connecting an additional appliance) Press SOURCE once or more to select USB (or USB on the remote control) ➜ The icon appears – NO AUDIO appears if no audio file is found in the USB device Play the USB’s audio files as you do with the albums/tracks on a CD (See CD)
Timer Setting the timer The set can be used as an alarm clock, whereby the selected source (CD, TUNER or USB) star ts playback at a preset time. Make sure the clock is set before using the timer. Press and hold TIMER on the remote control until SET TIMER appears ➜...
Cleaning the disc lens ● After prolonged use, dirt or dust may accumulate at the disc lens. To ensure good playback quality, clean the disc lens with Philips CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner.
Do not open the system as there is a risk of electric shock. If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help.
The remote control does not function properly. The timer is not working. The Clock/Timer setting is erased. Troubleshooting ✔ Select the source (CD or TUNER, for example) before pressing the function button (É Å,4 , ¢). ✔ Reduce the distance between the remote control and the system.
Appendix How to mount your MCM275 onto walls IMPORTANT! – The wall mounting instructions are for the use of the qualified wall mounting person only! – Ask a qualified person to help you with the wall mounting, which includes drilling holes on the wall and mounting the set onto walls.
