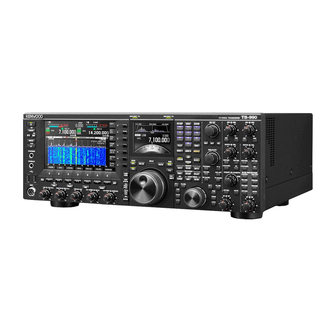

TS-990S
KENWOOD NETWORK COMMAND
SYSTEM Setting Manual　
© January/30/2019

Advertisement

Table of Contents
loading

Related Manuals for Kenwood TS-990S

Summary of Contents for Kenwood TS-990S

  • Page 1 TS-990S KENWOOD NETWORK COMMAND SYSTEM Setting Manual　 © January/30/2019...

  • Page 2: Table Of Contents

    JVC KENWOOD Corporation bears absolutely no responsibility for damages arising thereof. JVC KENWOOD Corporation may revise and amend the product information described in this document without notice. JVC KENWOOD Corporation bears absolutely no responsibility for damages arising thereof.

  • Page 3: Relevant Models

    Radio Control Program; hereinafter called "ARCP-990”), ARHP-990 (a Radio Host Program; hereinafter called “ARHP-990”), and ARVP-10 (a VoIP Program; hereinafter called “VoIP Program”) for remote control of the TS-990S. Note: If the firmware version of the TS-990S is V1.00, please update it to V1.01 or later. Important To configure the system, knowledge not only of transceivers but also of ...

  • Page 4: Objectives Of This Document

    2. Objectives of this document To supply information to configure a remote control system via a home LAN or Internet using the TS-990S, ARCP-990, ARHP-990 and VoIP Program. Programs and Functions Functions Location Operates transceiver Remote Station ARCP-990 remotely Receives the display data...

  • Page 5: Outline

    3. Outline 3.1. Overall Configuration 図：3.1.1 家庭内 LAN の構成例 （この図ではモデム、ブロードバンド・ルーター、ハブ等は省略してあります。） Fig. Example of a home LAN configuration (In this diagram, the modem, router, and hub have been omitted.) As shown in the diagram, the configuration uses a host station (where the transceiver is installed;...
  • Page 6 Fig. Example of a KNS configuration via the Internet The host station and remote station can be installed in any location with a home LAN connection or Internet connection.

  • Page 7: Outline Of Host Station (Transmitter) Operations

    To exchange audio transmissions, connect the transceiver ACC2 connector to the PC sound I/O terminal. For the transceiver connector specifications, refer to the TS-990S instruction manual, and for the cable creation and connection methods, refer to "4.2. Connecting an Audio...
  • Page 8 (includes .NET Framework 4.0). ARHP-990 This software controls the transceivers. Refer to the software help for the settings and operation methods. Download the software from the KENWOOD website, and install it onto the PC. https://www.kenwood.com/i/products/info/amateur/ software_download.html VoIP This software exchanges audio transmissions via Program the Internet.
  • Page 9 Internet Provider To implement KNS operations via the Internet: environment ・ A high-speed wired broadband environment using xDSL, FTTH, or CATV network is required. (1Mbps min. recommended.) ・ A global IP address is required. (See Note 5.) ・ The ability to use protocols and ports to transmit the data signals that control the transceiver and audio is required.

  • Page 10: Outline Of Remote Station (Operator) Operations

    3.4. Outline of Remote Station (Operator) Operations The remote station is configured using a PC connected to the network, and a microphone and speaker connected to the PC sound function. The audio transmissions for the host station transceiver are input and output using the microphone and speaker connected to the sound function of the remote station PC via the network.
  • Page 11 Same as host station. ARCP-990 This software remotely controls the transceivers. Refer to the software help for the settings and operation methods. Download the software from the KENWOOD website, and install it onto the PC. https://www.kenwood.com/i/products/info/amateur/ software_download.html VoIP Same as host station.

  • Page 12: Settings

    4. Settings 4.1. Connecting a Communications Cable Connect the host station PC and TS-990S using a USB cable or RS-232C cable. There is also a way to connect both the transceiver and PC to the home LAN. This method makes high-speed data communication with the transceiver via USB or RS-232C cable.
  • Page 13 Connect the PC sound functions and audio cable with reference to the following diagram. Reference: If the TS-990S is connected to the PC using a USB cable, audio transmission input and output are possible using the USB audio function, but the many signal conversions cause inherently unavoidable delays. Furthermore, during KNS operations, network delays will occur.

  • Page 14: Transceiver Settings

    Input is also possible using USB audio functions from a USB connector, but as the delays are great, this is not recommended. On the Modulation Source screen of the TS-990S, set "ACC2" to ON, to be transmitted when "DATA SEND (PF)" is operated, to transmit audio input from the ACC2 connector.
  • Page 15 ● Mixed beep setting to external audio outputs With the TS-990S default mode, the received audio signals that include beeps or side tones are output from the ACC2 connector as audio signals and the USB connector as USB audio signals.
  • Page 16 control should be disabled while transmitting. Menu No. Function Setting range (Default) 6-02 Maximum continuous transmit time Off, 3, 5, 10, (time- out timer) 20, 30 [min] (Off) ● Prohibit transmission setting If using the host station as a receive-only station, set to transmission inhibited.

  • Page 17: Setting Transmission Methods For Audio Input To The Acc2 Connector

    4.4. Setting Transmission Methods for Audio Input from the ACC2 Connector The PTT of the microphone connected to the TS-990S, and the [SEND] key on the TS-990S control panel, are the methods for transmitting audio input from the microphone connected to the TS-990S. When TXing by these methods, audio input as audio signals from the ACC2 connector cannot be transmitted.

  • Page 18: Setting A Broadband Router

     For the broadband router settings, refer to the broadband router user’s manual.  Incorrect broadband router settings may stop the network or enable illegal external access to the network. Take thorough precautions when changing the settings.  JVC KENWOOD Corporation does not offer support for customer PCs and networks.

  • Page 19: Software Installation And Settings

    Download and install the ARHP-990 onto the PC from the KENWOOD website: https://www.kenwood.com/i/products/info/amateur/software_download.html Connect the PC and TS-990S using a USB or RS-232C cable. Then, turn ON the TS-990S. After starting the ARHP-990, make the COM port settings used to connect to the TS-990S, network settings, optional settings, and user settings by selecting the "Tool"...
  • Page 20 Download and install the ARCP-990 onto the PC from the KENWOOD website: https://www.kenwood.com/i/products/info/amateur/software_download.html After starting the ARCP-990, select "Settings" in the "Tool" menu, and set "KNS (KENWOOD NETWORK COMMAND SYSTEM) (ARHP-990)" in "Connection to the TS-990S". Click the "Setting" button to configure the KNS connection.

  • Page 21: Windows Firewall Settings

    4.7. Windows Firewall Settings With the host station PC, receiving connections from networks and the Internet using the ARHP-990 and ARVP-10 are blocked by the Windows firewall. When blocked, KNS operations are disabled, so remove the block. Reference: Add the ARHP-990 and ARVP-10H to "exceptions" using the Windows firewall settings, to release the block.

  • Page 22: Limitations Caution

    5. Limitations Caution! 5.1. PC Environment Limitations The ARCP-990, ARHP-990, and ARVP-10 are compatible with the Windows 7 (32-bit or 64-bit), Windows 8.1 (32-bit or 64-bit), or Windows 10 (32-bit or 64-bit). Use the operating systems described above for both the host and remote stations.

  • Page 23: Program Limitations

    Strings entered using the keyboard are collated for transmit operations. 5.4. Limitations if Using USB Audio Functions If the PC and TS-990S are connected via a USB cable, audio transmissions can be transmitted using the USB audio function. However, in principle, there is a delay with USB audio, so sound may be lost depending on the PC performance and load status.

  • Page 24: Frequently Asked Questions

    6. Frequently Asked Questions This section introduces questions that have been asked to date, and subjects verified by JVC KENWOOD Corporation. Question Answer When using a network When using a network connection Installation connection via the Internet, is via the Internet, a global IP address KNS disabled unless I obtain a is required.
  • Page 25 Connection Cannot operate the Check the environment of the transceiver. PC at the remote station. Cannot connect to the host ・ Select "KNS (KENWOOD station. NETWORK COMMAND SYSTEM) (ARHP-990)" from "Settings" in the "Tool" menu on the ARCP-990, and click "Settings".
  • Page 26 Question Answer Internet Cannot operate the Check that connections to transceiver via the Internet. websites and your Internet mail Cannot connect to the host server are still possible. station. Check the host station IP address, ID, and password. If there are no problems, check the following.
  • Page 27 Operations or ARCP-590? only. The ARCP-590 is for the TS-590 only. Use the ARCP-990 with the TS-990S. Why can't I use the ARHP-10 or The ARHP-10 is for the TS-480 only. ARHP-590? The ARHP-590 is for the TS-590 only. Use the ARHP-990 with the TS-990S.
  • Page 28 Answer Cannot hear the received Audio output level from the Operations transceiver audio from the TS-990S may be too low. Refer to speaker of the PC at the remote "Audio I/O level settings" in "4.3. station. Transceiver Settings" of this document, and adjust each output level.
  • Page 29 Transmission Methods for Audio Input to the ACC2 Connector" of this document, and check the setting. Audio input level to the TS-990S may be too low. Refer to "Audio I/O level settings" in "4.3. Transceiver Settings" of this document, and adjust the audio input level.
  • Page 30 Question Answer The audio transmission keeps Has the AGC been turned ON using Operations varying in volume and is not the VoIP software input audio constant. settings? For details, refer to the VoIP software user’s manual, and check the settings. The final part of the audio If you return to receiving transmitted from the host...
  • Page 31 Others After implementing KNS It is possible that the device operations on the PC used as connected to the TS-990S has been the host station, the sound has selected as the default device using vanished from the PC during the Windows sound settings.
  • Page 32 (Supplement): FAQ: Explaining the Internet "Cannot operate transceiver" Fig. 1 As shown in Fig. 1, even though only one broadband router (BBR) is visible on the network, in reality there are two. (Duplex router phenomenon.) There are multiple modems with built-in BBR functions, so when connecting such a modem as described above, there must not be two BBR paths connecting the PC to the Internet.
