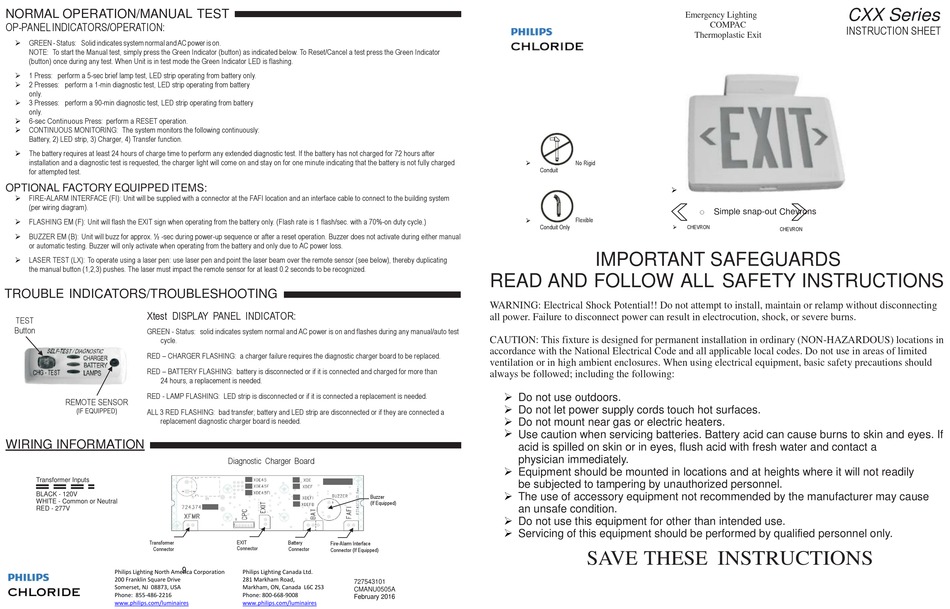

Philips CHLORIDE COMPAC CXX Series Instruction Sheet

NORMAL OPERATION/MANUAL TEST
OP-PANEL INDICATORS/OPERATION:
 GREEN - Status: Solid indicates system normal and AC power is on.
NOTE: To start the Manual test, simply press the Green Indicator (button) as indicated below. To Reset/Cancel a test press the Green Indicator
(button) once during any test. When Unit is in test mode the Green Indicator LED is flashing.
 1 Press: perform a 5-sec brief lamp test, LED strip operating from battery only.
 2 Presses: perform a 1-min diagnostic test, LED strip operating from battery
only.
 3 Presses: perform a 90-min diagnostic test, LED strip operating from battery
only.
 6-sec Continuous Press: perform a RESET operation.
 CONTINUOUS MONITORING: The system monitors the following continuously:
Battery, 2) LED strip, 3) Charger, 4) Transfer function.
 The battery requires at least 24 hours of charge time to perform any extended diagnostic test. If the battery has not charged for 72 hours after
installation and a diagnostic test is requested, the charger light will come on and stay on for one minute indicating that the battery is not fully charged
for attempted test.
OPTIONAL FACTORY EQUIPPED ITEMS:
FIRE-ALARM INTERFACE (FI): Unit will be supplied with a connector at the FAFI location and an interface cable to connect to the building system

(per wiring diagram).
 FLASHING EM (F): Unit will flash the EXIT sign when operating from the battery only. (Flash rate is 1 flash/sec. with a 70%-on duty cycle.)
 BUZZER EM (B): Unit will buzz for approx. ½ -sec during power-up sequence or after a reset operation. Buzzer does not activate during either manual
or automatic testing. Buzzer will only activate when operating from the battery and only due to AC power loss.
 LASER TEST (LX): To operate using a laser pen: use laser pen and point the laser beam over the remote sensor (see below), thereby duplicating
the manual button (1,2,3) pushes. The laser must impact the remote sensor for at least 0.2 seconds to be recognized.
TROUBLE INDICATORS/TROUBLESHOOTING
Xtest DISPLAY PANEL INDICATOR:
TEST
Button
GREEN - Status: solid indicates system normal and AC power is on and flashes during any manual/auto test
cycle.
RED – CHARGER FLASHING: a charger failure requires the diagnostic charger board to be replaced.
RED – BATTERY FLASHING: battery is disconnected or if it is connected and charged for more than
24 hours, a replacement is needed.
RED - LAMP FLASHING: LED strip is disconnected or if it is connected a replacement is needed.
REMOTE SENSOR
(IF EQUIPPED) ALL 3 RED FLASHING: bad transfer; battery and LED strip are disconnected or if they are connected a
replacement diagnostic charger board is needed.
WIRING INFORMATION
Transformer Inputs
BLACK - 120V
WHITE - Common or Neutral
RED - 277V
Transformer
Connector
9
Philips Lighting North America Corporation
200 Franklin Square Drive
Somerset, NJ 08873, USA
Phone: 855-486-2216
www.philips.com/luminaires
Diagnostic Charger Board
Buzzer
(If Equipped)
EXIT Battery
Fire-Alarm Interface
Connector
Connector
Connector (If Equipped)
Philips Lighting Canada Ltd.
281 Markham Road,
727543101
Markham, ON, Canada L6C 2S3
CMANU0505A
Phone: 800-668-9008
February 2016
www.philips.com/luminaires
 No Rigid
Conduit
Flexible

Conduit Only
IMPORTANT SAFEGUARDS
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
WARNING: Electrical Shock Potential!! Do not attempt to install, maintain or relamp without disconnecting
all power. Failure to disconnect power can result in electrocution, shock, or severe burns.
CAUTION: This fixture is designed for permanent installation in ordinary (NON-HAZARDOUS) locations in
accordance with the National Electrical Code and all applicable local codes. Do not use in areas of limited
ventilation or in high ambient enclosures. When using electrical equipment, basic safety precautions should
always be followed; including the following:

Do not use outdoors.

Do not let power supply cords touch hot surfaces.

Do not mount near gas or electric heaters.

Use caution when servicing batteries. Battery acid can cause burns to skin and eyes. If
acid is spilled on skin or in eyes, flush acid with fresh water and contact a
physician immediately.

Equipment should be mounted in locations and at heights where it will not readily
be subjected to tampering by unauthorized personnel.

The use of accessory equipment not recommended by the manufacturer may cause
an unsafe condition.

Do not use this equipment for other than intended use.

Servicing of this equipment should be performed by qualified personnel only.
SAVE THESE INSTRUCTIONS

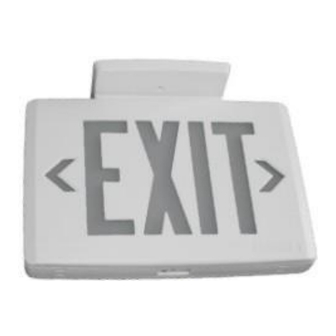

CXX Series
Emergency Lighting
COMPAC
INSTRUCTION SHEET
Thermoplastic Exit

o
Simple snap-out Chevrons
 CHEVRON
CHEVRON
