2. INTRODUCTION & SPECIFICATIONS
Electric convector heater with three heat settings of 750/1250/2000W for gradual control of heating elements. Rotary controlled room thermostat
maintains ambient temperature at pre-set level. Features built-in turbo fan for accelerated heating and 24 hour timer allowing the user to
programme the time and duration the heater is operated. Can be used freestanding or wall mounted. Slimline sturdy construction and high
quality finish makes this unit suitable for home, light industrial and office environments. Supplied with 13Amp non-rewirable ASTA approved plug
and wall mounting kit.
Model No: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CD2005TT
Power Settings: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 750/1250/2000W
Supply: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .230V
Size (WxDxH): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .595 x 200x 420mm
Weight:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.9kg
3.
ASSEMBLY

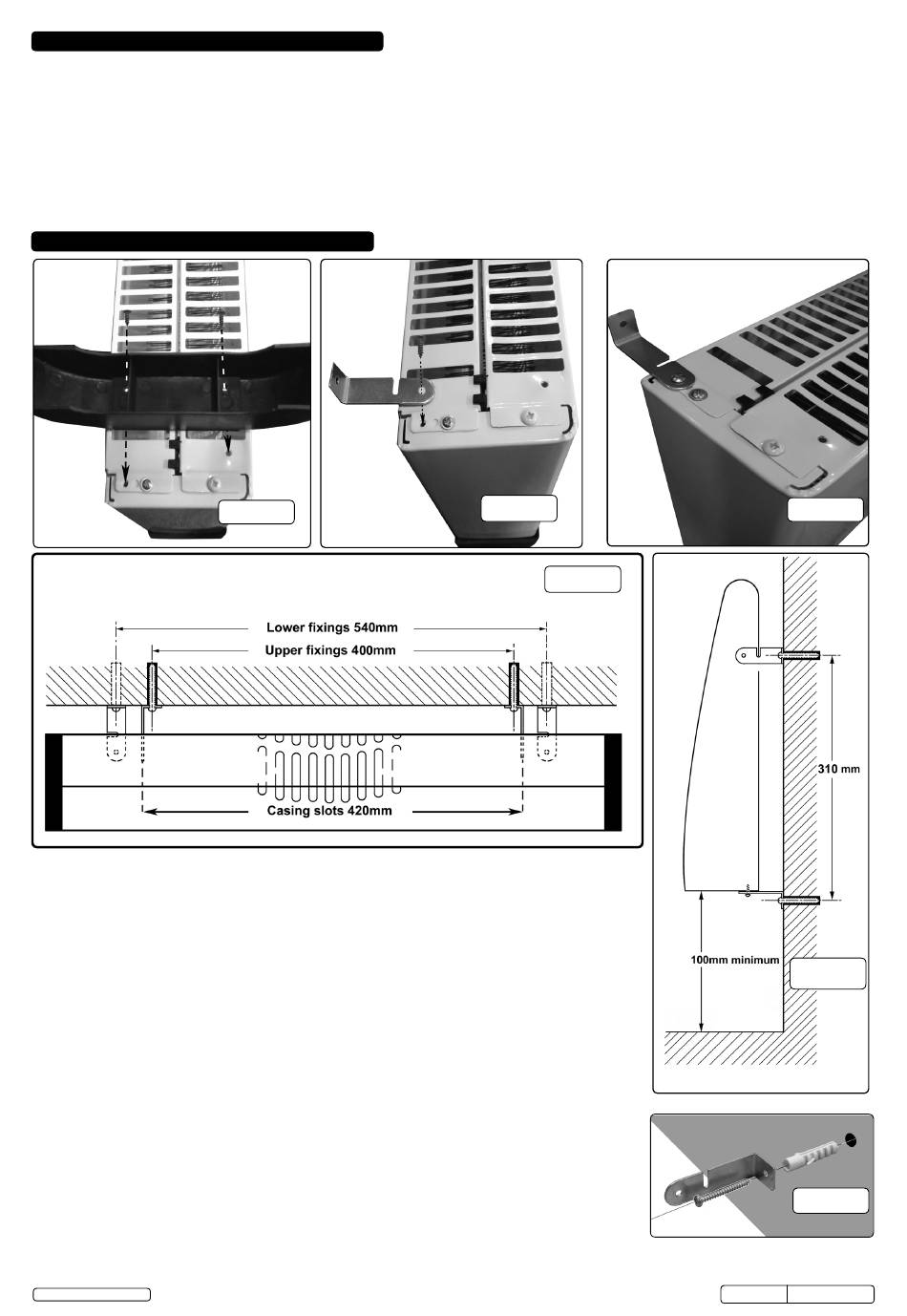

3.1. The heater can be free standing on the feet provided or can be wall mounted using the wall
mounting brackets .
3.2. Mounting the feet. (fig.1.) Turn the heater upside down and support it securely. Take one of the
feet and place it onto the underside of the heater in the position indicated in fig.1. When the foot is
positioned correctly 2 holes in the foot will line up with the holes in the underside of the heater.
Fasten each foot down with the self tapping screws provided.
3.3. Wall mounting the heater. The wall mounting kit consists of four wall mounting brackets as
shown in fig.6. (two left hand and two right hand ) and four 35mm fixing screws with wall plugs.
Locate the heater close to a mains supply socket.
3.4. Sort the wall mounting brackets into two pairs having a right hand and a left hand bracket in each
pair. Take one pair of brackets and mount them to the underside of the heater using self tapping
screws as shown in fig.2 and fig.3. Each bracket should be fixed in the pre-drilled holes provided.
3.5. Take the other pair of brackets and fix them to the wall with the wall plugs provided as shown in
fig.6. The hanging slots should be facing upwards and the two brackets should be facing towards
each other 420mm apart as shown in fig.4. The fixings should be at least 800mm above the floor
to give a minimum clearance of 100mm between the bottom of the heater and the floor as shown
in fig.5. When the heater is wall mounted the feet are not required.
3.6. Present the heater to the wall so that the wall mounting brackets enter the two slots in the back of
the heater. Push the heater onto the brackets and allow it to drop into the hanging slots equally on
both sides.
3.7. The two lower mounting brackets should now be resting squarely on the wall. If not, rotate them
slightly on their screws until the mounting surface is flat against the wall. Mark the mounting
positions on the wall through the mounting holes. Remove the heater from the upper brackets and
drill and plug the wall in the positions marked. Re-hang the heater on the upper brackets. Fix the
lower brackets to the wall with the screws provided.
3.8. To eliminate excess cable lying on the floor it may be necessary to shorten the cable to one short
loop. Remove the plug. Shorten the cable and rewire the plug as shown in section 1.1.9.
© Jack Sealey Limited
fig.1
Original Language Version
fig.2
fig.4
fig.3
fig.5
fig.6
CD2005TT
Issue: 1 -29/05/13
