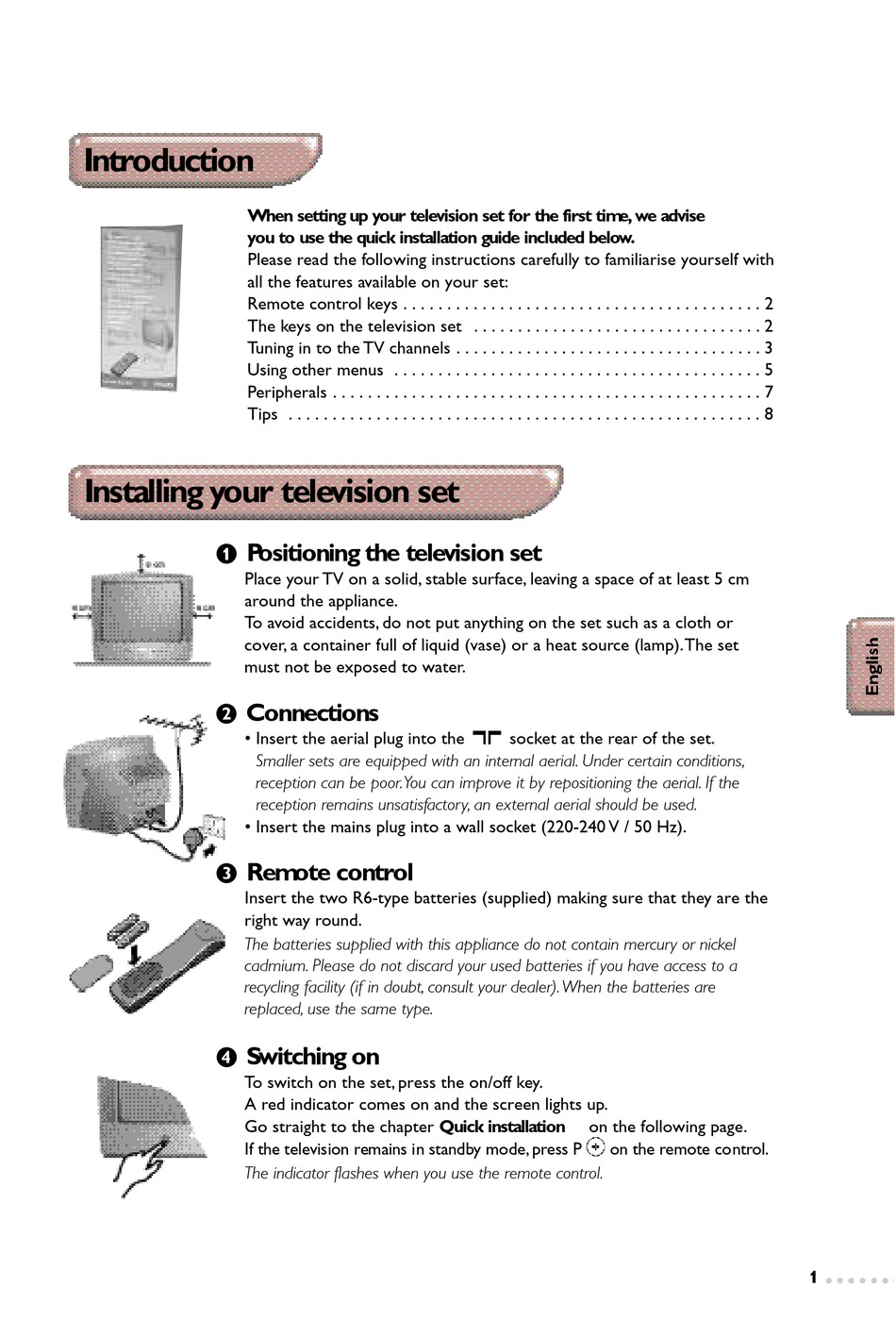

Introduction
When setting up your television set for the first time, we advise
you to use the quick installation guide included below.
Please read the following instructions carefully to familiarise yourself with
all the features available on your set:
Remote control keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
The keys on the television set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Tuning in to the TV channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Using other menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installing your television set
Positioning the television set
æ
Place your TV on a solid, stable surface, leaving a space of at least 5 cm
around the appliance.
To avoid accidents, do not put anything on the set such as a cloth or
cover, a container full of liquid (vase) or a heat source (lamp).The set
must not be exposed to water.
Â
Connections
• Insert the aerial plug into the
• Insert the mains plug into a wall socket (220-240 V / 50 Hz).
Remote control
ê
Insert the two R6-type batteries (supplied) making sure that they are the
right way round.
The batteries supplied with this appliance do not contain mercury or nickel
cadmium. Please do not discard your used batteries if you have access to a
recycling facility (if in doubt, consult your dealer). When the batteries are
replaced, use the same type.
®
Switching on
To switch on the set, press the on/off key.
A red indicator comes on and the screen lights up.
Go straight to the chapter Quick installation
If the television remains in standby mode, p ress P
The indicator flashes when you use the remote control.
Smaller sets are equipped with an internal aerial. Under certain conditions,
reception can be poor.You can improve it by repositioning the aerial. If the
reception remains unsatisfactory, an external aerial should be used.
M
socket at the rear of the set.
on the following page.
on the remote contro l .
1
Advertisement
Table of Contents
Related Manuals for Philips 14PT1365/05
Summary of Contents for Philips 14PT1365/05
-
Page 1: Installing Your Television Set
Introduction When setting up your television set for the first time, we advise you to use the quick installation guide included below. Please read the following instructions carefully to familiarise yourself with all the features available on your set: Remote control keys ......... 2 The keys on the television set . -
Page 2: The Keys On The Remote Control
The keys on the remote control Select EXT sockets Press several times to select sockets (see p.7). Numerical Keys For direct access to programmes For a 2-digit programme number, the second digit must be entered before the dash disappears. To view a programme which has been locked, you must enter the confidential code number (see p. -
Page 3: Tuning In To Channels
Tuning in to channels Quick installation (first use) The following operations are all described in the enclosed quick installation guide.We advise you to use it. The first time you switch on the television, a menu appears on the screen. This menu asks you to choose the language of the other menus. If the menu does not appear, hold down the PROGRAM- and PROGRAM+ keys ( o r a- and P -) on the set for 4 seconds to bring it up. -
Page 4: Manual Tuning
Manual tuning This menu allows you to store the programmes one by one. æ Press  Press ê Select ® Select (standard I), † Select As soon as a programme is found, the search will stop. If you know the frequency of the programme required, simply enter its number using keys If no programme is found, refer to the Tips chapter on p. -
Page 5: Using Other Menus
Using other menus To adjust a menu: æ Â Display the menu. Select a setting. Note: the menus disappear automatically after 30 seconds if no further adjustments are made. To exit from the menus, press Adjusting the picture Press TINT CONTRAST+ •... -
Page 6: Locking The Set
Locking the set This function (only available on certain models) allows you to lock the set in order to limit its use completely or partially. Key lock æ Press  Set the ê Switch off the set and put the remote control out of sight.The set cannot be used (it can only be switched on using the remote control). -
Page 7: Connecting Other Appliances
Connecting other appliances Depending on the model, the TV is equipped with 1 or 2 euroconnector sockets, The EXT1 socket controls audio video input/output and RGB input. The EXT2 socket (if available) controls audio video input/output and S-VHS input. Video recorder Other equipment Front panel connections To select connected equipment... - Page 8 Tips Poor reception or no picture The proximity of mountains or high buildings can cause ghost pictures, echoing or shadows. If this is the case, try tuning the picture using TUNE Do you have the right system (p. 4)? Check that the aerial plug or euro c o n n e c t o r plug is properly connected. Check also that your aerial is capable of receiving broadcasts in this frequency range ( Adjusting the picture...
- Page 10 I n f ormation for users in the UK Positionin g the TV For the best results, choose a position where light does not fall directly on the screen, and at some distance away from radiators or other sources of heat.
- Page 11 Table of TV frequencies. Frequenztabelle der Fernsehsender. Liste des fréquences TV. Frequentietabel TV-Zenders. Tabella delle frequenze TV. Lista de frecuencias TV. EUROPE EASTERN EUROPE CANAL ...FREQ (MHz) CHANNEL ...FREQ (MHz) E2...48.25 R1 ...49.75 E3...55.25 R2 ...59.25 E4...62.25 R3 ...77.25 E5...175.25 R4 ...85.25 E6...182.25 R5 ...93.25...
- Page 12 ß...
