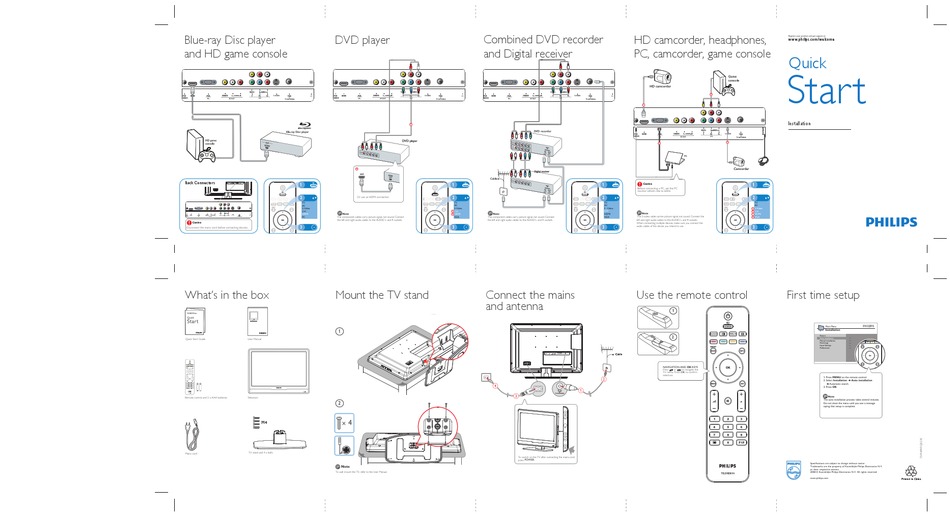

Philips 26PFL3403/94 Quick Start Manual

Blue-ray Disc player DVD player
and HD game console
S-VIDEO
AV OUT CVI
TV ANTENNA
B
Back Connectors
1
AV OUTPUT CVI S-VIDEO TV ANTENNA
2 Or use an HDMI connection
TV
AV
S-Video
CVI
HDMI Note
S-VIDEO
CVI PC The component cables carry picture signal, not sound. Connect
AV OUT TV ANTENNA
the left and right audio cables to the AUDIO L and R sockets.
Caution
3
Disconnect the mains cord before connecting devices.
What's in the box Mount the TV stand
1
1
Quick Start Guide User Manual
Level surface covered with soft cloth
Television
2 2
x 2
x 4
M4
M4
TV stand and 2 x bolts TV stand and 4 x bolts
Mains cord
Note
To wall mount the TV, refer to the User Manual.
Combined DVD recorder
and Digital receiver
S-VIDEO
AV OUT CVI AV OUT CVI
TV ANTENNA
A
Digital receiver
1
2
TV
AV
S-Video
A CVI
B HDMI Note
VGA The component cables carry picture signal, not sound. Connect
the left and right audio cables to the AUDIO L and R sockets.
3
Connect the mains
and antenna
AV OUTPUT CVI
d
TV ANTENNA
c
To switch on the TV after connecting the mains cord,
press POWER.
HD camcorder, headphones,
PC, camcorder, game console
B
S-VIDEO
TV ANTENNA
C
S-VIDEO
AV OUT CVI
TV ANTENNA
A
D
1 Caution
Before connecting a PC, set the PC
monitor refresh rate to 60Hz.
2
TV
AV
S - Video
CVI
HDMI Note
VGA The S-video cable carries picture signal, not sound. Connect the
left and right audio cables to the AUDIO L and R sockets.
When connecting multiple devices, make sure you connect the
3
audio cables of the device you intend to use.
Use the remote control
1
2
Cable
S-VIDEO
TV ANTENNA
NAVIGATION AND OK KEYS
Press or to navigate the
TV menu. Press OK to confirm
selection.
b
a
Register your product and get support at
www.philips.com/welcome
Quick
Start
Installation
1
2
TV
AV
A S-Video
B CVI
HDMI
C
VGA
D
3
First time setup
Main Menu
Installation
Return
Auto installation ---
Manual installation ---
---
Rearrange
Input Settings ---
Preferences ---
1. Press MENU on the remote control.
2. Select Installation Auto installation
Automatic search
3. Press OK.
Note
The auto installation process takes several minutes.
Do not close the menu until you see a message
saying that setup is complete.
Specifications are subject to change without notice
Trademarks are the property of Koninklijke Philips Electronics N.V.
or their respective owners
2008 © Koninklijke Philips Electronics N.V. All rights reserved.
www.philips.com Printed in China
