Napoleon ASCENT GX42 Manual

ASCENT™ X 42 DIRECT VENT GAS FIREPLACE

Specifications

Width
Model BTU
Actual Framing Actual Framing Actual Framing
GX42 30,000 42
Front Options

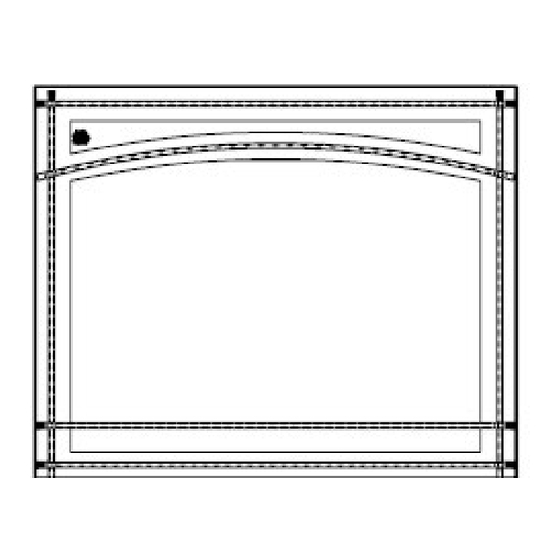

Heritage Front
Framing
WARNING
!
• Risk of fire!
• Maintain all specified air space clearances to combustibles. Failure to comply with these instructions may cause a fire or cause the appliance to overheat.
• Ensure all clearances (i.e. back, side, top, vent, mantel, front, etc.) are clearly maintained.
Height
42 1/2 40 7/8 41 1/8 18 5/16 18 9/16 37 11/16 x 23 11/16
Wrought Iron Front
Ceiling
72"
(183cm)
minimum
41 1/8"
(104.5cm)
42 1/2"
(108cm)
24 Napoleon Road, Barrie, Ontario, Canada L4M 0G8 • 214 Bayview Drive, Barrie, Ontario, Canada L4N 4Y8
Fireplaces, Heating and Cooling: 705-721-1212 • Grills: 705 726-4278 • napoleonproducts.com
Depth
Glass Size
Maximum adjustment
Ajustement maximale
Drywall
18 9/16"
(47.1cm)
Viewing Dimensions
34 7/8 x 20 15/16
Zen Front
W415-1891 / 09.06.18
