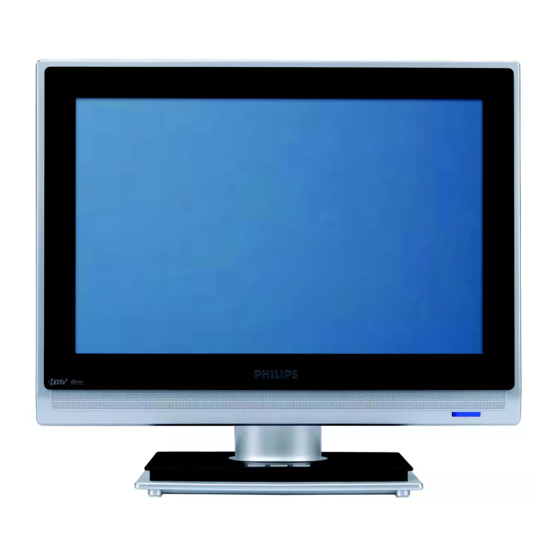

Philips 19PFL5622D/37 User Manual

Philips 19PFL5622D/37 User Manual

Built-in dvd player with divx
Hide thumbs Also See for 19PFL5622D/37:

Advertisement

Thank you for choosing Philips.
Need help fast?
Read your Quick Start Guide and/or
User Manual first for quick tips
that make using your Philips product
more enjoyable.
If you have read your instructions
and still need assistance,
you may access our online help at
www.philips.com/welcome
or call
1-888-PHILIPS (744-5477)
while with your product
(and Model / Serial number)
Model / Model / Model:
Philips vous remercie de
votre confiance.
Besoin d'une aide
rapide?
Le Guide rapide de début et
Manuel de l'utilisateur regorgent
d'astuces destinées à simplifier
l'utilisation de votre produit Philips.
Toutefois, si vous ne parvenez
pas à résoudre votre problème,
vous pouvez accéder à
notre aide en ligne à l'adresse
www.philips.com/welcome
ou formez le
1-800-661-6162 (Francophone)
1-888-PHILIPS (744-5477)
(English speaking)
Veillez à avoir votre produit à
portée de main
(et model / serial nombre)
P41T9021813 1B
19PFL5622D
built-in DVD player
with DivX®
Gracias por escoger Philips
Necesita ayuda
inmediata?
Lea primero la Guía rápida del
comienzo o el Manual del usuario,
en donde encontrará consejos que
le ayudarán a disfrutar plenamente
de su producto Philips.
Si después de leerlo aún necesita ayuda,
consulte nuestro servicio de
asistencia en línea en
www.philips.com/welcome
o llame al teléfono
1-888-PHILIPS (744-5477)
y tenga a mano el producto
(y número de model / serial)

Advertisement

Table of Contents
loading

Summary of Contents for Philips 19PFL5622D/37

  • Page 1 Thank you for choosing Philips. Need help fast? Read your Quick Start Guide and/or User Manual first for quick tips that make using your Philips product more enjoyable. If you have read your instructions and still need assistance, you may access our online help at www.philips.com/welcome...
  • Page 2 How to make the optimal connection (Need a Cable? Philips has them at: www. shopping.philips.com/cables) Comment réaliser une bonne connexion (Need a Cable? Philips has them at: www. shopping.philips.com/cables) Cómo realizar la mejor conexión (¿Need a Cable? Philips has them at: www. shopping.philips.com/cables)
  • Page 3 HDMI AC IN 75 / RF AV1 - Component Video (YPbPr), Audio L/R input AV2 - Composite Video (Video In), S-Video, Audio L/R input SPDIF output (Digital Only) PC - VGA, Audio HDMI AC In Side AV - Composite Video (Video In), S-Video, Audio L/R input, Earphone Cover &...
  • Page 4 Set-Top Box to TV Boîtier de décodage vers téléviseur De la caja superior o caja de cable al TV HDMI OR/OU/O DVD Player/Recorder to TV Lecteur DVD/Enregistreur DVD vers téléviseur Del reproductor o grabador de DVD al TV HDMI Cover & Connection 3 HDMI PC IN AC IN...
  • Page 5 DVD Player or Recorder toTV Lecteur DVD ou Enregistreur vers téléviseur Del reproductor o grabador de DVD alTV Component Video Input /Entrée vidéo composant /Entrada de video componente DVD Player/Recorder/VCR to TV Lecteur DVD/Enregistreur DVD/Magnétoscope vers téléviseur Del reproductor/grabador de DVD/VCR al TV S-Video /S-Vidéo...
  • Page 6 DVD Player/Recorder/VCR to TV Lecteur DVD/Enregistreur DVD/Magnétoscope vers téléviseur Del reproductor/grabador de DVD/VCR al TV Composite Audio-video /Audio-Vidéo composite /Audio-Video compuesto * You can connect this input by AV2 or Side AV. * Vous pouvez connecter cette entrée par AV2 ou Side AV. * Puede conectar esta entrada por medio del conector AV2 o el conector Side AV.
  • Page 7 Audio to Hi-fi System (Digital) Audio vers chaîne haute fidélité (Numérique) Audio al sistema Hi-fi (Digital) SPDIF PC connects to TV (as PC monitor) L’ordinateur se connecte sur un téléviseur (en tant que moniteur d’ordinateur) El computador (PC) se conecta al televisor (como monitor del computador).
  • Page 8: Serial No

    Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed below, so don’t miss out. Complete and return your Product Registration Card at once, or register online at www.philips.com/welcome to ensure:...
  • Page 9 Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 10: Precaution

    Precaution ADDITIONAL SAFETY PRECAUTIONS • ENSURE that LCD TV stand is tightened properly to the set on the right way of tightening of the screw of the stand to the set. Improper tightening of screw may render the set unsafe. •...
  • Page 11: Table Of Contents

    Serial No: Care of the screen See Tips, p. 43 End of life directives - Recycling Philips has paid a lot of attention to producing an environmentally friendly product. Your new TV contains several materials that can be recycled for new uses. At the end of its life, specialized companies can dismantle and recycle this set.
  • Page 12: Preparation

    Preparation ANTENNA ANTENNA CABLE CABLE CABLE OR ANTENNA CABLE OR ANTENNA ANTENNA ANTENNA CABLE CABLE OUTPUT /OUT (TO TV) OUTPUT /OUT (TO TV) Do not insert the power plug in a wall socket before all connections are made. Place the TV on a solid surface. For ventilation, leave at least 4”...
  • Page 13 ANTENNA CABLE OUTPUT /OUT (TO TV) Cable box ANTENNA VIDEO PC IN CABLE S-VIDEO CABLE OR ANTENNA AV2: L+R+CVBS SPLITTER Cable box Watching cable TV programs that don’t require the use of a cable box. Since you’ve connected the cable TV signal directly to the TV’s tuner, you can also watch unscrambled programs by simply tuning to the desired channel;...
  • Page 14: Remote Control

    ANTENNA CABLE CABLE OR ANTENNA ANTENNA CABLE CABLE OR ANTENNA OUTPUT /OUT (TO TV) Cable box Note: The first time (and only the first time) you turn on your set you see an installation introduction screen. The installation procedure consists of a series of screens that guide you through the process.
  • Page 15: Use Of The Remote Control

    Use of the remote control Note: Pressing most buttons once will activate the assigned function. Pressing a second time will de-activate it. When a button enables multiple options, a small list will be shown. Press repeatedly to select the next item in the list. The list will be removed automatically after six seconds or press OK to remove immediately.
  • Page 16 FORMAT Press this button to display a list of available display formats. Available display formats are determined by the type of signal you are receiving. To choose the display format you prefer, press the FORMAT button repeatedly: For 19PFL5622D Automatic, Super Zoom, 4:3, Movie expand 14:9, Movie expand 16:9, 16:9 subtitle and Widescreen.
  • Page 17: Use Of The Remote Control-Dvd

    Use of the remote control-DVD Press the “SOURCE” button repeatedly to select source DVD to activate DVD function. Make sure the source “DVD” is selected. DISC MENU Enter the disc contents menu. Switches on or off the playback control mode (for VCD version 2.0 only) AUDIO Select the DVD audio language.
  • Page 18: Buttons On The Top Of The Tv

    Buttons on the top of the TV POWER VOLUME MENU POWER VOLUME MENU Buttons on the DVD base POWER VOLUME MENU CHANNEL POWER VOLUME MENU CHANNEL Should your remote be lost or broken you can still change some of the basic settings with the buttons on the top of your TV. CHANNEL Press the power switch Press:...
  • Page 19: To Use The Menus

    To use the menus Introduction When you use a menu or take an action, convenient instructions, help texts and messages will be displayed on your TV. Please, follow the displayed instructions and read the help text on the specifi c item highlighted. The color buttons perform different actions, when using on screen menu.
  • Page 20: Tv Menu-

    TV menu-Installation Installation Language Language English Autoprogram Français Source Español Clock Weak channel installation Current software info Reset AV settings Info Installation Autoprogram Language Antenna Autoprogram Cable Source Clock Autoprogram Antenna Weak channel installation Weak channel installation Antenna Current software info Current software info Cable Start now...
  • Page 21: Weak Channel Installation

    Note: Digital Channel selection delay Due to the tuning complexity of subchannel digital programming, the time to select and view a digital channel may take slightly longer than what the viewer is normally accustomed to (as compared to analog channel programs). Digital channel broadcasts contain program and system data information that must be processed before the channel selection can be displayed.
  • Page 22: Digital Audio Out

    Installation Source Language Autoprogram Source AV 1 Clock AV 2 Weak channel installation HDMI Current software info Side Reset AV settings Info Installation Clock Language Autoprogram Source Clock VIDEO IN HDMI Weak channel installation S-VIDEO Current software info PC IN Reset AV settings HDMI Info...
  • Page 23: Features Menu

    TV menu-Features Settings Features Picture Closed captions Sound Caption service Features Digital caption service Parental control Digital caption options Installation Preferred channels Sleeptimer Exit Info Features Closed captions Closed captions Caption service Digital caption service On during mute Digital caption options Preferred channels Sleeptimer Info...
  • Page 24: Digital Caption Service

    Features Digital caption service Closed captions CS-1 Caption service CS-2 Digital caption service CS-3 Digital caption options CS-4 Features Digital caption service Preferred channels CS-5 Closed captions CS-1 Sleeptimer CS-6 Caption service CS-2 Digital caption service CS-3 Digital caption options CS-4 Info Preferred channels...
  • Page 25: Preferred Channels

    Features Preferred channels Closed captions Caption service Digital caption service Digital caption options Preferred channels Sleeptimer Info Features Sleeptimer Closed captions Caption service Digital caption service Digital caption options Preferred channels Sleeptimer Info Preferred channels A channel, when installed, is marked as preferred by default and added to the channel list.
  • Page 26: Picture Menu

    Personal refers to the personal preference settings of picture in the picture menu. Note: This Philips TV has been set at the factory to look best in bright store environments, which typically use fl uorescent lighting. As your home will likely not be as well lit as a store, we recommend that you cycle through the various smart picture modes to fi...
  • Page 27: Sound Menu

    Settings Sound Picture Smart sound Sound Sound mode Features Alternate audio Parental control Digital audio language Installation Exit Info Settings Sound Smart sound Smart sound Personal Sound mode Speech Alternate audio Movies Digital audio language Info Sharpness This will adjust the sharpness of fi ne details in the picture. Color temperature This will increase or decrease Warm (red) and Cool (blue) colors to suit personal preferences.
  • Page 28: Sound Mode

    Settings Sound Sound mode Mono Smart sound Sound mode Stereo Incredible surround Alternate audio Digital audio language Info Settings Sound Alternate audio Smart sound Main Sound mode Alternate audio Digital audio language Info Settings Sound Digital audio language English Smart sound Français Sound mode Español...
  • Page 29: Parental Control Menu

    TV menu-Parental Control Settings Parental control Picture Channel lock Sound TV ratings lock Features Movie ratings lock Parental control Region ratings lock Installation Clear regions lock Exit Change PIN Info Parental control Channel lock Channel lock Please enter your PIN TV ratings lock Movie ratings lock Region ratings lock...
  • Page 30 Age-based Rating Content-based Rating none None none TV-Y none TV-Y7 (FV) Fantasy Violence TV-G none TV-PG (D) Dialog (L) Language (S) Sex (V) Violence TV-14 (D) Dialog (L) Language (S) Sex (V) Violence TV-MA (L) Language (S) Sex (V) Violence TV-Y TV-Y7 TV-Y7-FV...
  • Page 31: Movie Ratings Lock

    Parental control Movie ratings lock Channel lock Please enter your PIN TV ratings lock Movie ratings lock Region ratings lock Clear regions lock Parental control Change PIN Channel lock TV ratings lock Movie ratings lock Info Region ratings lock Clear regions lock PG-13 Change PIN NC-17...
  • Page 32: Region Ratings Lock

    Parental control Channel lock Channel lock Please enter your PIN TV ratings lock Movie ratings lock Region ratings lock Clear regions lock Change pin Region ratings lock EntireAudience EntireAudience None Dialogue TV-G Info Language TV-PG TV-14 Vielence TV-MA Children Fantasy/Violence MPAA Info Parental control...
  • Page 33: Dvd Meun

    DVD menu Installation Language Language English Source Français Reset AV settings Español DivX VOD Info Disc operations Installation Source Language IMPORTANT ! Source Reset AV settings AV 1 -Depending on the DVD or VIDEO CD, some operations may be different or restricted. AV 2 DivX VOD -Do not put any objects other than disc in the disc player.
  • Page 34: Using The Disc Menu

    POWER VOLUME MENU CHANNEL POWER VOLUME MENU CHANNEL Installation Source Language Source Installation Source Reset AV settings AV 1 Language AV 2 DivX VOD Source HDMI Reset AV settings AV 1 Side AV 2 DivX VOD HDMI Side Info Info Playing discs Press the “SOURCE”...
  • Page 35 Selecting track/chapter (DVD/SVCD/VCD/CD) Press briefly during playback to go to the next chapter/ track. Press to go to the previous track (VCD/CD) or return to the beginning of the current chapter (DVD/SVCD). Subtitles Press SUBTITLE repeatedly to select different subtitle languages.
  • Page 36 00:15 04:54 192kpbs 003/006 AAAA BBBB CCCC DDDD EEEE FFFF DivX 00:00 00:00 002/005 \PPPP CCCC DDDD EEEE FFFF GGGG 00:00 00:00 002/005 \PPPP CCCC DDDD EEEE FFFF GGGG Forward/Reverse searching (DVD/SVCD/VCD) Press during playback to select the required speed: 2X, 4X, 8X, 16X or 32X (backward or forward).
  • Page 37: Playing A Divx Disc

    Special for JPEG picture CD When pictures are in “Slide show”, press STOP key and the screen will enter in “Preview” mode. Repeat (MP3/DivX/JPEG picture CD) – Press REPEAT continuously to access different ‘Play Mode’. • Shuffle: keep to play all files irregularly and no repeats.
  • Page 38: Picture Menu

    Personal refers to the personal preference settings of picture in the picture menu. Note: This Philips TV has been set at the factory to look best in bright store environments, which typically use fl uorescent lighting. As your home will likely not be as well lit as a store, we recommend that you cycle through the various smart picture modes to fi...
  • Page 39: Sound Menu

    Settings Sound Picture Smart sound Sound Incredible surround Parental control Installation Exit Info Settings Sound Smart sound Smart sound Personal Incredible surround Speech Movies Info Settings Sound Incredible surround Smart sound Incredible surround Info Sharpness This will adjust the sharpness of fi ne details in the picture. Color temperature This will increase or decrease Warm (red) and Cool (blue) colors to suit personal preferences.
  • Page 40 DVD menu-Parental Control Settings Parental control Picture Movie ratings lock Sound Change PIN Parental control Installation Exit Info Parental control Movie ratings lock Movie ratings lock Please enter your PIN Change PIN Parental control Movie ratings lock Movie ratings lock Change PIN Info PG-13...
  • Page 41: Change Pin

    Parental control Change PIN Movie ratings lock Please enter your PIN Change PIN Info Important: you have forgotten your PIN! Select Change PIN in the Menu preferences menu and press the cursor right key. Press the cursor right key to enter the overriding PIN code 0-7-1-1.
  • Page 42 Press the OK button to erase settings and reset them to their default values. DivX VOD code Philips provides you with the DivX VOD (Video On Demand) registration code that allows you to rent and purchase videos using the DivX VOD service.
  • Page 43: Pc Menu

    PC menu-Installation Installation Language Language English Source Français Picture adjustment Español Factory reset Info Installation Source Language Source Picture adjustment AV 1 Factory reset AV 2 HDMI Side Info Installation Picture adjustment Language Auto adjust Source Manual adjust Picture adjustment Factory reset Info Installation...
  • Page 44: Picture Menu

    PC menu-Picture Settings Picture Picture Contrast Sound Brightness Installation Color temperature Exit Picture format Info Settings Picture Color temperature Contrast Normal Brightness Warm Color temperature Cool Picture format Info Settings Picture Picture format Contrast Full screen Brightness Color temperature Picture format Info Picture menu Select Picture in the TV Settings menu.
  • Page 45: Sound Menu

    PC menu-Sound Settings Sound Picture Smart sound Sound Incredible surround Installation Exit Info Settings Sound Smart sound Smart sound Personal Incredible surround Speech Movie Info Settings Sound Incredible surround Smart sound Incredible surround Info Sound menu Select Sound in the TV Settings menu. Press the cursor right key to enter the sound menu.
  • Page 46: Record With Your Recorder

    Record with your recorder Recorder VIDEO To select connected devices Record a TV program You can record a TV program using your recorders tuner without affecting your TV. Select the channel number on your recorder. Set your recorder to record. See the handbook for your recorder.
  • Page 47: Trouble Shooting Tips

    The software will not Possibly the operating system is wrong. install Go to www.philips.com/welcome to see which operating systems are supported. PC modes do not • Check whether connections are correct. work • Check whether the source is correctly selected. Press SOURCE button to select the correct source.
  • Page 48: Trouble Shooting Tips- Dvd

    Trouble Shooting Tips- DVD Symptoms Items to Check and Actions to follow No picture • Refer to your TV’s manual for correct Video In channel selection. Change the TV channel until you see the DVD screen. • Check if the TV is switched on. Distorted picture •...
  • Page 49: Glossary

    SDTV: 480i - The picture is 704x480 pixels, 480p - The picture is 704x480 pixels. HDTV: 720p - The picture is 1280x720 pixels, 1080i - The picture is 1920x1080 pixels. SPDIF SPDIF (Sony and Philips Digital Interconnect Format) is highly recommended for high quality digital sound output.
  • Page 50: Care And Cleaning

    Care And Cleaning WARNING concerning stationary images on the TV Screen: Do not leave fixed images on the screen for extended periods of time. This can cause uneven aging of the LCD panel. Normal use of the TV should involve viewing of programs that have constantly moving or changing images. Do not leave moving images on screen for extended periods of time.
  • Page 51: Regulatory

    FEDERAL COMMUNICATIONS COMMISSION (FCC) NOTICE (U.S. ONLY) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 52: Fcc Declaration Of Conformity

    FCC Declaration of Conformity Trade Name: Philips Responsible Party: Philips Consumer Electronics North America P.O. Box 671539 Marietta , GA 30006-0026 1-888-PHILIPS (744-5477) Declaration of Conformity for Products Marked with FCC Logo, United States Only This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 53: Specification

    Specification - TV PICTURE/ DISPLAY Aspect ratio Picture Enhancement SOUND Output Power (RMS) Sound Enhancement Sound Mode CONVENIENCE ON SCREEN DISPLAY LANGUAGE CONNECTIVITY Bottom Side WEIGHT & DIMENSIONS Weight (incl. Packaging): Weight (excl. Packaging): Carton Dimension (WxHxD): Product Dimension (WxHxD) POWER Power Consumption Standby Power Consumption...
  • Page 54: Limited Warranty

    Philips is not liable for any damage to or loss of any programs, data, or other information stored on any media contained within the product, or any non-Philips product or part not covered by this warranty.
