Tripp Lite SmartRack SR14 Manual

SR14
Dual Fan Kit
Please read these instructions carefully and follow
the installation steps in sequence.
Tools Required
Phillips head screwdriver

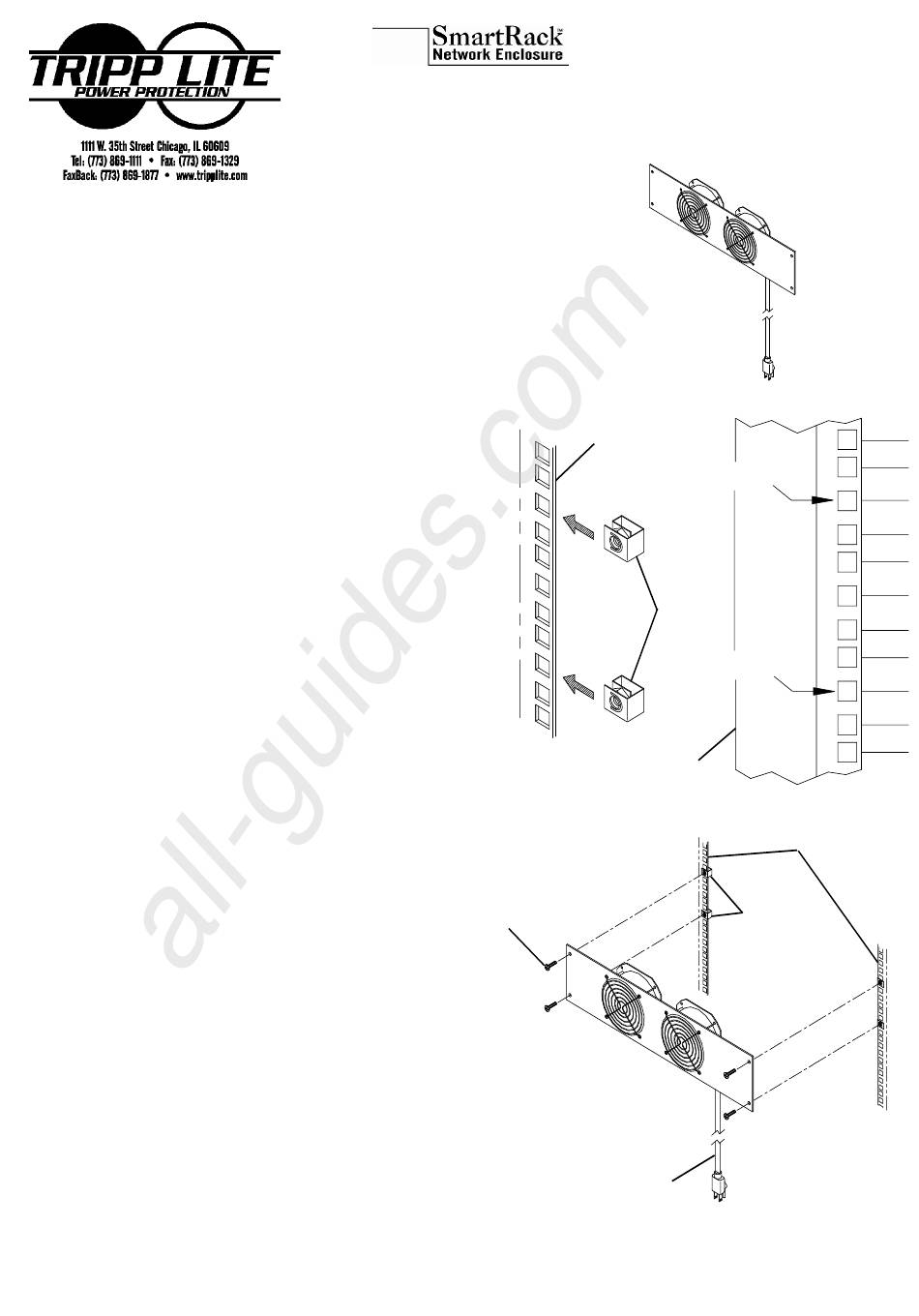

CLIP NUT INSTALLATION
Clip nuts provide mounting points on 19" rack mount
equipment rails.
Clip nuts have a front or screw side. Consider which
way it should face for ease of access to the screwhead
during component installation. (see figure 1)
To remove a clip nut from a rail, insert a flat blade
screwdriver or knife under the tab on the front and
pry up, freeing the retainer ring from the rail.
1. Select the location at which the fan panel will be
installed in the enclosure.
2. Install one clip nut into the top hole at the selected
position and then install another one six holes down.
(see figure 2)
3. Measure from the bottom of the vertical rail to the top
clip nut. Assemble the clip nuts onto the opposite rail
at the measured height.
4. Assemble the Fan Panel to the rails with the 10-32 x 1/2
phillips head screws. (see figure 3)
Manual Part #93-1865
07/09/02 rev. A
All manuals and user guides at all-guides.com
10-32 x 1/2 phillips
Rail
Clip nuts
Figure 1
Cord
1
5" Fan Panel
Use this hole
Use this hole
Rail
Figure 2
Rails
Clip nuts
Figure 3
.5"
.625"
.625"
.5"
.625"
.625"
.5"
.625"
.625"
.5"
