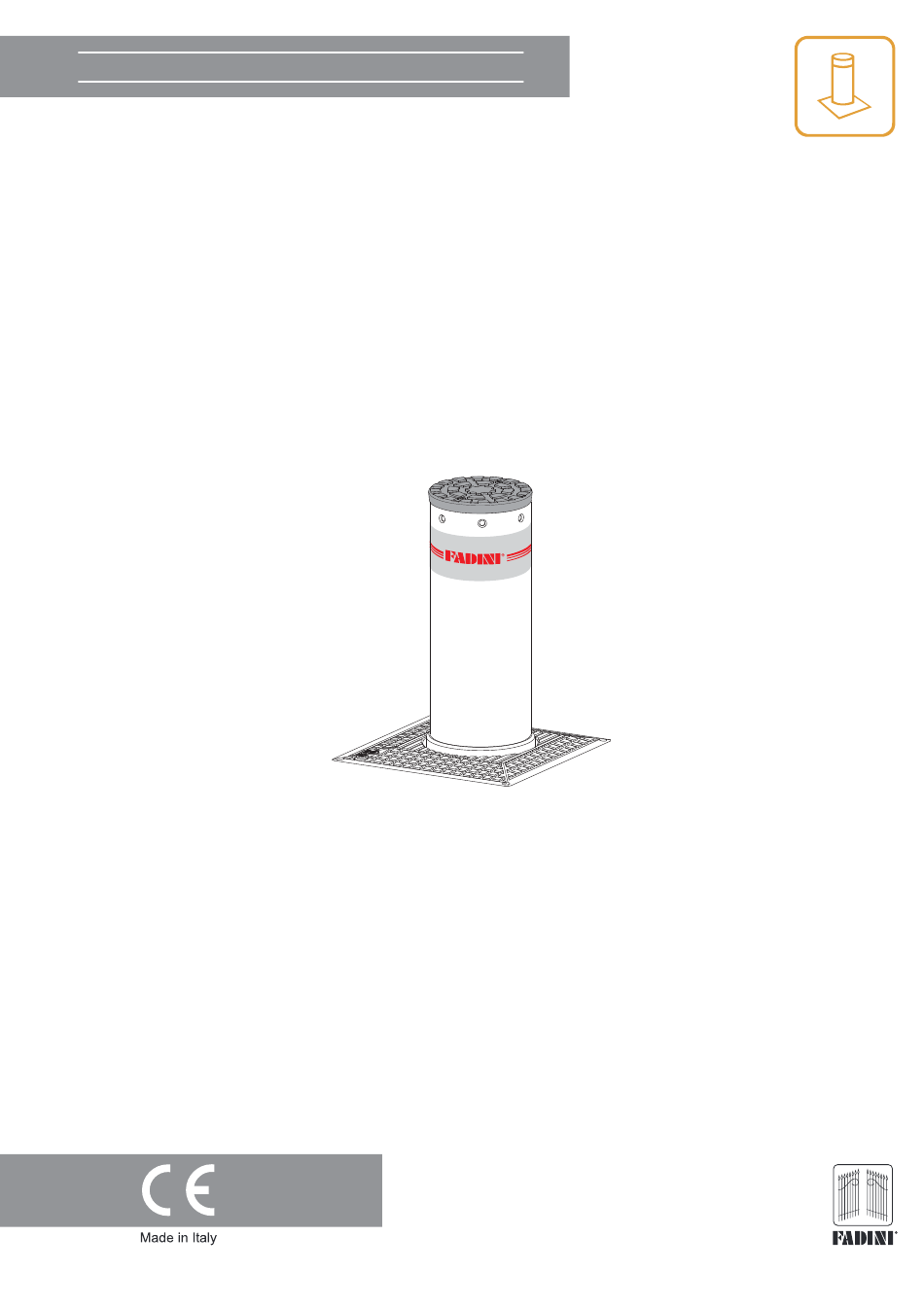

- Page 1 GB Instructions manual 1 - 16 pages VIGILO VIGILO 2250 - 2263 - 2280 2250 - 2263 - 2280 FULLY RETRACTABLE OIL-HYDRAULIC BOLLARDS. POST DIAMETER 100 mm EN 13241 EN 12453 EN 12445 the gate opener...
-
Page 2: Installation
CE DECLARATION OF CONFORMITY of the manufacturer: Meccanica Fadini snc (Via Mantova, 177/A - 37053 Cerea - VR - Italy) declares under own responsibility that: Vigilo complies with the 2006/42/CE Machinery Directive, and also that it is sold to be installed in an “automatic system”, along with original accessories and components as indicated by the manufacturing company. - Page 3 This product belongs to our range of retractable traffic control posts. It is quick and easy to install, as it does not need to be adjusted or calibrated and has been designed to regulate and prohibit vehicular access. The oil-hydraulic bollards VIGILO 2250 (500 mm height, with or without...
- Page 4 VIGILO VIGILO fully retractable oil-hydraulic bollard PRELIMINARY OPENING OF ALL FUNCTIONAL COMPONENTS Start by removing the cover plate to reveal the operator and separate the individual components, with the aid of a hoist (Pic. 2): this makes it easy to extract the internal piston and hydraulic main unit container unit. IMPORTANT: TAKE CARE NOT TO TEAR OR CUT WIRES.
- Page 5 VIGILO VIGILO fully retractable oil-hydraulic bollard ELECTRICAL LAYOUT OF THE INSTALLATION To check that the mains supply and voltage to the electric motor is 230 V at 50 Hz. The power supply to the operator’s built-in motor must be made using electricity cables with a 1,5 mm² section for a maximum distance of 50 metres.
- Page 6 VIGILO VIGILO fully retractable oil-hydraulic bollard ARRANGING THE HOUSING 410 mm Ø 60 Ø 275 Possible Soakaway pebbles submersed pump Check soil natural permeability: 50 liters of water must be able to soak away in not longer than 30/40 minutes. Otherwise provide a pipe to allow rain water to flow either into the sewage system or a sump well equipped with a submersed pump.
- Page 7 VIGILO VIGILO fully retractable oil-hydraulic bollard PLACING THE TRAFFIC CONTROL POST INSIDE THE HOUSING Before performing this operation, wait for the housing to be secured firmly in place. Do not commence until the concrete has set and the electric wire pipe has been secured and covered with soil. •...
- Page 8 VIGILO VIGILO fully retractable oil-hydraulic bollard MAGNETIC LOOP PREPARATIONS IMPORTANT: make sure that no other electro-magnetic sources are located on or under the ground near the installation to prevent interference or any affecting action with the magnetic loops of the vehicle detecting device if installed or with any other electronic equipment included in the system for commanding and controlling operations.
- Page 9 VIGILO VIGILO fully retractable oil-hydraulic bollard ELECTRICAL CONNECTIONS TO THE CONTROL BOARD Vigilo with LED lights 20 μF ELPRO S40 closing limit switch M1 (post up) opening limit switch M1 (post down) 11 12 13 16 17 18 22 23 52 53 52 53 STABILIZER...
- Page 10 VIGILO VIGILO fully retractable oil-hydraulic bollard VERSION OF CORAL WITH SOLENOID VALVE In the version of VIGILO with solenoid valve no manual overriding action is needed, and in case of power failure the post descends automatically flush with pavement level. To enable the solenoid valve to operate properly, the electric wires labelled “ELETTROVALVOLA - Solenoid valve”...
-
Page 11: Maintenance Record
NOTE WELL: this document must record any ordinary and extraordinary services including installation, maintenance, repairs and replacements to be made only by using Fadini original spare parts. This document, for the data included in it, must be made available to authorized inspectors/officers, and a copy of it must be handed over the end user/s. - Page 12 VIGILO VIGILO fully retractable oil-hydraulic bollard...
- Page 13 VIGILO VIGILO fully retractable oil-hydraulic bollard OPERATIONS FOR ORDINARY ROUTINE MAINTENANCE OF FADINI AUTOMATIC BOLLARDS (EVERY SIX MONTHS) The standard maintenance routine sequence is as follows: • Clean the ground cylinder and suck all material settlements. • Clean water drains located at the bottom of the ground cylinder and/or excavation pit.
-
Page 14: Product Specifications
As far as configuration and execution of the system are concerned, these are to comply with the laws in the country of installation. Meccanica Fadini is not liable for any possible damages derived from incorrect use or from any use not indicated in this manual, furthermore it is not answerable for malfunctioning caused by the use of materials or accessories not approved by the company itself. - Page 15 40 atm Absorbed current 1,8 A Working temperature -20 °C +80 °C Motor revolutions 2.800 rpm Oil type Oil Fadini - Item 708L Capacitor 20 μF Static weight of pump assembly 10 kg Service mode Pump protection standards IP 67 [A] -40 °C with specific optional accessories (Ref.
- Page 16 Various factors, such as the compaction index, soil permeability coefficient and kind of concrete may reduce the values indicated in Cable the diagram even significantly. length 10 meters Overall dimensions Vigilo 2250 1.350 Vigilo 2263 ø 200 ø 275 1.560 Vigilo 2280 1.140...
