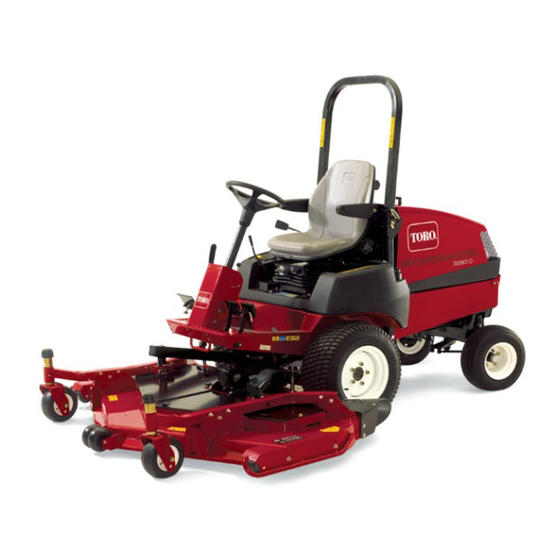

Toro Pro Force Groundsmaster 3280-D Installation Instructions Manual

Debris blower mounting kit, traction unit

Advertisement

Quick Links

Pro Force
Groundsmaster
Model No. 30493
Installation
Loose Parts
Use the chart below to verify that all parts have been shipped.
Procedure
1
2
3
4
5
6
7
© 2019—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
Debris Blower Mounting Kit
®
3280-D Traction Unit
Description
No parts required
Bolt (3/8–16 x 1–3/4 inches)
Locknut (3/8–16 inch)
CV drive shaft
Roll pin (3/16 x 2–1/4 inches)
Bolt (1/2–13 x 3/4 inches)
Lock washer (1/2 inch)
Flat washer (9/16 x 1–3/8 inches)
Hairpin cotter
Clevis pin (5/16 x 1–22/25 inches)
Support rod
Bolt (1/2–13 x 1 inch)
Clevis pin
Bolt (3/8–16 x 1–3/4 inches)
Locknut (3/8–16 inch)
Roll pin (3/16 x 2–1/4 inches)
Attachment frame
Drive-shaft assembly
Roll pin
Bolt (5/16 x 1-3/4 inches)
Locknut (5/16 inch)
Mounting plate
Bolt (1/2 x 1-1/4 inches)
Locknut (1/2 inch)
Debris-blower assembly
Locking pin
Hairpin cotter
Console wiring harness
Blower wiring harness
Cable tie
Switch
Fuse
Fuse block
Register at www.Toro.com.
Form No. 3434-904 Rev A
Installation Instructions
Qty.
Remove the cutting unit from the lift
arms.
2
2
Replace the CV shaft.
1
1
2
2
2
2
2
2
Mount the attachment frame to the lift
arms.
2
2
2
2
1
1
1
1
Install the drive shaft to the blower
gearbox shaft.
2
2
1
Install the mounting plate to the debris
4
blower frame.
4
1
1
Mount the blower to the traction unit.
1
1
1
10
Route the wire harness.
1
1
1
Original Instructions (EN)
All Rights Reserved *3434-904* A
Printed in the USA
Use

Advertisement

loading

Summary of Contents for Toro Pro Force Groundsmaster 3280-D

  • Page 1 Console wiring harness Blower wiring harness Cable tie Route the wire harness. Switch Fuse Fuse block © 2019—The Toro® Company Register at www.Toro.com. Original Instructions (EN) All Rights Reserved *3434-904* A 8111 Lyndale Avenue South Printed in the USA Bloomington, MN 55420...
  • Page 2 Important: Ensure that the traction unit has 5 weights (part number 24-5790-01) installed before installing the mounting kit. Note: If the unit does not have lift arms, install the following before proceeding: • 117–0806 Left Lift Arm Assembly • 117–0800 Right Lift Arm Assembly This kit includes the required pins for mounting the arms to the Groundsmaster 3280-D.
  • Page 3 DANGER Do not start the engine and engage the PTO lever when the PTO shaft is not connected to the gearbox on the attachment. If the engine starts and the PTO shaft rotates, serious injury could result. Replacing the CV Shaft Parts needed for this procedure: Bolt (3/8–16 x 1–3/4 inches) Locknut (3/8–16 inch)
  • Page 4 Mounting the Attachment Frame to the Lift Arms Parts needed for this procedure: Bolt (1/2–13 x 3/4 inches) Lock washer (1/2 inch) Flat washer (9/16 x 1–3/8 inches) Hairpin cotter Clevis pin (5/16 x 1–22/25 inches) Support rod Bolt (1/2–13 x 1 inch) Clevis pin Bolt (3/8–16 x 1–3/4 inches) Locknut (3/8–16 inch)
  • Page 5 Install a bolt (1/2–13 x 3/4 inches), a lock washer Secure the drive shaft to the gearbox shaft with (1/2 inch), and a flat washer (9/16 x 1–3/8 2 bolts (5/16 x 1–3/4 inches), 2 locknuts (5/16 inches) to the top of each support rod (Figure inch), and a roll pin (3/16 x 1–1/2 inches) as shown in...
  • Page 6 Note: Use the lower set of holes on each side of the mounting plate when installing the plate. Torque the bolts to 92 to 113 N⋅m (68 to 82 ft-lb). g021677 Figure 6 1. Mounting plate 3. Locknut (4) g023910 Figure 7 2.
  • Page 7: Routing The Wiring Harness

    Routing the Wiring Harness Parts needed for this procedure: Console wiring harness Blower wiring harness Cable tie Switch Fuse Fuse block Procedure Route the console-wiring harness along the lift frame and through the machine. Plug the connector into the fuse block (Figure g029725 Figure 10...
  • Page 8: Product Overview

    Product Overview Plug the blower-wiring harness into the chute motor, then connect it to the console-wiring harness (Figure 11). Controls Secure the blower-wiring harness to the attachment frame using cable ties. g029764 Figure 12 1. PTO switch—blower on/off 2. Right/left blower-chute control...
