Summary of Contents for Zenpro SmartControl ZSC1

  • Page 1 Manual Version 1.1...

  • Page 2: Table Of Contents

    Content 1. Device description 1.1. Technical data 1.2. Kit contents 1.3. Back panel 1.4. Led diodes 1.5. Nameplate 1.6. Modes of connection 2. First usage 2.1. Initialization 2.2. Downloading application 2.2. Connection through Wi-Fi 2.3. Connection through Ethernet cable 3. Mobile app – description 4.

  • Page 3: Device Description

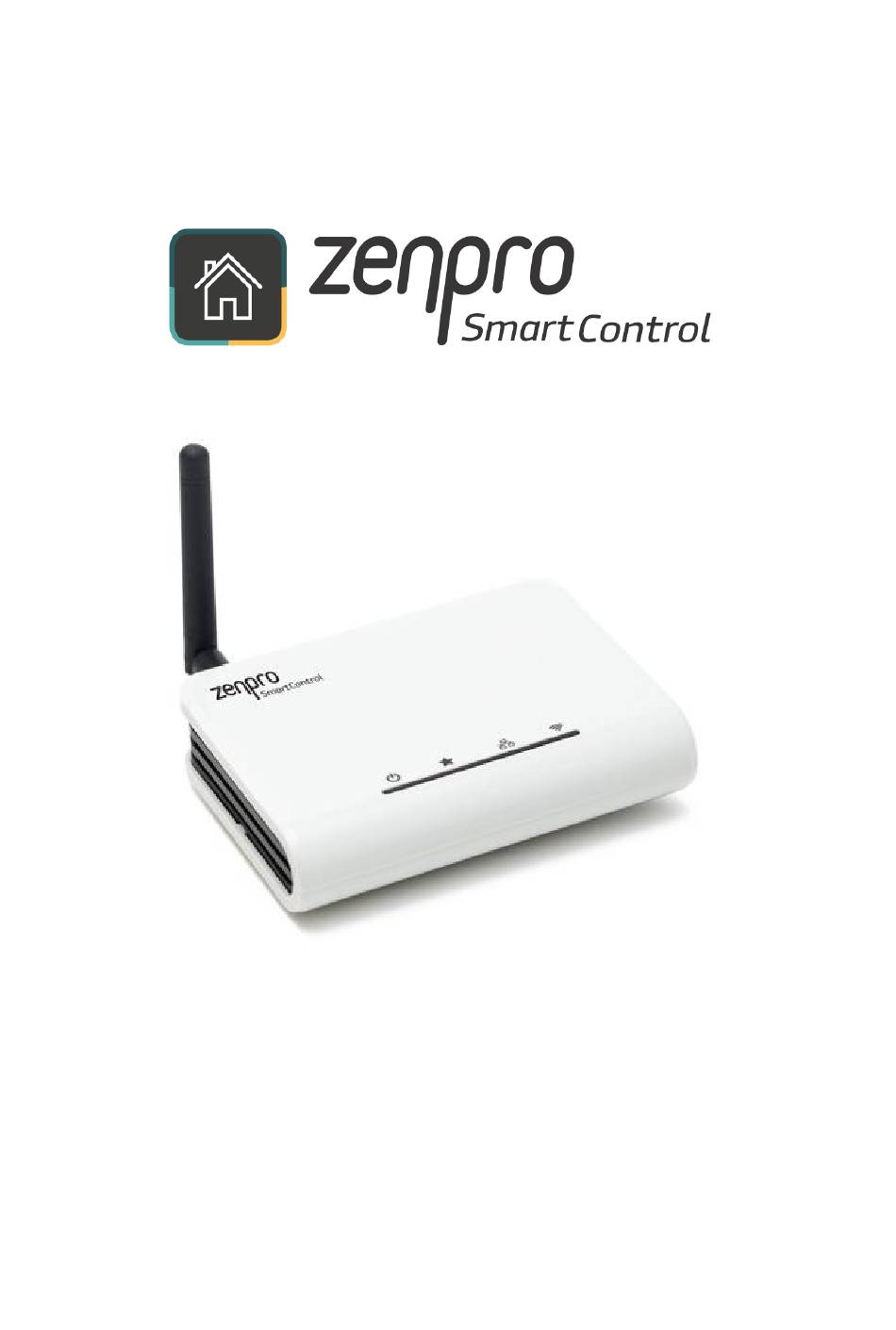

    IP20 Device description Zenpro SmartControl Central Unit is a modern controller for roller shutters and other devices working in 433,92MHz frequency through mobile devices and PC. Zenpro expands the possibilities of the system by grouping of the devices, time events and allows for remote access through Internet.

  • Page 4: Back Panel

    1.3 Back Panel 1. DC Port – place where the power supply is connected. Supply voltage of 9-12 VDC is allowed. 2. Reset – one short press of the reset button resets the Wi-Fi settings to default, holding the button for 5 seconds brings back the device to factory settings.
  • Page 5 Ethernet cable - Simplest way of configuration - We can log into home Wi-Fi network to Home Wi-Fi connect to the Zenpro device - The „SmartControl” Wi-Fi network may be turned off in the settings - Remote access available C –...

  • Page 6: First Usage

    The device is ready to work. 2.2 Downloading Zenpro SmartControl mobile App You can download the Zenpro SmartControl from the Google Play or the AppStore. Type in the store browser: „Zenpro SmartControl” Or use the QR-code below:...

  • Page 7: Connection Through Wi-Fi

    Wi-Fi networks. An unencrypted Wi-Fi network „SmartControl_SerialNumber” should appear. Connect to the SmartControl network and then open the downloaded Zenpro SmartControl mobile App. The app will display configuration screen. Press the search button to find the Central device IP Address.
  • Page 8 2. Next connect your mobile device to home Wi-Fi network (don’t use the „SmartControl” Wi-Fi network). Turn on the Zenpro SmartControl mobile App a use the „Search” button. After successful search, type the „Connect” button – the...

  • Page 9: Mobile App - Description

    3. Mobile App – view description 1. Mobile application has three main views. • Devices – allows to control the devices and groups of the devices added to the system. • Events – configuration, adding and running time events • Settings – allows to change the device settings like Wi-Fi and remote access settings, and add devices and groups of devices into system.

  • Page 10: System Configuration

    4. System configuration 4.1. Adding devices to the system Go to „Settings” tab, then Pick the „Add device” Choose the type of the device „Devices”. option you want to add the type in the name and use „Next” button. The function button will appear on the screen. The buttons works similar to buttons on the traditional remote control.

  • Page 11: Adding Groups

    4.3. Adding groups of the devices Go to „Settings” tab next Use the „Add devices group” „Devices groups”. Button. Type in the unique name of the group, choose the picture of the group and pick up the devices that will be added to the group (group can’t be created without devices added).
  • Page 12 4.4. Creating Events. In the „Events” tab you can define time events. Example: You want your window roller shutters to open at 7 am and close 10 pm automatically. Type in a name for the Event. Check the Active option, and choose the time and days of the week when the device should work.
  • Page 13 4.5. Connecting the Central Unit to home Wi-Fi network. Home The device by default provides it’s own Wi-Fi Wi-Fi network. To connect the device to home Wi- network Fi network and to the Internet, make following steps described below. Changing the mode of work Next go to the Wi-Fi In the „Settings”...
  • Page 14 Next pick up the encryption method and Pick up your home Wi-Fi network type in password. When you finish use the from the available list. „OK” button on the bottom. At this moment the Central Unit will stop providing it’s own Wi-Fi network and try to connect to the home Wi-Fi network.

  • Page 15: Remote Access

    4.6. Remote access Remote access service is used when the mobile device is out of reach of the home Wi-Fi network. To proper work of the remote access it’s required that the device has to connection to the Internet through the home router. INTERNET Remote access requires: Internet access through home Wi-Fi/LAN network...
  • Page 16 Connection through the remote access While you are away from your home Wi-Fi network, the connection screen will appear. Use the „Remote access” button. The mobile app will connect to the device through Internet. Going back from remote access to local access The remote access has some latency comparing to local access.
  • Page 17 In the connection to the device tab IP „Advanced” address is displayed. Type in the IP address in your web browser navigation bar. The PC has to be connected to the same network the Zenpro Unit is. SmartControl web page will appear.
  • Page 18 You can control the devices by the „UP” „STOP” „DOWN” buttons. After clicking the Group name or icon devices added to the group will appear. 6. Physical Installation of the Device • It’s best to place the Central Unit in the center point of the home so the coverage of the 433MHz band will be biggest.

  • Page 19: Safety Precautions

    7. Safety precautions 1. Please get acquainted with the safety precautions before you use the device. 2. The device has to be connected mains consistent with parameters given in the manual. 3. Do not use the device while taking a shower or bath. 4.
