HIKVISION Pyronix DIGI-DUAL Manual

Dual Path Communicator
Partcode: DIGI-DUAL
Document SAP: 102020061-01
EN 61000-6-3: 2007 +A1: 2011 Draft ETSI EN 301 489-52: V1.1.0
EN 62368-1: 2014+A11: 2017 (2016-11)
EN 50136-1: 2012 ATS level: DP4
EN 50136-2: 2013 Environmental Class (EC) II
PD CLC/ TS 50136-9: 2017
ETSI EN 301 511: V12.5.1 (2017-03)
EN
Dimensions and weight
Please see diagram for dimensions and weight of product (without antenna). Antenna
comes with a 1m wire from antenna to MMCX connection.
LED indication
OPER - The LED will ash when it is signalling; to either UDL or an event
ACT - Illuminates when the module has a LAN connection
LINK - Flashes when transferring data
RSSI - Indicates the signal strength of GPRS or 3G. The LEDs will cycle if the module is
searching for signal.
Communication installation
Please see the diagram for the Micro SIM Card slot, the ethernet port and the connection for
the antenna.
PCX 78 installation
Please follow steps 1 to 3 for installation of the DIGI-DUAL in to the PCX 78 control panels.

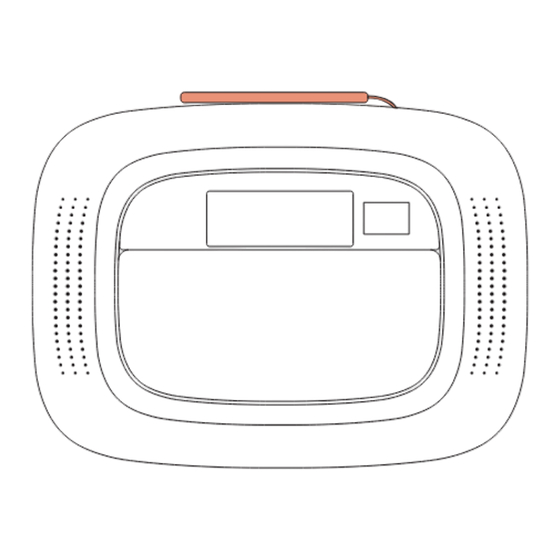

Enforcer installation
Please follow steps i to iii for installation of the DIGI-DUAL in the Enforcer.
Please note: Regardless which control panel the DIGI-DUAL is tted in, the antenna should be
installed away from the end station, at the full extent of its lead, where the signal is strongest.
Programming
For programming instructions, please refer to the documentation for the speci c
control panel.

Speci cations

Operating voltage Operating temperature
~9-16VDC -10°C to +40°C
Operating current Operation mode
~35mA @ 12VDC Pass-through
Storage temperature
-40°C to +80°C
Product information
Applies to electrical products sold within the European community. At the end of the
electrical product's life, do not dispose of it with household waste. Where possible, recycle
the product. Check with your Local Authority or retailer for recycling advice in your country.
The declaration of conformity may be consulted at
www.pyronix.com/product-compliance.php
Warranty
This product is sold subject to our standard warranty conditions and is warranted against
defects in workmanship for a period of two years. In the interest of continuing care and
design, Pyronix Ltd reserves the right to amend speci cations without giving prior notice.
ACT
OPER.
LINK
RSSI
110mm 116mm
56mm 22mm
1
i
ACT
OPER.
LINK
RSSI
36g
RSSI
RSSI
2
ACT
OPER.
LINK
RSSI
ii
ACT
OPER.
LINK
MICRO SIM
RSSI
3
iii
