CABLES
IMPORTANT
• Use only 1.00mm 2 size cable up to 30
metres length maximum.
Maximum rating :
1.00mm 2 size cable, 10 amps 250 volts AC.
• YOUR HEDGETRIMMER IS SUPPLIED
WITH CABLE WIRED DIRECTLY INTO
THE PRODUCT.
1. Flymo Mains Cables and Extension Cables
are available from your local Electrolux
Outdoor Products Approved Service
Centre.
2. Do not wire an extension cable directly to
your product yourself. Please contact your
local Electrolux Outdoor Products Approved
Service Centre for further information on
the connectors and kits available.
3. Only use extension cables specifically
designed for outdoor use.
CONNECTORS
IMPORTANT
• Flymo connectors are suitable for use with
2 core cable only. Under no circumstances
should these connectors be used for earth-
ed products.
• All Flymo connectors and cables are of
splashproof construction. They are not
waterproof and must not be left outside per-
manently nor should they be submerged or
immersed in water. Do not let cable lay or
trail through pools of water or splashed with
water from hose pipes.
MAINS PLUG REPLACEMENT
IMPORTANT
• If the plug supplied is cut off it should
be destroyed. There is an electric shock
hazard if a cut off plug is inserted into a
13 amp socket.
1. No earth required. Flymo products are
double insulated to EN60335 and under no
circumstances should an earth be connect-
ed to any part of the product.
2. Ensure the mains voltage suits your
product
All manuals and user guides at all-guides.com
3. IMPORTANT!
E
BLACK
OR
N
BLUE

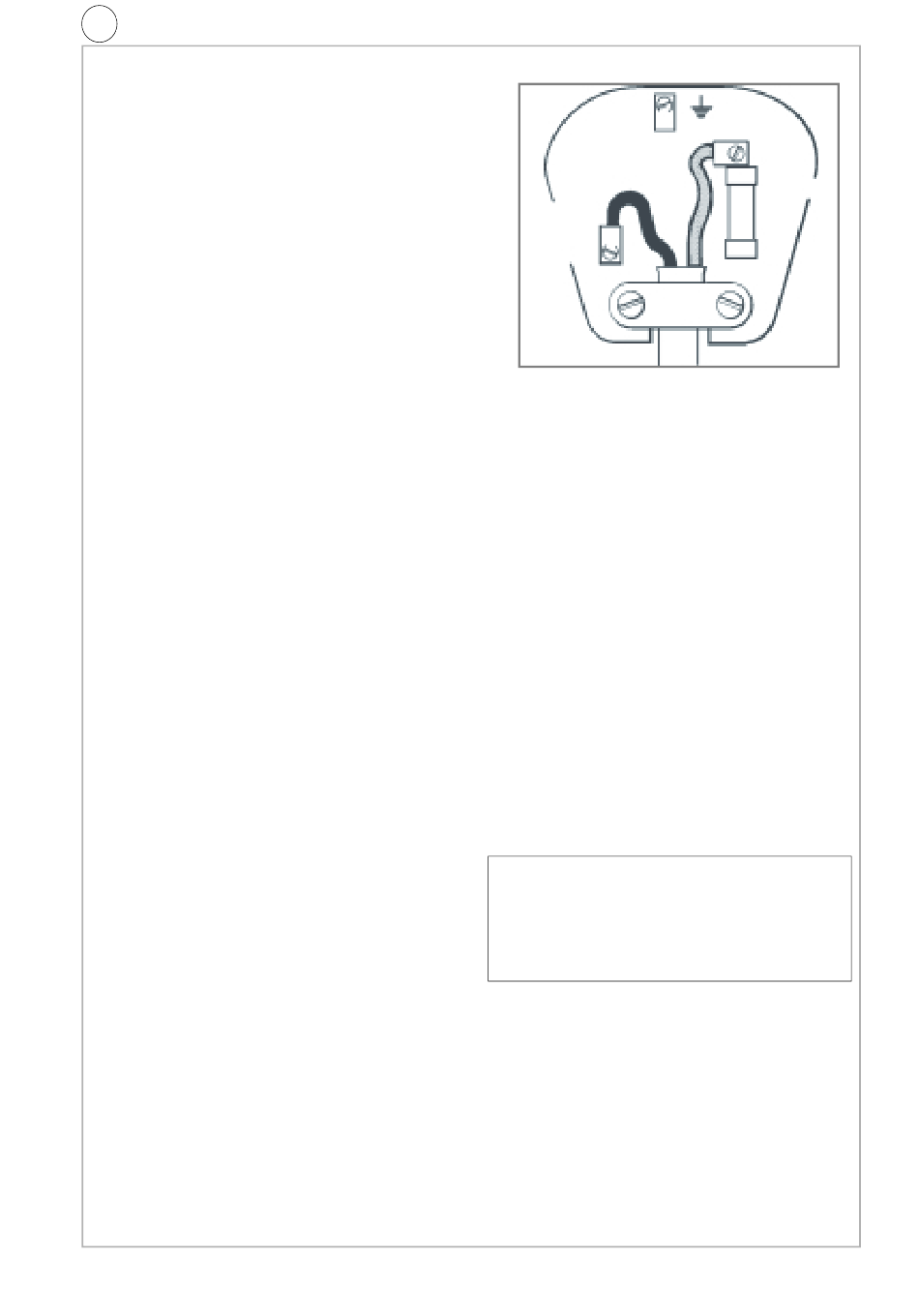

The wires in the mains lead are coloured in
accordance with the following code:
BLUE - NEUTRAL
BROWN - LIVE
The wire which is coloured BLUE must be
connected to the Terminal which is marked
with the letter 'N' or coloured BLACK.
The wire which is coloured BROWN must
be connected to the Terminal which is
marked with the letter 'L' or coloured RED.
4. It is important that the outer sheath is
clamped correctly into the 3-pin plug.
5. If in doubt consult your local Service
Repairer or qualified electrician before the
machine is used.
6. A 13 Amp fuse must be fitted to the
Mains Plug.
7. The normal plug fuse and household fuse
only protect the electrical equipment and
are not a safeguard against electrocution.
If your product is hard wired i.e. non-
detachable mains electric cable, a conver-
sion kit and extension cable is available
from all Electrolux Outdoor Products
Approved Service Centres which can be
found in your local Yellow Pages.
L
RED
OR
BROWN
F
U
S
E
