Page 1
All manuals and user guides at all-guides.com LR 6611 TV Tuner Card HARDWARE GUIDE Contents Hardware Specifications Connecting Input & Output Devices...
Page 2
All manuals and user guides at all-guides.com Hardware Specifications Hardware Interface 32-bit PCI 2.2 bus mastering Plug-n-Play compliant Compatibility Graphics drivers must include DirectX 9.0 or later software Video Standards Support PAL, NTSC, SECAM TV Tuner PAL/B/G + D/K + I + SECAM L/L Full 181 channels supported Connectors 1 TV RF connector...
Page 3

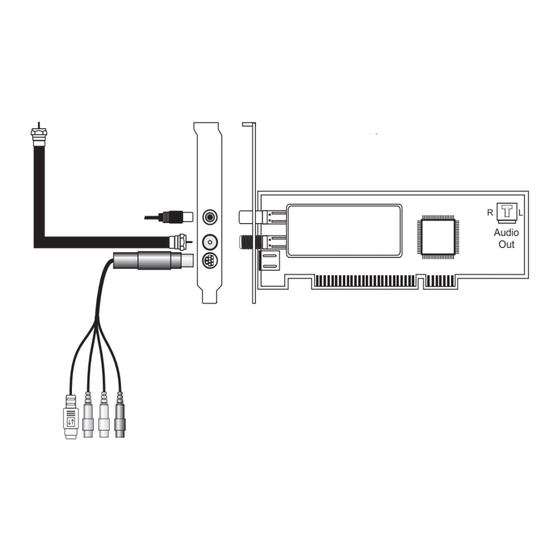

All manuals and user guides at all-guides.com Connect Input & Output Devices Connectors From Cable TV or Antenna FM Antenna Sound Card/Motherboard audio-in connector Audio yellow-Composite IN AV Line-in withe-Audio IN red-Audio IN DVD/VCD Player SONY PlayStation SELECT START ANALOG CCD camera CCD camera Camcorder...
