1-14. Removing/Installing Plug-in Boards

This section describes how to remove plug-in boards (referred to as option boards hereafter) mounted on
the rear panel of the unit and install them.

1-14-1. Combination of Option Boards

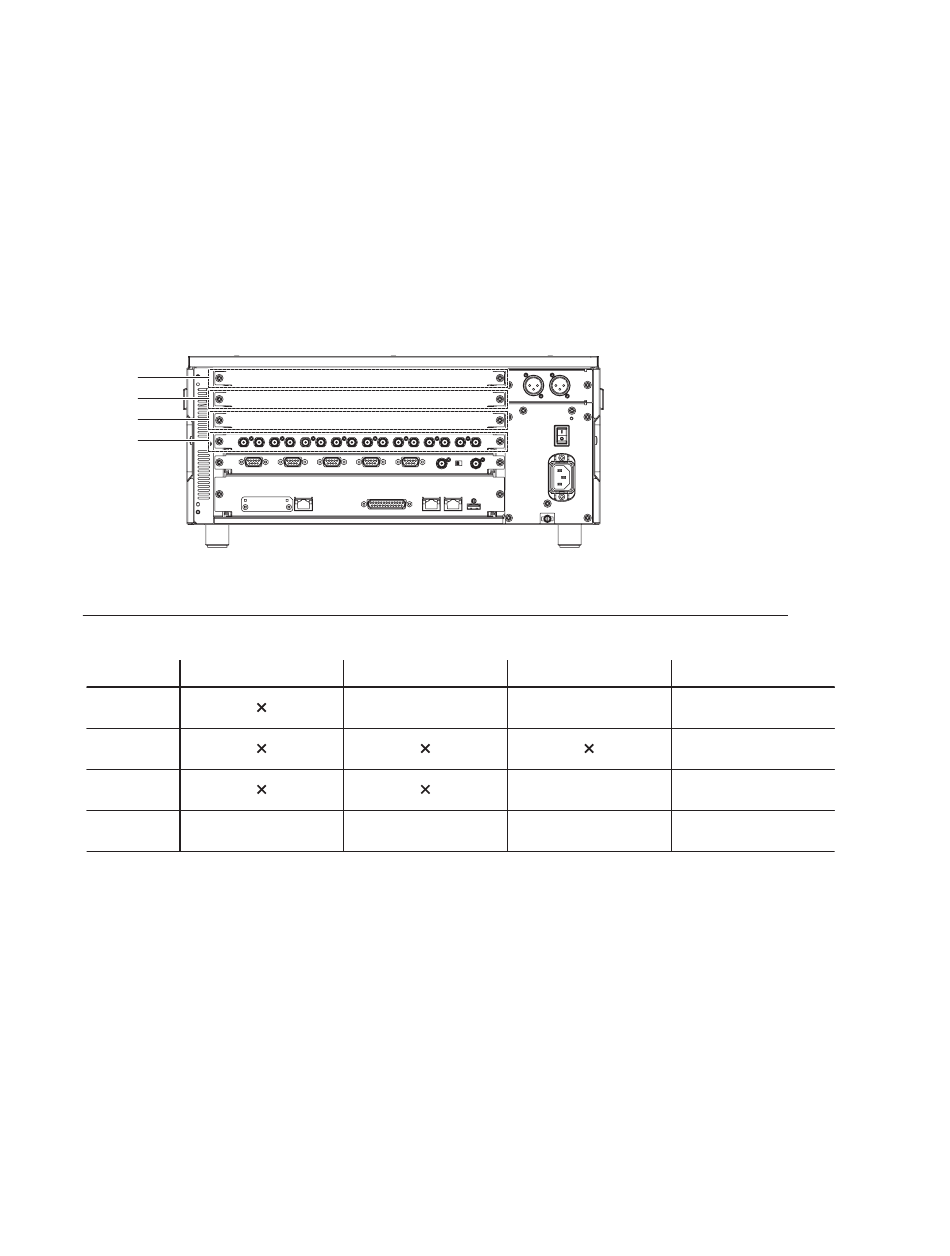

Ports for mounting option boards are defi ned depending on the system confi guration. Mount option boards
according to the port confi guration table of each system confi guration and the fi gure below (SR-R1000
Rear View).
Port A
Port B
Port C
Port D
Port Confi guration Table (Single Output Port)
0 Input/1 Output
configuration
Port A
Port B
Port C
Port D DEC-176 board
(SR-R1000 regulationequipment)
SR-R1000
SR-R1000 Rear view
1 Input/1 Output
configuration
ENC-134 board
(Option: SRK-R201)
DEC-176 board
(SR-R1000 regulationequipment)
2 Input/1 Output 3 Input/1 Output
configuration configuration
ENC-134 board ENC-134 board
(Option: SRK-R201) (Option: SRK-R201)
ENC-134 board
(Option: SRK-R201)
ENC-134 board ENC-134 board
(Option: SRK-R201) (Option: SRK-R201)
DEC-176 board DEC-176 board
(SR-R1000 regulationequipment) (SR-R1000 regulationequipment)
1-21 (E)
