FantiniCosmi CH140GSM Manual

Weekly programmable thermostat with integrated gsm
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

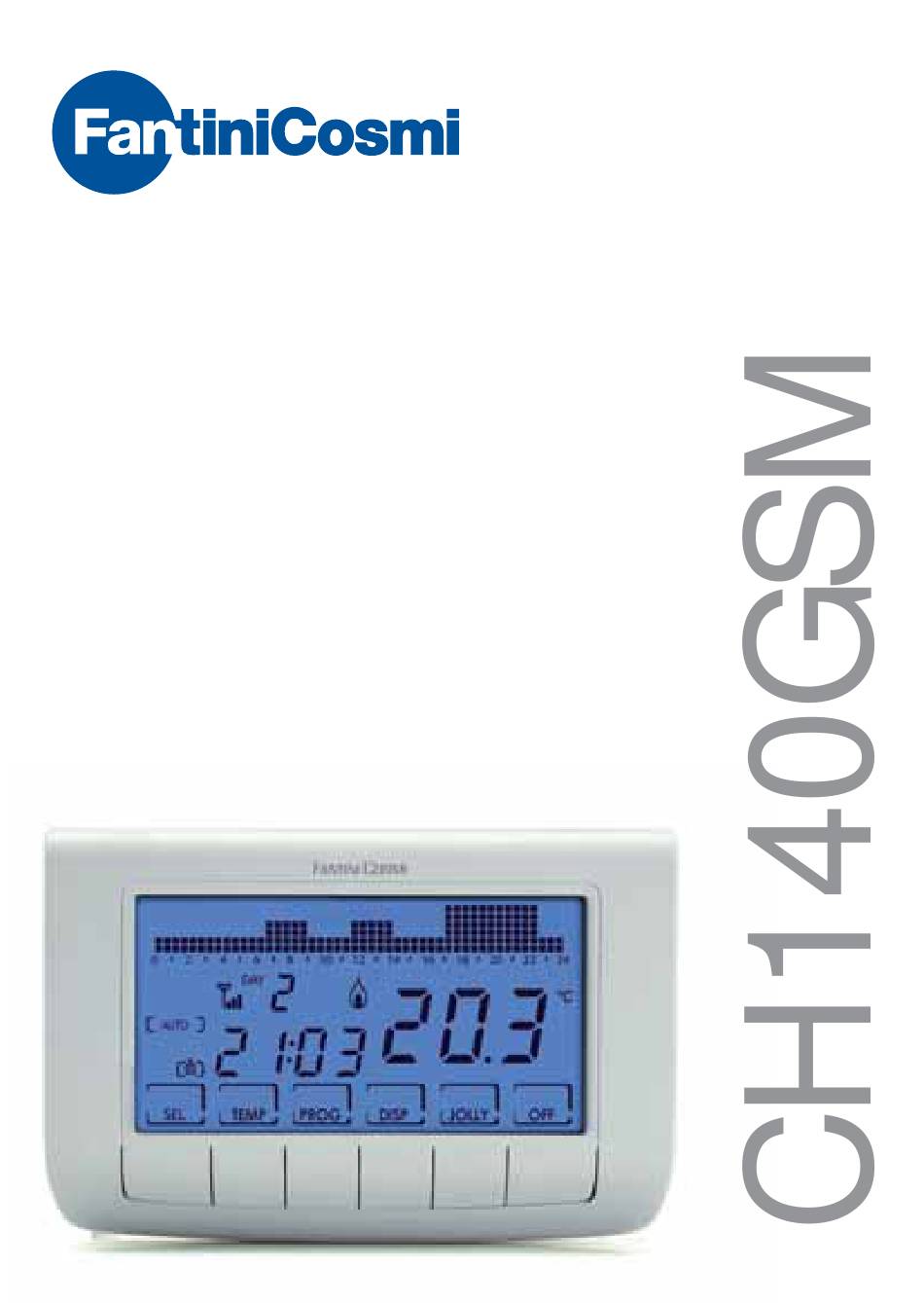

WEEKLY PROGRAMMABLE THERMOSTAT
WITH INTEGRATED GSM

Advertisement

Table of Contents
loading

Related Manuals for FantiniCosmi CH140GSM

Summary of Contents for FantiniCosmi CH140GSM

  • Page 1 WEEKLY PROGRAMMABLE THERMOSTAT WITH INTEGRATED GSM...

  • Page 2: Table Of Contents

    Intellicomfort CH140GSM TABLE OF CONTENTS PAG. INSTALLATION GSM FUNCTIONALITY VERIFICATIONS ELECTRICAL CONNECTIONS QUICK GUIDE TO PROGRAMMING DESCRIPTION OF KEYS SETTING THE TIME AND DATE OPERATING PROGRAMS PROGRAMMABLE TEMPERATURES SETTING THE OPERATING PROGRAMS FUNCTIONS IN DETAIL PROGRAMS AVAILABLE PROGRAMMABLE TEMPERATURES KEYS AND ADVANCED FUNCTIONS...

  • Page 3: Installation

    8. Insert a SIM* (NOTE pag. 4), complying with the direction shown in Figure 3 (see pag. 4) and close and tighten the flap of the SIM-holder. 9. Press the body of the CH140GSM to the baseboard secured to the wall and couple. 10. Restore the power of the electrical system.

  • Page 4: Gsm Functionality Verifications

    Before inserting the SIM card it is advisable to verify that it works by using it in a mobile phone and trying to send and receive an SMS. After inserting the SIM and switching the CH140GSM on, any SMS messages that have not yet been delivered or sent in the first moments of operation will be cancelled.
  • Page 5 Intellicomfort CH140GSM SYMBOL flashing VALUES 0÷1 2÷9 10÷14 15÷19 20÷30 “RS” Signal None Acceptable Good Excellent n.r. level 0= <0.2% 1= 0.2÷0.4% 2= 0.4÷0.8% 3= 0.8÷1.6% 4= 1.6÷3.2% "BE" VALUE 5= 3.2÷6.4% 6= 6.4÷12.8% 6= >12.8% 99= n.r. NOTE: during the first seconds after the programmable thermostat is switched on,...

  • Page 6: Electrical Connections

    (electrical utility) Sonda Auxiliary ausiliaria probe In1 Gd CH140GSM 230V 50Hz Caldaia Boiler ATTENTION: before wiring, make sure the power has been disconnected from the electrical system from the main switch on the electrical panel ATTENTION: the cable length of the auxiliary probe must not exceed 3 metres.

  • Page 7: Quick Guide To Programming

    Intellicomfort CH140GSM 3. QUICK GUIDE TO PROGRAMMING DESCRIPTION OF KEYS The programmable thermostat is fitted with 6 keys, the function of which varies depending on the situation and is described by the symbol that appears on the display in line with the key.

  • Page 8: Setting The Time And Date

    You can always return to the previous page by pressing Press ENTER to exit the Setup menu. OPERATING PROGRAMS The CH140GSM programmable thermostat allows for different operating modes, called programs: “AUTO” WEEKLY PROGRAM:  you can associate every half hour to one of the four set temperatures for each day of the week.

  • Page 9: Programmable Temperatures

    Intellicomfort CH140GSM “JOLLY” TEMPORARY PROGRAM:  you can choose to maintain a certain temperature for JOLLY a given number of hours, after which it will return to the previously active program. “MAN” MANUAL PROGRAM:  the programmable thermostat maintains a fixed temperature, specified from time to time, for unlimited time, until another program is selected.

  • Page 10: Setting The Operating Programs

    Intellicomfort SETTING THE OPERATING PROGRAMS SELECTING THE PROGRAM  Press the SEL key to select the various operating programs, in cyclical sequence: AUTO -> MAN -> OFF -> HOLIDAY -> AUTO. NOTE: the JOLLY temporary program is not included in the sequence of programs but is selected directly with the JOLLY key.
  • Page 11 Intellicomfort CH140GSM NOTE: if “SETUP” appears instead of “CONFIG”, you have released it too quickly and must press ENTER to go back to the normal operating mode and try again. When entering the “CONFIG” menu, the page that allows you to select the desired temperature (T1/T2/T3/Ta) for every half hour of the day indicated appears (from 1 to 7 to indicate the days from Monday to Sunday).
  • Page 12 Intellicomfort Press TEMP again to go back to displaying the duration of the JOLLY program. When this time elapses, it returns to the initial program. “OFF/ANTI-FREEZE” PROGRAM SETTINGS  Pressing OFF from any operating program will switched the programmable thermostat to off/anti-freeze mode. The anti-freeze temperature (Ta) can be set with the TEMP key from OFF (boiler always off) to a temperature between 2.0 and 7.0°C, with a precision of a tenth of a degree, using the...

  • Page 13: Functions In Detail

    Intellicomfort CH140GSM 4. THE FUNCTIONS IN DETAIL PROGRAMS AVAILABLE CH140GSM has different operating modes (programs): “AUTO” weekly program  “HOLIDAY” daily program  “JOLLY” temporary program  “MAN” manual program  system is off or with “OFF” anti-freeze program ...
  • Page 14 Intellicomfort The value of the 4 temperatures can be summer program Monday-Friday °C set using the TEMP function. T3 28 The profile (time variation) of the T2 26 temperatures can be set using the T1 24 PROG function. 18.30 22.30 24h In the summer mode (air conditioning), the default program is that shown in the figure.

  • Page 15: Programmable Temperatures

    Intellicomfort CH140GSM MANUAL  The MAN mode allows you to manually T1 temperature set between 2 and 40°C set a fixed temperature (Tman), varying °C between +2.0 and +40.0 degrees, with T3 21 no expiry and without having to change the weekly or daily program.

  • Page 16: Keys And Advanced Functions

    Intellicomfort KEYS AND ADVANCED FUNCTIONS USING THE SEL KEY The SEL key is used to select the operating mode of the programmable thermostat, according to the following programs: HOLIDAY  AUTO  MANUAL   To change the preset program, press the SEL key in sequence (cyclical). The first 3 conditions are indicated by a small message on the left side of the display, whereas OFF appears in the graphic area at the top.
  • Page 17 Intellicomfort CH140GSM USING THE PROG KEY  PROG (pressed briefly) SETUP  WINTER/PAG01/Set  with you switch from Winter to Summer and vice versa with you change page, with ENTER you exit PROG. HOURS HH: MM/PAG02/SEt  with you increase the hours cyclically and with you decrease them.
  • Page 18 Intellicomfort DST YES/PAG07/Set  Select daylight saving time automatically, applicable in European countries and some others. This settings allows the time to be automatically updated when the hour is moved (March and October). Use to switch between YES and NO. to go back to pag.1 (Winter/Summer);...
  • Page 19 Intellicomfort CH140GSM It is recommended to calibrate it by comparing it with a thermometer placed at a desired height/area. to change the value on the display of the temperature. to go to the next page and ENTER to exit. Celsius/PG02/XX.X°...
  • Page 20 Relay2:SMS/PG13  It allows you to use the Relay 2 of CH140GSM for different uses. In fact, connecting electrical utilities to terminals 5-6-7 of Relay 2 and configuring it appropriately in this sub-menu, allows you to add ancillary functions to CH140GSM.
  • Page 21 SUM: Relay 2 is used to adjust the temperature but only if the Summer setting is selected while only Relay 1 is in Winter mode. This way, you can use the CH140GSM for heating and cooling without having to change the electrical connection when the season changes. Relay 2 does not implement the SMS commands #ON and #OFF.
  • Page 22 Intellicomfort USING THE JOLLY KEY The JOLLY key allows you to replace the normal operation with a forced temperature at a fixed value for a preset interval. The following window is displayed: Duration of the JOLLY mode (HH h MM m) / hour:min / Tamb ...

  • Page 23: Reset

    (see figure) using a paper clip or pin; the device restarts with the following: “Fantini Cosmi / CH140GSM” displayed for a few seconds and then goes into AUTO mode. The previous configuration is retained as it is saved in the programmable thermostat: The date and time normally remain unchanged.

  • Page 24: Remote Programming Via Sms

     an internal relay The CH140GSM allows a remote user to send an SMS to know what mode the system is in or to control the mode it is to be set in. The antenna symbol flashes briefly throughout the management of the remote control as an indication of the relevant response being received and managed.

  • Page 25: Sms Commands

    EXP SIM=0 This is a standard reply for each message sent. * With an ambient temperature that is the same or lower than 0°C the CH140GSM will always respond with TAMB=00.0 Only the rows that are different from the message shown above are shown below: #FROST sets the anti-freeze program, that is, switches the system OFF ...
  • Page 26 The reply message shows: PROGRAM=AUTO REMOTE= --- The display of the CH140GSM goes back to the AUTO mode #MAN command to set the MANUAL mode with the TMan set in the CH140GSM  (present in the status message) The reply message shows:...
  • Page 27 #JOL command to set the Jolly mode  The reply message shows: PROGRAM=JOLLY REMOTE=JOLLY The CH140GSM is in the Jolly mode (flashing to indicate the remote setting).  #T1=value Sets the temperature value for T1 The value is written as TU.d, that is TensUnits.decimal (e.g #T1=19.2) The Tens can be omitted (e.g.
  • Page 28 Intellicomfort  #HJOL=value Sets the hours value for the JOLLY program The value is written as TU, that is TensUnits (e.g. #HJOL=12) If the Tens are equal to zero they can be omitted (e.g. 8). The number of programmed JOLLY hours replaces the hours or days previously set manually or via SMS.

  • Page 29: Commands For Alarms And Alerts

    Intellicomfort CH140GSM the message "EXP SIM" to remind the user to make a top-up and prevent the SIM from expiring. Example: by setting #MEMO=5 and #TEL3=399123456*, at 12:00 hours of 1st May, the programmable thermostat sends an SMS to the number 399123456 with the message: “EXP SIM”.
  • Page 30 Intellicomfort when the contacts are closed and opened and combining the text “,TEL1,TEL2” the alarm will be sent to the two saved numbers. (N.B. always enter the text “,TEL1,TEL2” even if only one telephone number has been set.) #AL2=0,TEL1,TEL2 sets the sending status of alarm2 and to which numbers ...

  • Page 31: Commands For The Auxiliary Relay (Relay 2)

    Intellicomfort CH140GSM Example of a temperature alarm alert: ALERT TLOW: TEMP=11.5 TLOW=12.0 In this case, the set threshold value is 12.0°C and the temperature detected by the programmable thermostat upon sending time was 11.5°C. COMMANDS FOR THE AUXILIARY RELAY (RELAY 2) #ON switches the Relay 2 on (that is, closes contacts 5 and 6 and opens 5 and 7) ...

  • Page 32: Technical Specifications

    Intellicomfort 6. TECHNICAL SPECIFICATIONS Temperature adjustment range 2-40 °C, 0.1°C increment Ambient T reading/display range -35 +60 °C Power supply 230V 50Hz Maximum power consumption 10 W Connection to boiler 3 screw clamps (closed + open) Contact rating 5(3)A / 250 Vac Type of action 1.B.U (micro disconnection) Software...
  • Page 33 Intellicomfort CH140GSM...
  • Page 35 DISPOSAL OF PRODUCTS The crossed-out dustbin symbol with wheels indicates that the products must be collected and disposed of separately from household waste. Integrated batteries and accumulators can be disposed of with the product. They will be separated at the recycling centres. The black bar indicates that the product was placed on the market after 13 August 2005.
  • Page 36 FANTINI COSMI S.p.A. Via dell’Osio, 6 20090 Caleppio di Settala, Milano - ITALY Tel. +39 02 956821 Fax +39 02 95307006 info@fantinicosmi.it EXPORT DEPARTMENT EXPORT DEPARTMENT Ph +39 02 95682229 export@fantinicosmi.it Ph +39 02 95682229 export@fantinicosmi.it www.fantinicosmi.com...
