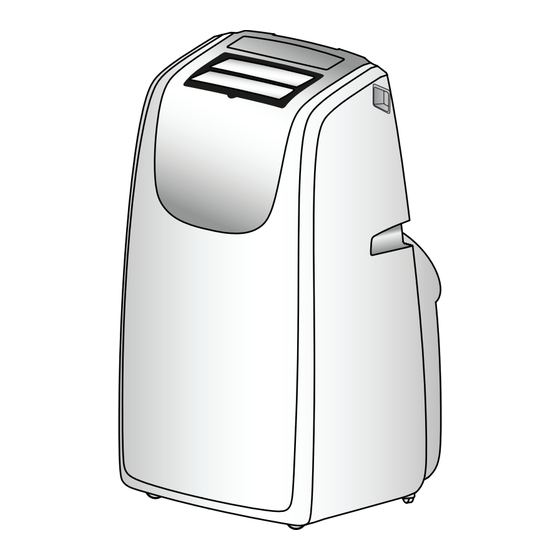

- Page 1 Installation and User Manual Instructions d’installation et Guide de l’utilisateur Instrucciones de instalación y Manual del usuario GEP-09CA GEP-09HA GEP-12CA GEP-12HA...
-
Page 3: Table Of Contents
Storage ................................11 TROUBLESHOOTING .............................. 12 SPECIFICATION ................................ 13 RECORD KEEPING _______________________________________ Thank you for purchasing this GE Appliances product. This user Model number manual will help you get the best performance from your new air conditioner. _______________________________________ Serial number... -
Page 4: Air Conditioner Safety
AIR CONDITIONER SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. -
Page 5: Parts And Features
PARTS A ND FEATURES ＠ ⑤ ① ① 。附。 ① ① IP叫 Air Ou制 ① ① A川ter Air Disct明e Louvers 。 ① ① C甜er wer Drain Cap 。 。 ① ① RemoteC I Holder Air Intake ① Air Filter ① Air Intake ( G) U ppe r Dra i n Cap - Use in Dehum Mode... -
Page 6: Location Requirements
• • • Exhaust Exhaust Hose Connector Nozzle (1) Hose (1) (51 cm) (51 cm) ELECTRICAL REQUIREMENTS • Flat Screws (2) 1 for extension panels • 1 for nozzle Remote Control WARNING LOCATION REQUIREMENTS Electrical Shock Hazard Plug into a grounded outlet only. •... -
Page 7: Installation Instructions
REQUIRED GROUNDING METHOD This air conditioner must be grounded. The air conditioner is equipped with a power supply cord that has a grounding 220V plug. The power supply cord must be plugged into a mating, 16 Amp grounded outlet, and grounded in accordance with all local codes and ordinances. -
Page 8: Step 4 - Attach Exhaust Hose To The Exhaust Nozzle
NOTE: Some window installations may require the extension panels to be trimmed. Use one flat screw to secure the main panel to the extension panel. STEP 6 - COMPLETE INSTALLATION STEP 4 - ATTACH EXHAUST HOSE TO THE EXHAUST NOZZLE WARNING Grasp both ends of the exhaust hose and gently pull to expand the hose. -
Page 9: Control Panel
Mute Mute Button Press mute button, fan will be low and quiet. Child Lock Button Press mode button for 3 seconds to start the child lock function,while "lock "indicator lights up; and press mode button for 3 seconds to cancel the function. -
Page 10: Remote Control
Quiet Quiet Quiet HEAT COOL DEHUM Quiet TIMER SLEEP QUIET SWING Lock QUIET BUTTON Quiet... -
Page 11: Drainage Instruction
DRAINAGE INSTRUCTION CONTIOUOUS DRAIN IN HEATING MODE This portable air conditioner has two drain ports - an upper drain port and a lower drain port. It also has two drainage methods that can be used: manual drainage and We strongly recommend to use this method, and drain from continuous drainage. - Page 12 CONTINUOUS DRAIN IN DEHUMIDIFICATION MODE: The upper drain port is the best. 1.Screw off the drain cover and unplug the water stopper WARNING 2.Connect drain-hole with 13mm external diameter PVC drain hose, into depth of 8mm-10mm . 3.Pull the end of the drain hose to a drain outlet within the home, or to the outside of the home.
-
Page 13: Air Conditioner Care
AIR CONDITIONER CARE Pull on the tabs to slide out the filter from the back of WARNING the air conditioner. NOTE: The secondary filter are accessible once the main filter are removed. Wash or vacuum the dust from the air filters NOTE: If washed, gently shake the filte to remove the excess water and dust particles trapped in the filter... -
Page 14: Troubleshooting
TROUBLESHOOTING First try the solutions suggested here to possibly avoid the cost of a service call. PROBLEM POSSIBLE CAUSE(S) SOLUTION Unit does not start or Power supply cord is not plugged into an outlet. Plug the power cord into a grounded 3 prong operate outlet. -
Page 15: Specification
In accordance with the directive of the European R410a, contained in a hermetically sealed system. parliament, herewith we inform the consumer about the dis-posal requirements of the electrical and electronic GEP-09CA /GEP-09HA MODELS products. Charge = 0.355 kg, DISPOSAL REQUIREMENTS: GWP = 2088, CO2 Equivalent = 0.74 tones...
