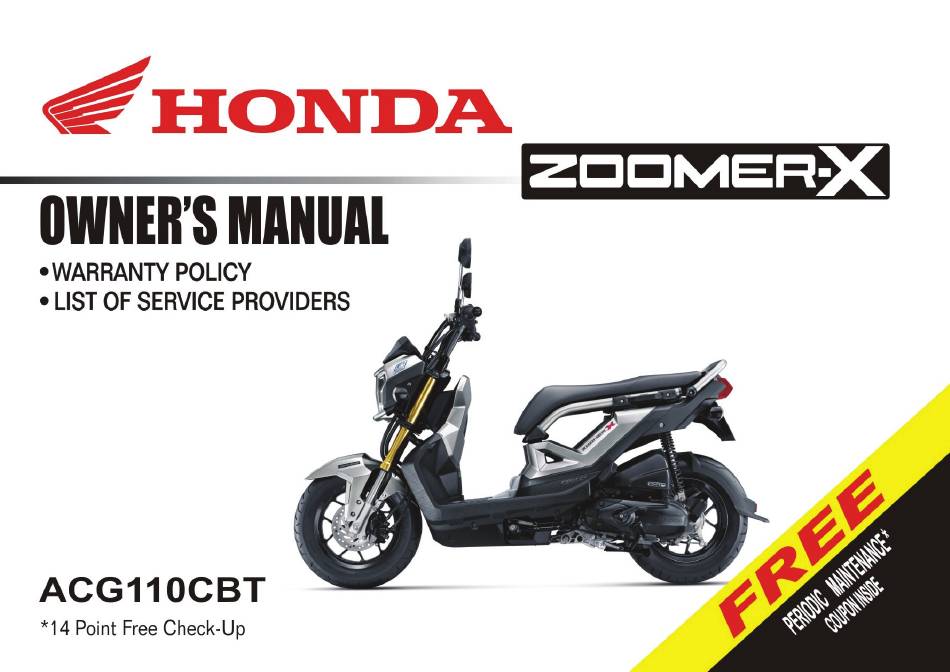

Honda ACG110CBT 2016 Owner's Manual
  1. Manuals
  2. Brands
  3. Honda Manuals
  4. Scooter
  5. ACG110CBT 2016
  6. Owner's manual

Honda ACG110CBT 2016 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Honda ACG110CBT 2016

Summary of Contents for Honda ACG110CBT 2016

  • Page 2 This publication includes the latest production information available before printing. Honda Motor Co., Ltd. reserves the right to make changes at any time without notice and without incurring any obligation. No part of this publication may be reproduced without written permission.
  • Page 3 ● Congratulations on your purchase of a new The following code in this manual indicates the country. Honda scooter. Your selection of a Honda makes you part of a worldwide family of Country Code satisfied customers who appreciate Honda’s reputation for building quality into every...
  • Page 4 A Few Words About Safety Your safety, and the safety of others, is very DANGER important. Operating this scooter safely is an You WILL be KILLED or SERIOUSLY important responsibility. HURT if you don’t follow instructions. To help you make informed decisions about safety, we have provided operating WARNING procedures and other information on safety...

  • Page 5: Table Of Contents

    Contents Scooter Safety P. 2 Operation Guide P. 12 Maintenance P. 38 Troubleshooting P. 72 Information P. 85 Specifications P. 96 Index P. 99...

  • Page 6: Scooter Safety

    Scooter Safety This section contains important information for safe riding of your scooter. Please read this section carefully. Safety Guidelines .........P. 3 Safety Precautions ........P. 6 Riding Precautions ........P. 7 Accessories & Modifications......P. 10 Loading ............P. 11...

  • Page 7: Safety Guidelines

    Safety Guidelines Safety Guidelines that you and your passenger are both wearing an approved motorcycle helmet and protective Follow these guidelines to enhance your safety: apparel. Instruct your passenger on holding ● Perform all routine and regular inspections onto the grab rail or your waist, leaning with specified in this manual.
  • Page 8 Safety Guidelines Make Yourself Easy to See Keep Your Honda in Safe Condition Make yourself more visible, especially at night, It’s important to keep your scooter properly by wearing bright reflective clothing, maintained and in safe riding condition. positioning yourself so other drivers can see...
  • Page 9 Safety Guidelines the tightness of critical nuts and bolts, and WARNING check the handlebar, control levers, brakes, and wheels. Ride slowly and cautiously. Your Carbon monoxide gas is toxic. scooter may have suffered damage that is not Breathing it can cause immediately apparent.

  • Page 10: Safety Precautions

    Safety Precautions ● Safety Precautions Face shield with unobstructed field of vision or other approved eye protection ● Ride cautiously and keep your hands on the WARNING handlebar and feet on the floor. ● Keep passenger’s hands onto the grab rail or Not wearing a helmet increases the your waist, passenger’s feet on the floor chance of serious injury or death in a...

  • Page 11: Riding Precautions

    Riding Precautions ● Riding Precautions Avoid continuous braking. Repeated braking, such as when descending long, steep slopes can Running-in Period seriously overheat the brakes, reducing During the first 500 km (300 miles) of running, their effectiveness. follow these guidelines to ensure your scooter’s ●...
  • Page 12 Riding Precautions ❙ ● Wet or Rainy Conditions To reduce the likelihood of theft, always lock Road surfaces are slippery when wet, and wet the handlebar and remove the key and close brakes further reduce braking efficiency. the shutter when leaving the scooter Exercise extra caution when braking in wet unattended.
  • Page 13 Riding Precautions Refuelling and Fuel Guidelines Left handle grip Follow these guidelines to protect the engine and catalytic converter: ● Use only unleaded petrol. Grab rail ● Use recommended octane number. Using lower octane petrol will result in decreased engine performance. Centre stand ●...

  • Page 14: Accessories & Modifications

    Honda or make modifications to your scooter from its original Follow all instructions in this owner’s design. Doing so can make it unsafe.

  • Page 15: Loading

    Loading Loading WARNING ● Carrying extra weight affects your scooter’s Overloading or improper loading can handling, braking and stability. Always ride at cause a crash and you can be seriously a safe speed for the load you are carrying. hurt or killed. ●...

  • Page 16: Operation Guide

    Basic Operation Flow ❙ Pre-ride Inspection (P43) ❙ Acceleration (P30) Carefully inspect your scooter to make sure that it is safe to ride. Apply throttle gradually. Obey the speed limit. ❙ (P26) Starting the Engine Start and warm the engine. Avoid revving the engine.
  • Page 17 ❙ ❙ (P31) Braking Parking (P8) Close the throttle and apply the front and rear brakes together. Park on a firm level surface. Use The brakelight will indicate that the stand and lock the steering. you have applied the brakes. ❙...
  • Page 18 Parts Location (P36) Document bag Tool kit (P36) Front brake fluid reservoir (P62) (P69) Throttle grip CBS brake fluid reservoir (P62) Fuel fill cap (P32) (P57) Spark plug (P60) Engine oil drain bolt Engine oil fill cap/dipstick (P59)
  • Page 19 Rear brake lever (P64) (P34) Seat Headlight (P71) (P56) Battery (P84) Fuse box Helmet holder (P35) (P37) Under seat space Crankcase breather (P70) (P28) Kickstarter (P8) Centre stand Side stand (P68)
  • Page 20 Instruments Speedometer This shows your speed in kilometer per hour (km/h). Display Check When the ignition switch is turned ON, the display will temporarily show all the modes and digital segments so you can make sure the liquid crystal display is functioning properly. If any part of these displays do not come on when it should, have your dealer check for problems.
  • Page 21 Fuel gauge Remaining fuel when only 1st (E) segment left: approximately 1.1 litres (0.29 US gal, 0.24 lmp gal). This segment flashes when the fuel decreases further. (P75) If the fuel gauge flashes or turn off: Odometer Shows accumulated mileage. If the mileage is under 100,000 km, the (If the mileage is over 200,000 km) mileage will show in the display.
  • Page 22 Indicators If one of these indicators does not come on when it should, have your dealer check for problems. Turn signal indicator High beam indicator Idling Stop indicator Comes on briefly when the Idling Stop switch in the IDLING STOP with the ignition switch turned on.
  • Page 24 Switches Idling Stop switch Switches the Idling Stop system on/off. • IDLING STOP: The Idling Stop system is on. • IDLING: The Idling Stop system is off. (P23) Idling Stop system: Start button Turn signal switch Pressing the switch turns the turn signal off. Horn button Headlight dimmer switch •...
  • Page 25 Ignition Switch Turns electrical system on Switches the electrical system on/ for starting/riding. off, locks the steering. Key can be removed when in the Turns engine off. OFF or LOCK position. LOCK Locks steering. ❙ Steering Lock Locking Lock the steering when parking to help Turn the handlebar all the way to the left.
  • Page 26 Switches ❙ Shutter Close The ignition switch for this scooter is Remove the ignition key from the ignition equipped with a shutter. After parking the switch. scooter, close the shutter for theft Align the projection of the shutter key with prevention.
  • Page 27 Idling Stop System Idling Stop system is designed to help reduce Activation of the Idling stop system the fuel consumption and noise, by idling The Idling Stop system becomes ready to stop the engine and Idling Stop indicator stop while making a stop such as waiting at comes on when the following requirements an intersection.
  • Page 28 Idling Stop System ❙ Stopping the engine by the Idling stop Engine Is Not Stopped by the Idling system Stop System While the Idling Stop Indi- (P77) The engine stops and Idling Stop indicator cator Is on: changes to flash after you close the throttle NOTICE completely and stop the scooter while the Stopping by the Idling Stop system for a long time may...
  • Page 29 Restart the Engine NOTICE Check that the Idling Stop indicator is Headlights stay on after the engine is stopped by the flashing, and then open the throttle. Idling Stop system. The battery may discharge and you may not be able to restart engine. If it is not flashing, you can’t restart the When the battery is weak, switch the Idling Stop switch to engine with the Idling Stop system, even if...
  • Page 30 Starting the Engine Start your engine using the following Consult your dealer for advice if you plan to procedure, regardless of whether the engine ride your scooter at an altitude above is cold or warm. 2,500 m (8,000 feet). NOTICE This scooter is equipped with a side stand If the scooter is transported to a place 2,000 m (6,500 ignition cut-off system.
  • Page 31 Place your scooter on its centre stand. Squeeze the rear brake lever. The starter motor will only work when Turn the ignition switch to the ON position. the rear brake lever is squeezed and the Confirm the following: side stand is up. •...
  • Page 32 Starting the Engine To Start the Engine with Electric To Start the Engine with Kickstarter Starter With the throttle closed, operate the kickstarter with a rapid and continuous With the throttle closed, press the start motion. button. Release the start button as soon as the engine starts.
  • Page 33 If you cannot restart a warm engine: If the engine does not start: Rotate the throttle 1/8 – 1/4 turn while Using the start button starting the engine. Open the throttle fully and press the start button for 5 seconds. Follow the normal starting procedure.
  • Page 34 Riding Starting the Scooter Acceleration and deceleration Push the scooter forward off the centre To accelerate: Open the throttle slowly. stand. To decelerate: Close the throttle. Squeeze the rear brake lever. Keep throttle closed. Open Make sure the side stand and centre stand (Accelerate) Close (Decelerate)
  • Page 35 Braking Close the throttle and apply the front and rear brake levers together. Rear brake lever Front brake lever...
  • Page 36 Refuelling Fuel type: Unleaded petrol only Lower edge of Arrow marks Fuel octane number: Your scooter is filler neck designed to use Research Octane Number (RON) 91 or higher. Tank capacity: 4.4 litres (1.16 US gal, 0.97 Imp gal) ❙ Refuelling and Fuel Guidelines (P9) Fuel fill...
  • Page 37 Closing the Fuel Fill Cap WARNING Install and tighten the fuel fill cap firmly by Petrol is highly flammable and turning it clockwise. explosive. You can be burned or Make sure that the arrow marks on the seriously injured when handling fuel. cap and fuel tank is aligned.
  • Page 38 Storage Equipment Seat Open Insert the ignition key into the seat lock and Seat turn it clockwise to unlock. Pull the seat up. Seat Close Ignition key Close and push down on the rear of the seat until it locks. Make sure that the seat is locked securely to pull it up lightly.
  • Page 39 Helmet Holder WARNING The helmet holder is located under the seat. Use the helmet holder only when parked. Riding with a helmet attached to the holder can interfere with your ability Helmet holder to safely operate the scooter and could lead to a crash in which you can be seriously hurt or killed.
  • Page 40 Storage Equipment Tool Kit / Document bag The tool kit and document bag are located Prongs under the seat. Document cover Remove the document cover Document Push the tab then remove the document cover. Install the document cover Grooves Insert the prongs into the grooves on the frame, and then push down the tab to lock.
  • Page 41 Under Seat Space Do not ride with heavy and hard objects in The under seat space is located under the seat. the under seat space. The hooks are used for rope or net gripping. It may damage surface of the under seat space even if the load is under maximum weight limit.

  • Page 42: Maintenance

    Maintenance Please read “Importance of Maintenance” and “Maintenance Fundamentals” carefully before attempting any maintenance. Refer to “Specifications” for service data. Importance of Maintenance ......P. 39 Engine Oil........... P. 59 Maintenance Schedule.......P. 40 Brakes ............P. 62 Maintenance Fundamentals ......P. 43 Side Stand ..........

  • Page 43: Importance Of Maintenance

    Importance of Maintenance Importance of Maintenance Maintenance Safety Keeping your scooter well-maintained is Always read the maintenance instructions absolutely essential to your safety and to before you begin each task, and make sure that protect your investment, obtain maximum you have the tools, parts, and skills required. performance, avoid breakdowns, and reduce air We cannot warn you of every conceivable pollution.

  • Page 44: Maintenance Schedule

    Maintenance work should be performed in new owner. accordance with Honda’s standards and specifications by properly trained and Honda recommends that your dealer should equipped technicians. Your dealer meets all road test your scooter after each periodic of these requirements. Keep an accurate maintenance is carried out.
  • Page 45 : Inspect (clean, adjust, lubricate, or replace if necessary) you have the necessary tools and are mechanically skilled. : Replace Procedures are provided in an official Honda Shop Manual. : Clean : Technical. In the interest of safety, have your Scooter serviced...
  • Page 46 Maintenance Schedule Odometer Reading* Pre-ride Annual Regular Refer to Items Check × 1,000 km Check Replace page P. 43 × 1,000 mi 10 12.5 15 Final Drive Oil* 2 Years – Battery Brake Fluid * 2 Years Brake Shoes/Pads Wear 63, 67 Brake System Headlight Aim...

  • Page 47: Maintenance Fundamentals

    Maintenance Fundamentals ● Brakes-Check operation; Pre-ride Inspection Front: check brake fluid level and To ensure safety, it is your responsibility to pads wear. P. 62, 63 perform a pre-ride inspection and make sure Rear: check shoes wear and that any problem you find is corrected. A pre- freeplay, adjust if necessary.
  • Page 48 Maintenance Fundamentals Replacing Parts WARNING Always use Honda Genuine Parts or their Installing non-Honda parts may make equivalents to ensure reliability and safety. your scooter unsafe and cause a crash in which you can be seriously hurt or killed. Always use Honda Genuine Parts or equivalents that have been designed and approved for your scooter.
  • Page 49 Maintenance Fundamentals Battery WARNING Your scooter has a maintenance-free type The battery gives off explosive battery. You do not have to check the battery hydrogen gas during normal electrolyte level or add distilled water. Clean the operation. battery terminals if they become dirty or corroded.
  • Page 50 NOTICE NOTICE Installing non-Honda electrical accessories can overload Replacing a fuse with one that has a higher rating greatly the electrical system, discharging the battery and possibly increases the chance of damage to the electrical system.
  • Page 51 Selecting the Engine Oil circular API service symbol. For recommended engine oil, see “Specifications.” P. 97 If you use non-Honda engine oil, check the label to make sure that the oil satisfies all of the following standards: ● JASO T 903 standard*...
  • Page 52 NOTICE become contaminated with engine oil causing Brake fluid can damage plastic and painted surfaces. poor engine performance. P. 70 Wipe up spills immediately and wash thoroughly. Recommended brake fluid: Honda DOT 3 or DOT 4 Brake Fluid or equivalent...
  • Page 53 Maintenance Fundamentals ❙ Inspecting for Abnormal Wear Tyres (Inspecting/Replacing) Inspect the tyres for ❙ Checking the Air Pressure signs of abnormal Visually inspect your tyres and use an air wear on the contact pressure gauge to measure the air pressure at surface.
  • Page 54 Maintenance Fundamentals ❙ Inspecting Tread Depth WARNING Inspect the tread wear indicators. If they become visible, replace the tyres immediately. Riding on tyres that are excessively worn or improperly inflated can cause a crash in which you can be seriously hurt or killed.
  • Page 55 Maintenance Fundamentals Have your tyres replaced by your dealer. WARNING For recommended tyres and air pressure, see “Specifications.” P. 97 Installing improper tyres on your Follow these guidelines whenever you replace scooter can adversely affect handling tyres. and stability, and can cause a crash in ●...
  • Page 56 Maintenance Fundamentals Air Cleaner This scooter is equipped with a viscous type air cleaner element. Air blow cleaning or any other cleaning can degrade the viscous element performance and cause the intake of dust. Do not perform the maintenance. Should be serviced by your dealer.

  • Page 57: Tool Kit

    Tool kit The tool kit is stored under the seat. P. 36 You can perform some roadside repairs, minor adjustments and parts replacement with the tools contained in the kit. ● Standard/Phillips screwdriver ● Screwdriver handle ● Spark plug wrench...

  • Page 58: Removing & Installing Body Components

    Removing & Installing Body Components ❙ Battery Cover Removal 1. Remove the document cover. P. 36 Battery cover 2. Remove the battery cover by removing the Screws B screws A and screws B. Screws A ❙ Installation Install the parts in the reverse order of removal.

  • Page 59: Centre Cover

    Removing & Installing Body Components Centre Cover ❙ Centre Cover Removal 1. Open the seat. P. 34 Screws A 2. Open the fuel lid. P. 32 3. Remove the centre cover by removing screws A and screws B. Screws B ❙...

  • Page 60: Battery

    Removing & Installing Body Components Battery ❙ Battery Removal Make sure the ignition switch is off. 1. Remove the battery cover. P. 54 Screw Battery holder 2. Remove the battery holder by removing the screw. 3. Disconnect the negative terminal from the battery.

  • Page 61: Spark Plug

    Spark Plug Checking Spark Plug For the recommended spark plug, see “Specifications.” P. 97 Use only the recommended type of spark plug in the recommended heat range. NOTICE Using spark plug with an improper heat range can cause engine damage. 1.
  • Page 62 Spark Plug Checking Spark Plug 6. Check the spark plug gap using a wire- 9. Tighten the spark plug: ● type feeler gauge. If the old plug is good: If adjustment is necessary, bend the 1/8 turn after it seats ●...

  • Page 63: Engine Oil

    Engine Oil Checking the Engine Oil Oil fill cap/dipstick Check the engine oil with the Idling Stop switch at IDLING. 1. If the engine is cold, idle the engine for 3 Upper to 5 minutes. level 2. Turn the ignition switch off and wait for 2 to 3 minutes.
  • Page 64 Engine Oil Adding Engine Oil Adding Engine Oil 2. Securely reinstall the oil fill cap/dipstick. NOTICE If the engine oil is below or near the lower Overfilling with oil or operating with insufficient oil can level mark, add the recommended engine oil. cause damage to your engine.
  • Page 65 Engine Oil Changing Engine Oil 3. Place your scooter on its centre stand on a firm, level surface. Sealing washer 4. Place a drain pan under the drain bolt. 5. Remove the oil fill cap/dipstick, drain bolt and sealing washer to drain the oil. Discard the oil at an approved recycling centre.

  • Page 66: Brakes

    Brakes Checking Brake Fluid Front brake 1. Place your scooter in an upright position on a firm, level surface. 2. Check that the brake fluid reservoir is horizontal and that the fluid level is: Front brake above the LOWER level mark. Combi brake between the LOWER level LOWER level...
  • Page 67 Brakes Inspecting the Front Brake Pads Inspecting the Front Brake Pads 1. Inspect the brake pads from below the brake caliper. Check the condition of the brake pad wear If necessary have the pads replaced by your indicators. dealer. The pads need to be replaced if a brake pad Always replace both left and right brake pads is worn to the indicator.
  • Page 68 Brakes Inspecting the Rear Brake Lever Freeplay Inspecting the Rear Brake Lever Check the brake cable for kinks or signs of wear. If necessary have it replaced by your Freeplay dealer. Lubricate the brake cable with a 1. Place your scooter on its centre stand. commercially available cable lubricant to 2.
  • Page 69 Brakes Adjusting the Rear Brake Lever Freeplay Adjusting the Rear Brake Lever 1. Adjust by turning the rear brake adjusting nut a half-turn at a time. Freeplay Adjust the freeplay of the brake lever with the front wheel pointed straight ahead. Make sure the cut-out on the adjusting nut is seated on the brake arm pin when adjusting the freeplay.
  • Page 70 Brakes Adjusting the Rear Brake Lever Freeplay 3. Push the brake arm to confirm that there is a gap between the rear brake adjusting nut and brake arm pin. Brake arm Push Brake arm pin Adjusting nut After adjustment, confirm the freeplay of the brake lever.
  • Page 71 See your dealer for this service. Brake panel When the brake service is necessary, see your Arrow dealer. Use only Honda Genuine Parts or its equivalent. Brake arm Reference mark...

  • Page 72: Side Stand

    Side Stand Checking the Side Stand 4. Sit on the scooter and raise the side stand. 5. Start the engine. 6. Lower the side stand all the way. The Side stand spring engine should stop as you lower the side stand.

  • Page 73: Throttle

    Throttle Checking the Throttle With the engine off, check that the throttle rotates smoothly from fully closed to fully open in all steering positions and throttle freeplay is correct. If the throttle does not move smoothly, close automatically, or if the cable is damaged, have the scooter inspected by your dealer.

  • Page 74: Crankcase Breather

    Crankcase Breather Cleaning the Crankcase Breather 1. Remove the crankcase breather tube plug from the tube. 2. Drain deposits into a suitable container. 3. Install the crankcase breather tube plug. Crankcase breather tube plug...

  • Page 75: Other Adjustments

    Other Adjustments Adjusting the Headlight Aim You can adjust vertical aim of the headlight for proper alignment. To move the headlight, loosen the bolt. Tighten the bolt after adjustment. Obey local laws and regulations. Headlight Down Bolt...

  • Page 76: Troubleshooting

    Troubleshooting Engine Will Not Start .........P. 73 Engine Does Not Start Even If the Throttle is Warning Indicators On or Flashing ...P. 74 Opened........... P. 78 PGM-FI (Programmed Fuel Injection) Tyre Puncture..........P. 79 Malfunction Indicator Lamp (MIL) ....P. 74 Electrical Trouble ........

  • Page 77: Engine Will Not Start

    Engine Will Not Start Starter Motor Operates But Starter Motor Does Not Engine Does Not Start Operate Check the following items: Check the following items: ● ● Check the correct engine starting Make sure the side stand is raised. ● sequence P.

  • Page 78: Warning Indicators On Or Flashing

    Warning Indicators On or Flashing PGM-FI (Programmed Fuel Injection) Malfunction Indicator Lamp (MIL) If the indicator lamp comes on while riding, you may have a serious problem with the PGM-FI system. Reduce speed and have your scooter inspected by your dealer as soon as possible.

  • Page 79: Other Warning Indications

    Other Warning Indications Fuel Gauge Failure Indication If the fuel system has an error, the fuel gauge indicators will be displayed as shown in the illustration. If this occurs, see your dealer as soon as possible.

  • Page 80: When The Idling Stop System Does Not Operate Properly

    When the Idling Stop System Does Not Operate Properly Idling Stop Indicator Does Not If you did not ride the scooter after engine starts: Come On Ride the scooter at speeds of over 10 km/h (6 mph). The Idling Stop system does not When the Idling Stop indicator does not operate until you ride once.

  • Page 81: Engine Is Not Stopped By The Idling Stop System While The Idling Stop Indicator Is On

    When the Idling Stop System Does Not Operate Properly Engine Is Not Stopped by the Idling Stop System While the Idling Stop Indicator Is on Engine Is Not Stopped by the Idling Stop System While the Idling Stop Indicator Is on When the engine is not stopped by the Idling Stop system while the Idling Stop indicator is on, perform the followings.

  • Page 82: Engine Does Not Start Even If The Throttle Is Opened

    When the Idling Stop System Does Not Operate Properly Engine Does Not Start Even If the Throttle is Opened Engine Does Not Start Even If If the Idling Stop switch is at IDLING: While the engine is stopping by the Idling the Throttle is Opened Stop system, if you press the Idling Stop switch to IDLING, the Idling Stop system will...

  • Page 83: Tyre Puncture

    Tyre Puncture Repairing a puncture or removing a wheel WARNING requires special tools and technical expertise. We recommend you have this type of service Riding your scooter with a temporary performed by your dealer. tyre repair can be risky. If the After an emergency repair, always have the temporary repair fails, you can crash tyre inspected/replaced by your dealer.

  • Page 84: Electrical Trouble

    Electrical Trouble Battery Goes Dead Burned-out Light Bulb Charge the battery using a motorcycle Follow the procedure below to replace a battery charger. burned-out light bulb. Remove the battery from the scooter before Turn the ignition switch to the OFF or LOCK charging.
  • Page 85 Electrical Trouble Burned-out Light Bulb ❙ Headlight Bulb Bulb Headlight assembly TOP mark Bolt B Collar Collar Bolt B Socket Rubber dust cover Bolt A Connector 5. Remove the bulb. 6. Install a new bulb in the reverse order of 1.
  • Page 86 Electrical Trouble Burned-out Light Bulb ❙ Brake/Tail Light Bulb 1. Remove the battery cover. P. 54 2. Turn the socket counterclockwise, then pull it out. 3. Slightly press the bulb in and turn it counterclockwise. 4. Install a new bulb in the reverse order of removal.
  • Page 87 Electrical Trouble Burned-out Light Bulb ❙ Front/Rear Turn Signal Bulb 1. Remove the turn signal lens by removing the screw. The right and left turn signal bulbs can be 2. Slightly press the bulb in and turn it replacement can be done in the same way. counterclockwise.

  • Page 88: Blown Fuse

    Electrical Trouble Blown Fuse Blown Fuse 1. Remove the battery cover. P. 54 2. Pull the fuses out with the fuse puller in Before handling fuses, see “Inspecting and back side of battery cover one by one Replacing Fuses.” P. 46 check for blown fuse.

  • Page 89: Information

    Information Keys.............P. 86 Instruments, Controls, & Other Features... P. 86 Caring for Your Scooter......P. 87 Storing Your Scooter .........P. 90 Transporting Your Scooter ......P. 91 You & the Environment ......P. 92 Serial Numbers ...........P. 93 Fuels Containing Alcohol......P. 94 Catalytic Converter ........P. 95...

  • Page 90: Keys

    Keys Keys Instruments, Controls, & Other Features Ignition key Ignition Switch Be sure to record the key number provided with the key number plate and record it in this Leaving the ignition switch ON with the engine manual. Store the spare key in a safe location. stopped will drain the battery.

  • Page 91: Caring For Your Scooter

    Frequent cleaning and polishing is important to clean water and dry with a soft, clean cloth. ensure the life of your Honda. A clean scooter 4. After the scooter dries, lubricate any moving makes it easier to spot potential problems.
  • Page 92 Caring for Your Scooter ❙ ● Washing Precautions Do not direct water at the air cleaner: Follow these guidelines when washing: Water in the air cleaner can prevent the ● Do not use high-pressure washers: engine from starting. ● High-pressure water cleaners can damage Do not direct water near the headlight: moving parts and electrical parts, Any condensation inside the headlight...
  • Page 93 Caring for Your Scooter Panels Exhaust Pipe and Muffler Follow these guidelines to prevent scratches When the exhaust pipe and muffler are painted, and blemishes: do not use a commercially available abrasive ● Wash gently using a soft sponge and plenty kitchen cleaning compound.

  • Page 94: Storing Your Scooter

    Storing Your Scooter Storing Your Scooter After removing your scooter from storage, inspect all maintenance items required by the If you store your scooter outdoors, you should Maintenance Schedule. consider using a full-body scooter cover. If you won’t be riding for an extended period, follow these guidelines: ●...

  • Page 95: Transporting Your Scooter

    Transporting Your Scooter Transporting Your Scooter If your scooter needs to be transported, it should be carried on a motorcycle trailer or a flatbed truck or trailer that has a loading ramp or lifting platform, and motorcycle tie-down straps. Never try to tow your scooter with a wheel or wheels on the ground.

  • Page 96: You & The Environment

    You & the Environment You & the Environment drain or on the ground. Used oil, petrol, and cleaning solvents contain poisons that can hurt Owning and riding a scooter can be enjoyable, refuse workers and contaminate drinking but you must do your part to protect the water, lakes, rivers, and oceans.

  • Page 97: Serial Numbers

    Serial Numbers Serial Numbers Frame number The frame and engine serial numbers uniquely identify your scooter and are required in order to register your scooter. They may also be required when ordering replacement parts. The frame number is stamped on the right side of the steering head.

  • Page 98: Fuels Containing Alcohol

    Fuels Containing Alcohol Fuels Containing Alcohol The use of petrol containing more than 10% ethanol may: ● Some conventional fuels blended with alcohol Damage the painting of the fuel tank. ● are available in some locales to help reduce Damage the rubber tubes of the fuel line. ●...

  • Page 99: Catalytic Converter

    A defective catalytic converter contributes to air pollution and can impair your engine’s performance. A replacement unit must be an original Honda part or equivalent.

  • Page 100: Specifications

    Specifications Specifications ■ Main Components Displacement 108.20 cm (6.600 cu-in) Overall length 1,840 mm (72.4 in) Bore × stroke 50.000 × 55.106 mm (1.9685 × 2.1695 in) Overall width 759 mm (29.9 in) Compression ratio 9.5:1 Overall height 1,065 mm (41.9 in) Unleaded petrol Fuel Wheelbase...
  • Page 101 IRC MB67 After disassembly Rear 0.12 Imp qt) DUNLOP D314 Recommended [Driver only] Honda DOT 3 or DOT 4 Brake Fluid brake fluid 200 kPa (2.00 kgf/cm , 29 psi) Front [Driver and passenger] 200 kPa (2.00 kgf/cm , 29 psi)
  • Page 102 Specifications ■ ■ Bulbs Torque Specifications Headlight 12V-32/32W Engine oil drain bolt 24 N·m (2.4 kgf·m, 18 lbf·ft) Brake/Tail light 12V-18/5W Front turn signal lights 12V-10W × 2 Rear turn signal lights 12V-10W × 2 ■ Fuses Main fuse Other fuses 10A, 5A...

  • Page 103: Index

    Index Index Tool Kit ..........36, 53 Accessories..........10 Document Bag........36, 86 Basic Operation Flow........ 12 Battery ..........45, 56 Brakes Electrical Trouble........80 Engine Brake Lever Freeplay......... 64 Number............ 93 Fluid........... 48, 62 Pad Wear ..........63 Oil ............47, 59 Shoe Wear ..........
  • Page 104 Gasohol ............94 Load Limits ..........11 Loading Guidelines........11 Headlight Aim ........... 71 Headlight Dimmer Switch......20 Maintenance Helmet Holder ........... 35 Fundamentals ...........43 Importance ..........39 High Beam Indicator ......... 18 Safety ............39 Horn Button..........20 Schedule...........40 Maximum Luggage Weight ..11, 37, 96 Idling Stop Indicator .........
  • Page 105 Serial Numbers .......... 93 Parking ............8 Shutter ............22 Parts Location..........14 Side Stand ..........68 Petrol ..........9, 32, 94 Side Stand Ignition Cut-off System ..26, 68 PGM-FI (Programmed Fuel Injection) Specifications..........96 malfunction indicator lamp (MIL) ..18, 74 Speedometer ..........
  • Page 106 Tyres Air Pressure ........49, 97 Puncture........... 79 Replacing ..........49 Under Seat Space ........37 Warning Indicator On or Flashing.... 74 Washing Your Scooter ......87 Weight Limit........11, 96...
