Summary of Contents for Lascells Rubens Tube LA50-550

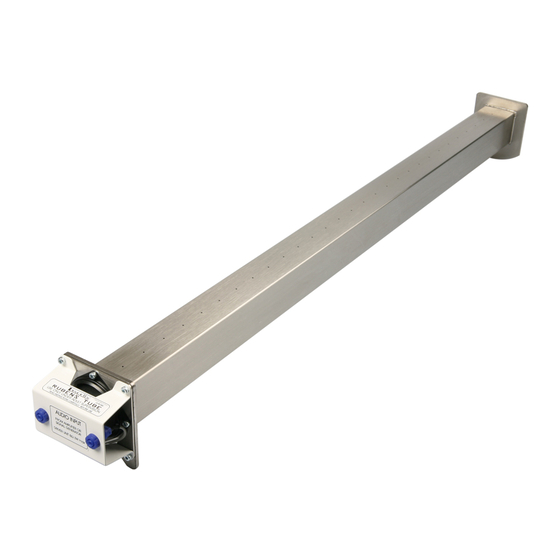

- Page 1 RUBENS’ TUBE LA50-550 PLEASE ENSURE ALL USERS OF THIS APPARATUS HAVE READ THESE INSTRUCTIONS CAREFULLY INSTRUCTIONS FOR USE...
- Page 2 RUBENS’ TUBE LA 50-550 INTRODUCTION This apparatus provides a dramatic visual presentation of wave motion based on the original apparatus designed by Henrich Rubens in 1905. There are various safety precautions to be observed and these should be studied carefully before use. The system uses the high and low pressures in a sound wave to vary the gas pressure and hence the flame height in the tube.
- Page 3 CONNECTING TO THE GAS SUPPLY Natural gas or bottled LPG Propane or Butane can be used. Connect the gas inlet pipe via a “Bunsen Burner” tube to the gas supply. Ensure that any tubes used are free from leaks and that the tube makes a gas-tight seal at both ends.
- Page 4 For about 60 cm and v = 300ms the frequency is in the region of 500Hz. Visit us at www.lascells.com Lascells Ltd., Walkmill Business Park, Sutton Road, Market Drayton, Shropshire. TF9 2HT Tel: 01630 657801 Fax: 01630 656726...
