Siemens Delta Series Technical Product Information

DELTA profil Display and control unit
DELTA style Display and control unit
DELTA ambiente Display and control unit

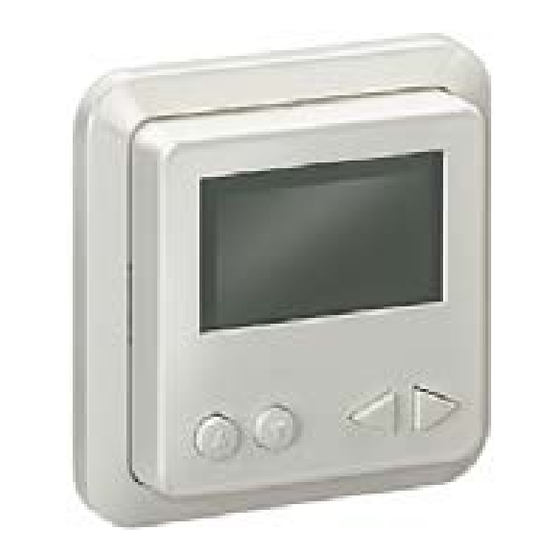

Product DELTA profil
5WG1 585-2AB01 pearl grey
Display and control 5WG1 585-2AB11 titanium white
unit 5WG1 585-2AB21 anthracite
5WG1 585-2AB71 silver
Frames
Intermediate frames
B6

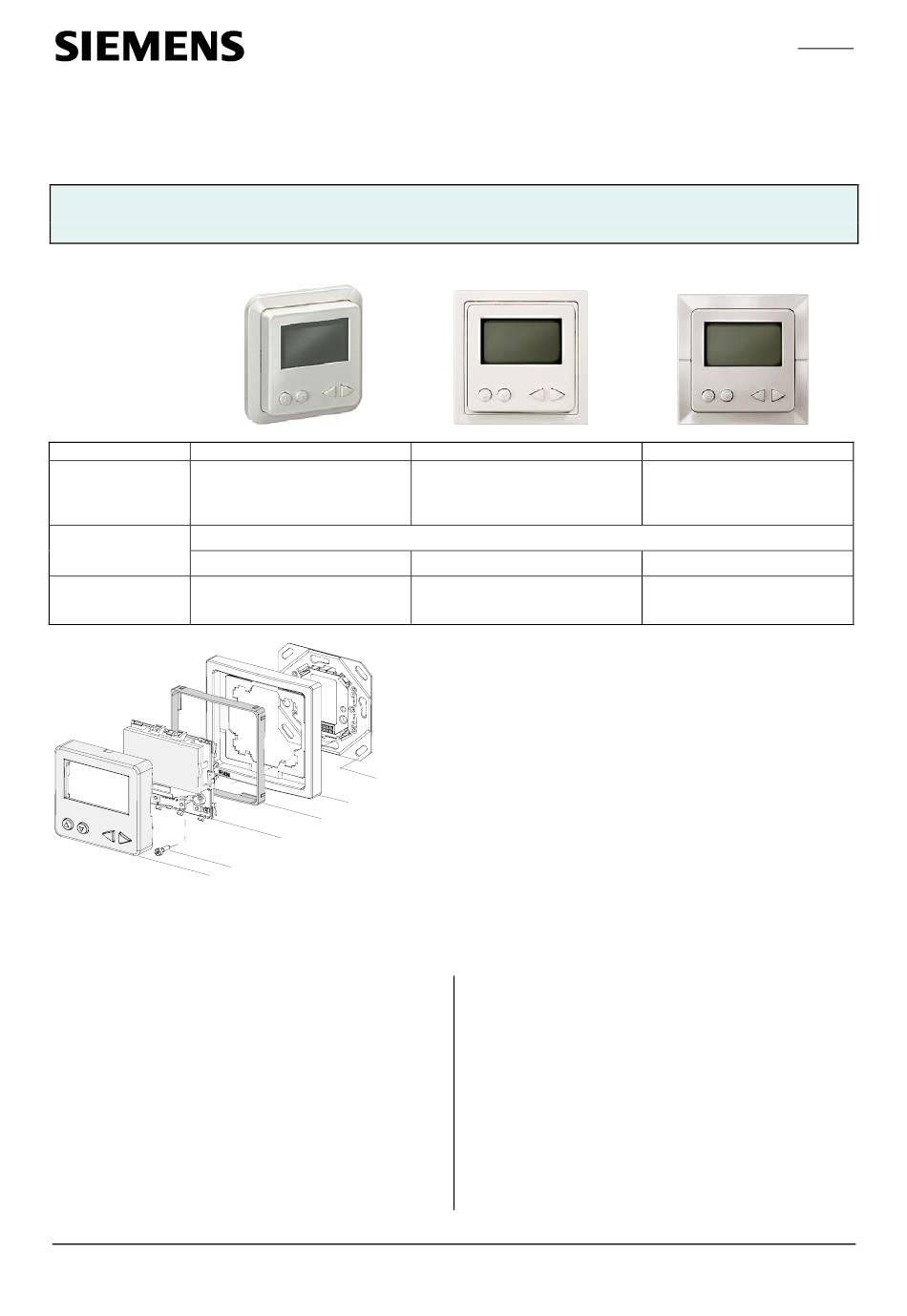

Diagram 1: Installation of the display unit
Product and Applications Description
The display unit is used to indicate freely programmable
messages. A message generally consists of read-only
text and placeholders.
The display unit can be freely configured with different
fonts, characters and symbols. Depending on the pa-
rameter settings, it is possible to assign alarm functions
to the messages. The display is carried out via a graphi-
cal LC display. If Arial font is used in 12 pt, 5 lines can be
displayed. The LC display contains green/yellow back-
lighting which can be switched on and off via software.
The output of an alarm tone can also be set.
Siemens AG
Automation and Drives Group
Electrical Installation Technology
P.O. Box 10 09 53, D-93009 Regensburg
UP 585
UP 584
UP 586
ordered separately from the DELTA ranges
cut out frames
---
B1
B2
B3
B4
B5
© Siemens AG 2008
Subject to change without prior notice
DELTA style
5WG1 585-2AB11 titanium white
5WG1 584-2AB21 basalt black
5WG1 584-2AB41 platinum metallic
---
5TG1 328 titanium white
5TG1 368 basalt black
5TG1 328-1 platinum metallic
B1 Driver with bus connection *)
B2 Frame
B3 Intermediate frame (only for DELTA style)
B4 Display unit *)
B5 Fixing screw *)
B6 Blende *)
*) Lieferumfang
The various messages can be selected by pressing the
two push buttons on the display unit. It is also possible
to operate selectable bus functions with two further
push buttons.
The display unit is placed on the bus driver module
together with the relevant frame. It can only function in
connection with this bus driver module and an appro-
priate application program i.e. the display unit consists
of the device [hardware] and the application program
[software].
The frames are not included with supply and must be
ordered separately. The intermediate frame should be
used for DELTA style.
UP 58x, 6 pages
GAMMA instabus
Technical Product Information
March 2008
5WG1 585-2AB_1
5WG1 584-2AB_1
5WG1 586-2AB_1
DELTA ambiente
5WG1 586-2AB01 arctic white
---
---
Technical Manual
Update: http://www.siemens.com/gamma
2.3.1.2/1
