1. Overview

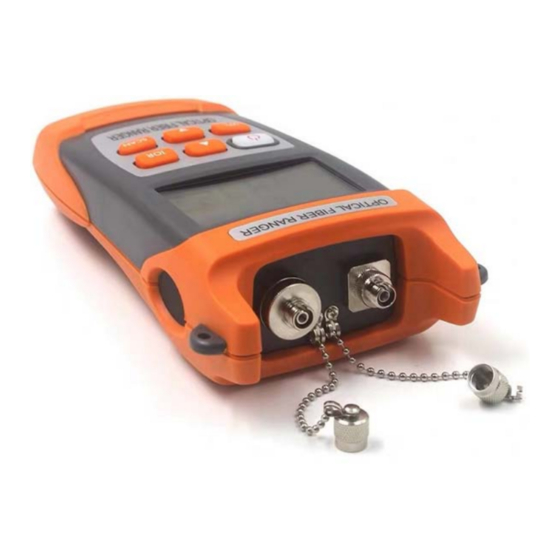

Hand-held portable Optical Fiber Ranger is the lightest optical fiber length measuring instrument in
the industry. By adopting OTDR principle and integrating powerful analysis software, it can quickly and
accurately detect the location and type of optical fiber and cable fault points and test the distance
between the two nodes of optical fiber. The operation is easy to use, no complex parameter setting,
friendly interface; Handheld design, small size and light weight, easy to carry, easy to maintain; Large
capacity rechargeable lithium battery, energy saving design, long standby time. This instrument is
suitable for fault location in engineering construction and maintenance based on FTTx and access
network.
Note: the specification version is subject to change without prior notice.
Product features：
Light shape, small volume, light weight, easy to carry.
Reliable performance and good repeatability.
One-click operation, no complicated Settings, test results at a glance.
Easily test fiber optic link node length and fault point location.
Integrated VFL function, convenient detection blind area within the optical fiber fault position.
Using 1500 mah rechargeable lithium-ion batteries, long working hours.
Support Micro_USB charging. It can be charged with mobile phone charger, charging treasure,
etc. Long duration, suitable for long-term field operations.
2. Technical indicators
Name
Wavelength
Fiber type
Type of connector
Sensor type
Maximum
Reflection events
display distance
Non reflection event
Unit of measurement
Reflection event blind area
Distance Accuracy (Reflective Events)
Wavelength of Visual Fault Locator
No.367, Fuxing N. Rd., Taipei 105 Taiwan (R.O.C.)

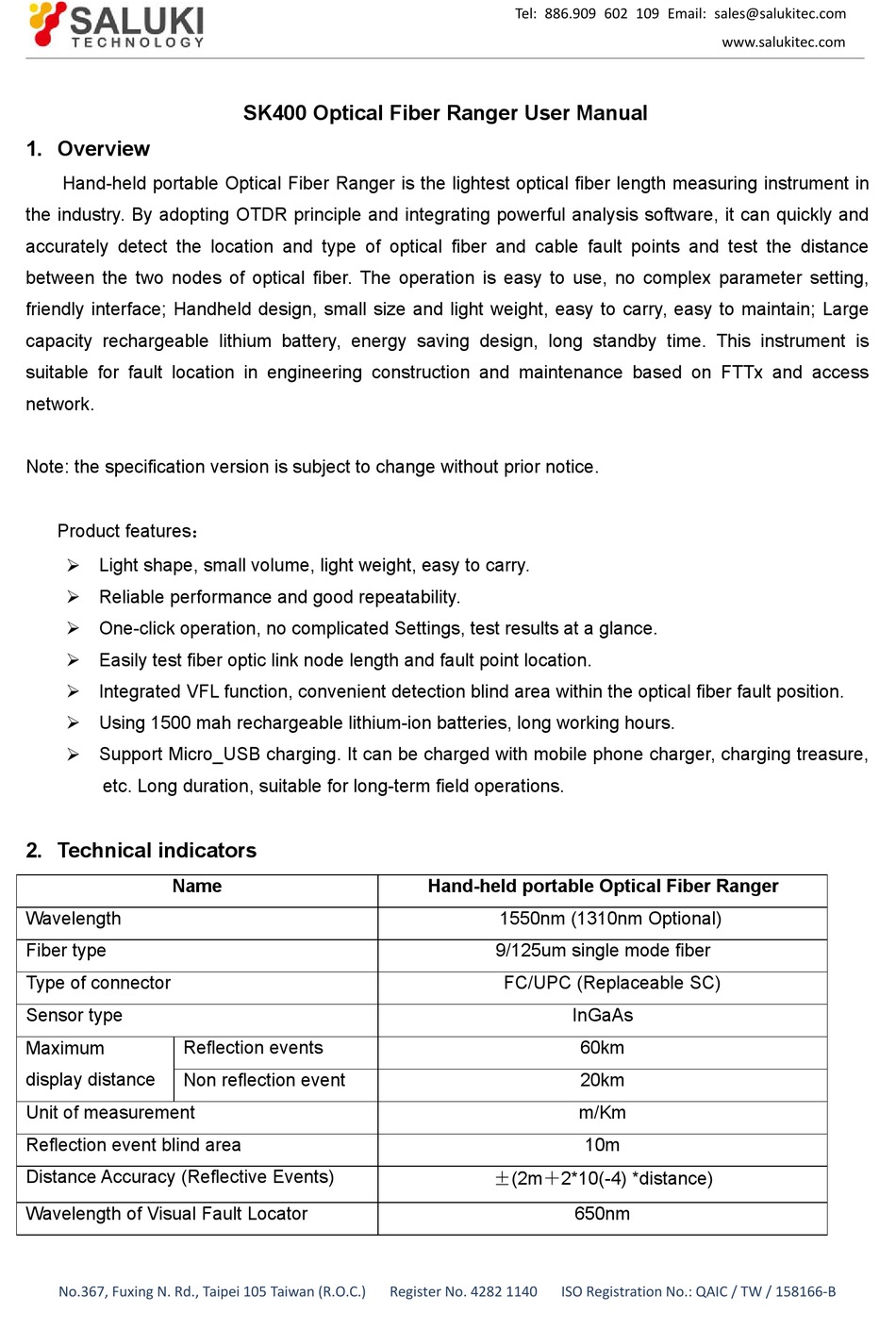

SK400 Optical Fiber Ranger User Manual
Register No. 4282 1140
Tel: 886.909 602 109 Email: sales@salukitec.com
Hand-held portable Optical Fiber Ranger
1550nm (1310nm Optional)
9/125um single mode fiber
FC/UPC (Replaceable SC)
InGaAs
60km
20km
m/Km
10m
±(2m＋2*10(-4) *distance)
650nm
ISO Registration No.: QAIC / TW / 158166‐B
www.salukitec.com
Advertisement
Related Manuals for Saluki SK400
Summary of Contents for Saluki SK400
- Page 1 Tel: 886.909 602 109 Email: sales@salukitec.com www.salukitec.com SK400 Optical Fiber Ranger User Manual 1. Overview Hand-held portable Optical Fiber Ranger is the lightest optical fiber length measuring instrument in the industry. By adopting OTDR principle and integrating powerful analysis software, it can quickly and accurately detect the location and type of optical fiber and cable fault points and test the distance between the two nodes of optical fiber.
-
Page 2: Function Description
Tel: 886.909 602 109 Email: sales@salukitec.com www.salukitec.com Power of Visual Fault Locator ≥1mW Power Supply 1500mAh rechargeable lithium battery Working temperature (℃) -10～+40 Storage temperature (℃) -40～+70 Weight (excluding batteries) ≤400g 3. Function description 3.1 LCD display LCD displays test results in the form of m or Km. Press up and down keys to view different event points. 3.2 Turn on/off key Long press this key to start up when the machine is turned off;... -
Page 3: Standard Configuration
Tel: 886.909 602 109 Email: sales@salukitec.com www.salukitec.com 4.2 Clean the optical fiber under test and connect to the OTDR interface of the instrument. Pay attention to the type of the optical fiber street under test. If the mismatched connector type is connected to the instrument, the output optical fiber head of the instrument may be damaged and the correct measurement result may not be obtained. -
Page 4: Daily Maintenance
Tel: 886.909 602 109 Email: sales@salukitec.com www.salukitec.com Mismatch of optical fiber Replacement of matched optical fiber connectors jumpers, or transfer must be used 7. Daily Maintenance: 7.1 Please always keep the end of the fiber clean, oil-free, pollution-free, do not use unclean and non-standard adapter connectors, do not insert the end of the poor polishing surface, otherwise it will damage the end of the fiber, the test will error. - Page 5 Tel: 886.909 602 109 Email: sales@salukitec.com www.salukitec.com and to improve the after-sales service to customers, this warranty regulation is formulated. Please read it carefully and welcome your valuable comments and suggestions. 1. This product is guaranteed free of charge for 18 months from the date of purchase, if it exceeds the warranty period, we will charge Accessory cost.
