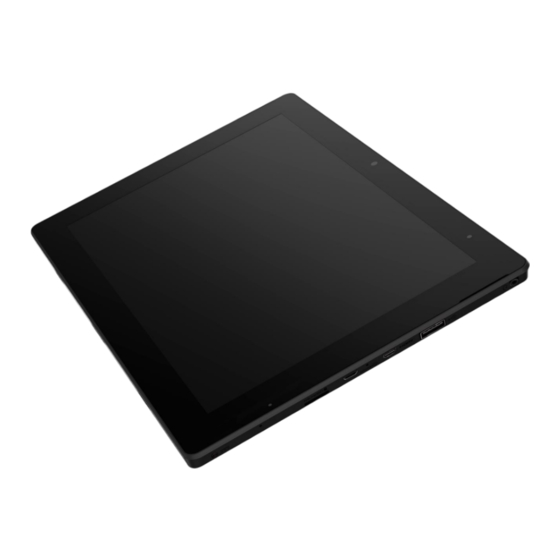

- Page 1 10.1”mPOS DASH/T3 PLUS User Menu Series Model No: DASH10EB DASH10AB...
- Page 2 V0.2 Attention All other product names or trademarks are the property of their respective owners. Warning Users: 1. Use of excessive fear of damage to eyesight 2. Use 30 minutes to rest 10 minutes 3. Children under 2 years old do not look at the screen; 2 years old and more than a day to see the screen not more than 1 hours Global security Announcement CE Conformity Statement...
- Page 3 • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
- Page 4 WEEE...
- Page 5 Following information is only for EU-member states: The use of the symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
- Page 6 10. If the device is not in use for a long time, disconnect it from the power supply to prevent instantaneous overvoltage damage to the device. 11. Never pour any liquid into the Msr/ic card reader slot in the DASH/T3 PLUS series. This can cause fire or shock.
- Page 7 e. There are obvious signs of breakage in the equipment. Battery Safety Notification 1. If you replace the incorrect battery type, there is a risk of explosion. 2. Do not attempt to disassemble the calculator or its attachments. 3. Only qualified personnel are allowed to replace the battery. 4.
-
Page 9: Table Of Contents
TABLE OF CONTENT 1 Product Introduction ..................... 11 1.1 Common Symbols in the manual ................... 12 1.2 Product Function and Feature ..................12 1.3 Packing Content ......................12 1.4 Product SPEC ......................... 13 1.4.1 Technical SEPC ..............13 1.4.2 Product Outlooking ..............14 1.5 DASH/T3 PLUS Interface .................... - Page 10 4.1.2 Android 6.0.1 OS Installation ............. 24 5 Computer Maintenance ..................25 5.1 LCD Monitor Maintenance .................... 25 5.2 DASH/T3 PLUS Cleaning ....................25 5.3 Trouble Shooting ......................25 5.4 ENERGY STAR ......................... 26 6 Declaration of the Presence Condition of Restricted Substance ....28 7 DASH/T3 PLUS Docking Installation ..............
-
Page 11: Product Introduction
1 Product Introduction Thank you for purchasing DASH/T3 PLUS computer。 DASH/T3 PLUS Series SKU Table DASH10EB DASH10AB 4G/64G Windows 4G/64G Android a/b/g/n/ac a/b/g/n/ac The product combines stylish design, reliable performance and powerful functionality to meet your wide range of working requirements. This user's manual outlines the basic information you need to know to set up and use DASH/T3 Plus. -
Page 12: Common Symbols In The Manual
1.1 Common symbols in the manual Indicates the information that must be adhered to. This may result in personal injury or damage to the product. Represents information that provides assistance that can help you to use this product more smoothly. 1.2 Product Function and Feature •Stylish and functional with only 8.5 mm thickness •... -
Page 13: Product Spec
Product SPEC 1.4.1 Technical SPEC DASH10EB DASH10AB Product SKU Processor Intel Cherry Trail Z8350 1.92GHz Windows 10 Android6.0 Memory 4GB DDR3L 4GB DDR3L Storage 64GB eMMC Monitor 10.1" 1280x800 IPS；G+G, 10 points WiFi 802.11 a/b/g/n/ac WiFi 802.11 a/b/g/n/ac Communication Module BT4.0 BT4.0 G-Sensor, Gyroscope, Light Sensor... -
Page 14: Product Outlooking
1.4.2 Product Outlooking DASH/T3 PLUS series are with the same size. 1.5 DASH/T3 PLUS Interface 1.5.1 Front Component Front Camera Light Sensor Module... -
Page 15: Back
1.5.2 Back Component Rear Camera Right 1.5.3 Component Powerhole Microphone Micro SD Micro USB Micro HDMI USB3.0 Earphone... -
Page 16: Left
Left 1.5.4 1.5.5 Component Volume Adjustment Power Button Bottom 1.5.6 Component Pogo Pin (to contact with Docking) Keyboard Guidepin... -
Page 17: Starting
2 Starting 2.1 Charging To recharge the DASH/T3 PLUS 's built-in battery, connect the power supply transformer to the power hole interface on the DASH/T3 PLUS. Power hole Since the battery charge may drop during delivery, please charge at least one hour before starting the first boot. -
Page 18: Computer Operation
2.4 Computer Operation DASH/T3 PLUS is with 10.1” Capacitive Touch Panel。You can contact the panel directly with your finger to manipulate the computer. Operation Space 2.5 LED Indicator Status One LED indicator on DASH/T3 PLUS: Power LED Indicator DASH/T3 PLUS Power LED indicator is mono color: Orange. -
Page 19: Setting
3 Setting Wireless base stations must be purchased prior to use of wireless networks. Please contact your wireless network equipment supplier to install and set up a wireless base station. The screenshot attached to this manual is used for reference. The actual screen may vary depending on your operating system or the version of the preinstalled software. -
Page 20: Android 6.0.1 Setting
Open Program Battery Status WIFI Volume Adjustment Open Keyboard 3.2 Android 6.0.1 Setting Android 6.0.1 Screen 功能 Go Back Main Screen Background Program Open Program... - Page 21 Pull out the settings from the top of the screen Function WiFi Backlight Adjustment Battery Status Bluetooth Setting...
-
Page 22: Application Implement
4 Application Implement 4.1 Application Installation There are several ways to install applications on DASH/T3 Plus, and this section describes the steps for installing applications via micro SD cards. 1. Please confirm your micro SD card has been formatted as FAT32 file system before installation。... -
Page 23: Windows 10 Iot Enterprise Os Installation
4.1.1 Windows 10 IoT Enterprise OS Installation a) Open the Starup program menu. b) Open File Explorer ， the content of SD card will show Secure Digital storage device (D:) c) Click Secure Digital storage device (D:) you can find .exe。 d) Click .exe file to install the application... -
Page 24: Android 6.0.1 Os Installation
4.1.2 Android 6.0.1 OS Installation a) Open Settings Open Storage & USB Select SD Card Click .apk to install the application... -
Page 25: Computer Maintenance
5 Computer Maintenance 5.1 LCD Monitor Maintenance •Do not rub the screen surface with any hard objects。 •Do not spray the liquid directly on the screen, or let excess liquid drip into the device。 •Do not put anything on the screen at any time, such as food and drink, so as not to damage the screen。... -
Page 26: Energy Star
•Symptom photos or movies (if any). 5.4 ENERGY STAR An ENERGY STAR qualified computer delivers substantial savings over a conventional computer. Desktop, integrated desktop, and notebook (laptop) computers, workstations, small-scale servers, and thin clients are all eligible to earn the ENERGY STAR, and those that do are now more efficient than ever. - Page 27 Monitor and enter sleep mode if idle for more than 10 minutes. Lists of default power management systems: Balanced Idle 4 min. closes screen, 10 min. enters sleep mode. (Default) High Never idle and never enters sleep mode. performance Screens used in this manual are for illustrative purposes only.
-
Page 28: Declaration Of The Presence Condition Of Restricted Substance
Declaration of the Presence Condition of Restricted Substance Declaration of the Presence Condition of the Restricted Substances Marking 設備名稱: 電腦 型號(型式)： DASH/T3 PLUS (詳細型號列於次頁) Equipment name Type designation (Type) 限用物質及其化學符號 Restricted substances and its chemical symbols 六價鉻 多溴聯苯 多溴二苯醚 單元 Ｕnit 相對應排除項... -
Page 29: Dash/T3 Plus Docking Installation
DASH/T3 PLUS Docking Installation 1 x 10” DASH/T3 PLUS 1 x Power Supply 1 x Quick Start Guide with power cord To turn on the DASH/T3 PLUS, press and hold the power button for 3 seconds. *Note: Fully charge the tablet before first use* Front View Power Back View... - Page 30 Bottom View Top View Side View USB3.0 Port DASH/T3 PLUS Low Profile Docking Base Front View POGO Pin Back View...
- Page 31 I/O Cover I/O Information RS232 USB 2.0 DC in Jack Installation Lower the tablet onto the base. You should feel a magnetic click once the tablet is seated properly. ↓...
- Page 32 Un-installation To easily remove the tablet from the dock, grip the handle and pull up the tablet.
