AceProAV CE30 User Manual

Hdmi 2.0 4x4 matrix with amazon echo control enabled
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HDMI 2.0 4x4 Matrix
with
Amazon Echo Control Enabled
User Manual

Advertisement

Table of Contents
loading

Summary of Contents for AceProAV CE30

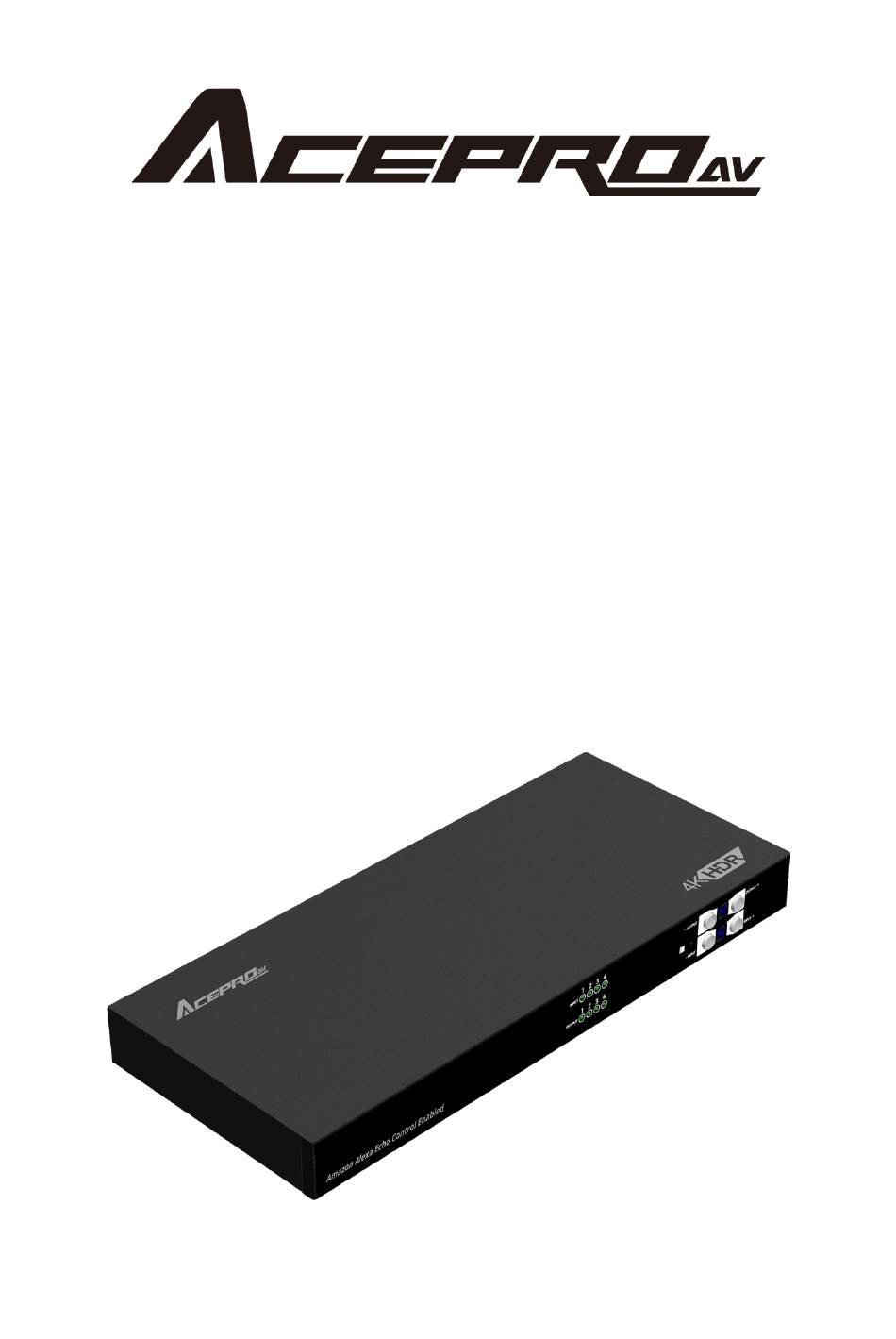

  • Page 1 HDMI 2.0 4x4 Matrix with Amazon Echo Control Enabled User Manual...

  • Page 2: Safety And Notice

    Safety and Notice The HDMI 2.0 4x4 Matrix has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment, the HDMI 2.0 4x4 Matrix should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

  • Page 3: Package Contents

    Thank You for your pruches! Features • HDMI2.0a compliant • Supports 4K2K@60 4:4:4 8bits • Supports HDR*, which is 4K2K@60 4:2:0 10bits • HDCP1.4/HDCP 2.2 compliant • Single-link 594MHz [18Gbps] • Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge] •...

  • Page 4: Power Switch

    Layout Front Panel Amazon Alexa Echo Control Enabled 1. Source Status: Input source detection LED 2. Display Status: Output display detection LED 3. IR SENSOR: IR sensor for receiving the IR commands from IR remote 4. Output Push Button & 7-segment LED: Front panel push buttons used to select the number of display channel &LED display for output ports 5.

  • Page 5: Operation Approach

    Application Amazon Alexa Echo Control Enabled Operation Approach Method A: Push-in Button • Use the “+”or “-“ output push button to select the number of display • Use the “+”or “-“ input push button to select the number of input source •...
  • Page 6 Method B: IR Remote Control Button Function Standby mode Power on the matrix switcher MUTE Turn off output’s video and audio STATUS Preset output status SAVE Save current mapping mode PRESET Preset mapping mode DEFAULT EDID Begin default EDID selection LEARN EDID Begin EDID learning from one output CLEAR...
  • Page 7 • Example of function key Operation Procedure 7-Segment LED Mute Output Mute + A~D(Output 1~4) + Take 1. Press “MUTE” button Ex: Mute Output 3 2. Press number key “C” to select Output 3 3.Press “TAKE” button Output Status Status + A~D(Output 1~4) + Take 1.Press “STATUS”...
  • Page 8 Method C: Software control through RS-232 port (1) Please download the software from SIIG website. (CE-H23H11-S1 "Downloads" page ). (2) OS Information: MS WinXP/7/8.1/10 (3) Baud rates: 9600 (4) Software size: 1 MB (5) Minimum RAM requirement: 256 MB Power ON/ Standby mode Control SW via RS-232 COM Port Selection I/O Routing Button...
  • Page 9 2. EDID page • Learn EDID from Default to Input (1) Select Default EDID(1-17 Default EDID) (2) Select designated Input (3) Click “Apply” button to learn from default EDID • Learn EDID from Display to Input (1) Select display (2) Select designated Input (3) Click “Apply”...
  • Page 10 3. Rename page • Rename I/O: (1) Rename the Inputs (2) Rename the Outputs • Rename Mapping: (1) Rename the Mappings...

  • Page 11: Network-Static Mode

    4. System page Network-DHCP mode • Select DHCP and click “Read” button to get the IP address Information Network-Static mode • Click Static and then key in the “IP”, “MASK”, “GATEWAY” information. After setting IP address, please click “Save” button to save IP address Information “Save”...
  • Page 12 5. Firmware page Main Board Before you start to update, please make sure you have secured the connection between your computer COM port and the device. Click the “Open Dialog” button to do firmware update, the firmware update window of main board shows up as below Click the “Load File”...
  • Page 13 Front Panel Click the “Open Dialog” button and the firmware update window of front panel shows up as below Click the “Load File” button to select the front panel firmware file Click the “Start” button to do front panel firmware update IN OUT Click the “Open Dialog”...
  • Page 14 Method D: Control through "intriCloud" on internet Create Account The first time to use the intriCloud service, please create a new account. Access intriCloud (www.intri.cloud) and click “Create new account”. The Registration page will pop up and please fill in your email and password information to create your private account.
  • Page 15 Add Device to intriCloud Firstly, please make sure the device is connected to the Ethernet. Then please executing the software with device to get the association code (Note: the status of software is connected). Access intriCloud ( www.intri.cloud)or download IntriCloud APP,and then log in your account on the right top corner.
  • Page 16 Enter the Installer Email for online support in the future, and the Association Code for pairing with your device. After adding the device, the list of device related to your account will show on the right top corner. You can click the button to switch device for control.
  • Page 17 Method E: Amazon Echo (alexa) control Connecting your Intri-Cloud to Alexa Create & login amazaon alexa account Setting your Echo devices...
  • Page 18 Install Intri Cloud skill for Echo. Search “Intri Cloud” in Skills page then select it into SETTINGS page. Click “Link Account“ and it will pop out a window of “IntriCloud”to sign in.Type in your IntriCloud account and password, successfully linked Intri Cloud and amazon alexa...
  • Page 19 Voice Control Step 1. ""Alexa, open la la land"" (into Intri Cloud) Step 2. ""list device"" (What device connected to your Intri Cloud ) Step 3. ""select device"" (Select the device which you want to control) Step 4. ""play (input) on (output)"" (adjust your display array) Voice Commands Command...

  • Page 20: Edid Learning

    EDID Learning The EDID learning function is only necessary whenever you encounter any display on the HDMI output port that cannot play audio and video properly. Because the HDMI source devices and displays may have various level of capability in playing audio and video, the general principle is that the source device will output the lowest standards in audio format and video resolutions to be commonly acceptable among all HDMI displays.
  • Page 21 Can every TV work with the HDMI matrix? Basically, the answer is YES. But if your TV can not support 1080p, please refer the EDID LEARNING section to learn EDID from your TV. What is EDID? Why do I need to learn EDID? EDID contains the whole information of the display such as the resolution and audio setting which this display can support.
  • Page 22 My TV can support 1080p, but why there is no audio? The factory default EDID of this device is 1080p & 2ch audio. However, there would be a problem after you change to use 1080p & 7.1ch if the TV cannot support 7.1ch audio. Please use the default EDID,1080p &2ch audio.
