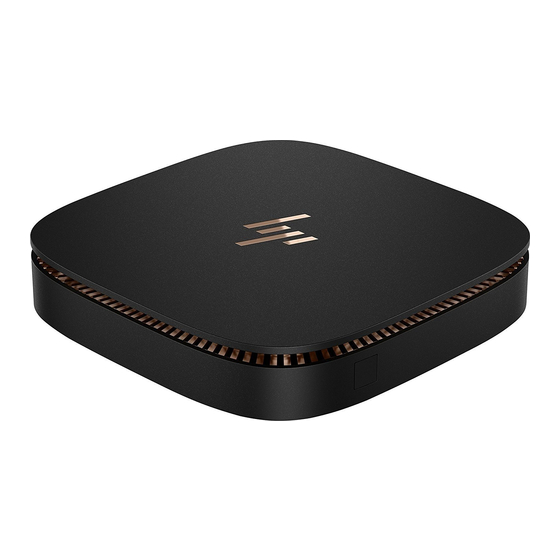

HP Elite Slice Disassembly Instructions Manual

For meeting rooms
Hide thumbs Also See for Elite Slice:

Advertisement

Quick Links

Download this manual
Product End-of-Life Disassembly Instructions
Product Category: Personal Computers
Marketing Name / Model
[List multiple models if applicable.]
HP Elite Slice for Meeting Rooms
Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions
for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU
directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).
1.0 Items Requiring Selective Treatment
1.1 Items listed below are classified as requiring selective treatment.
1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as
applicable.
Item Description
Printed Circuit Boards (PCB) or Printed Circuit
Assemblies (PCA)
Batteries
Mercury-containing components
Liquid Crystal Displays (LCD) with a surface
greater than 100 sq cm
Cathode Ray Tubes (CRT)
Capacitors / condensers (Containing PCB/PCT)
Electrolytic Capacitors / Condensers measuring
greater than 2.5 cm in diameter or height
External electrical cables and cords
Gas Discharge Lamps
Plastics containing Brominated Flame Retardants
weighing > 25 grams (not including PCBs or PCAs
already listed as a separate item above)
Components and parts containing toner and ink,
including liquids, semi-liquids (gel/paste) and toner
Components and waste containing asbestos
EL-MF877-00
Template Revision B
Notes
With a surface greater than 10 sq cm
All types including standard alkaline and lithium
coin or button style batteries
For example, mercury in lamps, display backlights,
scanner lamps, switches, batteries
Includes background illuminated displays with gas
discharge lamps
Include the cartridges, print heads, tubes, vent
chambers, and service stations.
PSG instructions for this template are available at
EL-MF877-01
Quantity
of items
included
in product
1
1
0
0
0
0
0
0
0
0
0
0
Page 1

Advertisement

loading

Related Manuals for HP Elite Slice

Summary of Contents for HP Elite Slice

  • Page 1 Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).
  • Page 2 Components, parts and materials containing refractory ceramic fibers Components, parts and materials containing radioactive substances 2.0 Tools Required List the type and size of the tools that would typically be used to disassemble the product to a point where components and materials requiring selective treatment can be removed.
  • Page 3 MANUFACTURING PROCESS INSTRUCTIONS MECHANICAL ASSEMBLY MODEL : Slice auditor： Stanley Chen...
  • Page 4 Standard Operation Procedure Document No. : Slice FA Disassembly SOP Station 1(1/1) Operation name : Ver. : Date Disassembly bottom case 0.10 2016/6/29 Step： 1. Loosen screw *4 of bottom case (Fig.1)  Torque：3.0 ± 0.2 Kgf．cm 2. Take off bottom case (6070B1043901) ,and put it in the box Fig.
  • Page 5 Standard Operation Procedure Document No. : Slice FA Disassembly SOP Station 2(1/1) Operation name : Ver. : Date Disassembly Speaker 0.10 2016/6/29 Step： 1. Disassembly Speaker connector form MB 2. Disassembly Speaker module(6039B0082201) and put it in the Do not press the Speaker eardrum when disassembly the speaker .
  • Page 6 Standard Operation Procedure Document No. : Slice FA Disassembly SOP Station 3(1/1) Operation name : Ver. : Date Disassembly HDD 0.10 2016/6/29 Step： 1. Disassembly HDD connector from MB(Fig. 2. Loosen HDD bracket screw *4 (Fig.1)  Torque：2.5 ± 0.2 Kgf．cm Fig.1 Fig.2 Fig.3...
  • Page 7 Standard Operation Procedure Document No. : Slice FA Disassembly SOP Station 4(1/1) Operation name : Ver. : Date Disassembly HDD 0.10 2016/6/29 Step： 1. Take HDD and remove the HDD cable from the HDD . Put it in the box . (fig.1) 2.
  • Page 8 Standard Operation Procedure Document No. : Slice FA Disassembly SOP Station 5(1/1) Operation name : Ver. : Date Disassembly top cover 0.10 2016/6/29 Step： 1. Loosen screw *4 of the middle frame (Fig.  Torque：3.0 ± 0.2 Kgf．cm 2. Turn over the machine , and disassembly top case .
  • Page 9 Standard Operation Procedure Document No. : Slice FA Disassembly SOP Station 6(1/1) Operation name : Ver. : Date Disassembly DDR & thermal cover 0.10 2016/6/29 Step： 1. Disassembly DDR from the M/B , and put it in the box .(Fig.1) The numbers of DDR disassembly is base on it on the M/B .
  • Page 10 Standard Operation Procedure Document No. : Slice FA Disassembly SOP Station 7(1/1) Operation name : Ver. : Date Disassembly thermal module 0.10 2016/6/29 Step： 1. Disassembly Fan cable connector on M/B (Fig. 2) 2. Loosen thermal screw *4 (Fig.1)  Torque : 2.5 ± 0.2 Kgf．cm Fig.1 Fig.3 Fig.2...
  • Page 11 Standard Operation Procedure Document No. : Slice FA Disassembly SOP Station 8(1/1) Operation name : Ver. : Date Disassembly FAN 0.10 2016/6/29 Step： 1. Loosen FAN screw (6052B0262901)* 4 (Fig.1) Torque：0.8 ± 0.2 Kgf．cm 2. Put thermal (6043B0209401/6043B0209411) & FAN module(6033B0048801/6033B0048802) in the different box .
  • Page 12 Standard Operation Procedure Document No. : Slice FA Disassembly SOP Station 9(1/1) Operation name : Ver. : Date Disassembly antenna plug ,thermal sensor 0.10 2016/6/29 Step： 1. Disassembly antenna plug *2 from WLAN card(Fig.1) 2. Disassembly thermal sensor connector from M/B . (Fig.2) . Pick up sensor module from rubber (Fig.3) ,and put it in the box .

  • Page 13: Main Antenna

    Standard Operation Procedure Document No. : Slice FA Disassembly SOP Station 10(1/1) Disassembly WLAN card, SSD, antenna Operation name : Ver. : Date 0.10 2016/6/29 Step： 1. Disassembly antenna cover *2 on the middle frame , and put them in the box . (Fig.1 ) 2.
  • Page 14 Standard Operation Procedure 11(1/1) Document No. : Slice FA Disassembly SOP Station Disassembly CPU 0.10 2016/6/29 Operation name : Ver. : Date Step： 1. Press the ILM handle, and take off the CPU cover . 2. Use the suction pen to pick up CPU on the CPU socket, and collect it in the CPU box .
  • Page 15 Standard Operation Procedure 12(1/1) Document No. : Slice FA Disassembly SOP Station Disassembly MB 0.10 2016/6/29 Operation name : Ver. : Date Step： 1. Loosen MB screw(6052B0118301)*1 2. Disassembly MB from middle Screw frame , and put it in the box . ...
  • Page 16 Standard Operation Procedure 13(1/1) Document No. : Slice FA Disassembly SOP Station Disassembly antenna 0.10 2016/6/29 Operation name : Ver. : Date Step： 1. Disassembly main antenna cable (shorter one , 036B0177401 WNC /6036B0176101 INPAQ)(Fig.1) 2. Disassembly AUX antenna cable (longer one 6036B0177501 WNC /6036B0176001 INPAQ) (Fig.2) 3.
  • Page 17 Standard Operation Procedure 14(1/1) Document No. : Slice FA Disassembly SOP Station Disassembly Finger module 0.10 2016/6/29 Operation name : Ver. : Date Step： With Finger model 1. Loosen screw (6052B0118301)*1 (Fig.1) Torque：2.5 ± 0.2 Kgf．cm 2. Disassembly finger iron parts (6053B1309101), and put it in the box .(Fig.2) Screw Fig.1...
  • Page 18 MANUFACTURING PROCESS INSTRUCTIONS MECHANICAL ASSEMBLY MODEL : Slice Auditor： Stanley Chen...
  • Page 19 Standard Operation Procedure 1(1/1) Document No. : Slice ODD FA Disassembly SOP Station Disassembly Bottom case 0.10 2016/6/29 Operation name : Ver. : Date Step： 1. Loosen bottom case screw *4 (Fig.1)  Torque：2.5 ± 0.2 Kgf．cm 2. Disassembly bottom case(6070B1044001), and put it in the box Fig.1 Fig.
  • Page 20 Standard Operation Procedure Document No. : Slice ODD FA Disassembly SOP Station 2(1/1) Operation name : Ver. : Date Disassembly rubber & screw 0.10 2016/6/29 Step： 1. Disassembly left side Rubber (6054B1795001)*2 and right side Rubber (6054B1795101)*2 (Fig.1) 2. Loosen ODD support frame screw (6052B0049401) * 1 and right side iron parts screw (6052B0049401) *1 , and disassembly right side iron parts...
  • Page 21 Standard Operation Procedure Document No. : Slice ODD FA Disassembly SOP Station 3(1/1) Operation name : Ver. : Date Disassembly ODD 0.10 2016/6/29 Step： 1. Disassembly ODD FFC from ODD/B (Fig.1) 2. Disassembly ODD toward downside (Fig.1) Toward down side FFC CNTR Fig.1 Notes : If finding anything uncommon, notice foreman or assistant at once.
  • Page 22 Standard Operation Procedure Document No. : Slice ODD FA Disassembly SOP Station 4(1/1) Operation name : Ver. : Date Disassembly ODD FFC & support frame 0.10 2016/6/29 Step： 1. Disassembly ODD FFC connector from ODD side , and put it(6017B0773501) in the box (Fig.1) 2.
  • Page 23 Standard Operation Procedure Document No. : Slice ODD FA Disassembly SOP Station 5(1/1) Operation name : Ver. : Date Disassembly top cover 0.10 2016/6/29 Step： Fig.1 1. Loosen ODD/B screw (6052B0049401)*1(Fig.1)  Torque：2.5 ± 0.2 Kgf．cm 2. Disassembly ODD/B , and put it in the box. 3.
  • Page 24 MANUFACTURING PROCESS INSTRUCTIONS MECHANICAL ASSEMBLY MODEL : Slice Auditor： Stanley Chen...
  • Page 25 Standard Operation Procedure 1(1/1) Document No. : Slice Audio FA Disassembly SOP Station Disassembly bottom case 0.10 2016/6/29 Operation name : Ver. : Date Step： 1. Loosen bottom case screw * 4 (Fig.1) Torque：2.5 ± 0.2 Kgf．cm 2. Disasembly bottom case(6070B1043601) , and put it in the box .
  • Page 26 Standard Operation Procedure Document No. : Slice Audio FA Disassembly SOP Station 2(1/1) Operation name : Ver. : Date Disassembly Sponge 0.10 2016/6/29 Step： 1. Disassembly Sponge 4 pcs . (Fic.1/Fic.2/Fic.3) Fig.1 Fig.2 Fig.3 Notes : If finding anything uncommon, notice foreman or assistant at once. Holding fixture list (holding fixture standard) Holding fixture list (holding fixture standard) Auditor：...
  • Page 27 Standard Operation Procedure Document No. : Slice Audio FA Disassembly SOP Station 3(1/1) Operation name : Ver. : Date Disassembly Speaker 0.10 2016/6/29 Step： 1. Disassembly speaker connector and Audio /B FFC from ODD/B (Fig.1) 2. Loosen Speaker screw (6052B0362401)*2(Fig.2) ...
  • Page 28 Standard Operation Procedure Document No. : Slice Audio FA Disassembly SOP Station 4(1/1) Disassembly Mic. -1 & Mic. -2 cable Operation name : Ver. : Date 0.10 2016/6/29 Step： 1. Disassembly Mic.-1 cable connector from audio/B , and disassembly it from the frame .
  • Page 29 Standard Operation Procedure Document No. : Slice Audio FA Disassembly SOP Station 5(1/1) Operation name : Ver. : Date disassembly Rubber 0.10 2016/6/29 Step： 1. Disassembly rubber from Mic.-1 cable . (Fig.1) 2. Disassembly rubber from Mic.-2 cable . (Fig.2) 3.
  • Page 30 Standard Operation Procedure Document No. : Slice Audio FA Disassembly SOP Station 6(1/1) Disassembly iron parts & Audio/B Operation name : Ver. : Date 0.10 2016/6/29 Step： 1. Loosen screw *2 , and take the iron parts in the box . (Fig.1) 2.
