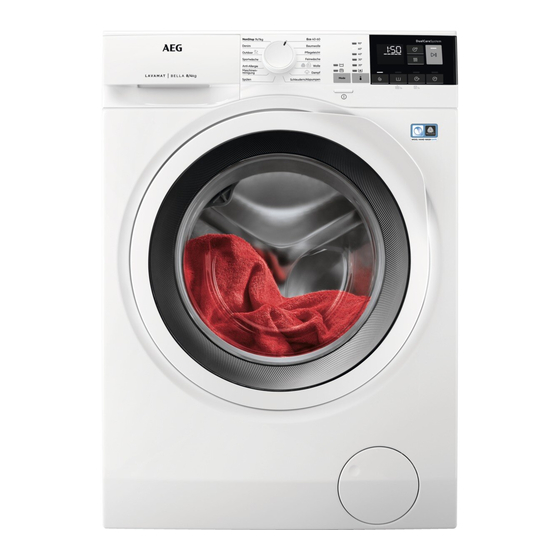

AEG LB4650WT User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

LB4650WT
USER
MANUAL
EN
User Manual
Washer Dryer

Advertisement

Table of Contents
loading

Related Manuals for AEG LB4650WT

Summary of Contents for AEG LB4650WT

  • Page 1 LB4650WT User Manual Washer Dryer USER MANUAL...

  • Page 2: Table Of Contents

    20. GUARANTEE ......................43 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

  • Page 3: Safety Information

    ENGLISH Subject to change without notice. SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.
  • Page 4 1.2 General Safety Do not change the specification of this appliance. • This appliance is intended to be used in household • and similar applications such as: staff kitchen areas in shops, offices and other – working environments; by clients in hotels, motels, bed & breakfast and –...
  • Page 5 ENGLISH Do not exceed the maximum load of 8 kg (refer to the • "Programme chart" chapter). The appliance must be connected to the water mains • using the new supplied hose sets, or other new hose sets supplied by the Authorised Service Centre. Old hose sets must not be reused.

  • Page 6: Safety Instructions

    Do not use high pressure water sprays and/or steam • to clean the appliance. Clean the appliance with a moist cloth. Use only • neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects. Before any maintenance operation, deactivate the •...

  • Page 7: Installation

    ENGLISH 2.4 Use WARNING! Risk of injury or damage to WARNING! the appliance. Risk of injury, electric shock, fire, burns or damage to the • Do not sit or stand on the open door. appliance. • Do not dry dripping wet clothes in the appliance.
  • Page 8 It is possible to see water flowing from the drain hose. This is because the washing machine has been tested at the factory. 7. Remove the three transit bolts and pull out the plastic spacers. 4. Put the front polystyrene packaging element on the floor under the appliance.
  • Page 9 ENGLISH WARNING! You can extend the drain Do not put cardboard, wood hose to maximum 400 cm. or equivalent materials Contact the authorised below the appliance feet to service centre for the other adjust the level. drain hose and the extension.
  • Page 10 Make sure that the drain hose makes a loop to prevent particles going into the appliance from the sink. ø16 4. To a stand pipe with vent hole - Insert W011 the drain hose directly into a drain pipe.

  • Page 11: Product Description

    ENGLISH 4. PRODUCT DESCRIPTION 4.1 Appliance overview 11 12 Worktop Drain hose Detergent dispenser Inlet hose connection Control panel Mains cable Door handle Transit bolts Rating plate Hose support Drain pump filter Feet for levelling the appliance...

  • Page 12: Control Panel

    5. CONTROL PANEL 5.1 Control panel description Baumwolle Baumwolle Eco Pflegeleicht Feinwäsche Spülen The permanent options are Prewash touch button set by holding pressed the relative button for at least 3 permanent Extra Rinse option seconds. Spin touch button...
  • Page 13 ENGLISH Door locked indicator. The digital indicator can show: • Programme duration (e. g. , washing and/or drying phase). • Delay time (e. g. • Cycle end ( • Warning code (e.g. • Error indicator ( Time Manager indicator. Extra Rinse indicator. The spin area: Spin speed indicator No Spin indicator.

  • Page 14: Dial And Buttons

    6. DIAL AND BUTTONS 6.1 Introduction 6.5 Spin When you set a programme, the The options/functions are not available with all appliance automatically sets the washing programmes. Check maximum spin speed allowed, except for the compatibility between programme Denim. With this option you can decrease the default spin speed.
  • Page 15 ENGLISH containing sand, dust, mud and other solid particles. indicator The options can increase the programme duration. 6.7 Permanent Extra Rinse With this option you can permanently ■ ■ ■ have an extra rinse when you set a new programme. ■...

  • Page 16: Programmes

    Each time you touch this button the time 6.12 Delay Start value increases by 5 minutes. With this option you can delay the start You cannot set all time of a programme to a more convenient values for different types of time.
  • Page 17 ENGLISH Programme Reference Maxi- Programme description Default tempera- spin (Type of load and soil level) ture speed load Temperature Spin range speed range 1200 rpm 3 kg Delicate fabrics such as acrylics, viscose and (1200- 400 mixed fabrics requiring gentler washing. Delicates rpm) Normal soil.
  • Page 18 Programme Reference Maxi- Programme description Default tempera- spin (Type of load and soil level) ture speed load Temperature Spin range speed range 1200 rpm Maintenance cycle with hot water to clean and (1200 - 400 freshen the drum and to remove residue that...
  • Page 19 ENGLISH Programme Reference Maxi- Programme description Default tempera- spin (Type of load and soil level) ture speed load Temperature Spin range speed range 1200 rpm 2 kg Do not use fabric softener and (1200- 400 Outdoor make sure that there is no soft- rpm) ener residue in the detergent 30 °C...
  • Page 20 Programme options compatibility Programme ■ ■ ■ ■ ■ ■ ■ Cottons ■ ■ ■ ■ ■ ■ ■ Cottons Eco ■ ■ ■ ■ ■ ■ ■ Synthetics ■ ■ ■ ■ ■ ■ Delicates ■ ■ ■...
  • Page 21 ENGLISH 7.2 Woolmark Apparel Care - washed according to the instructions on the garment label and those Blue issued by the manufacturer of this washing machine. M1664 • The wool drying cycle of this machine has been tested and approved by The Woolmark Company.
  • Page 22 Dryness Level Type of fabric Load Cottons and Linen up to 4 kg (sheets, tablecloths, shirts, Iron Dry etc) Suitable for ironing 1) Selectable in Cottons Eco and Anti-allergy (if available) programme also. 2) Hints for test institute The test performance, in accordance with EN 50229, must be carried out with a FIRST drying load of the maximum declared drying capacity (load composition according to EN61121) by setting the AUTOMATIC CUPBOARD DRY for Cottons Eco programme.

  • Page 23: Settings

    ENGLISH Dryness Level Type of fabric Load Spin Suggested (kg) speed duration (rpm) (mins) Iron Dry Cottons and Linen 1600 100 - 120 Suitable for (sheets, tablecloths, shirts, etc) 1600 60 - 80 ironing 1600 40 - 50 8. SETTINGS 8.1 Acoustic signals To activate/deactivate the acoustic signals when the programme is...
  • Page 24 2. Empty the pockets and unfold the items before you put them in the appliance. - Compartment for washing phase. 3. Put the laundry in the drum, one item at a time. - Compartment for fabric softener and Do not put too much laundry in the other liquid treatments(fabric conditioner, drum.
  • Page 25 ENGLISH 3. If desired, set one or more options by touching the related buttons. The related indicators illuminate on the display and the given information changes accordingly. If a selection is not possible an acoustic signal sounds and the display shows 10.6 Starting a programme With the flap in the position DOWN: Touch the Start/Pause...
  • Page 26 3. Touch the Start/Pause button guarantee the best washing results. again to start the programme immediately. About 20 minutes after the programme start, the Changing the delay start after programme duration could...
  • Page 27 ENGLISH If the ProSense System has The indicator of the Start/Pause completed and the water button goes off. filling has already started, The door unlocks and the indicator the new programme starts without repeating the goes off. ProSense System. The 1.

  • Page 28: Daily Use - Washing & Drying

    3. When the programme is completed Press the On/Off button to and the door locked indicator activate the appliance again. goes off, you can open the door. The display shows the end of the last programme. 4. Press the On/Off...

  • Page 29: Daily Use - Drying Only

    ENGLISH 11.2 Washing and Drying - Each time you tap on this button the time value increases by 5 minutes. The Automatic levels display shows the set new time value. 2. Touch the Start/Pause button to 1. Tap on the Auto Dry button start the programme.

  • Page 30: Fluff In The Fabrics

    "Programmes" chapter). The of the Mode - Wash button is on. drying level indicator goes off and 4. Tap on the Mode button twice to the indicator comes on. perform drying only. The indicator of...

  • Page 31: Hints And Tips

    ENGLISH • To clean the drain filter. • Touch the Start/Pause button to • After the drying phase, clean the start the programme. empty drum, the gasket and the door with a wet cloth. If the appliance is frequently used, carry out the cleaning To remove the fluff inside the drum, programme regularly.
  • Page 32 14.6 Prepare the drying cycle – powder detergents for all types of fabric, excluding delicate. Prefer • Open the water tap. powder detergents containing • Check if the drain hose is connected bleach for whites and laundry properly. Refer to installation chapter sanitization for more information.

  • Page 33: Care And Cleaning

    ENGLISH To avoid the static charge at the end of WARNING! the drying cycle: To avoid creasing and 1. Use fabric conditioner in the washing shrinkage do not overdry cycle. the laundry. 2. Use special fabric conditioner for tumble dryers. 14.11 General Tips When the drying programme is Refer to the «Drying programmes»...
  • Page 34 15.5 Cleaning the drum Regularly examine the drum to prevent unwanted deposits.
  • Page 35 ENGLISH 2. Place a suitable bowl below the drain pump access to collect the water that 15.7 Cleaning the drain pump flows out. 3. Open the chute downwards. Always WARNING! keep a rag nearby to dry up any Disconnect the mains plug water spillages when removing the from the mains socket.
  • Page 36 6. Repeat the steps 4 and 5 until the 11. Put the filter back into the special water stops to flow out. guides by turning it clockwise. Make 7. Turn the filter anti-clockwise to sure that you tighten the filter remove it.

  • Page 37: Troubleshooting

    ENGLISH 15.8 Cleaning the inlet hose and the valve filter 45° 20° 15.9 Emergency drain remaining water from the inlet hose and the drain pump. If the appliance cannot drain the water, 1. Disconnect the mains plug from the carry out the same procedure, described mains socket.
  • Page 38 16.1 Introduction The appliance does not start or it stops during operation. First try to find a solution to the problem (refer to the table). If the problem persists, contact the Authorised Service Centre. WARNING! Deactivate the appliance before carrying out any check.
  • Page 39 ENGLISH 16.2 Possible failures Problem Possible solution • Make sure that the mains plug is connected to the mains socket. • Make sure that the appliance door is closed. • Make sure that there is no damaged fuse in the fuse box. The programme does •...
  • Page 40 Problem Possible solution • Make sure that a washing programme that ends with water in tub, has been selected. • Make sure that the washing programme is finished. • Set the drain or the spin programme if there is water in the You cannot open the ap- drum.

  • Page 41: Consumption Values

    ENGLISH After the check, activate the appliance. The programme continues from the point of interruption. If the problem occurs again, contact the Authorised Service Centre. If the display shows other alarm codes, deactivate and activate the appliance. If the problem continues, contact the Authorised Service Centre. 16.3 Emergency door opening To open the door, proceed as follows: In case of power failure or functioning...

  • Page 42: Technical Data

    During the washing programme, the ProSense technology can vary the wash duration and the consumption values. For further details see 'The ProSense load detection' paragraph in 'Daily Use' chapter. Programmes Load Energy Water con- Approximate pro- (kg) consump- sumption (li-...

  • Page 43: Accessories

    ENGLISH 19. ACCESSORIES 19.1 Available in www.electrolux.com/shop or from authorised dealer Only appropriate accessories approved by AEG ensure the safety standards of the appliance. If unapproved parts are used, any claims will be invalidated. 19.2 Fixing plate kit Read carefully the instructions supplied with the accessory.
  • Page 44 For Switzerland: electronic appliances. Do not dispose of Where should you take your appliances marked with the symbol old equipment? with the household waste. Return the Anywhere that sells new product to your local recycling facility or equipment or hand it in to contact your municipal office.
  • Page 45 ENGLISH...
  • Page 46 www.aeg.com...
  • Page 47 ENGLISH...
  • Page 48 www.aeg.com/shop...
