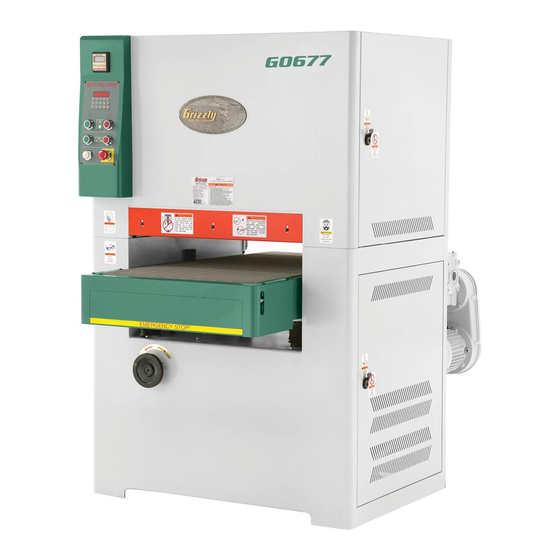

MODEL G0677
24" PLANER/SANDER
OWNER'S MANUAL
COPYRIGHT © NOVEMBER, 2008 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#BLTS 11320 PRINTED IN TAIWAN
