1. Introduction

1.1 Overview of Fieldbus I/O

The Fieldbus I/O option is an integrated I/O system that supports the following Fieldbuses
of the Robot system:
DeviceNet
PROFIBUS DP
EtherNet/IP
CC-Link
PROFINET
EtherCAT
Fieldbus is a standard of signal communications between field devices operating in a
factory (sensor, actuator, robot controller, etc.) and controller (PLC or robot controller)
using serial communications. Compared to signal communications using analog signals,
Fieldbus has the following features:
Access to signals from multiple devices and multiple data from each device using one
cable.
Precise signal transmission since there is no need for A/D conversion and D/A conversion.
Less wiring costs, including signal relay board costs and installation area due to several
dozen (or a hundred) devices connected on one Fieldbus.
More flexible modification and expansion of a system because multiple devices are simply
added to one Fieldbus without additional wiring.
Slave devices can transmit self-diagnostics information.
The Fieldbus master function can be added to the PC with the EPSON RC+ 7.0 installed
by installing the Fieldbus master board. Each type of Fieldbus supports the following
boards.
You can install one Fieldbus master board per PC. To use the Fieldbus master I/O, the
Fieldbus master option of the EPSON RC+ software options key must be enabled.
RC700 / RC90 Option Fieldbus I/O Rev.12
Master Devices
RS-232c
RS-232c

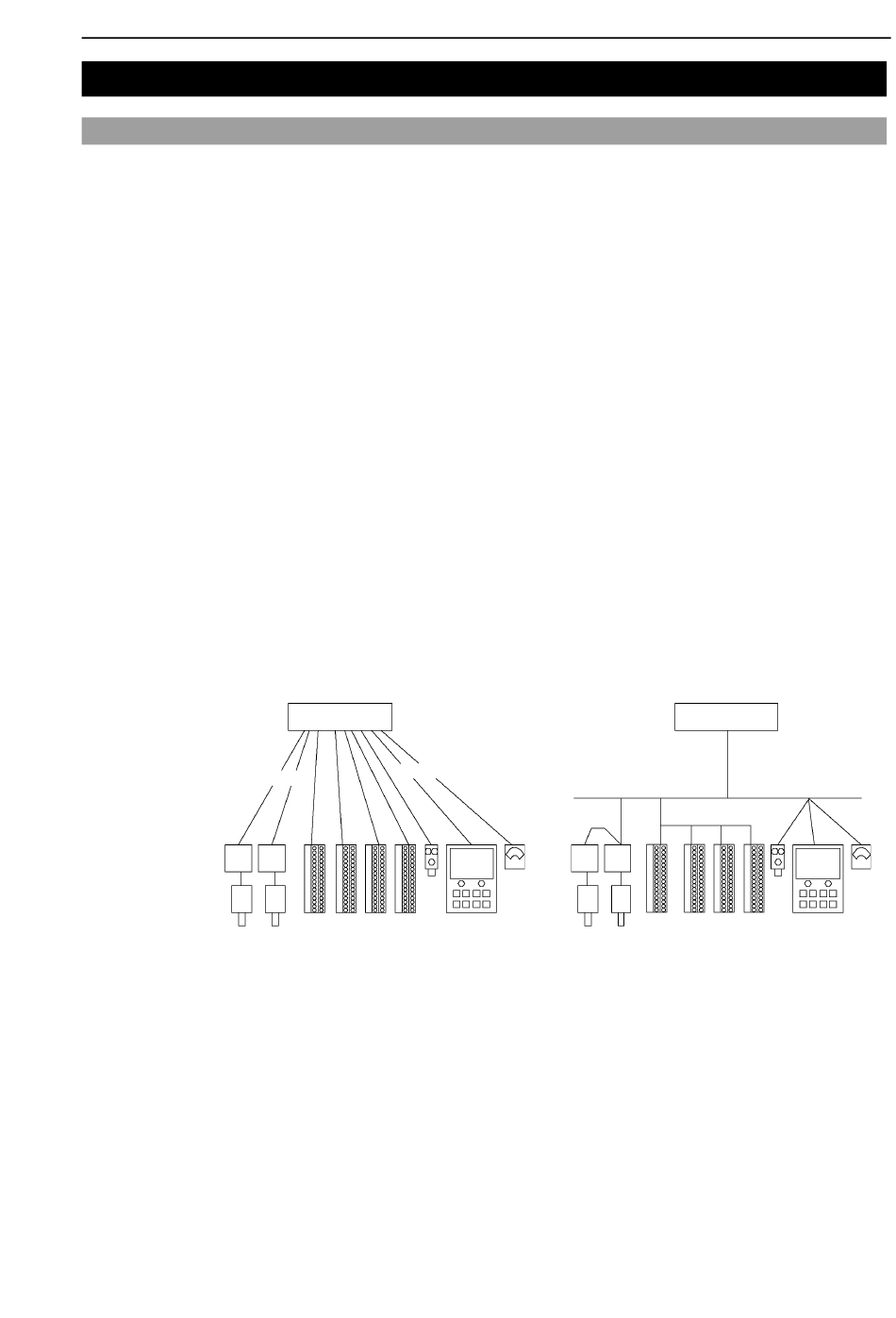

Sample Parallel Connection
DeviceNet master board
PROFIBUS-DP master board
EtherNet/IP master board
1. Introduction
Master Devices
Fieldbus
Sample Fieldbus Connection
