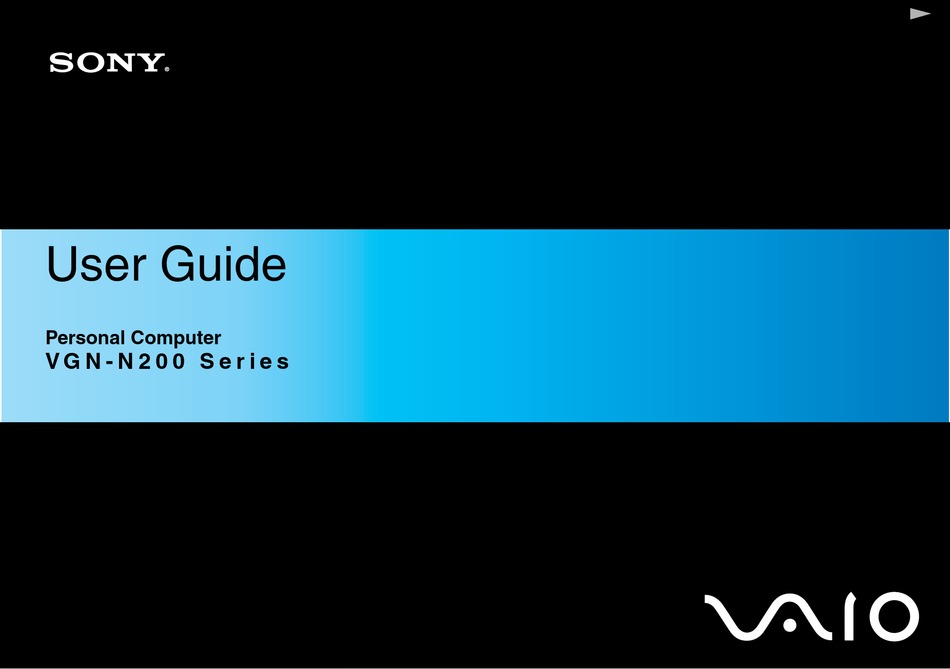

Page 1: User Guide
User Guide Personal Computer V G N - N 2 0 0 S e r i e s...
Page 2: Table Of Contents
Contents Before Use ...6 Documentation ...6 Ergonomic Considerations ...8 Getting Started ...10 Locating Controls and Ports...11 About the Indicator Lights ...16 Connecting a Power Source ...17 Using the Battery Pack ...19 Shutting Down Your Computer Safely ...24 Using Your VAIO Computer ...25 Using the Keyboard ...26 Using the Touch Pad ...28 Using the Optical Disc Drive ...29...
Page 3 Using Peripheral Devices...58 Connecting External Speakers ...59 Connecting an External Display ...60 Selecting Display Modes...63 Using the Multiple Monitors Function ...64 Connecting an External Microphone ...66 Connecting a Universal Serial Bus (USB) Device...67 Connecting a Printer ...70 Connecting an i.LINK Device ...71 Connecting to a Network (LAN) ...73 Customizing Your VAIO Computer ...74 Setting the Password ...75...
Page 4 Precautions ...92 On Handling the LCD Screen ...93 On Using the Power Source ...94 On Handling Your Computer...95 On Handling Floppy Disks ...97 On Handling Discs ...98 On Using the Battery Pack...99 On Using Headphones...100 On Handling Memory Stick Media...101 On Handling the Hard Disk ...102 Troubleshooting ...103 Computer ...104...
Page 5 Floppy Disks ...132 Audio/Video...133 Memory Stick Media ...134 Peripherals ...135 Support Options ...136 Sony Support Information ...136 Program Support Information...140...
Page 6: Before Use
Your documentation includes printed information and user guides to read on your VAIO computer. Printed Documentation Welcome mat — Contains an overview of connections, setting up information, etc. Safety Information — Contains safety guidelines and owner information. ® computer, and welcome to the on-screen User Guide. Sony has Before Use...
Page 7 Specifications — The online Specifications describe the hardware and software configuration of your VAIO computer. To view the online Specifications: Connect to the Internet. Go to the Sony online support Web site at: http://esupport.sony.com/EN/VAIO/ http://www.sony.ca/support for customers in Canada, http://esupport.sony.com/ES/VAIO/...
Page 8: Ergonomic Considerations
Ergonomic Considerations You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations to both stationary and portable environments: Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your wrists in a neutral, comfortable position (3) while using the keyboard, touch pad, or external mouse.
Page 9 Before Use Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness setting of the display as well.
Page 10: Getting Started
Getting Started This section describes how to get started with using your VAIO computer. Before starting your computer for the first time, do not connect any new hardware that did not originally come with your computer. Make sure to start up your computer with only the supplied accessories connected and set up your system.
Page 11: Locating Controls And Ports
Locating Controls and Ports Take a moment to identify the controls and ports shown on the following pages. Front Num lock indicator (page 16) Caps lock indicator (page 16) Scroll lock indicator (page 16) Power button LCD screen (page 93) Keyboard (page 26) Touch pad...
Page 12 Back Network (Ethernet) port (page 73) Modem port (page 51) Battery connector (page 19) DC IN port (page 17) Getting Started...
Page 13 Right WIRELESS switch (page 52) Headphones jack (page 59) Microphone jack (page 66) Hi-Speed USB (USB 2.0) ports (page 67) ™ ExpressCard /34 slot (page 39) Air vents Monitor (VGA) port (page 60) i.LINK (IEEE 1394) S400 port (page 71) Supports high-/full-/low- speeds.
Page 14 Left Security slot Optical disc drive (page 29) Optical disc drive indicator (page 16) Drive eject button (page 29) Manual eject hole (page 119) Getting Started...
Page 15 Bottom Air vents Memory module compartment cover (page 88) Built-in speakers (stereo) Getting Started...
Page 16: About The Indicator Lights
About the Indicator Lights Your computer is equipped with the following indicator lights. Indicator Functions Power 1 Illuminates when the power of the computer is on, blinks when the computer is in Sleep mode, and turns off when the computer is in Hibernate mode or off. Battery e Illuminates when the computer is using battery power, blinks when the battery pack is running out of power, and double-blinks when the battery pack is charging.
Page 17: Connecting A Power Source
Connecting a Power Source You can use either an AC adapter or a rechargeable battery pack as a power source for your computer. Using the AC Adapter Use your computer only with the supplied AC adapter. The supplied AC adapter has an attachment on its plug to avoid accidental disconnection. To use the AC adapter Plug one end of the power cord (1) into the AC adapter (3).
Page 18 Getting Started To disconnect your computer completely from AC power, unplug the AC adapter. Make sure that the AC outlet is easily accessible. If you do not use your computer for a long period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page 82).
Page 19: Using The Battery Pack
Using the Battery Pack The battery pack supplied with your computer is not fully charged at the time of purchase. Installing the Battery Pack To install the battery pack Turn off the computer and close the LCD screen lid. Slide the battery lock switch (1) to the UNLOCK position. Slide the battery pack into the battery compartment until it clicks into place.
Page 20 Slide the battery lock switch (1) to the LOCK position to secure the battery pack on the computer. When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet. This computer is designed to operate only with genuine Sony batteries.
Page 21: Charging The Battery Pack
Charging the Battery Pack The battery pack supplied with your computer is not fully charged at the time of purchase. To charge the battery pack Install the battery pack. Connect the AC adapter to the computer. The computer automatically charges the battery pack (the battery indicator light flashes in a double blink pattern as the battery pack charges).
Page 22 Getting Started When the battery pack is running out of power, both the battery and power indicator lights blink. Keep the battery pack in your computer while it is directly connected to AC power. The battery pack continues to charge while you are using the computer.
Page 23: Removing The Battery Pack
Removing the Battery Pack You may lose data if you remove the battery pack while your computer is on and not connected to the AC adapter or if you remove the battery pack while the computer is in Sleep mode. To remove the battery pack Turn off the computer and close the LCD screen lid.
Page 24: Shutting Down Your Computer Safely
Shutting Down Your Computer Safely To avoid losing unsaved data, be sure to shut down your computer properly, as described below. To shut down your computer Turn off any peripherals connected to the computer. Click Start, the arrow next to the Lock button, and Shut Down. Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off automatically.
Page 25: Using Your Vaio Computer
Using Your VAIO Computer This section describes how to get the most out of using your VAIO computer. Using the Keyboard (page 26) Using the Touch Pad (page 28) Using the Optical Disc Drive (page 29) Using the ExpressCard Module Using the Memory Stick Media Using Other Memory Cards (page 48)
Page 26: Using The Keyboard
Using the Keyboard Your keyboard is very similar to a desktop computer keyboard, but has additional keys that perform model-specific tasks. Combinations and Functions with the Fn Key Some functions are not available before Windows is launched. Combinations/Feature Fn + % (F2): speaker switch Fn + 2 (F3/F4): speaker volume Fn + 8 (F5/F6): brightness control Fn +...
Page 27 Combinations/Feature Fn + (F12): Hibernate Functions Provides for the lowest level of power consumption. When you execute this command, the states of the system and the peripheral devices are written to the hard disk and the system power is turned off. To return the system to its original state, use the power button to turn on the power.
Page 28: Using The Touch Pad
Using the Touch Pad You can point to, select, drag, and scroll objects on the screen using the touch pad. Action Description Point Slide one finger on the touch pad (1) to place the pointer (2) on an item or object. Click Press the left button (3) once.
Page 29: Using The Optical Disc Drive
Using the Optical Disc Drive Your computer is equipped with an optical disc drive. To insert a disc Turn on the computer. Press the drive eject button (1) to open the drive. The tray slides out. Place a disc in the middle of the tray with the label side facing upward and gently push it until the disc clicks into place. Using Your VAIO Computer...
Page 30 Using Your VAIO Computer Close the tray by pushing it in gently. Do not remove the optical disc when your computer is in a power saving mode (Sleep or Hibernate). Doing so may cause the computer to malfunction. If you plan to use an external optical disc drive, connect the drive before you launch any preinstalled CD/DVD program.
Page 31: Reading And Writing Optical Discs
Reading and Writing Optical Discs Your computer plays and records CDs and DVDs, depending on the model you purchased. Check your specifications for the type of optical disc drive installed on your model. Use the table below to see which types of media your optical disc drive supports.
Page 32 Due to the multiple formats of discs now available, when buying pre-recorded or blank discs for use with a VAIO computer, be sure to read the notices on the disc packaging carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee the compatibility of VAIO CD drives with discs that are not compliant with the official "CD"...
Page 33 Using Your VAIO Computer To play copyright protected Blu-ray Discs continually, you need to update the AACS key. Note that the AACS key update requires Internet access. As with other optical media devices, circumstances may limit compatibility or prevent Blu-ray Disc playback. VAIO computers may not support movie playback on packaged media recorded in AVC or VC1 formats at high bit rates.
Page 34 Using Your VAIO Computer Notes on writing data to a disc Use only Sony Value-added software when writing to CD/DVD media. (e.g. Click to DVD) Other software programs may not be fully compatible and errors may result. To make data on a disc readable on the optical disc drive, you need to close the session before you eject it. To complete this process, follow the instructions included with your software.
Page 35 Notes on playing discs To achieve optimum performance when playing DVDs, you should follow these recommendations. Close all open applications before playing a DVD movie. Some CD players and computer's optical disc drives may not be able to play audio CDs created with the CD-R or CD-RW disc media.
Page 36 Using Your VAIO Computer When you are playing a DVD (video or audio) and you want to remove a USB device, such as USB-compatible speakers, make sure you stop the DVD first. Removing a USB-compatible device during DVD (video or audio) playback may cause a malfunction.
Page 37: Playing Cds
Playing CDs To play an audio CD Insert a disc into the optical disc drive. If nothing appears on the desktop, then click Start, All Programs, and the desired CD software to play the CD. If the Audio CD window appears, click to select an option. Copying Files to CDs To copy files to a disc Do not strike or shake your computer while writing data to a disc.
Page 38: Playing Dvds
Playing DVDs To play a DVD Close all running software applications. Insert a DVD into the optical disc drive. If nothing appears on the desktop, then click Start, All Programs, and the desired DVD software to play the DVD. For instructions on how to use the software, see the help file on your DVD software. Copying Files to DVDs To copy files to a disc Connect the AC adapter to the computer.
Page 39: Using The Expresscard Module
Using the ExpressCard Module Your computer is equipped with either a Universal ExpressCard slot digital cameras, camcorders, music players, and other audio/video devices. The former can accommodate either an ™ ExpressCard /34 (34 mm wide) or ExpressCard ™ ExpressCard /34 module only.
Page 40: Inserting An Expresscard Module
Inserting an ExpressCard Module Use care when inserting or removing the ExpressCard module from the slot. Do not force it in or out of the slot. You do not need to shut down your computer before inserting or removing the ExpressCard module. To insert an ExpressCard module Carefully slide the ExpressCard module (1) into the slot until it clicks into place.
Page 41: Removing An Expresscard Module
Removing an ExpressCard Module Follow the steps below to remove the ExpressCard module while your computer is on. If it is not removed properly, your system may not work properly. To remove an ExpressCard module To remove an ExpressCard module when your computer is off, skip steps 1 to 7. Double-click the Safely Remove Hardware icon on the taskbar.
Page 42: Using The Memory Stick Media
For the latest information about the Memory Stick media, visit the Memory Stick Web site at http://www.memorystick.com/en/. Your computer has been tested and found compatible with the Sony branded Memory Stick media with capacity of up to 4 GB that are available as of September 2006.
Page 43: Inserting A Memory Stick Media
Inserting a Memory Stick Media To insert a Memory Stick media Locate the Memory Stick PRO/Duo media slot. Hold the Memory Stick media with the arrow facing upward and pointing toward the Memory Stick PRO/Duo media slot. Carefully slide the Memory Stick media into the slot until it clicks into place. The Memory Stick media is automatically detected by your system and appears in your Computer window as a local drive, under the appropriate letter (depending on the configuration of the computer).
Page 44 Be sure to hold the Memory Stick media with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging your computer or the Memory Stick media, do not force the Memory Stick media into the slot if you cannot insert it smoothly. Do not insert more than one Memory Stick media into the slot.
Page 45 To format a Memory Stick media The Memory Stick media has been formatted in the factory default setting and is ready for use. If you want to reformat the media with your computer, follow these steps. Be sure to use the device that is designed to format the media and supports the Memory Stick media when formatting the media. Formatting the Memory Stick media erases the entire data on the media.
Page 46 At the confirmation prompt, click OK. The formatting process starts. It may take time to format the Memory Stick media depending on the media. Once completed, click OK. Click Close. Using Your VAIO Computer...
Page 47: Removing A Memory Stick Media
Removing a Memory Stick Media To remove a Memory Stick media Check that the Media Access indicator light is off. Push the Memory Stick media in toward the computer. The Memory Stick media ejects. Pull the Memory Stick media out of the slot. Always remove the Memory Stick media gently, or it may pop out unexpectedly.
Page 48: Using Other Memory Cards
MultiMediaCard (MMC) Secure Digital (SD) For the latest information on compatible memory cards, visit the Sony online support Web site regularly. Always insert the correct memory card into the SD memory card slot. SD memory cards with capacity of over 2 GB, such as SD High Capacity (SDHC) memory cards, are not supported.
Page 49: Inserting A Memory Card
Inserting a Memory Card To insert a memory card Locate the SD memory card slot on the front of the computer. Hold the memory card with the arrow facing upward and pointing toward the memory card slot. Carefully slide the memory card into the slot until it clicks into place. Do not force the card into the slot.
Page 50: Removing A Memory Card
Removing a Memory Card Do not remove a memory card while the To remove a memory card Check that the Media Access indicator light is off. Press the extended part of the memory card, causing it to extend out from the slot. When the card extends, carefully pull it out of the slot.
Page 51: Using The Internet
Using the Internet Setting Up a Dial-up Internet Connection Before you can connect to the Internet, you need to connect your computer to a telephone line with a telephone cable (not supplied). Once you have set up your telephone cable connection, you're ready to connect to the Internet. To connect a telephone cable Plug one end of the phone cable (1) into the modem port Plug the other end into the wall jack (2).
Page 52: Using Wireless Lan (Wlan)
(radio) connection. So there is no need anymore to pull cables or wires through walls and ceilings. The Sony WLAN supports all normal Ethernet activities, but with the added benefits of mobility and roaming. You can still access information, Internet/intranet and network resources, even in the middle of a meeting, or as you move from one place to another.
Page 53 Using Your VAIO Computer Wireless LAN devices using the IEEE 802.11a standard and the ones using the IEEE 802.11b or g standard cannot communicate because the frequencies are different. IEEE 802.11b: The standard speed is 11 Mbps, or about 30 to 100 times faster than a standard dial up. IEEE 802.11a/g: The standard speed is 54 Mbps, or about 5 times faster than a wireless LAN device using the IEEE 802.11b standard.
Page 54: Communicating Without An Access Point (Ad-Hoc)
Communicating without an Access Point (Ad-hoc) An ad-hoc network is a network in which a local network is created only by the wireless devices themselves, with no other central controller or access point. Each device communicates directly with other devices in the network. You can set up an ad-hoc network easily at home.
Page 55 To communicate without an access point (ad-hoc) You cannot select the 5 GHz bandwidth, which is used for the IEEE 802.11a standard, on ad-hoc networks. Turn on the WIRELESS or WIRELESS LAN switch. The Wireless LAN indicator lights up. On models that support the Bluetooth functionality the taskbar to display the Wireless Device Switch window.
Page 56: Communicating With An Access Point (Infrastructure)
An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an access point (not supplied), for example the Sony Access Point. The access point bridges the wireless and wired LAN and acts as a central controller for the wireless LAN.
Page 57 To connect to a wireless network Make sure an access point is set up. See the manual that came with your access point for more information. Turn on the WIRELESS or WIRELESS LAN switch. The Wireless LAN indicator lights up. On models that support the Bluetooth functionality the taskbar to display the Wireless Device Switch window.
Page 58: Using Peripheral Devices
Using Peripheral Devices You can add functionality to your VAIO computer by using the various ports on the computer. Connecting External Speakers Connecting an External Display Selecting Display Modes (page 63) Using the Multiple Monitors Function Connecting an External Microphone Connecting a Universal Serial Bus (USB) Device Connecting a Printer (page 70)
Page 59: Connecting External Speakers
Connecting External Speakers You can enhance the sound quality of your computer by connecting external speakers. To connect external speakers Plug the speaker cable (1) into the headphones jack (2) i. Plug the other end of the speaker cable to the external speaker (3). Turn down the volume of the speakers before you turn them on.
Page 60: Connecting An External Display
Connecting an External Display You can connect an external display (not supplied) to your computer. For example, you can use the computer with a computer display or a projector. Connect the power cord after connecting all other cables. Connected external displays are used as secondary screens. On Windows systems only, you can also use an external display to set up multiple monitors.
Page 61: Connecting A Multimedia Computer Display
Connecting a Multimedia Computer Display You can connect a multimedia computer display that includes built-in speakers and a microphone directly to your computer. To connect a multimedia computer display Plug the power cord of your multimedia computer display (1) into an AC outlet. Plug the display cable (2) (not supplied) into the monitor (VGA) port (3) a on the computer.
Page 62: Connecting A Projector
Connecting a Projector You can connect a projector (for example, the Sony LCD projector) directly to your computer. To connect a projector Connect the power cord (1) of your projector into an AC outlet. Plug an RGB signal cable (2) (not supplied) into the monitor (VGA) port (3) a on the computer.
Page 63: Selecting Display Modes
Selecting Display Modes You can select which display to be used as the primary monitor when an external display (desktop monitor, etc.) is connected to your computer. If you want to work on your computer screen and the external display at the same time, see Using the Multiple Monitors Function (page 64) for more information.
Page 64: Using The Multiple Monitors Function
Using the Multiple Monitors Function The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you have an external display attached to the monitor (VGA) port, your computer screen and the external display can function as a single desktop.
Page 65 To select the Multiple Monitors mode Right-click on the desktop and select Personalize from the shortcut menu. Click Display Settings. The Display Settings window appears. Follow the on-screen instructions to change the settings. Additionally, you can set the display colors and resolution for each display and customize the Multiple Monitors mode. Using Peripheral Devices...
Page 66: Connecting An External Microphone
Using Peripheral Devices Connecting an External Microphone If you need to use a sound input device (for example, to chat over the Internet) you need to plug in an external microphone (not supplied). To connect an external microphone Plug the microphone cable (1) into the microphone jack (2) m. Make sure your microphone is designed for computer use.
Page 67: Connecting A Universal Serial Bus (Usb) Device
Connecting a Universal Serial Bus (USB) Device To prevent your computer and/or USB devices from damage, observe the following: When moving the computer with USB devices connected, avoid any shock or force to the USB ports. Do not put the computer into a bag or carrying case when it has USB devices connected. Connecting a USB Mouse To connect a USB mouse Choose the USB port (1)
Page 68: Connecting A Usb Floppy Disk Drive
Connecting a USB Floppy Disk Drive You can purchase a USB floppy disk drive and connect it to your computer. To connect a USB floppy disk drive Choose the USB port (1) you prefer to use. Plug the USB floppy disk drive cable (2) into the USB port. Your USB floppy disk drive (3) is now ready for use.
Page 69: Disconnecting A Usb Floppy Disk Drive
Disconnecting a USB floppy disk drive You can disconnect a USB floppy disk drive when your computer is on or off. Disconnecting the drive when the computer is in a power saving mode (Sleep or Hibernate) may cause the computer to malfunction. If the computer is off, you can unplug the USB cable directly from the computer.
Page 70: Connecting A Printer
Connecting a Printer You can connect a Windows-compatible printer to your computer to print documents. Connecting a Printer Using the USB Port You can connect a USB printer compatible with your version of Windows to the computer. To connect a printer using the USB port Plug the power cord (1) of your printer into an AC outlet.
Page 71: Connecting An I.link Device
Connecting an i.LINK Device Notes on connecting i.LINK devices Your computer is equipped with an i.LINK port, which you can use to connect to an i.LINK device such as a digital video camcorder or to connect two VAIO computers in order to copy, delete or edit files. The i.LINK port on your computer does not supply power to external devices generally powered by i.LINK ports.
Page 72: Connecting A Digital Video Camcorder
On Sony digital video cameras, ports labeled DV Out, DV In/Out, or i.LINK are i.LINK-compatible. The Sony digital video camcorder shown here is an example; your digital video camcorder may need to be connected differently. You cannot access the pictures stored on a Memory Stick media when using an i.LINK connection.
Page 73: Connecting To A Network (Lan)
Connecting to a Network (LAN) You can connect your computer to 100BASE-TX/10BASE-T-type networks with an Ethernet network cable. Connect one end of a network cable (not supplied) to the network (Ethernet) port on the computer and the other end to your network. For detailed settings and devices needed to connect to the network, ask your network administrator.
Page 74: Customizing Your Vaio Computer
Customizing Your VAIO Computer This section briefly describes how to change the main settings of your VAIO computer. Among other things, you will learn how to use and customize the look of your Sony software and utilities, etc. Setting the Password...
Page 75: Setting The Password
Setting the Password Use one of the BIOS functions to set the password. Once you have set the password, you will have to enter the password after the VAIO logo appears to start your computer. The power-on password will allow you to protect the computer from unauthorized access. Adding the Power-on Password The power-on password is provided to protect your computer from unauthorized access.
Page 76 To add the power-on password Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears. Press the <...
Page 77: Changing/Removing The Power-On Password
Changing/Removing the Power-on Password To change or remove the power-on password Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.
Page 78: Setting Up Your Computer With Vaio Central
Setting Up Your Computer with VAIO Central The VAIO Central utility allows you to consult system information and specify preferences for system behavior. To use VAIO Central Click Start, All Programs, and VAIO Central. The VAIO Central window appears. Click the System Information tab. Select the desired control item and change the settings.
Page 79: Using The Power Saving Modes
Using the Power Saving Modes When you use a battery pack as the power source for your computer, you can take advantage of power management settings to conserve battery life. In addition to the normal operating mode, which allows you to turn off specific devices, your computer has two distinct power saving modes: Sleep and Hibernate.
Page 80: Using Sleep Mode
Using Sleep Mode Sleep mode turns off the LCD screen and places the hard disk and the CPU into a low power consumption mode. The umber power light flashes in this mode. To activate Sleep mode Click Start, the arrow next to the Lock button, and Sleep. To return to Normal mode Press any key.
Page 81 If the computer is not used for 25 minutes, it will enter Sleep mode. To avoid this, you can change the Sleep mode settings. To change the Sleep mode settings Right-click the power status icon on the taskbar and select Power Options. Click Change plan settings under the current power plan.
Page 82: Using Hibernate Mode
Using Hibernate Mode In Hibernate mode, the state of the system is saved on the hard disk and power is turned off. Even when the battery runs down, no data will be lost. The power indicator light is off in this mode. To activate Hibernate mode Press the Fn+F12 keys.
Page 83: Managing Power With Vaio Power Management
Managing Power with VAIO Power Management Power management helps you set up power schemes for running on AC power or batteries to suit your requirements for power consumption. VAIO Power Management is a software application developed exclusively for VAIO computers. With this software application, you can enhance the Windows power management functions to ensure better operations of your computer and longer battery life.
Page 84 Activating VAIO Power Management Power Schemes VAIO Power Management provides several predefined power schemes. Each power scheme consists of a group of power management settings that are designed to meet specific power management goals, ranging from maximum power management to no power management. To activate a VAIO Power Management power scheme Right-click the power status icon on the taskbar and select Power Options.
Page 85: Upgrading Your Vaio Computer
You do not touch the connectors or open the memory module compartment cover. For the type of module and the amount of memory installed on your model, see the online Specifications. For assistance, contact an authorized Sony Service Center. To find the nearest center or agent, see Sony Support Information (page 136) or visit the Sony online support Web site.
Page 86: Adding And Removing Memory
Adding and Removing Memory If you want to expand the functionality of your computer, you can increase the memory by installing optional memory modules. Before you upgrade your computer's memory, read the notes and procedures in the following pages. The number of available slots depends on the configuration of your model.
Page 87 Use the special bag delivered with the memory module or wrap the module in aluminum foil to protect it from electrostatic discharge. Introducing any liquids, foreign substances, or objects into the memory module slots or other internal components of your computer will result in damage to the computer and any repair costs will not be covered by the warranty.
Page 88: Removing And Installing A Memory Module
Removing and Installing a Memory Module To change or add a memory module Shut down the computer and disconnect all peripheral devices. Unplug the computer and remove the battery pack. Wait until the computer cools down. Unscrew the screw (indicated by the arrow below) on the bottom of the computer and remove the memory module compartment cover.
Page 89 Remove the memory module: Pull the latches in the direction of the arrows (1). The memory module is released. Make sure that the memory module tilts up and then pull it out in the direction of the arrow (2). Remove the new memory module from its packaging. Upgrading Your VAIO Computer...
Page 90 Slide the memory module into the memory module slot and push it in until it clicks into place. Do not touch any other components on the motherboard. Do not damage the insulation sheet equipped for module protection. Replace the memory module compartment cover. 10 Tighten the screw on the bottom of the computer.
Page 91: Viewing The Amount Of Memory
Viewing the Amount of Memory To view the amount of memory Turn on the computer. Click Start, All Programs, and VAIO Central. The VAIO Central window appears. Click the System Information tab. Double-click the System Information folder. Double-click the System Information icon. You can view the amount of system memory.
Page 92: Precautions
Precautions This section describes safety guidelines and precautions to help you protect your VAIO computer from potential damage. On Handling the LCD Screen On Using the Power Source (page 94) On Handling Your Computer (page 95) On Handling Floppy Disks (page 97) On Handling Discs (page 98)
Page 93: On Handling The Lcd Screen
Precautions On Handling the LCD Screen Do not leave the LCD screen facing the sun. This could damage the LCD screen. Be careful when using your computer near a window. Do not scratch the LCD screen or exert pressure on it. This could cause a malfunction. Using your computer in low temperature conditions may produce a residual image on the LCD screen.
Page 94: On Using The Power Source
Make sure that the AC outlet is easily accessible. When the AC adapter is not used, unplug it from the AC outlet. Use the AC adapter supplied with your computer or genuine Sony products. Do not use any other AC adapter as it may cause a malfunction.
Page 95: On Handling Your Computer
On Handling Your Computer Clean the cabinet with a soft cloth, which is dry or lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish of your computer.
Page 96 If your computer is brought directly from a cold location to a warm one, moisture may condense inside the computer. In this case, allow at least one hour before turning on the computer. If any problems occur, unplug the computer and contact an authorized Sony Service Center. To find the nearest center or agent, see Sony Support Information (page 136) visit the Sony online support Web site.
Page 97: On Handling Floppy Disks
Precautions On Handling Floppy Disks Do not open the shutter manually or touch the surface of the floppy disk. Keep floppy disks away from magnets. Keep floppy disks away from direct sunlight and other sources of heat. Keep floppy disks away from any liquid. Do not let them get wet. When you are not using your floppy disk, always remove it from the floppy disk drive and use a storage case.
Page 98: On Handling Discs
Precautions On Handling Discs Do not touch the surface of the disc. Do not drop or bend the disc. Fingerprints and dust on the surface of a disc may cause read errors. Always hold the disc by its edges and central hole, as shown below: Proper care of the disc is essential to its continuous reliability.
Page 99: On Using The Battery Pack
Charge battery packs at temperatures between 50°F to 86°F (10°C to 30°C). Lower temperatures require longer charging time. This computer is designed to operate only with genuine Sony batteries. While the battery pack is in use or being charged, heat builds up in the battery pack. This is normal and is not cause for concern.
Page 100: On Using Headphones
Precautions On Using Headphones Road safety – Do not use headphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and is illegal in some areas. It can also be potentially dangerous to play loud music while walking, especially at pedestrian crossings.
Page 101: On Handling Memory Stick Media
On Handling Memory Stick Media Do not use the media in a location subject to static electricity or electrical noise. Do not touch the Memory Stick media connector with your finger or metallic objects. Use only the adhesive label supplied with the Memory Stick media as a label. Do not bend, drop, or apply strong shock to the Memory Stick media.
Page 102: On Handling The Hard Disk
On Handling the Hard Disk The hard disk has a high storage density and reads or writes data in a short time. However, it can be easily damaged by mechanical vibration, shock, or dust. Although the hard disk has the internal safety device to prevent losing data due to mechanical vibration, shock or dust, you should be careful when handling your computer.
Page 103: Troubleshooting
Troubleshooting This section describes how to solve common problems you might encounter when using your VAIO computer. Many problems have simple solutions. Try these suggestions before visiting the Sony online support Web site at: http://esupport.sony.com/EN/VAIO/ for customers in USA, http://www.sony.ca/support for customers in Canada, http://esupport.sony.com/ES/VAIO/...
Page 104: Computer
Remove any extra memory modules you may have installed since purchase. Check that you are using the supplied Sony AC adapter. For your safety, use only genuine Sony rechargeable battery packs and AC adapter, which are supplied by Sony for your VAIO computer.
Page 105: What Should I Do If A Bios Error Appears When I Turn On My Computer
The message Save configuration changes and exit now? appears. Select Yes, and press the Enter key. Your computer restarts. If this occurs frequently, contact an authorized Sony Service Center. To find the nearest center or agent, see Sony Support Information (page 136) or visit the Sony online support Web site.
Page 106: What Should I Do If My Computer Or Software Stops Responding
What should I do if the power indicator (Green) lights but my computer screen stays blank? Follow these steps: Press and hold the power button for more than four seconds to check that the power indicator goes out. Then turn on your computer again.
Page 107: What Should I Do If The Battery Indicator Is Flashing And My Computer Does Not Start
19). If the symptom persists after performing the above, it means the installed battery pack is not compatible. Remove the battery pack and contact an authorized Sony Service Center. To find the nearest center or agent, see Sony Support Information (page 136) or visit the Sony online support Web site.
Page 108 19). If the symptom persists after performing the above, it means the installed battery pack is not compatible. Remove the battery pack and contact an authorized Sony Service Center. To find the nearest center or agent, see Sony Support Information (page 136) or visit the Sony online support Web site.
Page 109: What Should I Do If I Cannot Remember The Bios Password
What should I do if I cannot remember the BIOS password? If you have forgotten the BIOS password, contact an authorized Sony Service Center to reset it. A reset fee will be charged. To find the nearest center or agent, see Sony Support Information...
Page 110: To The Computer
What should I do if I cannot boot my computer from the USB floppy disk drive connected to the computer? To boot your computer from the USB floppy disk drive, you need to change the boot device. Turn on your computer and press the F11 key when the VAIO logo appears. How can I change the volume of the startup sound? To change the startup sound volume Turn on the computer.
Page 111: System Security
System Security This section provides information about keeping your computer operating smoothly and protecting against potential threats to the computer's security. How can I protect my computer against security threats, such as viruses? The Microsoft Windows operating system is preinstalled on your computer. The best way to protect your computer against security threats, such as viruses, is to download and install the latest Windows updates regularly.
Page 112: Battery
Battery How do I find the battery charging status? See Charging the Battery Pack (page When is my computer using AC power? When your computer is directly connected to the AC adapter, it uses AC power, even if the battery pack is installed. When should I recharge the battery pack? When the battery level falls below 10 percent.
Page 113: Can My Computer Enter Hibernate Mode While Using Battery Power
Troubleshooting Should I be concerned that the installed battery pack is warm? No, it is normal for the battery pack to be warm when it is powering your computer. Can my computer enter Hibernate mode while using battery power? Your computer can enter Hibernate mode while using battery power, but some software programs and peripheral devices prevent the system from entering Hibernate mode.
Page 114: Internet
Make sure the telephone cable is working. Plug the cable into an ordinary telephone and listen for a dial tone. Make sure the telephone number the program is dialing is correct. Make sure the software you are using is compatible with your computer's modem. (All preinstalled Sony programs are compatible.) Make sure the modem is the only device connected to your telephone line.
Page 115: Why Is My Modem Connection Slow
Why is my modem connection slow? Your computer is equipped with a V.92/ V.90 compatible modem. Many factors may influence modem connection speed, including telephone line noise or compatibility with telephone equipment, such as fax machines or other modems. If you think your modem is not connecting properly to other PC-based modems, fax machines, or your Internet Service Provider (ISP), do any of the following: Ask your telephone company to verify your telephone line is free of any line noise.
Page 116: Networking
Networking What should I do if my computer cannot connect to a wireless LAN access point? Connection availability is affected by distance and obstructions. You may need to move your computer away from obstructions or closer to any access point you may be using. Make sure the WIRELESS or WIRELESS LAN switch is on and the Wireless LAN indicator is lit on your computer.
Page 117: Why Is The Data Transfer Speed Slow
Why is the data transfer speed slow? The wireless LAN data transfer speed is affected by distance and obstructions between devices and access points. Other factors include device configurations, radio conditions, and software compatibility. To maximize the data transfer speed, move your computer away from obstructions or closer to any access point you may be using.
Page 118 Wireless LAN communication occurs on divided frequency bands known as channels. Third-party wireless LAN access point channels may be preset to different channels from Sony devices. If you are using a wireless LAN access point, see connectivity information contained in the manual that came with your access point.
Page 119: Optical Discs
Optical Discs Why does my computer freeze when I try to read a disc? The disc that your computer is trying to read may be dirty or damaged. Follow these steps: Restart the computer by clicking Start, the arrow next to the Lock button, and Restart. Eject the disc from the optical disc drive.
Page 120 What should I do if I cannot play a CD or DVD properly on my computer? Make sure the disc is inserted into the optical disc drive with the label facing upward. Make sure the necessary program(s) is installed according to the manufacturer's instructions. If a CD or DVD is dirty or damaged, your computer will stop responding.
Page 121 Double-click the optical disc drive device to open a list of the optical disc drives of your computer. Double-click the desired drive. You can confirm the driver software by selecting the Driver tab, and clicking Driver Details. Click OK to close the window. Make sure an adhesive label is not affixed to a CD or DVD.
Page 122 What should I do if I cannot write data to CD media? Make sure you neither launch any software application nor allow any to launch automatically, not even a screen saver. Stop using the keyboard. If you are using a CD-R/RW disc with an adhesive label affixed, replace it with one with no affixed adhesive label. Using a disc with an affixed adhesive label could cause a write error or other damage.
Page 123: Display
Display Why did my computer screen go blank? Your computer screen may go blank if the computer has lost power or has entered a power saving mode (Sleep or Hibernate). If the computer is in LCD (Video) Sleep mode, press any key to activate the computer screen. See Using the Power Saving Modes (page 79) Make sure your computer is securely plugged into a power source and turned on.
Page 124 Why doesn't my computer screen display a video? If the external display is selected for the display output and the external display is disconnected, you cannot display a video on your computer screen. Stop video playback, change the display output to the computer screen, and then restart video playback.
Page 125: How Do I Run Windows Aero
What should I do if the external display stays blank? If you cannot change the display output with the Fn+F7 keys, you need to change the settings for the external display with VAIO Central. To change the settings, launch the VAIO Central, click the System Information tab and select the control item for the external display, and then cancel the check box for enabling the automatic function to select the external display for the output.
Page 126: Printing
Printing What should I do if I cannot print a document? Make sure your printer is on, and the printer cable is securely connected to the ports on the printer and computer. Make sure your printer is compatible with the Windows operating system installed on your computer. You may need to install the printer driver software before you use your printer.
Page 127: Microphone
Troubleshooting Microphone What should I do if my microphone does not work? If you are using an external microphone, make sure the microphone is turned on and is properly plugged into the microphone jack on your computer.
Page 128: Mouse
Mouse What should I do if my computer does not recognize my mouse? Make sure your mouse is securely plugged into the port. Restart your computer with your mouse connected. What should I do if the pointer does not move when I use my mouse? Make sure another mouse is not connected.
Page 129: Speakers
Speakers What should I do if my speakers do not work? Make sure your speakers are properly connected and the volume is turned up loud enough to hear sound. Make sure your speakers are designed for computer use. If your speakers have a muting button, set the button to off. If you have connected an audio cable to the headphones jack, disconnect the cable and use the speaker cable supplied with your speakers.
Page 130: Touch Pad
Touch Pad What should I do if the touch pad does not work? You may have disabled the touch pad without connecting a mouse to your computer. See Using the Touch Pad 28). Make sure that a mouse is not connected to your computer. If the pointer does not move while a software application is running, press the Alt+F4 keys to close the application window.
Page 131: Keyboard
Keyboard What should I do if the keyboard configuration is wrong? The language layout of your computer's keyboard is labeled on the packaging box. If you choose a different regional keyboard when you complete the Windows setup, the key configuration will be mismatched. To change the keyboard configuration, follow these steps: Click Start and Control Panel Click Clock, Language, and Region, and click Regional and Language Options.
Page 132: Floppy Disks
Floppy Disks Why doesn't the Safely Remove Hardware icon appear on the taskbar when the drive is connected? Your computer does not recognize the floppy disk drive. First, make sure the USB cable is properly connected to the USB port. If you need to secure the connection, wait a few moments for the computer to recognize the drive. If the icon still does not appear, follow these steps: Close all programs that are accessing the floppy disk drive.
Page 133: Audio/Video
(page 71) i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connection. The procedure to establish an i.LINK connection may vary, depending on a software application, an operating system, and a compatible i.LINK device. Not all products with an i.LINK connection can communicate with each other.
Page 134: Memory Stick Media
Use of recorded music requires permission from the copyright holders. Sony is not responsible for music files that cannot be recorded from a CD or downloaded from other sources. Can I copy images from a digital camera using Memory Stick media? Yes, and you can view video clips that you have recorded with Memory Stick media-compatible digital cameras.
Page 135: Peripherals
Peripherals What should I do if I cannot connect a USB device? If applicable, check the USB device is turned on and using its own power supply. For example, if you are using a digital camera, check the battery is charged. If you are using a printer, check the power cable is connected properly to the AC outlet.
Page 136: Support Options
Sony Computing Support This service provides instant access to information on commonly encountered problems. Type a description of the problem and the Knowledge Database searches for the corresponding solutions online. You can visit the Sony online support Web site at: http://esupport.sony.com/EN/VAIO/ http://www.sony.ca/support for customers in Canada, http://esupport.sony.com/ES/VAIO/...
Page 137 Support Options VAIO Update When your computer is connected to the Internet, VAIO Update automatically notifies you when critical software and security information is posted on the support Web site. Click the VAIO Update notice to open the VAIO Support Web site and view the information.
Page 138 For users in Latin American countries or areas Customer Information Center If you do not find the information you are looking for at our site, you may call Sony directly. In order to receive the fastest and most efficient services, please have the following information readily available:...
Page 139 In order to contact a Sony technical support representative, please call the following numbers: In Argentina: (011) 6770-SONY (7669) In Mexico: In Mexico City: 5002-9819 In the Mexican Republic: 01-800-759-7669 In Colombia: 01-800-550-7000 In Peru: 0-801-1-7000 or 511-6100 In Chile:...
Page 140: Program Support Information
Program Support Information Depending on the computer model and particular configuration you purchased, your computer may not include all of the software programs listed below. Contacts for Sony software products are listed below: For users in USA Web site http://esupport.sony.com/EN/VAIO/...
Page 141 ® America Online (Dial-Up) America Online, Inc. For users in USA and Canada Web site http://www.aol.com ® Music Now America Online, Inc. For users in USA and Canada Web site http://www.premiumservices.aol.com ® Explorer America Online, Inc. For users in USA and Canada Web site http://www.aol.com ®...
Page 142 ® Instant Messenger™ America Online, Inc. For users in USA and Canada Web site http://www.aim.com Ask Search Assistant IAC Search & Media, Inc. For contacts about the software, see Program Support Information Ask Toolbar IAC Search & Media, Inc. For contacts about the software, see Program Support Information ®...
Page 143 Click to DVD software Sony Electronics Inc. At the touch of a button, Click to DVD software allows you to automatically burn DVDs from a digital video (DV) device. Create DVDs by capturing video content straight from a DV device or by importing video from stored files — and you can also edit the video.
Page 144 Image Converter 2 Plus Sony Electronics Inc. Image Converter 2 Plus allows you to easily convert movie and picture files on your computer to your Memory Stick media. For contacts about the software, see Program Support Information InstantOn InterVideo, Inc.
Page 145 ® 60-Day Trial Version of Microsoft The Microsoft Office 60-Day Trial software included with this computer system is intended for evaluation purposes only. The software has been installed and you must activate the software before you can use it. Product activation procedures will be detailed during initial launch of the software; activation requires Internet access.
Page 146 ® PenPlus for VAIO Sony Electronics Inc. PenPlus for VAIO PC will allow you to write or draw directly on the screen with the stylus or create "sticky note" reminders. For contacts about the software, see Program Support Information Protector Suite QL Sony Electronics Inc.
Page 147 Web site http://www.smartdraw.com/support/index.htm ™ SmartWi Connection Utility Sony Electronics Inc. SmartWi Connection Utility allows you to easily switch between the various wireless components (Wireless LAN, Wireless ® WAN, and Bluetooth technology connectivity) that came with your computer. For contacts about the software, see Program Support Information (page 140).
Page 148 ® SonicStage software Sony Electronics Inc. The SonicStage jukebox software program gives you all the tools you need to manage music on your computer. SonicStage software supports high-quality digital audio storage, a sleek player skin design, and audio CD burning capability.
Page 149 For questions and technical assistance, please check the help and the readme files. ® VAIO Action Setup Sony Electronics Inc. VAIO Action Setup manages the settings for your computer's shortcut keys. For contacts about the software, see Program Support Information ®...
Page 150 ® VAIO Central Sony Electronics Inc. VAIO Central provides a central location that gathers resources to configure your VAIO computer and view your computer's configuration and specifications. For contacts about the software, see Program Support Information ® VAIO Diagnostic Sony Electronics Inc.
Page 151 For contacts about the software, see Program Support Information ® VAIO Security Center Sony Electronics Inc. Sony cares about your VAIO personal computer. The VAIO Security Center highlights some of the security features your machine includes. For contacts about the software, see Program Support Information ® VAIO Touch Launcher Sony Electronics Inc.
Page 152 Sony Electronics Inc. The Zoom Utility will allow you to magnify a portion of the screen. For contacts about the software, see Program Support Information ® computer up to date by regularly checking the Sony online support (page 140). (page 140).
