Summary of Contents for Neat IOR
-

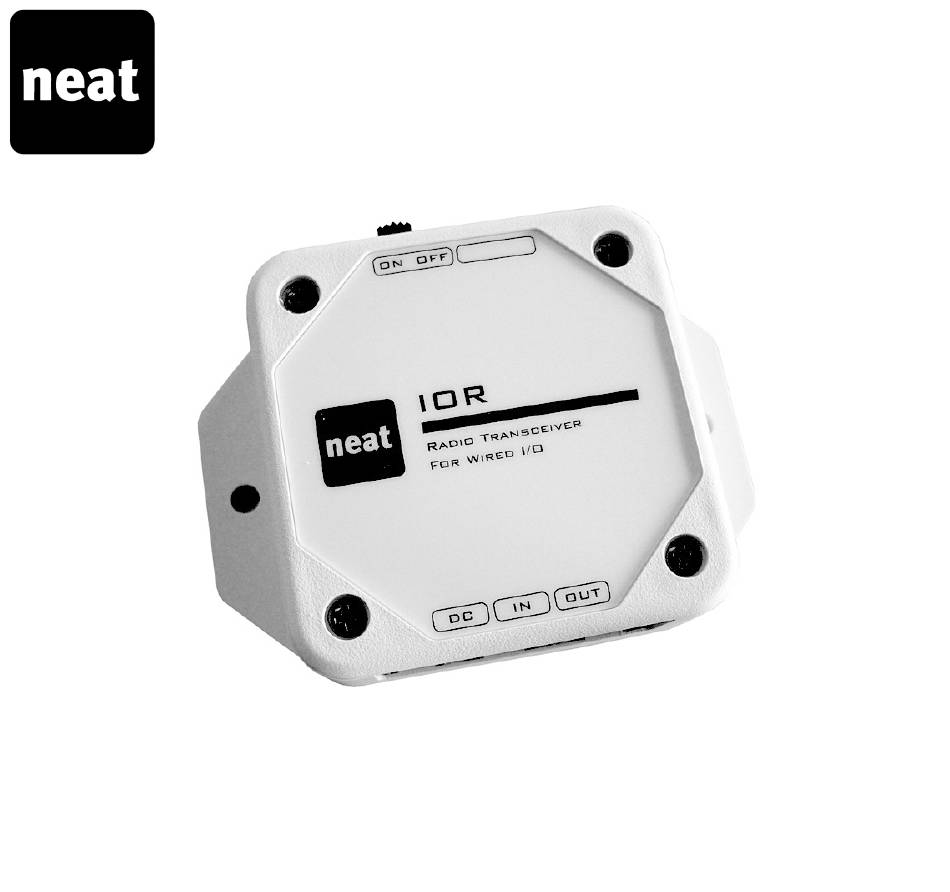

Page 1: User Guide
User Guide Radio Transceiver For Wired I/O... -
Page 3: Table Of Contents
Outputs ..................9 Connecting an Alarm Transmitter to IOR ........10 Connecting IOR to Portable Receiver TREX ........11 Connecting IOR to Home Care Phone NEO ........12 Controlling IOR from Home Care Phone NEO ......13 Declaration of Conformity ............14 © NEAT Electronics AB 2005-2006... -
Page 4: Important Information
This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be returned to NEAT Electronics for recycling. The recycling of materials will prevent negative consequences for the environment, human health and help to conserve natural... -
Page 5: Overview
Overview Power switch Jumpers Button Output connector Input connector AC/DC-adapter connector... -
Page 6: Installation
Installation 1. To change the configuration of the IOR, remove the lid and mount or remove jumpers. The jumper settings are described on pages 7-9 in this manual. 2. Connect alarm transmitters and/or alarm receivers to IOR as described in pages 10-13 in this manual. -
Page 7: Configuration
5. Please restart the IOR after changing the jumper configuration. For advanced configuration, the computer program IOR Programmer can be used. This is described in the Technical Handbook for the IOR Family, document number NE41 06007-02. Power Mode For longer battery life, IOR can be configured to go into power save... -
Page 8: Inputs
8. If input 1 is configured as normally closed, an alarm will be sent when the connection between pin 3 and pin 8 is broken. Jumpers J1-J3 inside the IOR determine the mode of inputs 1-3 as shown in the table below. -
Page 9: Outputs
In this mode the output state will only change when special mode on and off commands are received from the home care phone. The output mode is configured by jumpers J4 and J5 inside IOR. Output Mode Pulse mode Toggle mode... -
Page 10: Connecting An Alarm Transmitter To Ior
Connecting an Alarm Transmitter to IOR The IOR output can be activated from an alarm transmitter such as ATOM or INKA. If an ATOM is programmed into IOR, the IOR output will be activated each time the button on that ATOM is pressed. -
Page 11: Connecting Ior To Portable Receiver Trex
Connecting IOR to Portable Receiver TREX When an input on IOR is activated, an alarm is sent. The portable alarm receiver TREX can be programmed to receive alarms sent by IOR when a particular input on the IOR is activated. -
Page 12: Connecting Ior To Home Care Phone Neo
1, twice for input 2 etc, with no more than 1 second between each button press (see footnote on page 11). 4. The LED inside IOR flashes to indicate that the radio code is transmitted. Then the home care phone sounds to indicate that... -
Page 13: Controlling Ior From Home Care Phone Neo
2. Press and hold the grey button on NEO while switching NEO on. 3. Wait until Y beeps are heard and release the button. 4. Press and hold the button inside IOR for more than 3 seconds and then release the button (see foot note on page 11). -
Page 14: Declaration Of Conformity
Declaration of Conformity We NEAT Electronics AB, Varuvägen 2, 246 42 Löddeköpinge, declare under our sole responsibility that our product IOR, NE10 04004-06, is in conformity with the directives 1999/5/CE, 73/23/CE and 89/336/CEE and conforms to the standards: Safety: EN60950-1:2001 EMC: EN 301489-3 v1.4.1 Class I... - Page 15 Notes...
- Page 16 NEAT Electronics AB Varuvägen 2 246 42 Löddeköpinge SWEDEN...
