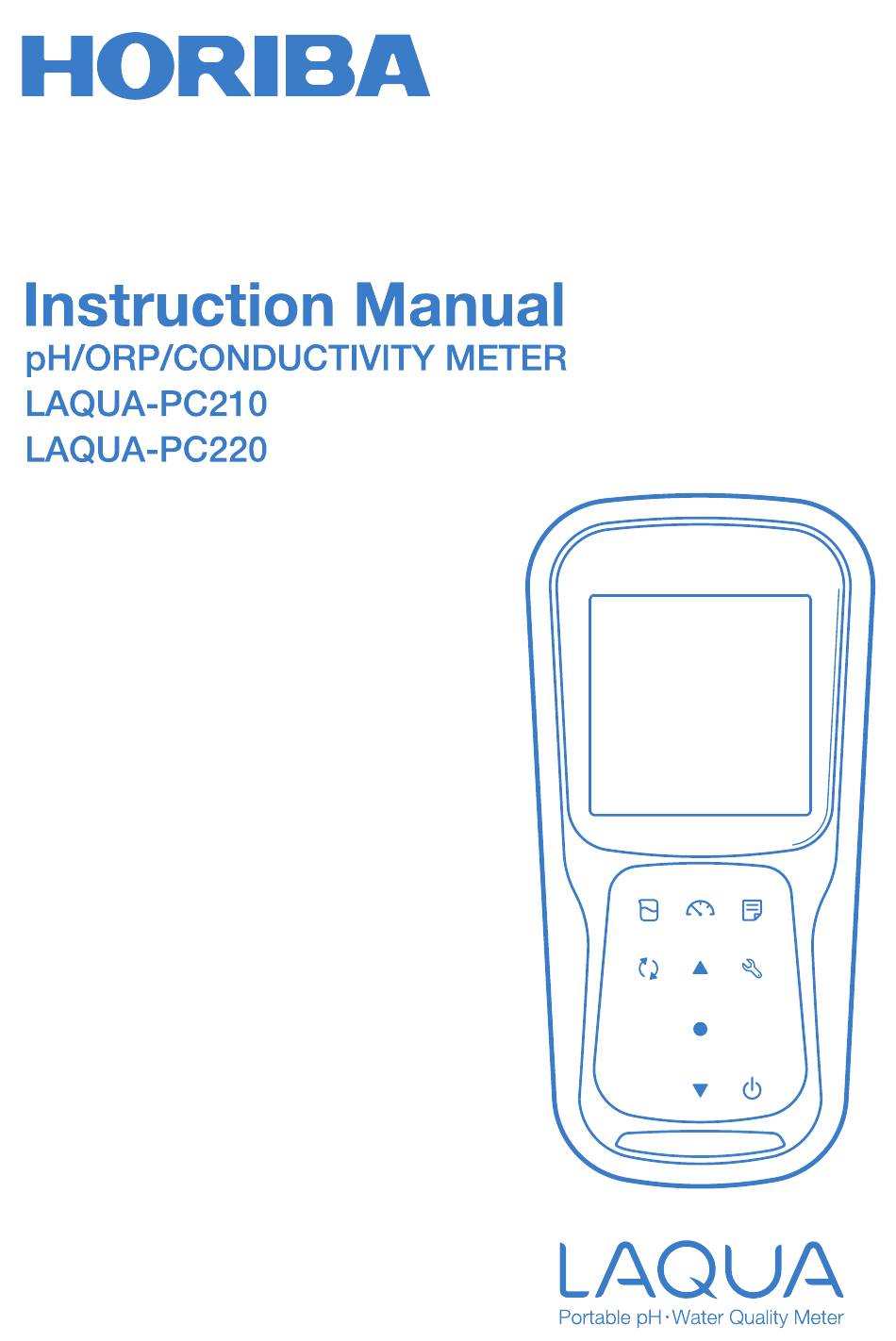

LAQUA -PC200 Series Instruction Manual

Ph/orp/conductivity meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for LAQUA LAQUA-PC200 Series

Summary of Contents for LAQUA LAQUA-PC200 Series

  • Page 3 • Preface This manual describes the operation of the following instrument. Brand: LAQUA Series name: LAQUA 200 Series Handheld Water Quality Meter Model: LAQUA-PC210, LAQUA-PC220 Model description: pH/ORP/Conductivity Meter Be sure to read this manual before using the product to ensure proper and safe operation of the product.
  • Page 4 Regulations • Regulations • EU regulations • Conformable standards This equipment conforms to the following standards: EMC: EN61326-1 Class B, Basic electromagnetic environment RoHS: EN50581 9. Monitoring and control instruments Warning: This product is not intended for use in industrial environments. In an industrial environment, electromagnetic environmental effects may cause the incorrect performance of the product in which case the user may be required to take adequate measures.
  • Page 5 Regulations • FCC rules FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Responsible Party for FCC matter HORIBA Instruments Incorporated Head Office...
  • Page 6 Regulations • China regulation 标记的意义 Meaning of Marking 本标记适用在中华人民共和国销售电器电子产品，标记中央的数字 表示环境保护使用期限的年数。( 不是表示产品质量保证期间。) 只要遵守这个产品有关的安全和使用注意事项，从制造日开始算起 在这个年限内，不会给环境污染、人体和财产带来严重的影响。请 不要随意废弃本电器电子产品。 This marking is applied to electric and electronic products sold in the People's Republic of China. The figure at the center of the marking indicates the environmental protection use period in years.
  • Page 7 Regulations 产品中有害物质的名称及含量 Name and amount of hazardous substance used in a product 有害物质 Hazardous substances 多溴二苯醚 六价铬 多溴联苯 Poly 部件名称 汞 镉 Hexa- Poly 铅 Unit name Mer- Cad- bromo- Lead valent bromobi- cury mium diphenyl (Pb) chromium phenyl (Hg) (Cd) ether (Cr (VI))
  • Page 8 For Your Safety • For Your Safety • Hazard classification and warning symbols Warning messages are described in the following manner. Read the messages and follow the instructions carefully. • Hazard classification This indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

  • Page 9: Safety Precautions

    For Your Safety • Safety precautions This section provides precautions for using the product safely and correctly and to prevent injury and damage. The terms of DANGER, WARNING, and CAUTION indicate the degree of immanency and hazardous situation. Read the precautions carefully as it contains important safety messages.
  • Page 10 For Your Safety • Battery Keep batteries out of reach of children. If someone accidentally swallows a battery, consult a doctor immediately. If alkaline fluid from a battery gets into the eyes, do not rub the eyes, rinse with clean water immediately and then consult a doctor.
  • Page 11 Product Handling Information • Product Handling Information • Operational precautions (instrument) • Only use the product including accessories for their intended purpose. • Do not drop or physically impact the instrument. • The instrument is made of solvent-resistant materials but that does not mean it is resistant to all chemicals.
  • Page 12 Product Handling Information • Environmental conditions for use and storage • Temperature: 0 °C to 45 °C • Humidity: under 80% relative humidity and free from condensation • Avoid the following conditions: • Strong vibration • Direct sunlight • Corrosive gas environment •...

  • Page 13: Table Of Contents

    Contents ■ Product Overview .............. 1 ● Package Content............1 ● Key Features .............. 2 ● Product components..........3 ■ Basic operations..............7 ● Mode and measurement..........9 ■ Calibration................ 11 ● pH Calibration ............11 ● ORP/mV Calibration..........13 ●...
  • Page 14 Contents ● Data setup ..............43 ● General setup............50 ● CLK setup..............59 ■ Maintenance and storage ..........64 ● Maintenance and storage of the instrument ..64 ● Maintenance and storage of electrodes ....65 ■ Error messages and trouble shooting......67 ■...

  • Page 15: Product Overview

    Product overview ■ Product Overview This section describes the package content, key features and product components of LAQUA PC200 handheld meters. ● Package Content After opening the carry case, remove the meter and check for damage on the instrument and confirm that the standard accessories all exist.

  • Page 16: Key Features

    Product overview ● Key Features • IP67 water ingress, dust-proof, shock-resistant, anti-slip meter housing. • Large monochrome LCD (50 x 50 mm) with white LED back lighting. • Built-in electrode holder (up to 2 electrodes). • Foldable meter stand. • Simple user interface and single parameter display. •...

  • Page 17: Product Components

    Product overview ● Product components Name Function Monochrome LCD Displays the measured value Operation keys Used for instrument operation Electrode connector Connect to the BNC connector of the electrode Temperature connector (T) Connect to the temperature sensor of the electrode Battery cover Open/close to insert/remove batteries Electrode holder...
  • Page 18 Product overview ● Display Name Function Displays the current operation mode (Setup, Calibration, Status Icon Measurement and Data mode) Displays the measured parameters like pH, RmV, COND, Res, Parameters TDS and Sal Stability indicator shows value is stable for documentation in Auto Stable and Auto Hold modes Appears when the measured value display is stable and fixed in auto-hold mode...
  • Page 19 Product overview ● Battery level display 100% battery life 50% battery life 20% battery life Batteries are weak and need replacement. Refer “ BATT LOW ” (page 67) to solve this ● Electrode sensitivity level Electrode sensitivity above 95%(excellent) Electrode sensitivity between 85% to 95% (very good) Electrode sensitivity between 80% to 85%(good).
  • Page 20 Product overview ● Keypad operation Keypad Name Function Switches from the measurement mode to the calibration mode. CAL key Starts calibration in the calibration mode. Switches the operation mode to the measurement mode. MEAS key Releases the fixed measurement value mode in the auto hold mode and begins a fresh measurement.

  • Page 21: Basic Operations

    Basic operations ■ Basic operations This section describes function and basic operation method of each part of LAQUA PC200 handheld meter. ● Turning on the instrument Inserting the batteries This instrument is operated by batteries. You can use AA alkaline batteries or AA Ni- MH chargeable batteries.
  • Page 22 Basic operations ● Connecting an electrode To perform calibration/ measurement, it is necessary to use the appropriate electrode for measurement parameter. Recommended electrodes for various sample are listed in our product catalog. Use the following procedure to correctly connect the electrode to the instrument: 1.

  • Page 23: Mode And Measurement

    Basic operations ● Mode and measurement ● Changing the operation mode You can change the operation mode to four available modes depending on the purpose of use. The status icon indicates the current mode. Icon Name Function Setup mode Perform various setup functions. Calibration Performs calibration.
  • Page 24 Basic operations ● Changing the measurement parameter This instrument measures multiple parameters. For measurement, an electrode corresponding to the measurement parameter is required. In the measurement mode, the measurement parameter can be changed by pressing the key.

  • Page 25: Calibration

    ■ Calibration This section describes the basic calibration method using LAQUA PC200 handheld meter, pH and conductivity electrode. ● pH Calibration Calibration is necessary for accurate pH measurement. To perform pH calibration, follow the procedure detailed below: Prerequisites •...
  • Page 26 pH calibration Calibration 1. After placing the pH electrode in the buffer solution, press the key. 2. The selected buffer standard appears on the meter screen and meter starts checking various calibration values with a blinking on screen. 3. Wait for the to stabilize (stable calibration reading).

  • Page 27: Orp/Mv Calibration

    ORP calibration ● ORP/mV Calibration Calibration is necessary for accurate ORP measurement. To perform ORP calibration, follow the procedure detailed below: Prerequisites • Clean the ORP electrode with DI (deionized) water and wipe it with tissue paper. • Switch on the PC meter and plug in the ORP electrode. •...
  • Page 28 ORP calibration Calibration 1. After placing the electrode in the solution, press the key to switch to mV mode. 2. Press the key. 3. Meter starts reading mV values and the blinks until value stabilizes. 4. Wait for the to stabilize (stable calibration reading). 5.

  • Page 29: Conductivity Calibration

    Conductivity calibration ● Conductivity Calibration Calibration is necessary for accurate electrical conductivity measurement. To perform conductivity calibration, follow the procedure detailed below: Prerequisites • Clean the conductivity electrode with DI (deionized) water and wipe it with tissue paper. • Switch on the PC meter and plug in the conductivity electrode. •...
  • Page 30 Conductivity calibration Calibration Auto calibration 1. After placing the conductivity electrode in the standard solution, press the key. 2. Meter displays “Auto cal” as per set calibration method and starts measuring various calibration values with a blinking on screen. 3. Wait for the to stabilize (stable calibration reading).
  • Page 31 Conductivity calibration Manual calibration 1. After placing the conductivity electrode in the standard solution, press the key. 2. Meter displays “Manual cal” as per set calibration method and starts measuring various calibration values with a blinking on screen. 3. Wait for the to stabilize (stable calibration reading).

  • Page 32: Tds Calibration

    TDS values will be recalibrated accordingly. Set the required TDS curve in LAQUA EC200 handheld meter. Available TDS curves are; - LINR (Linear factor with adjustable factor from 0.4 to 1.0)

  • Page 33: Salinity Calibration

    • Dip the conductivity electrode in the standard solution till the hole at the upper part of the electrode is immersed. Note • Before salinity calibration, set the required salinity method. In LAQUA PC220 handheld meter, available salinity methods are; - NACL - SEA.W (Sea water)
  • Page 34 Conductivity calibration Calibration 1. After placing the conductivity electrode in the standard solution, press the key. 2. Meter starts measuring various calibration values with a blinking on screen. 3. Wait for the to stabilize (stable calibration reading). 4. Use the keys to adjust the salinity value.

  • Page 35: Temperature Calibration

    Temperature calibration ● Temperature Calibration Temperature calibration is required to accurately match pH or conductivity electrode to the meter. Check the temperature reading and if its acceptable, no temperature calibration is required. If you need to calibrate, please follow the procedure detailed below: Prerequisites •...
  • Page 36 Temperature calibration Calibration 1. After placing the electrode in the solution, press the key. 2. Press the key to switch to temperature calibration mode. Meter displays measured temperature value. 3. Use the keys to adjust the temperature to the required value. 4.

  • Page 37: Data

    This section describes the basic method of data storing and transferring using LAQUA 200 handheld meters. ● Data capture and storage In LAQUA PC200 handheld meters, data measured by the instrument can be stored in the internal memory. To save the measured data: •...

  • Page 38: Data Transfer

    ● Transfer data to PC Connect the instrument to a PC using phono jack to USB cable to transfer saved data to the PC (for LAQUA PC220 only). Connect the phono jack at the instrument side to the communication port on the PC.

  • Page 39: Setup

    Using P1 pH setup function of the meter, you can: • Select buffer standard • Set calibration alarm • Erase calibration data To set the pH functions using LAQUA PC200 handheld meter, follow the procedure detailed below: Prerequisites Switch on the PC meter.
  • Page 40 pH set up ● P 1.1 Buffer selection 1. Press the key, P1 PH screen appears. 2. Press the ENT key, P1.1 BUFF screen appears. 3. Press the ENT key, by default BUFF USA appears. 4. Use the keys to change the buffer standard to BUFF NIST or BUFF DIN. 5.
  • Page 41 pH set up ● P 1.2 Calibration alarm setup 1. Press the key, P1 PH screen appears. 2. Press the ENT key, P1.1 BUFF screen appears. 3. Press the key, P1.2 C.ALr screen appears. 4. Press the ENT key, by default DAYS ---- appears. 5.
  • Page 42 pH set up ● P 1.3 Erase calibration data 1.Press the key, P1 PH screen appears. 2.Press the ENT key, P1.1 BUFF screen appears. 3.Press the key, P1.2 C.ALr screen appears. 4.Press the key, P1.3 C.CLr appears. 5.Press the ENT key, C.CLr NO screen appears with NO as default setup.

  • Page 43: P1 Cond Setup

    • Select conductivity unit • Set calibration mode • Set temperature coefficient • Set reference temperature • Erase calibration data To set the COND functions using LAQUA PC200 handheld meter, follow the procedure detailed below: Prerequisites Switch on the PC meter. Note •...
  • Page 44 Conductivity set up ● P 1.1 Cell constant setup 1. Press the key, P1 COND screen appears. 2. Press the ENT key, P1.1 CELL screen appears. 3. Press the ENT key, by default CELL 1.00 appears. 4. Use the keys to set the cell constant in between 0.070 to 13.00. 5.
  • Page 45 Conductivity set up ● P 1.2 Select conductivity unit 1. Press the key, P1 COND screen appears. 2. Press the ENT key, P1.1 CELL screen appears. 3. Press the key, P1.2 UNIT screen appears. 4. Press the ENT key, by default UNIT S/cm appears. 5.
  • Page 46 Conductivity set up ● P 1.3 calibration mode setup 1. Press the key, P1 COND screen appears. 3. Press the ENT key, P1.1 CELL screen appears. 4. Press the key, P1.2 UNIT screen appears. 5. Press the key, P1.3 A.CAL appears. 6.
  • Page 47 Conductivity set up ● P 1.4 Temperature coefficient setup 1.Press the key, P1 COND screen appears. 2.Press the ENT key, P1.1 CELL screen appears. 3.Press the key, P1.2 UNIT screen appears. 4.Press the key, P1.3 A.CAL appears. 5.Press the key, P1.4 T.CFF appears. 6.Press the ENT key, T.CFF 2.00% screen appears.
  • Page 48 Conductivity set up ● P 1.5 Reference temperature setup 1.Press the key, P1 COND screen appears. 2.Press the ENT key, P1.1 CELL screen appears. 3.Press the key, P1.2 UNIT screen appears. 4.Press the key, P1.3 A.CAL appears. 5.Press the key, P1.4 T.CFF appears. 6.Press the key, P1.5 T.rEF appears.
  • Page 49 Conductivity set up ● P 1.6 Erase calibration data 1.Press the key, P1 COND screen appears. 2.Press the ENT key, P1.1 CELL screen appears. 3.Press the key, P1.2 UNIT screen appears. 4.Press the key, P1.3 A.CAL appears. 5.Press the key, P1.4 T.CFF appears. 6.Press the key, P1.5 T.rEF appears.

  • Page 50: P2 Tds Setup

    Using P2 TDS setup function of the meter, you can: • Select TDS curve • Select TDS unit • Erase calibration data To set the TDS functions using LAQUA PC200 handheld meter, follow the procedure detailed below: Prerequisites Switch on the PC meter.
  • Page 51 TDS set up ● P 2.1 TDS curve selection 1. Press the key, P1 COND screen appears. 2. Press the key, P2 TDS screen appears 3. Press the ENT key, P2.1 FACT screen appears. 4. Press the ENT key, by default FACT LINR appears. 5.
  • Page 52 TDS set up ● P 2.2 Select TDS unit 1. Press the key, P1 COND screen appears. 2. Press the key, P2 TDS screen appears. 3. Press the ENT key, P2.1 FACT screen appears. 4. Press the key, P2.2 UNIT screen appears. 5.

  • Page 53: P3 Sal Setup

    Using P3 SAL setups function of the meter, you can: • Select salinity unit • Select salinity curve • Erase calibration data To set the salinity functions using LAQUA PC220 handheld meter, follow the procedure detailed below: Prerequisites Switch on the PC meter.
  • Page 54 Salinity set up ● P 3.1 select salinity unit 1. Press the key, P1 COND screen appears. 2. Press the key, P2 TDS screen appears. 3. Press the key, P3 SAL screen appears. 4. Press the ENT key, P3.1 UNIT screen appears. 5.
  • Page 55 Salinity set up ● P 3.2 select salinity type 1. Press the key, P1 COND screen appears. 2. Press the key, P2 TDS screen appears. 3. Press the key, P3 SAL screen appears. 4. Press the ENT key, P3.1 UNIT screen appears. 5.
  • Page 56 Salinity set up ● P 3.3 Erase calibration data 1. Press the key, P1 COND screen appears. 2. Press the key, P2 TDS screen appears. 3. Press the key, P3 SAL screen appears. 4. Press the ENT key, P3.1 UNIT screen appears. 5.

  • Page 57: Data Setup

    Using Data setup function of the meter, you can: • Set data log interval • Print data log • Erase data log To set the data functions using LAQUA PC200 handheld meter, follow the procedure detailed below: Prerequisites • Switch on the PC meter.
  • Page 58 Data set up ● Data log interval setup 1. Press the key, P1 PH/EC screen appears. 2. Press the key, P2/P4 DATA screen appears. 3. Press the ENT key, P2.1/P4.1 LOG screen appears. 4. Press the ENT key, previously set log interval appears. 5.
  • Page 59 Data set up EC mode...
  • Page 60 Data set up ● Print data setup 1. Press the key, P1 PH/EC screen appears. 2. Press the key, P2/P4 DATA screen appears. 3. Press the ENT key, P2.1 LOG screen appears. 4. Press the key, P2.2/P4.2 PrNT screen appears. 5.
  • Page 61 Data set up EC mode...
  • Page 62 Data set up ● Erase data 1. Press the key, P1 PH/EC screen appears. 2. Press key, P2/P4 DATA screen appears. 3. Press the ENT key, P2.1/P4.1 LOG screen appears. 4. Press the key, P2.2/P4.2 PRNT screen appears. 5. Press the key, P2.3/P4.3 D.CLR screen appears.
  • Page 63 Data set up EC mode...

  • Page 64: General Setup

    • Select stability mode of the meter • Set auto shut-off time • Select temperature measurement • Reset the meter To set the general functions using LAQUA PC200 handheld meter, follow the procedure detailed below: Prerequisites • Switch on the PC meter.
  • Page 65 General set up ● Auto Stable, Auto Hold and Real Time mode setup Auto Stable (AS) mode - the meter shows live readings annunciator blinks until the reading is stable. Auto Hold (AH) mode - the meter locks the stable reading; annunciator blinks until reading is stable and then lights up.
  • Page 66 General set up EC mode...
  • Page 67 General set up ● Auto shut-off time setup 1. Press the key, P1 PH/EC screen appears. 2. Press the key, P2 DATA screen appears. 3. Press the key, P3/P5 GEN screen appears. 4. Press the ENT key, P3.1/P5.1 STBL screen appears. 5.
  • Page 68 General set up EC mode...
  • Page 69 General set up ● Temperature unit setup 1. Press the key, P1 PH/EC screen appears. 2. Press the key, P2 DATA screen appears. 3. Press the key, P3/P5 GEN screen appears. 4. Press the key, P3.1/P5.1 STBL screen appears. 5. Press the key, P3.2/P5.2 A.OFF screen appears.
  • Page 70 General set up EC mode...
  • Page 71 General set up ● Reset meter (factory default) 1. Press the key, P1 PH/EC screen appears. 2. Press the key, P2 DATA screen appears. 3. Press the key, P3/P5 GEN screen appears. 4. Press the ENT key, P3.1/P5.1 STBL screen appears. 5.
  • Page 72 General set up EC mode...

  • Page 73: Clk Setup

    Clock set up ● CLK setup Real-time clock functionality is available only for LAQUA 220 meters. Using P4 Clock setup function of the meter, you can set: • Date • Time To set the clock function using LAQUA PC220 handheld meter, follow the procedure detailed...
  • Page 74 Clock set up ● Date setup 1. Press the key, P1 PH/EC screen appears. 2. Press the key, P2 DATA screen appears. 3. Press the key, P3 GEN screen appears. 4. Press the key, P4 CLK screen appears. 5. Press the ENT key, P4.1 DATE screen appears.
  • Page 75 Clock set up EC mode...
  • Page 76 Clock set up ● Time setup 1. Press the key to switch to the setup mode, P1 PH/EC screen appears. 2. Press the key, P2 DATA screen appears. 3. Press the key, P3 GEN screen appears. 4. Press the key, P4 CLK screen appears. 5.
  • Page 77 Clock set up EC mode...

  • Page 78: Maintenance And Storage

    Maintenance and storage ■ Maintenance and storage This section describes maintenance of LAQUA PC200 handheld meter, pH, ORP and conductivity electrodes used with the meter. ● Maintenance contract Please contact your dealer for the product maintenance contract. ● Maintenance and storage of the instrument ●...

  • Page 79: Maintenance And Storage Of Electrodes

    Maintenance and storage ● Maintenance and storage of electrodes This section describes an overview of the procedures for maintenance and storage of pH, ORP and conductivity electrodes. ● How to clean the electrodes Always clean the electrode with deionized water after every measurement. When the response is slow or residue from the sample adheres to the electrode, use the appropriate method below to clean the electrode, and then clean again with deionized water.
  • Page 80 Maintenance and storage ● Daily storage of the pH and ORP electrodes If the electrode becomes dry, the response will be slow. Store in a moist atmosphere. Follow the steps below to properly store the electrodes even when the electrodes will not be used for a long period.

  • Page 81: Error Messages And Trouble Shooting

    Error messages and trouble shooting ■ Error messages and trouble shooting ● Error message This section describes the causes of typical errors and the actions to be taken to resolve respective errors. If ERR is displayed while you are using the instrument, check the error, its cause and action to be taken in the error list below: Meter display ERR description...
  • Page 82 Error messages and trouble shooting ● Trouble shooting his section describes causes and actions to take for problems that customers frequently ask. The indicated value fluctuates < Problem with the electrode > Cause How to solve problem The electrode is dirty. Clean the electrode.
  • Page 83 Error messages and trouble shooting The response is slow Cause How to solve problem The electrode is dirty. Clean the electrode. The electrode is cracked. Replace the electrode. It is important to select an electrode that is appropriate for the sample. Consult your dealer. To The response of electrode is affected confirm an electrode that is appropriate for the by the sample solution.
  • Page 84 Error messages and trouble shooting The measured value is out of the measurement range When the measured value is below the display range, “Ur” appears. When the measured value is over the display range, “Or” appears. Cause How to solve problem Sample is out of the measurement Use a sample within the measurement range.
  • Page 85 Error messages and trouble shooting Nothing appears when the power is turned ON Cause How to solve problem Power is not supplied. Insert batteries or connect the AC adapter (option). Battery polarity (+, ) is reversed. Insert the batteries with the polarity (+, ) correctly oriented. Battery life is low.

  • Page 86: Appendix

    Technical note ■ Appendix ● Appendix 1 This section describes technical information and option for LAQUA PC200 handheld meters. The pH vs. temperature values for the various standards are listed below: < USA > Temp. (°C) pH 1.68 pH 4.01 pH 7.00...
  • Page 87 Technical note < NIST > Temp. (°C) pH 1.68 pH 4.01 pH 6.86 pH 9.18 pH 12.46 1.67 4.00 6.98 9.46 1.67 4.00 6.95 9.39 13.25 1.67 4.00 6.92 9.33 13.03 1.67 4.00 6.90 9.27 1.68 4.00 6.88 9.22 12.64 1.68 4.01 6.86...
  • Page 88 Technical note ● Conductivity standard values at various temperatures Temp. Conductivity value at 25 °C (°C) 84.00 (S/cm) 1413 (S/cm) 12.88 (mS/cm) 111.8 (mS/cm) 64.01 7.15 65.4 65.00 8.22 74.1 67.00 1020 9.33 83.2 68.00 1147 10.48 92.5 70.00 1173 10.72 94.4 71.00...

  • Page 89: Appendix 2

    Printout summary ● Appendix 2 Printer format - Measurement Meter Model : HORIBA PC220 Serial Number : 123456789 SW Revision : 1.00 Date : 20 Aug 2018 Time : 10:10:28 Mode : pH : 7.00 pH : 0.0 mV Temperature : 25.0 C (MAN) Electrode Status : Excellent...
  • Page 90 Printout summary Relative mV Meter Model : HORIBA PC220 Serial Number : 123456789 SW Revision : 1.00 Date : 20 Aug 2018 Time : 10:10:28 Mode : R. mV R. mV : 3.0 mV Offset : -3.0 mV Temperature : 25.0 C (MAN) User Name Signature Conductivity...
  • Page 91 Printout summary Resistivity Meter Model : HORIBA PC220 Serial Number : 123456789 SW Revision : 1.00 Date : 20 Aug 2018 Time : 10:10:28 Mode : Resistivity Resistivity : 1000 M-Ohm/cm Temperature : 25.0 C (MAN) Electrode Status User Name Signature Salinity Meter Model...
  • Page 92 Printout summary Meter Model : HORIBA PC220 Serial Number : 123456789 SW Revision : 1.00 Date : 20 Aug 2018 Time : 10:10:28 Mode : TDS : 1.23 g/L Temperature : 25.0 C (MAN) Electrode Status User Name Signature Printer format - Data log Meter Model : HORIBA PC220 Serial Number...
  • Page 93 Printout summary Printer format - Calibration Meter Model : HORIBA PC220 Serial Number : 123456789 SW Revision : 1.00 Date : 20 Aug 2018 Time : 10:10:28 Calibration data Cal Date : 20 Jun 2018 Cal Time : 10:10:10 Cal Points : 4.01, 7.00, 10.01 Offset : 0.0 mV...
  • Page 94 Specifications ● Appendix 3 PC210 PC220 Model pH/ORP/EC/TDS/Sal/Res/Temp (°C/°F) pH Range -2.00 to 16.00 pH Resolution 0.01 pH Accuracy ±0.01 pH Calibration Points USA & NIST (Up to 5), DIN (Up to 6) pH Buffer Groups USA, NIST, DIN ORP Range ±2000 mV Resolution 0.1 mV (˂...
  • Page 95 Specifications Calibration Option Memory 1000 Auto Data Log   Real-time Clock  Date & Time Stamp  Auto Hold / Auto Stable / Real Time   Offset & Average Slope Display   Calibration Alarm (1 to 90 days) ...
  • Page 96 Specifications...
  • Page 97 31, Miyanonishi-cho, Kisshoin Minami-ku, Kyoto 601-8306, Japan http://www.horiba-adt.jp For any questions regarding this product, please contact your local agency, or inquire from the following website. http://global.horiba.com/contact_e/index.htm...

This manual is also suitable for:

Laqua-pc210Laqua-pc220
