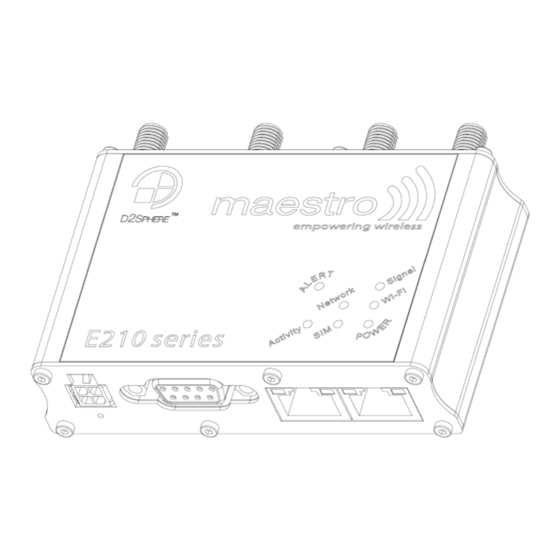

- Page 1 USER MANUAL E210 Series cellular router Version 1.4...
- Page 2 All rights reserved This document is for the use of intended recipients only, content may not be reproduced, redistributed, or copied in whole or in part for any purpose without prior consent from Maestro Wireless Solutions Limited. Maestro E210 Series...
- Page 3 Limited in relation to any software, solution or application. User shall assume the entire risk of using or relying on this software, solution, and application, and, Maestro Wireless Solutions Limited takes no responsibility for, and will not be liable for, the product or any related software being temporarily unavailable due to any technical issue occurred in any event.
- Page 4 Version and update Date Sep., 2017 1.0 First release Oct., 2017 1.1 RAM size and model list 1.2 Compatible models Nov., 2017 1.3 Compatible models Jun., 2018 1.4 Power consumption, Accessories and LED Status Indicator. Apr., 2019 Maestro E210 Series...
-
Page 5: Table Of Contents
Using the router in vehicle Protecting your router E210 SERIES COMPATIBLE MODELS PRODUCT FEATURES General specification Power consumption Back panel connection Front panel connection ACCESSORIES LED STATUS INDICATOR SETUP Prerequisite Connection the E210 router Software configuration TECHNICAL SUPPORT Maestro E210 Series... -
Page 6: Safety Precautions
Do not pull the power supply cable. Please attach or detach it by holding the connector after switching off the supply. Install and connect the router in accordance with this document. Failure to do so will void the warranty. Maestro E210 Series... -
Page 7: E210 Series Compatible Models
ζ2 ; or ζ3 Mbps Also Japan’s B9 subset - LTE cat. 4: 50 / 150 Mbps (FDD); 35 / 130 Mbps (TDD) In fact, the 2535 MHz ~ 2655 MHz subset of B41 24 April 2019 Maestro E210 Series... -
Page 8: Product Features
Idle (WLAN, LAN, Wi-Fi, RS-232 & TF card disconnected, cellular module off) Stand-by (WLAN, LAN, Wi-Fi, RS-232 & TF card disconnected, cellular module idle) Stand-by (WLAN, LAN, Wi-Fi, RS-232 & TF card connected, cellular module idle) W-CDMA in communication mode (Tx max.) LTE in communication mode (Tx max.) Maestro E210 Series... - Page 9 Stand-by (WLAN, LAN, Wi-Fi, RS-232 & TF card disconnected, cellular module idle) Stand-by (WLAN, LAN, Wi-Fi, RS-232 & TF card connected, cellular module idle) GSM in communication mode (PCL=5) GPRS (2Tx,3Rx)@900/850MHz (PCL=5) W-CDMA in communication mode (Tx max.) LTE in communication mode (Tx max.) Maestro E210 Series...
-
Page 10: Back Panel Connection
GPS antenna, SMA connector – Yellow Cellular main antenna, SMA connector – Purple MicroSD-XC card slot – Blue Dual SIM slots: Left: SIM 2; Right: SIM 1 Note: Depending on models, number of antenna connectors may vary. Maestro E210 Series... -
Page 11: Front Panel Connection
Back to default settings (push for 10 sec) – RS-232: 1. DCD 2. Rx 3. Tx 4. DTR 5. Ground 6. DSR 7. RTS 8. CTS 9. RI – Ethernet ports: Blue Left: Right: WAN or set as 2 P.10 Maestro E210 Series... -
Page 12: Accessories
ACC-A33H MIMO, 2G, 3G, 4G, 698 – 960 MHz & 1710 – 2690 MHz, 3 m cable Miscellaneous ACC-DIN-E210 Metal DIN Rail clip Snap-cap Converter: RS-232 DB-9 port into an isolated, half/full-duplex (switchable) 5-pin RS-485 port P.11 Maestro E210 Series... -
Page 13: Led Status Indicator
Weak signal (CSQ ≤ 12) Amber ON Strong signal (CSQ ≥ 12) Power off Power Green ON Power on No alert Alert Red Flashing Booting, SIM card not inserted, FW upgrading Red ON Hardware fault (i.e. overheated, memory corruption) P.12 Maestro E210 Series... -
Page 14: Setup
● Wi-Fi and cellular antenna ● Ethernet port or Wi-Fi connectivity on the computer ● Web browser; Internet Explorer 8+, Google Chrome, Mozilla Firefox or Safari for accessing the Maestro Web Admin Console ● DHCP set to enable Enabling DHCP on Windows: Start menu →Control Panel →Network and Internet... -
Page 15: Connection The E210 Router
Place the mini-SIM card on the tray with SIM chip facing up. iv) Insert the tray back in place carefully. Connecting the AC power Connect the A.C. power cord as shown below and refer to Section 4.3 in Green, D.C. Power. P.14 Maestro E210 Series... - Page 16 Dual cellular antennae improve data throughput/performance on cellular data transfer rate. Cellular antenna selections base on frequency bands of cellular network operators in individual countries, refer to Section 2, E210 series compatible models or contact Maestro technical support https://support.maestro- wireless.com P.15...
- Page 17 Connecting the router to a computer Connect an Ethernet cable between the LAN port of the Maestro router and a computer as shown below and can refer to section 4.2 in Blue, Ethernet ports. P.16 Maestro E210 Series...
-
Page 18: Software Configuration
Password admin Note: Username and password are both case sensitive. Enter the above default login credentials when the below appears on the web browser; Click Quick Setup as shown below to go to Network Setup page; P.17 Maestro E210 Series... - Page 19 LAN, WAN, Cellular and Wi-Fi, then click Save & Apply to store the configuration. In Cellular, all fields such as APN depend on SIM cards provider/cellular network operator, enquire with them for authentication credentials if needed. P.18 Maestro E210 Series...
- Page 20 (if the default setting is used). To see the status of the cellular connection, from the pull-down menu at the top, click Status and scroll down to Cellular as shown below; P.19 Maestro E210 Series...
-
Page 21: Technical Support
7 TECHNICAL SUPPORT For further technical queries on Maestro products, please visit Maestro support website: http://support.maestro-wireless.com/ to fill the on-line form for submitting a support request ticket. P.20 Maestro E210 Series... - Page 22 - End - P.21 Maestro E210 Series...
